Hawke 753 NEC Compliant Barrier Cable Gland CT-4613

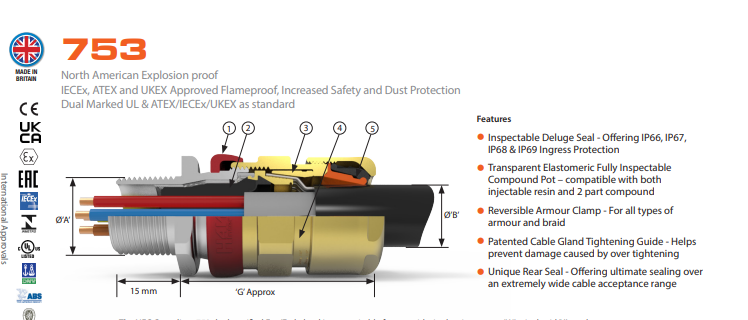

The Hawke 753 is a premier, dual-certified Exe/Exd barrier cable gland designed for high-stakes hazardous areas, including Division 1 and Zone 1 environments. Engineered for use with single wire armour, wire braid, and steel tape armour, it provides a robust barrier seal to individual cores, preventing the migration of explosive gases through the cable system
In the field, the 753 stands out with the world’s only NEC-compliant transparent elastomeric compound chamber, allowing installers to visually verify the flameproof seal during and after installation. With a fast 30-minute cure time using ExPress liquid resin or QSP hand-mix putty, it significantly reduces downtime while the patented Tightening Guide prevents cable damage from over-tightening.
Key Features:
✅ Dual Marked: UL Listed and ATEX/IECEx/UKEX certified for global versatility
✅ Multi-Hazard Protection: Flameproof (Exd), Increased Safety (Exe), and Dust Protection (Extb)
✅ Ingress Protection: IP66, IP67, IP68, and IP69 ratings for extreme water and dust resistance
✅ Inspectable Deluge Seal: Offers DT501 compliant protection against harsh marine environments
✅ Reversible Armour Clamp: Accommodates all types of armour and braid with simple orientation changes
✅ Patented Tightening Guide: Provides a permanent visual indication of correct gland tightness
✅ Transparent Compound Pot: Allows for full visibility of the seal integrity during installation
✅ Wide Temperature Range: Reliable operation from -50°C to +80°C
✅ Material Excellence: Manufactured in Brass, Nickel Plated Brass, or 316L Stainless Steel
📦 Package Options:
🔹 ExPress Resin Standard: All glands supplied with liquid injectable resin for fast 30-min curing
🔹 QSP Option: Available with 2-part hand-mix Quick Set Putty upon request
🔹 Material Variations: Choice of Brass (Standard), Nickel Plated (NP), or Stainless Steel (SS)
🔹 Alternative Rings: Optional “R” suffix for alternative clamping ring sizes
Hawke 753 Technical Specifications:
| Feature | Details |
|---|---|
| Product Model | Hawke 753 NEC Compliant Barrier Gland |
| Hazardous Area Ratings | Class I Div 1 & 2; Zone 1, 2, 21, 22; ATEX/IECEx/UKEX |
| Material Options | Brass, Nickel Plated Brass, or 316L Stainless Steel |
| Ingress Protection | IP66, IP67, IP68, and IP69; Type 4X |
| Operating Temp | -50°C to +80°C |
| Cable Types | TC, TC-ER, TC-ER-HL, PLTC, PLTC-ER, ITC, ITC-ER, Type P, Marine Braid |
| Barrier Seal | ExPress Liquid Resin or QSP 2-part Putty (30 min cure) |
| Armour Compatibility | SWA (W), Braid (X), Steel Tape (Z) |
| Entry Thread Sizes | Metric M20 to M75; NPT 1/2" to 3" |
| Special Features | Transparent Inspectable Chamber & Patented Tightening Guide |
Certifications & Compliance:
🔗 NEC/CEC Class 1 Div 1 – Protection for Groups ABCD, Class 2 Div 1 EFG, and Class 3
🔗 ATEX/IECEx – Ex db IIC Gb; Ex eb IIC Gb; Ex tb IIIC Db certificates for Zone 1 and 21
🔗 Ingress Protection – IP66, IP67, IP68 (30m for 7 days), and IP69
🔗 Marine Approvals – Certified by ABS, BV, and DNV for shipboard and offshore use
🔗 Download Datasheet
Applications of Hawke 753:
🔹 Oil & Gas (Offshore Platforms & Refineries)
🔹 Chemical Plants
🔹 Mining (Dust Ignition Protected Areas)
🔹 Labs & Research Facilities
🔹 Manufacturing & Heavy Industrial Processing
What’s in the Box?
📦 1x Hawke 753 Cable Gland
📦 1x ExPress Barrier Resin (Standard) or QSP Putty
📦 1x Reversible Armour Clamping Ring
📦 1x Assembly Instructions
📦 1x Integrated Tightening Guide
Ordering & Shipping Details
📦 Lead Time: 1 Week
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 IVC AMZ-HD41-3 Explosion Proof CCTV Camera
FAQs:
Can I inspect the seal after it has cured?
Yes, the 753 features a unique transparent elastomeric chamber that allows for full visibility of the flameproof seal during both installation and future inspections
What types of cable armour can this gland handle?
The 753 is suitable for Single Wire Armour (W), Wire Braid (X), and Steel Tape Armour (Z) thanks to its reversible clamping ring.
How do I prevent over-tightening the gland?
The gland includes a patented inbuilt Tightening Guide that provides a visual indication when the correct torque is reached, preventing cable damage
Is the resin included?
Yes, all Hawke barrier glands are now supplied with ExPress liquid resin as standard unless the QSP putty option is specifically requested
