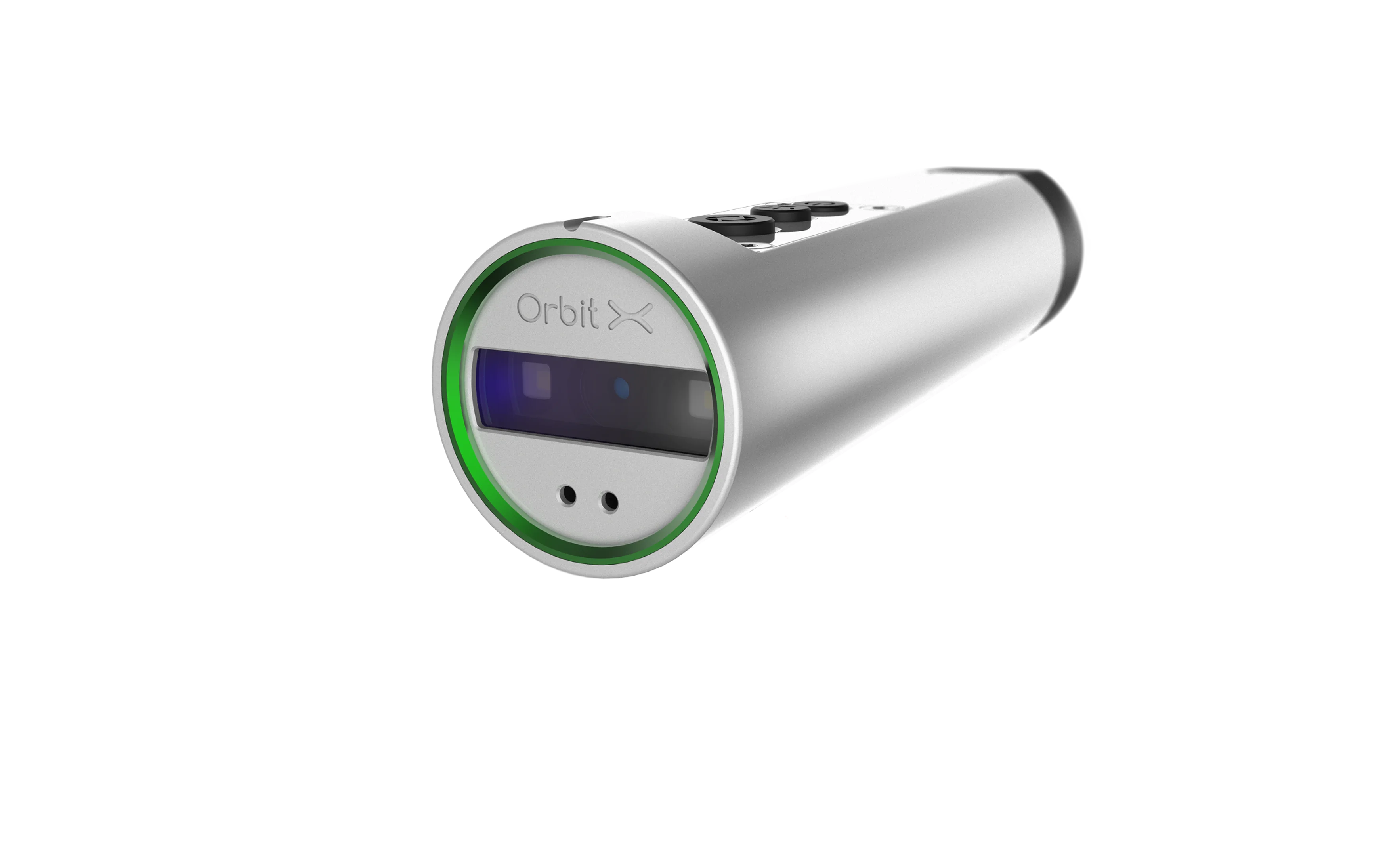

The Bartec Pixavi Orbit X Explosion Proof Wi-Fi Camera is a complete communication device to use within hazardous areas. This revolutionary device is lightweight, small, and battery-operated to allow you to transmit the “eyesight” of users in the field. It features duplex audio communication and crystal crisp full HD video. The camera has an HD imaging sensor, two powerful LED lights, and a laser pointer fitted into an extremely compact form. The Orbit X enables you to capture images and video in HD, as well as to conduct, live video conferencing and CCTV-type video streaming sessions wirelessly in ATEX Zone 1 hazardous areas.

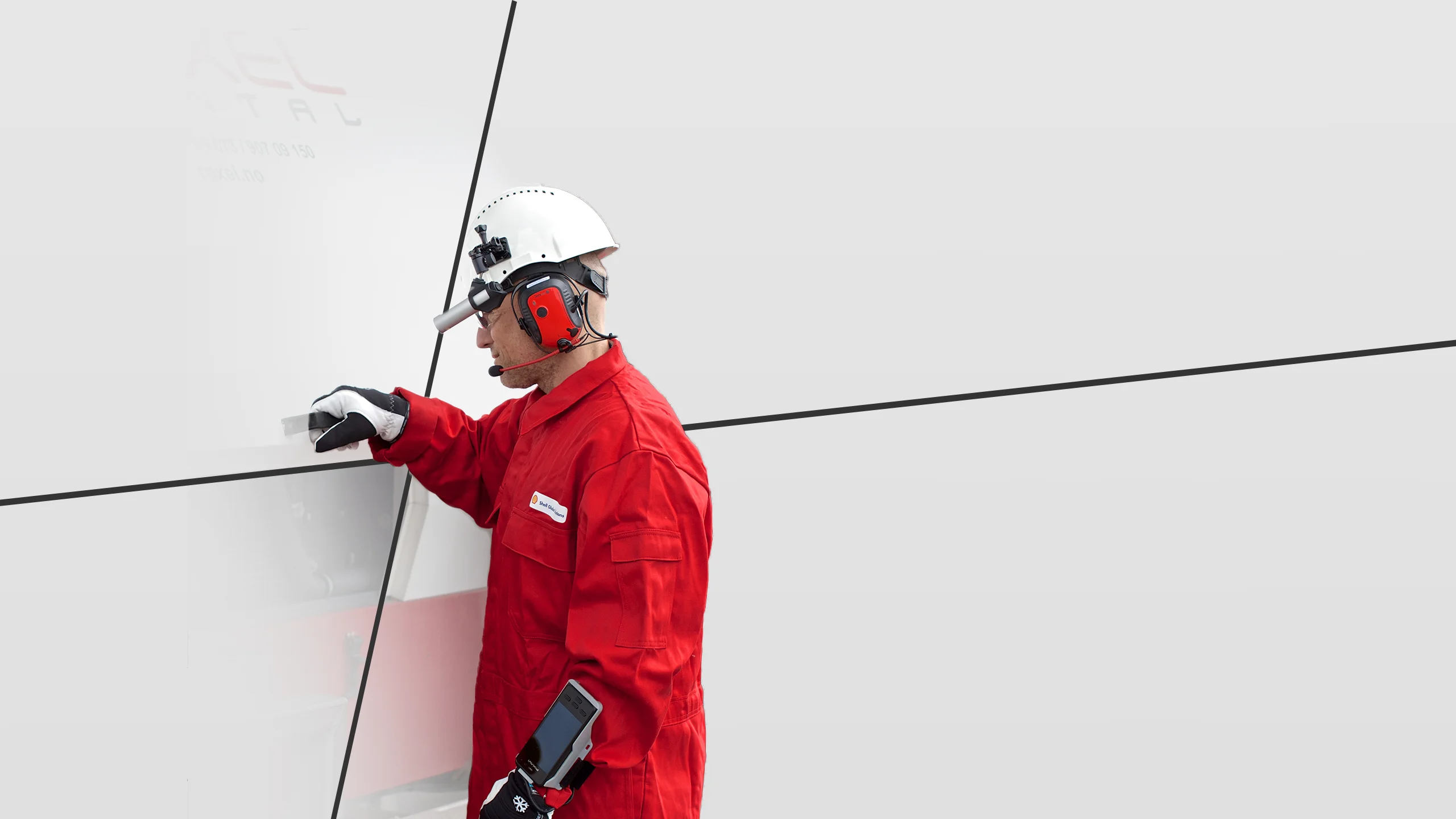

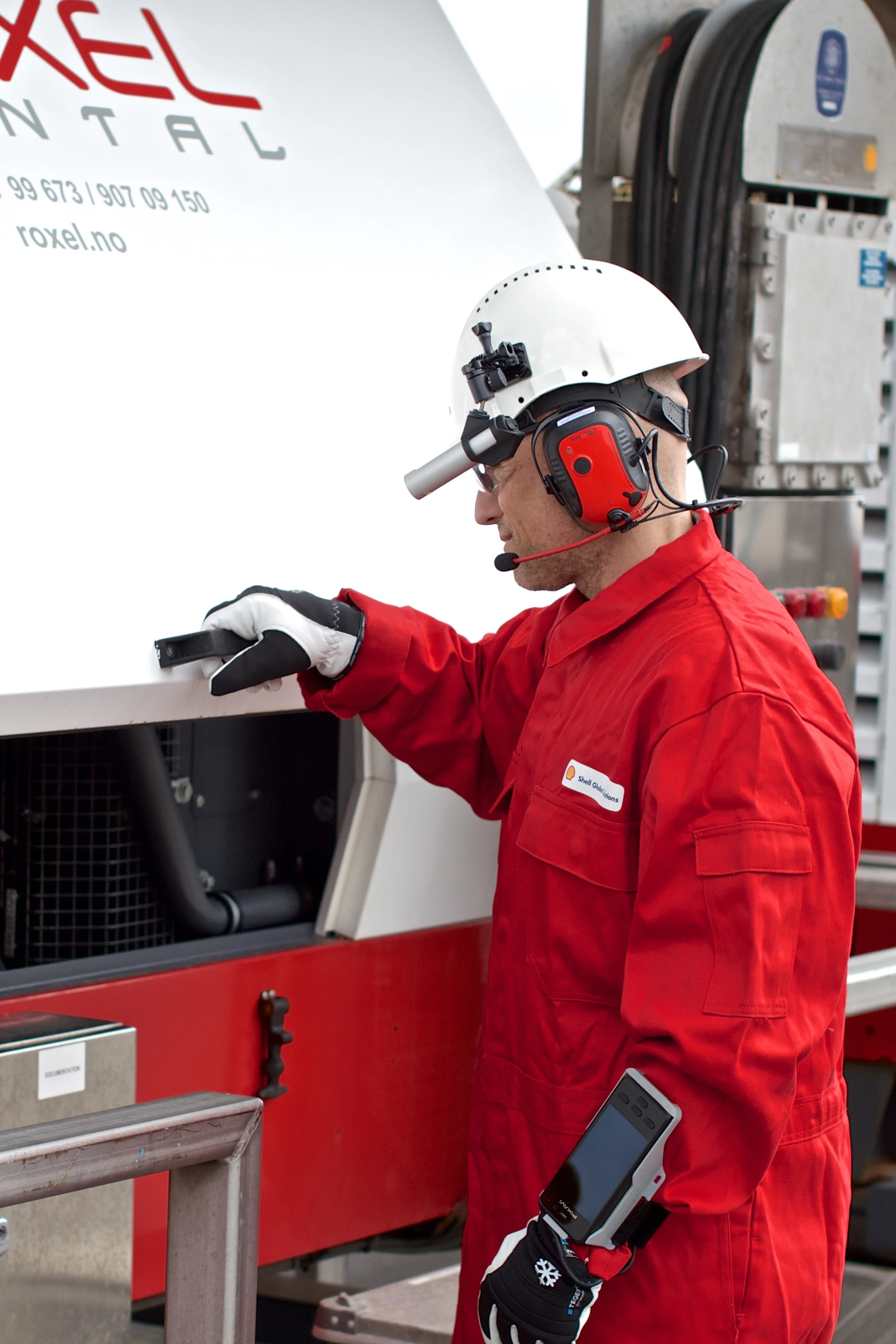

The camera takes vibrant and crisp images in 1080 resolution and video which be stored locally on the device or streamed in high quality over Wi-Fi. It is designed to be used in confined, dark, and hard-to-reach areas. With a focus on simple, user-friendly operation in a compact, power efficient, and rugged design, it is a very versatile product. The Orbit X can be used as a helmet, inspection, or surveillance camera. It can be used as a standalone camera as well as in combination with the Impact X Intrinsically Safe Smartphone or Gravity X Intrinsically Safe Camera.
Features:
- IECEx, ATEX, and CSA Zone 1 certified
- Extremely easy to use
- Video Conferencing (Interoperable with Cisco, Polycom, Skype, WebRTC, and others)
- Dual-Band WiFi (2.4 GHz and 5 GHz)
- High-End Lens and Camera with a 1/3” size backlit CMOS
- 1080P 30fps Full-Duplex Video Encode/Decode/Recording
- 8 Megapixels still image capture
- Bluetooth support for headsets
- HD Quality Audio for recording and communication
- 2 integrated digital microphones with noise cancellation
- More than 100 minutes of recording in one battery charge
- Double LED lights for scene illumination
- Laser pointer for scene composition (eliminates the need for display)
- Cloud-managed using Collaboration X
- Unlimited cloud storage (optional)
- 32 GB internal storage
- 100 grams weight
- Water-, vibration- and impact proof
Full HD video conferencing
The Orbit X Explosion Wifi Camera is a BARTEC PIXAVI innovation and technology. It is the toughest, smartest, and smallest CSA, IECEx, and ATEX Zone 1 explosion proof camera.
The camera is very flexible and user-friendly. The SIPIDO app enables you to do full HD video conferencing wirelessly and the Wi-Fi camera can stream video to any SIP video conferencing system.
It is also possible to record images and video locally and transfer them to a computer using USB. It features 32 GB of internal memory that allows you to save several thousand images and hours of high-definition video. The Media Library functionality Collaboration X Cloud Management Solution can also be used for unlimited storage

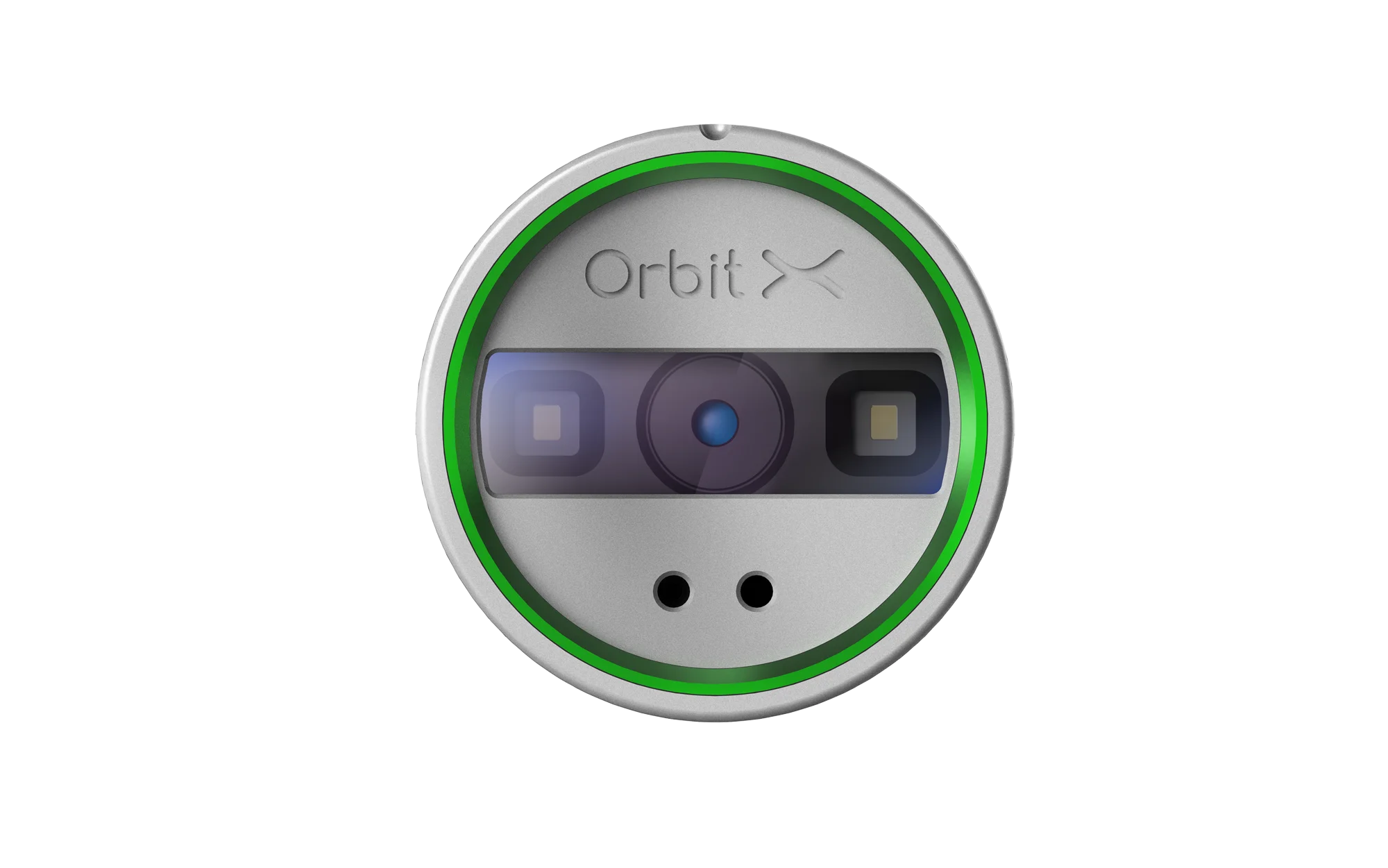

Integrated LED and Laser
For illumination in the dark, confined areas, Orbit X is equipped with two powerful video light LEDs. The LED light will not trigger any optical alarms. The integrated laser pointer allows for easy collaboration when in areal-time communication sessions, and can be used for pointing and explanation. The light and laser can be toggled on and off with the touch of a button.
Connectivity and Management
You can use any browser to manage the Orbit X remotely. This is made possible through the use of Collaboration X Cloud Management Solution. The Orbit X can also be configured wirelessly with any Android smartphone, including the Impact X and Gravity X. The Orbit X app for configuring the device from an Android device is available on Google Play.
Modes of operation
For a wide range of inspection, maintenance, documentation, communication, and cooperation duties, the Orbit X explosion-proof wifi camera is ideal. To utilize it as an endpoint for cloud-managed video conferencing it is capable of both recording locally and connecting to the cloud. Wirelessly, images and videos may also be exchanged.

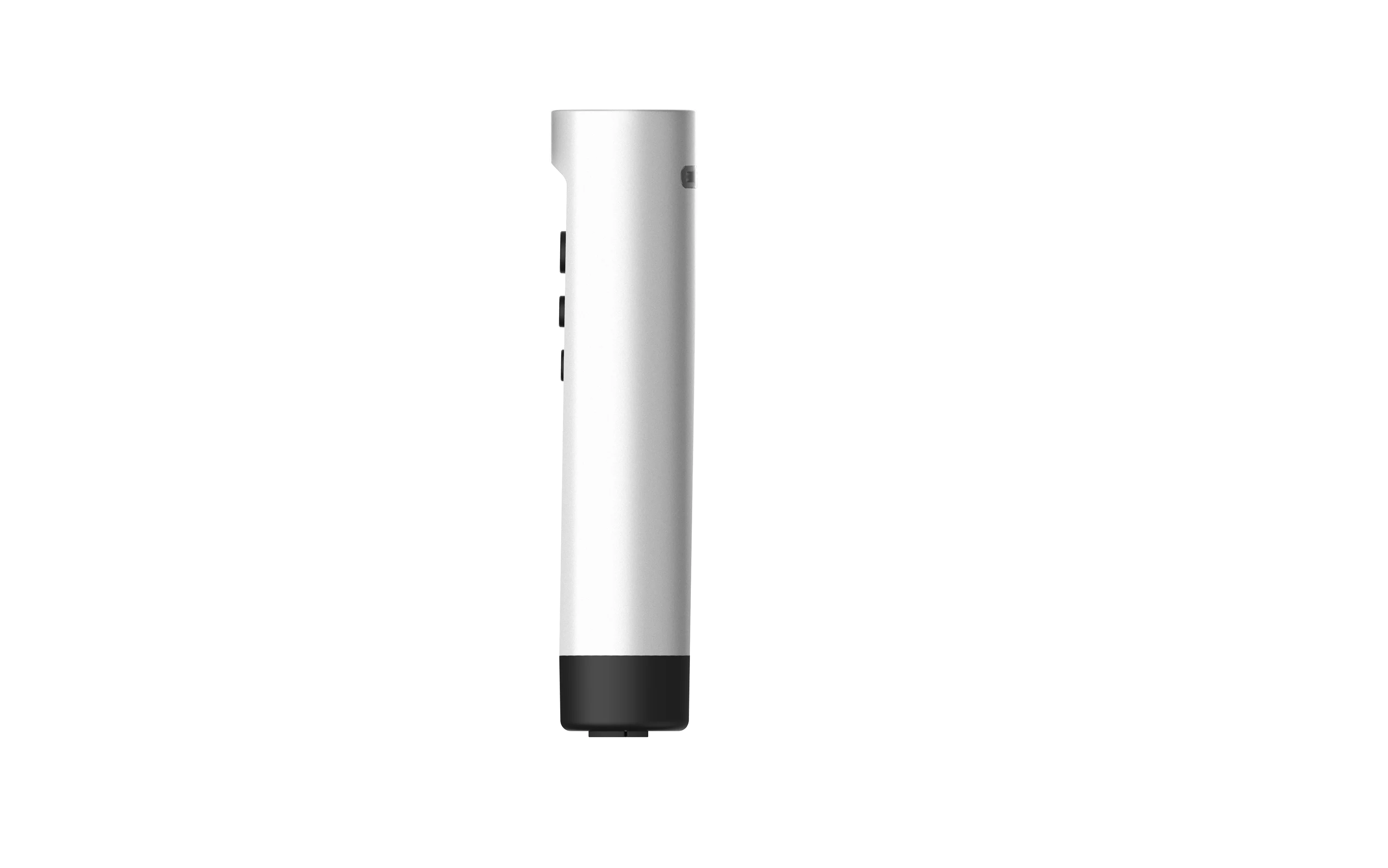

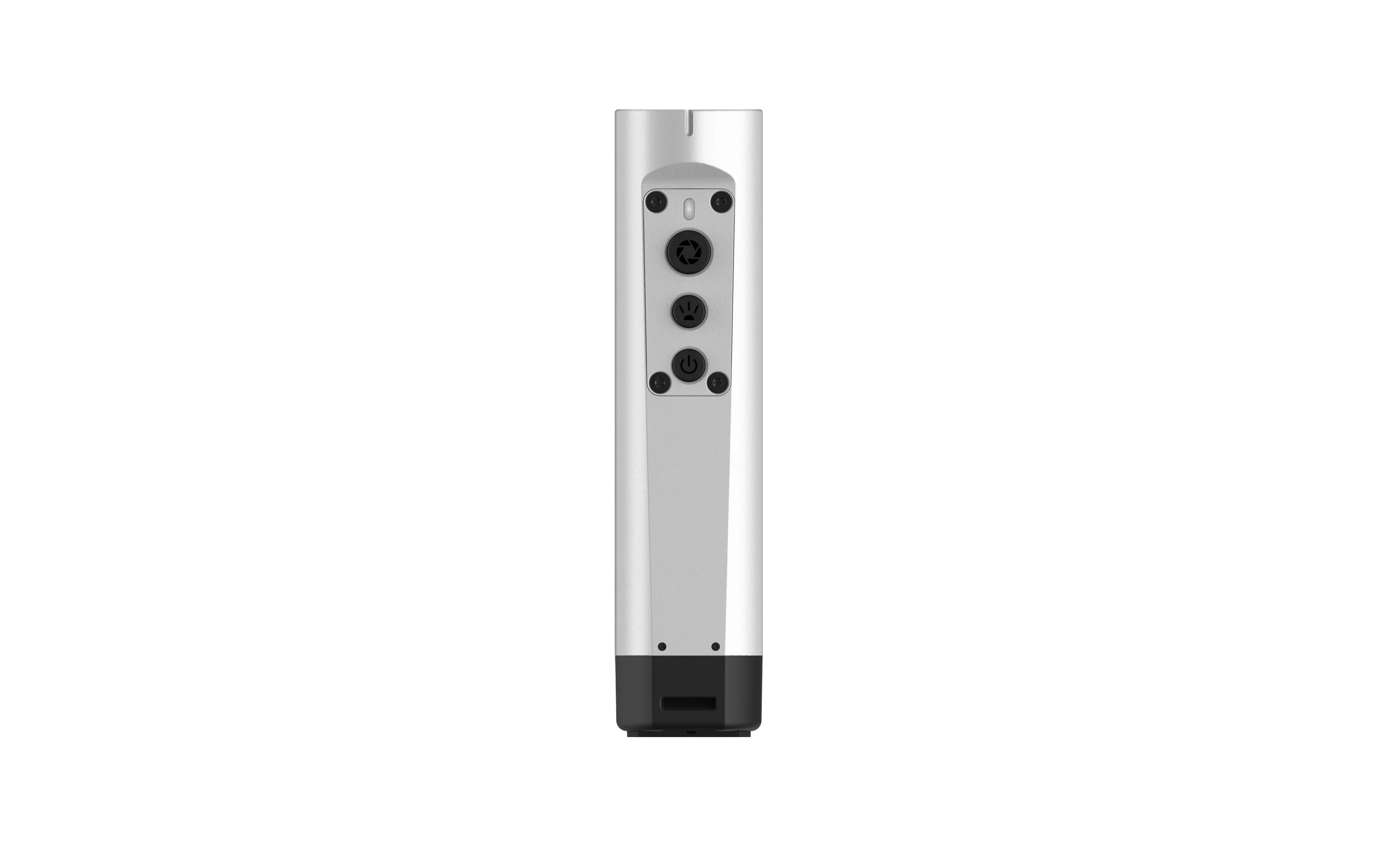

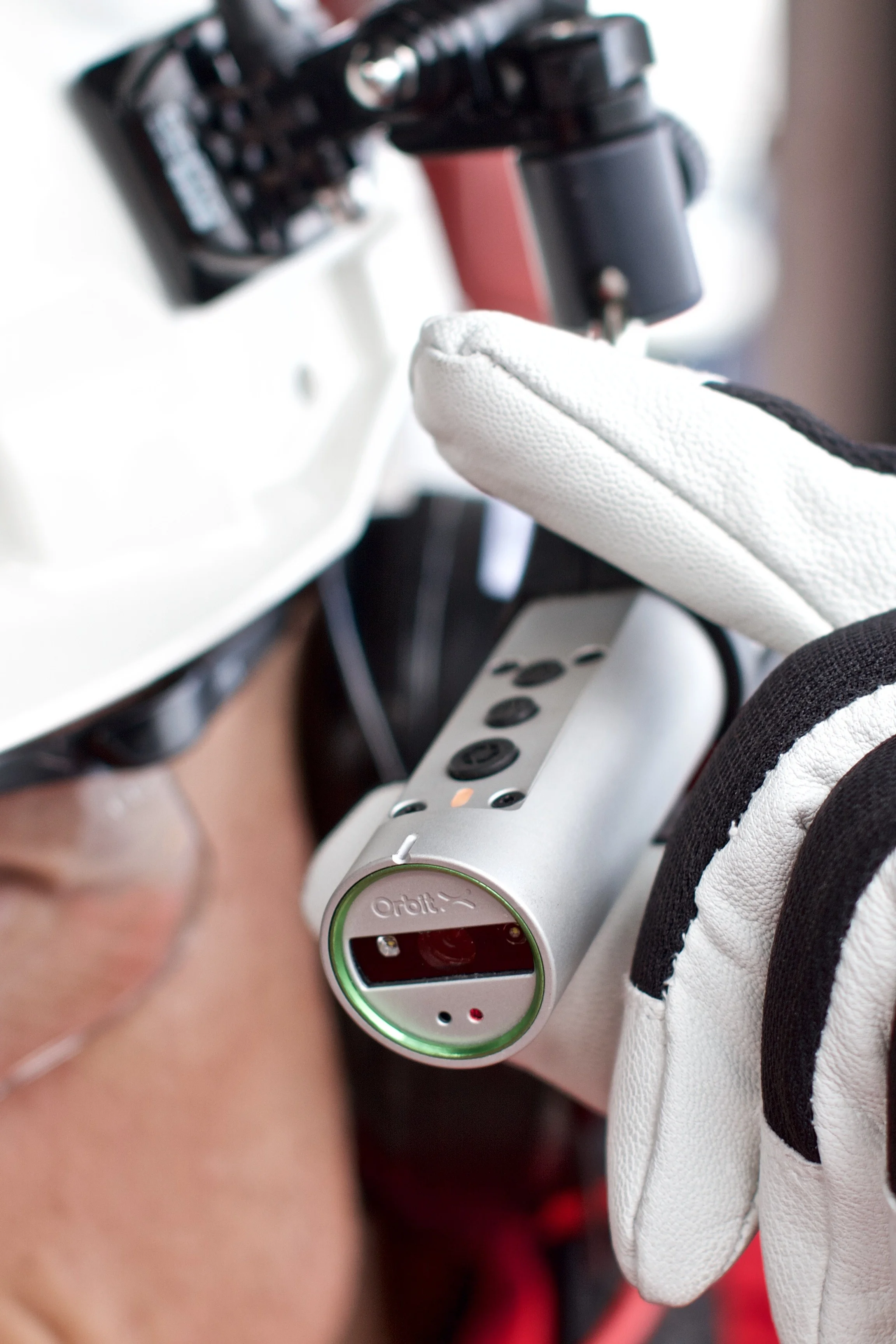

Buttons and indication
There is a button for each function (illumination/laser, recording/snapshot, and on/off) which makes this device ultra-powerful. It also comes with a guide and is simple and quick to set up for the first time. You can use the Impact X intrinsically safe smartphone or a regular Android smartphone or a computer with a browser to pair the Orbit X with a Wi-Fi network for the first time.
Headsets
Orbit X is also used as a wireless video headset through the use of a simple headset connection. The built-in Bluetooth allows wireless headsets to work effortlessly. Check out our Intrinsically Safe Accessories section for more information.

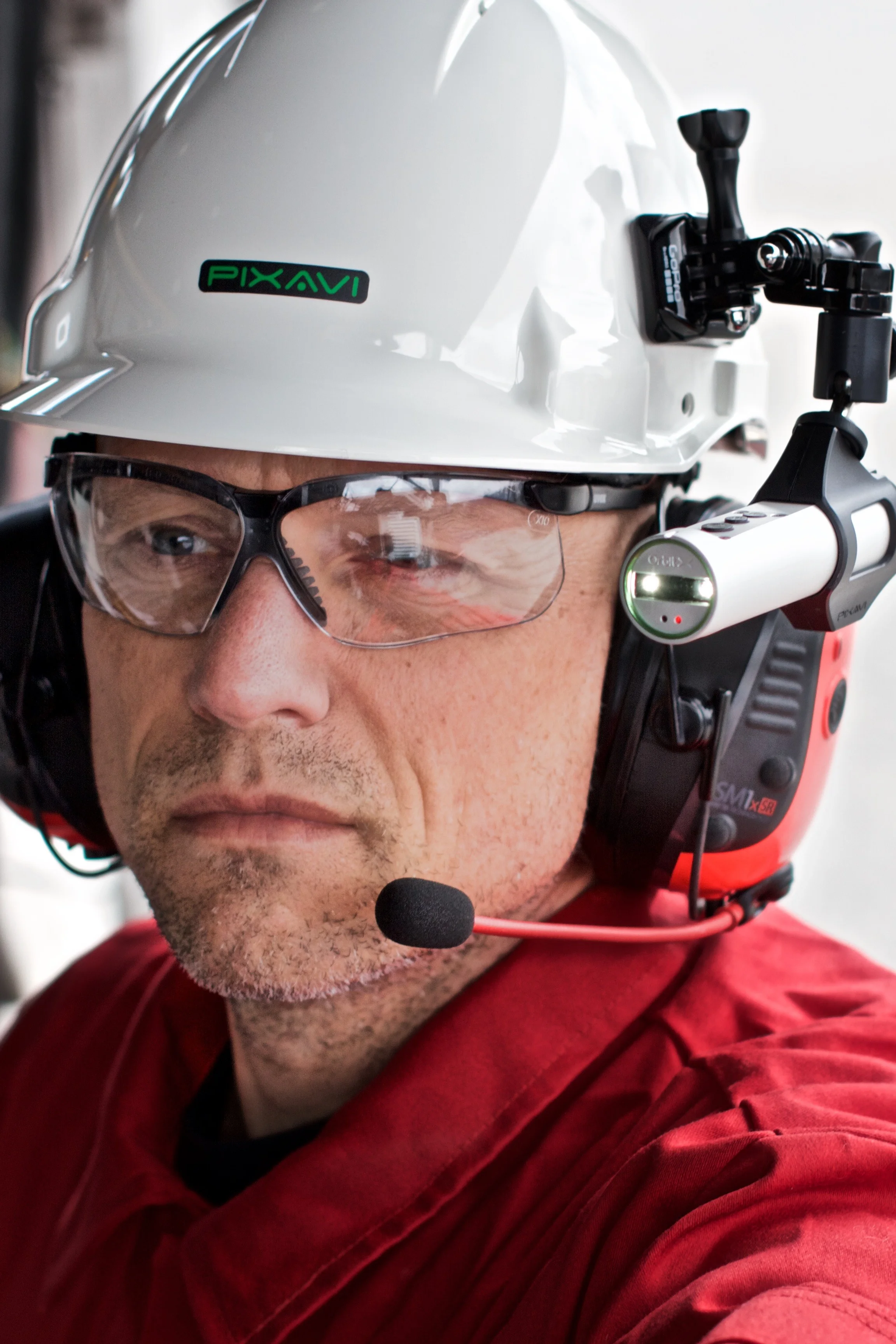

Universal mounts

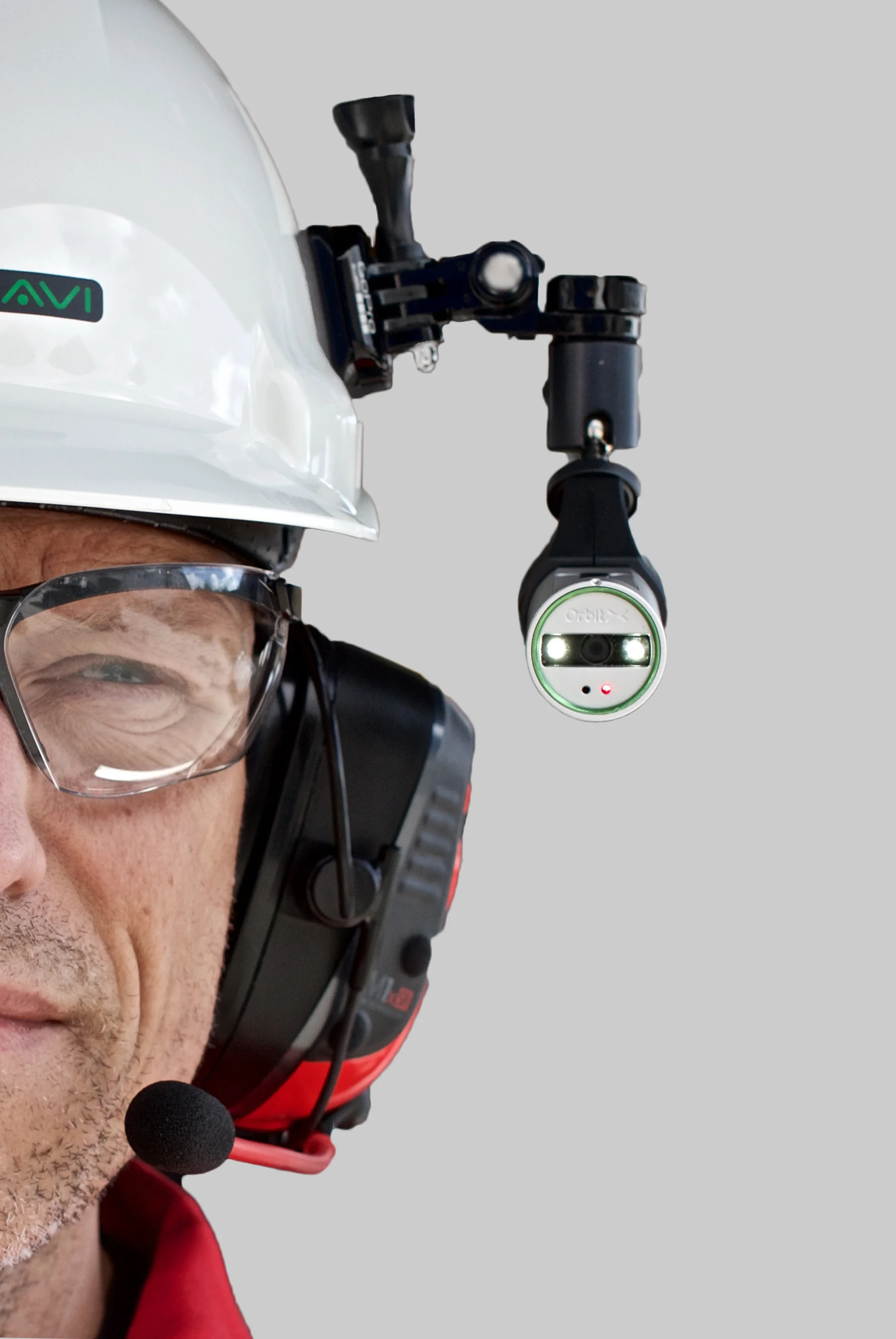

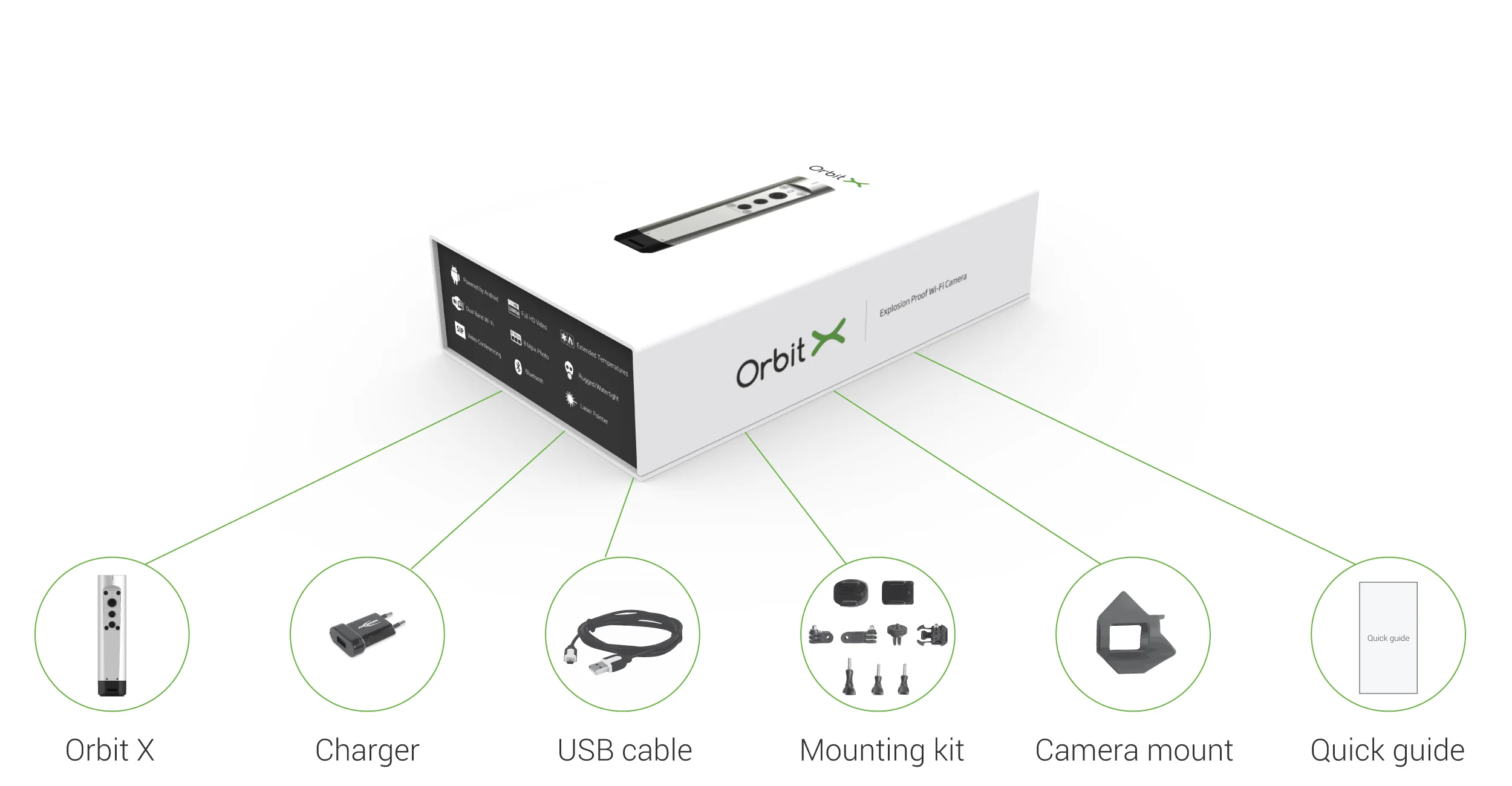

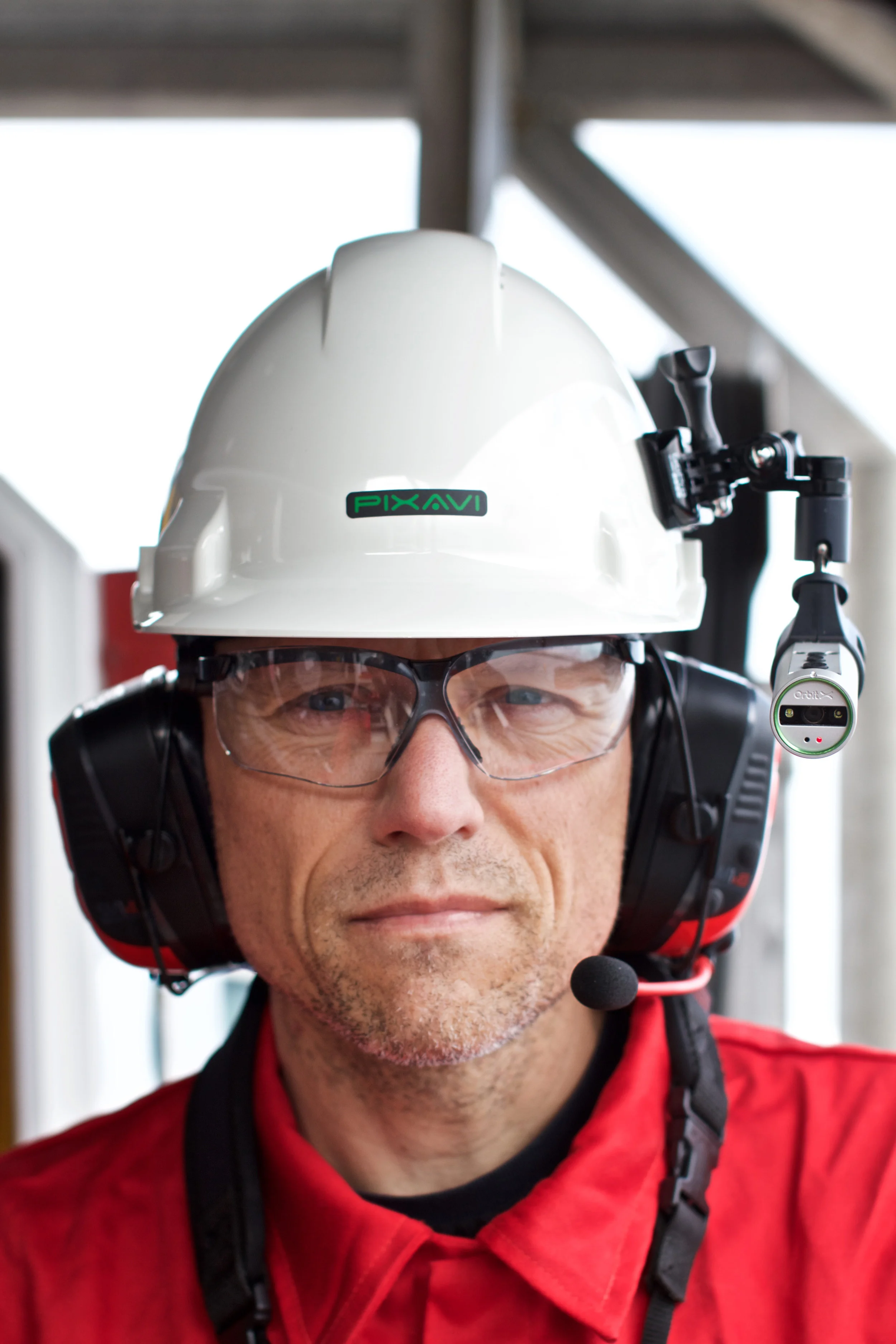

There are available cases and mounts for Orbit X so every user can use the device to its full potential. Included in the package are helmets and wall mounts. Use the camera’s telescopic rods to shoot and inspect those hard-to-reach areas. Quick and secure docking is possible in any location. A strap mount is also available and other accessories such as neck and wrist straps.
New Orbit X App
The configuration of Orbit X is done using Collaboration X or the Orbit X app because the device was built with no display or keyboard in mind. The Orbit X app is now available for all Android devices (4.4 or newer) on Google Play, as well as on all BARTEC PIXAVI mobile devices, the Gravity X Intrinsically Safe Camera, and the Impact X Intrinsically Safe Smartphone. When the Orbit X is paired with an Orbit X app running on an Android smartphone you can:
- View live video from Orbit X
- Device name configure
- Bluetooth headset Configure
- Wi-Fi networks Configure
- SIPIDO predefined number and settings
- Access device information
- Take images and videos with Orbit X
- Factory reset and delete all media
- Toggle LED and laser light on/off
The Orbit X, combined with Collaboration X and the Orbit X app is a powerful and versatile collaboration tool for any remote assistance, diagnostics, or inspection task. Get started today!
Mobile Device Management is Included
Device management and information, location tracking, remote wiping, Wi-Fi and password policies as well as multiple user accounts are just a few of the free Collaboration X features available for all PIXAVI users all over the world. The benefit is increased security, transparency, and ease of use. You can also download directly to your computer using Media Library. Get started in less than 5 minutes by creating a free account at collaboration-x.net and associating your device.
Software and security updates is also included
BARTEC PIXAVI mobile devices will receive software upgrades. As a result, the smartphone is the safest on the market because to its quick distribution of security updates. Make sure that you are using the latest software version of your Bartec Orbit X for more improved security, functionality, and battery capacity.
Get the latest software by using the “Software Update” app on your BARTEC PIXAVI device.
| Video and imaging | |
| Video Resolution | Full HD video (1080p, 30 FPS) |
| Image Resolution | 8 megapixel still images |

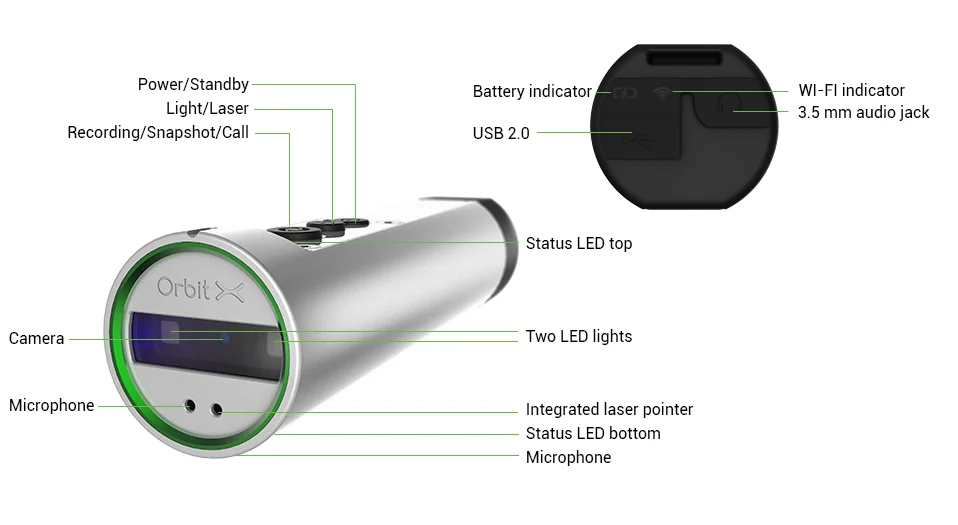

| Buttons | Power/Standby, Light/Laser and Recording/Snapshot/Call |
| Codecs | H.264/AVC codec |
| Storage | 16-32GB of internal video and image storage |
| Image Sensor | 1/3 inch high end CMOS sensor (8 Mpix) |
| Light Modes | Powerful Video LED light |
| Certifications | |
| Ex Certified | ATEX / IECEx Zone 1 Ex ib IIC T4 |
| Ex ib op is IIC T4 Gb | |
| CSA (CAN/CSA) | Class I, Ex ib IIC T4 Gb |
| CSA (ANSI/UL) | Class I, Ex ib IIC T4 Gb |
| IP Grade | IP68 water proof |
| Shock Resistance | 4 Joule shock / 2 meter drop |
| Wireless | CE, FCC and IC |
| HS Code | 8525 80 99 |
| ECCN | 6A003 |
| Country of Origin | Made in Norway |
| Technical Specs | |
| Operating System | Android 5.1.1 Lollipop (updates available) |
| CPU | Dual core 1.2 Ghz processor |
| Battery | Integrated high capacity battery |
| Memory | 32GB built in |
| Video Codec | 1080p, 30 FPS video |
| Power | |
| Battery Size | 1100 mAh |
| Standby | 200 hours |
| Video Streaming | Up to 1 hour |
| Video Recording | Up to 1,5 hours |
| Wireless | |
| Bluetooth | Bluetooth |
| Wi-Fi | 802.11abgn (2,4 + 5 ghz) |
| Audio | |
| Microphones | 2 Digital (speech + surroundings) |
| Noise Canceling | Active noise cancelling |
| Audio Communication | Full duplex audio communication |
| Audio Codecs | CD quality (G.722) |
| Bluetooth | Bluetooth audio headset support |
| Headset | 3.5mm audio jack |
| Physics | |
| Length | 117,5 mm |
| Diameter | 27 mm |
| Weight EX version | 105 grams |
| Weight ST version | 85 grams |
| Storage Temperature | -40°C to +60°C |
| Operating Temperature | -20°C to +45°C |
| Camera Glass | Gorilla glass impact proof |
| Material | Aluminium |
| Surface | Hard anodized scratch free surface |
| Mounting | Helmet and wall mount included. Tripod and telescopic pole available as accessories |
| Connectors | Covered USB and audio jack. (ST version available with micro HDMI) |
| Configure | |
| Setup | Configure the Orbit X camera using the Orbit X app (Android 4.4 or newer) |
| Device Management | Cloud Managed from Collaboration-X.net |
| Networking | |
| Video Conferencing | SIP |
| Streaming | ISMA, RTSP, HTML5, WebRTC, Onvif (software update) |
| Firewall | Firewall traversal technology |
| STUN | STUN server support |
| QoS | Diffserv, IP presedence (QoS) |
| Included | |
| Charger | USB charger included. EU / US / UK and AU version specified on order. |
| Warranty | 1 year hardware warranty |
| User Manual | Quick Guide and online manuals |
| Applications | |
| HD Video Collaboration | SIPIDO app |
| Management Solution | Collaboration-X.net |
| Media Library | View images and video in browser |
Pam –
For the price, this explosion proof Intrinsically Safe Camera from Bartec is worth it. It is ready for use whenever you need it. It has wifi and Bluetooth support plus it can mount very easy. The image and video output is crystal clear and I enjoyed the wireless transfer of my files.
