Intrinsically Safe Cell Phone Bartec Impact X
Intrinsically Safe Cell Phones

Bartec Impact X Cell Phone/Smartphone

Out of Stock
SKU: 03-9810-0163
$0.00

Safety Specifications

Incl. accredited factory seal & certification stamps
ZoneZone 1
Hazardous AreaClass 1 Division 1
Product Description

Impact X Intrinsically Safe Cell Phone by Bartec is one of the best Intrinsically Safe Smart Phones on the hazardous area, explosion proof market. Certified for Class 1 Divison 1 and ATEX Zone 1 and Zone 2 for CSA – US and Canada, IECEx, ATEX certified.

Note: The screen of Impact X is simply NOT repairable so we recommend that you get the protection bundle which includes one black silicone casing and one screen protector. They can help protect your phone from accidental drops, scratches, and vibrations.

IMPORTANT UPDATE: This model has been DISCONTINUED.

SEE SIMILAR : Bartec Pixavi Smartphone

Technical Datasheet

Certification & Specification

Country of OriginGermany (DE)
ATEX Safety / ZoneZone 1
Hazardous Area RatingClass 1 Division 1

Product Overview

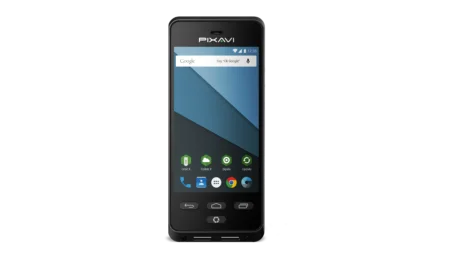

The Impact X Intrinsically Safe Smartphone by Bartec is one of the best intrinsically safe cell phone/smartphone's in the hazardous area, explosion proof market.

  • ATEX Zone 1
  • IECEx
  • CSA - US and Canada
  • High Definition Intrinsically Safe Camera / Intrinsically Safe Video Camera (8 Megapixels digital photos and digital video)
  • 4G LTE
  • Easy glove touch for when working in Hazardous Area / Intrinsically Safe environments

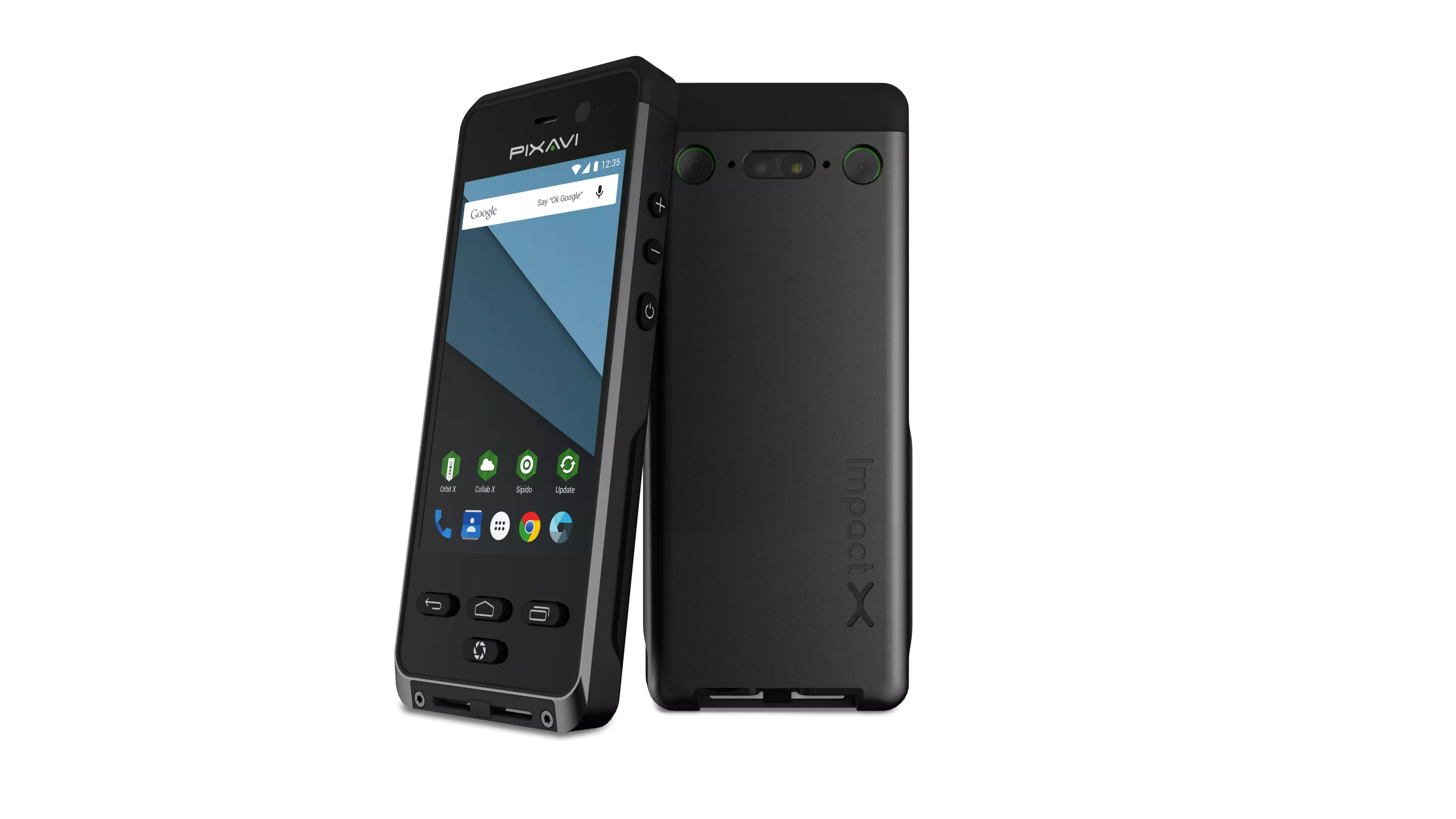

The BARTEC PIXAVI Impact X Explosion Proof Cell Phone comes with an updated version, including 4G LTE, latest Android version and improved technical specifications. The Impact X has all the functionality you will expect from a regular smartphone. The IECEx and ATEX Zone 1 certification has not compromised the quality and usability. The device is explosion proof and rated for use in hazardous areas.

As you have seen in the video professional grade photography and video can be started with a dedicated camera button. The button has a two-step procedure like your DSLR camera.

Easy to use Intrinsically Safe Cell Phone For Explosion Proof Environments

Not just a mobile phone but amazing optics and very fast zoom and autofocus make this Intrinsically Safe Cell Phone Impact X a very powerful product from Bartec. The Cell Phone Camera enables high quality still images, crisp audio, and HD video capture in hazardous areas with the ability to immediately upload and save them to a secure network or computer.

This Intrinsically Safe Camera also has an extremely light sensitive image sensor and powerful LED light, enabling it to take great images in dark and confined spaces.

A great Intrinsically Safe Cell Phone for when you are in Hazardous Areas

In the past very Ruggedized and Intrinsically Safe Cell Phones have been clunky beasts with low performance and outdated technology. Bartec Impact

Impact X has changed the Intrinsically Safe Cell Phone game by offering a mobile phone form factor (minus the ability for calls). If you need a quality Intrinsically Safe Mobile Phone the Bartec Impact X is also a very good choice. Overall  Bartec's take on an Intrinsically Safe Cell Phone really did go out and change the norm!

This Intrinsically Safe Cell Phone's form factor is not only great but the boot time is only 0.5 seconds.  With a dedicated camera button allows a user to quickly and easily take images on the spot. The camera can be fitted with a rugged strap mount for increased availability and dropped object safety.

Many Smart Phone Apps To Fit Your Hazardous Area Needs

The Intrinsically Safe Impact X comes with several pre-installed camera apps and even more is available on various app stores. This allows the user to customize the camera and have more usage scenarios. For example, you can now have access to apps for remote triggering of images, timed images, landscape shots, time laps and many others.

FlipScape

Did you ever wonder why many mobile videos are shown in a narrow strip in the middle of the video window on Youtube? The reason is that people want to hold their phone with one hand when recording videos. Flipscape solves this. Portrait mode or Landscape mode this Intrinsically Safe Digital Camera handles it for you. Pictures will come out right whatever way you hold the device. The Impact X changes to the second camera which is rotated 90 degrees compared to the other camera. You can now record landscape videos with one hand and have the other hand free to be safe in your Hazardous Areas.

Ergonomic Intrinsically Safe Digital Cell Phone Features

The Bartec Impact X Explosion proof camera has a glove compatible touch screen and weight of only 290 grams which allows the users to bring the camera to any environment. The easy form factor is very attractive, it can easily fit in one hand, and inside a normal pocket. You can get custom covers, cradles, and straps for increased usability and safety.

Double battery capacity

The Impact X is stuffed with advanced technology in order to offer the best possible performance in a very small form factor. Efficient processors ensure the lowest possible power consumption. We decided to add double the battery capacity compared to consumer devices. A 3000mAh battery ensures many active workdays of power.

Immune to the Hazardous Area elements

The Impact X is ruggedized to an extent that makes it able to take almost any challenge the environment might throw at it. It is impact proof, drop proof, dustproof, corrosion proof, and waterproof, and ability to withstand extreme temperatures. Special glass Sealing method to enable IP68 Gorilla glass (2mm thick) as well as a sunlight readable IPS Display. We also recommend you use the additional case to offer even more protection

Intrinsically Safe Android Smart Phone: Operating System

Google's Android enables a high-performance media framework and easy-to-use, intuitive interfaces. The operating system is quick, familiar, and customizable. Android is easily updated, secure and future-proof. There is a growing community of app developers, which allows for customizations and new functionality. the impact X is a stripped down version of the Bartec Impact X, where Bartec has removed the 3G wireless and SIM card capabilities to enable a lower price. We could easily have called it a mini-tablet since it has all the same functionality as an Android tablet. The BartecImpact X Cell Phone does not have a SIM-card slot, and it can, therefore, be used where non-Intrinsically Safe cellphones are not allowed. Comes installed with Android 7.1.2 Nougat

Mobile Device Management

Enterprise Security is vital on any mobility product from Intrinsically Safe Digital Cameras, Intrinsically Safe Tablets, Intrinsically Safe Mobile Phones to Intrinsically Safe Computers. Device management and information, location tracking, remote wiping, Wi-Fi and password policies as well as multiple user accounts is just a few of the free Collaboration X features available for all PIXAVI users all over the world. The benefit is increased security, transparency, and ease of use. You can also download directly to your computer using Media Library. Get started in less than 5 minutes by creating a free account at the link provided when you receive the product.

Software and Security

An Intrinsically Safe Cell Phone needs great software. Bartec mobile devices will continue to provide free software updates for many years to come. Bartec releases security patches shortly after release from Google, making the device one of the safest on the market. Software updates are important for security, but it also offers new functionality, better battery capacity, and user-friendliness. Get the latest software by using the “Software Update” app on your Bartec Intrinsically Safe Cell Phone.

Specifications

Specifications
Video and Imaging:
Video Quality Full HD video (1080p, 30 FPS)
Storage 32 GB
Imaging 8 MP still image (Back facing)
1,3 MP still image (Front facing)
Image Capture Dedicated camera button
Video Codecs H.264/AVC codec
Lighting Dual LED lights
Size and Weight
Size 150mm x 65mm x 14mm
Weight 290 grams (10 oz )
Display and touch
Screen Size 4,3 inch display
Resolution 480 x 800 pixels
Brightness Direct sunlight readable display
Touch Screen Glove compatible capacitive touch
Glass Gorilla glass
Buttons Volume, ON/OFF, Camera, Android
Ruggedness
Impact 2 Joule Impact proof
Drop 2 meter drop proof
Submersible IP68 waterproof
Explosion Protection CSA Class 1, Zone 1 (US and Canada)
IECEx & ATEX Zone 1 (Worldwide)
Housing Made from one piece of Aluminium
Connections Covered USB port
Screen 2 mm Gorilla glass
Applications
Android Android 7.1.2. Nougat
HD Video Collaboration Sipido
Management Solution collaboration-x.net
Browser Full blown HTML5
Document Viewing PDF and Office documents
ERP Compatible with ERP systems
Apps 1.3 Million and more on Google Play and other app stores
Ergonomics
Image Capture Flipscape: One hand videography
Dirt Proof Anti smuge recess for camera glass
Dirt Proof Anti smuge coating on screen
Quick Imaging Dedicated camera button
Glove Compatible Glove compatible touch screen
Any Condition Moisture resistive touch screeen
Dropped Object Rugged strap mount
Audio
Microphone Digital omni directional microphone
Audio Codec Full duplex audio communication
Video Recording Stereo microphones on back
Headset Handsfree support
Wireless Headset Bluetooth audio headset support
Handsfree Integrated mic and speaker
Audio Codec CD quality (G.722)
Sound Quality Echo cancellation
Audio Out 3,5 mm standard connection
Networking
Wi-Fi 802.11abgn (2,4 + 5 ghz)
Cellular 4G/LTE/3G/HSPA+/2G
US bands: 2, 4, 5, 7, 17
EU bands: 1, 3, 5, 7, 8, 20
Industry Certification GCF and PTCRB
Operator Certification AT&T, Rogers, CCC (China) and Vodafone
Regulatory Certification FCC, IC and R&TTE
Bluetooth Bluetooth 4.0
Video Conferencing Skype, SIP, H.323
Streaming ISMA, RTSP, HTML5, WebRTC
Network Firewall traversal technology
Network STUN server support
Bandwidth Dynamic Bandwidth Control
QoS Diffserv, IP presedence (QoS)
Sensors
Orientation 3 axis gyroscope
Accellerometer Accellerometer
Navigation Compass
Temperature Temperature sensor
Positioning Global Positioning System (GPS)
Certifications
ATEX Sira 13 ATEX 5134 X
Ex ib op is IIC T4 Gb
IECEx IECEx SIR 13.0047 X
Ex ib op is IIC T4 Gb
CSA (CAN/CSA) Class I, Ex ib IIC T4 Gb
CSA (ANSI/UL) Class I, AEx ib IIC T4 Gb
CE compliance with ATEX directive CE 0470 * ** II 2G
Wireless CE, FCC and IC
HS Code 8517.12.00
ECCN 5A992.c
Country of Origin Made in Norway
Temperature range
Operating -20°C to +45°C
Storage -40°C to +60°C
Power
Battery 3000 mAh battery
Standby Up to 100 h standby
Talk Time 8 hours talk time
Video Streaming 4 hour full operating time
Included
Charger USB Charger
Warranty 1 year hardware warranty
User Manual Manual, Quick guide
USB Cable USB cable for charging and data transfer
Software updates OTA updates available through the software update app
Product box Beautiful product box with custom shaped foam inlays
