Description

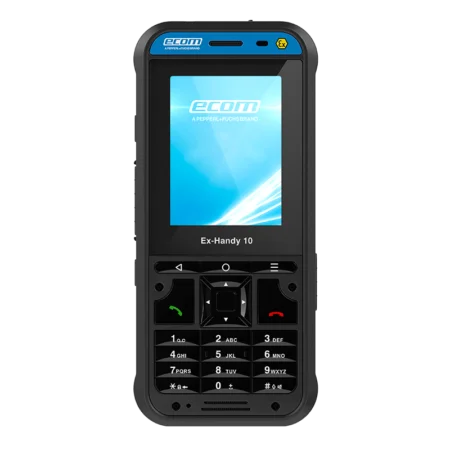

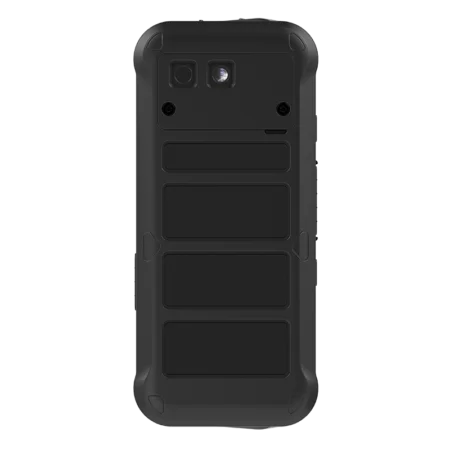

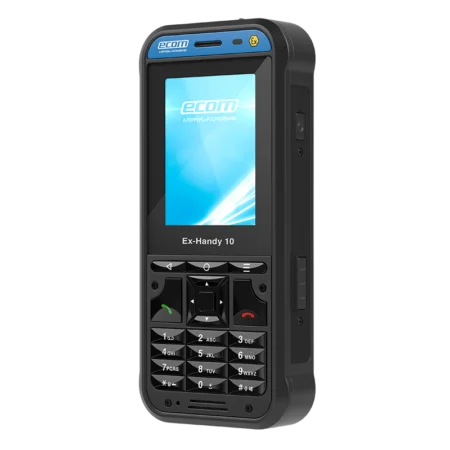

Ex-Handy 10 is the new generation of intrinsically safe 4G/LTE feature phones from the Pepperl+Fuchs brand Ecom. It is designed for a wide variety of applications, from pure communication to Push-to-Talk or lone worker protection.
The Android-based Ex-Handy 10 is the appropriate companion for creative Industry 4.0 applications in hazardous locations. With an IP68 rating and Gorilla® Glass, the Ex-Handy 10 can be used in the harshest settings. With a 5-year product lifecycle and global Ex-certifications to ensure compliance with all requirements, it offers the user a low-risk investment. It also tackles the most difficult scenarios thanks to customer-specific settings and adaptations.
Features
- ATEX Zone 1/21
- Class 1 Division 1
- IECEx
- MIL-STD-810G
- IP68 dust, water, and shock-resistant
- Global Ex and regulatory certifications for worldwide use and safety
- Designed and developed by Ecom – a Pepperfl+Fuchs brand
- Android 9 operating system
- Comes with an official Google certification
- 4G/LTE standard
- SIM unlocked and FREE
- Covers over 20 LTE frequency bands, ready for worldwide use
- Supports private LTE networks
- 2.6″ Touch Display
- Made of extreme resistant Gorilla Glass
- Supports glove touch and wet mode
- 3 GB RAM
- 16 GB internal space, extendible up to 128 GB
- Powered by the most powerful battery pack in a 4G/LTE Feature phone
- 4400 mAh for long operating times and Push-to-Talk usage
Specifications:
| Operating System | Android 8.1 |
| Processor | Qualcomm Snapdragon MSM8909 platform |
| Memory | 2 GB RAM, 16 GB ROM |
| SD card up to 128 GB | |
| Display | 2.6" capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla glass |
| Support of glove and wet mode | |
| High Visibility in direct sunlight | |
| Ports | 3.5 mm jack connection with special ecom mounting solution |
| 7-pins water-proof magnetic USB 2.0 connector | |
| Dimensions | 148 x 67 x 24 mm |
| Weight | approx. 330 g |
| Connectivity | 4G/LTE -standard (SIM unlocked and free); Nano SIM |
| WiFi 802.11 a/b/g/n/ac/e/k/r/h; 2.4 Ghz and 5 Ghz support | |
| Bluetooth 4.2 incl. BLE (Bluetooth Low Energy) | |
| GPS/A-GPS/Glonass/ Beidou/Galileo | |
| NFC | |
| Camera | 8 MP rear camera with auto focus and LED flash with torchlight function (optional) |
| Battery | 4400 mAh |
| Protection | IP68 - Dust proof, water proof, MIL-STD-810G |
Certifications:
- ATEX Certificate – English
- ATEX Certificate – German
- IECEx – Certificate
- ATEX CSA Certificate – PENDING
Resources:
- Ecom Ex-Handy 10 DZ1 Datasheet
- Ecom Ex-Handy 10 DZ1 Service Level Agreement
- 2019 Ecom Line Card United States
- Products Ecom Latest Products 2019
Question
C Sartor –
Will this phone be available without a camera like the 08 was?
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Sales Intrinsically Safe Store –
Yes, the Ex-Handy 10 will be available without camera.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
C Sartor –
Is there any word yet on when the non-camera version of this phone will be release?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Jerry Harrison –
Does this phone work with Sprint and does it have direct connect plus.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
