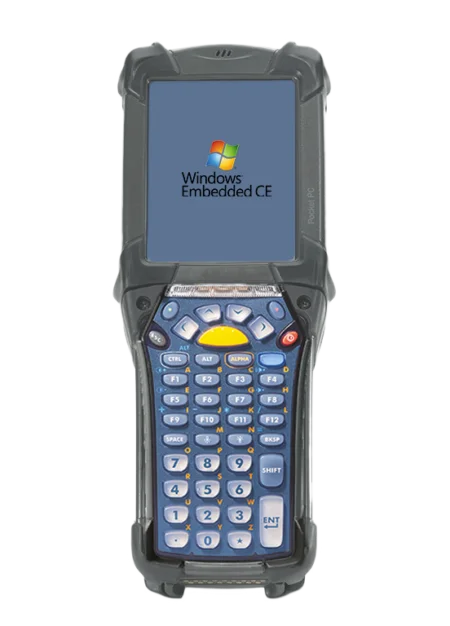

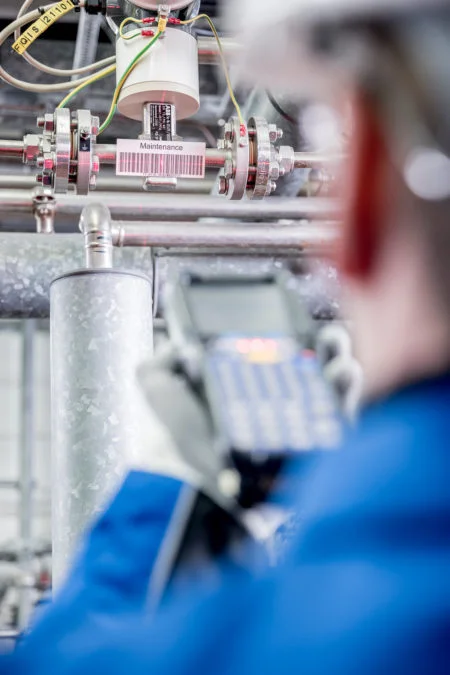

Known as the most robust device in its class, the intrinsically safe mobile computer Bartec MC92-IS contains ATEX Zone 1 and IECEx certification. In other words, the device is suitable to work in potentially explosive areas such as oil and gas industries, petrochemical, and pharmaceutical areas. In addition to being a barcode scanner, the MC92-IS offers wireless data exchange over Wi-Fi or Bluetooth. UL international approval backs the device, as well as other national approvals such as Brazil and Russia.

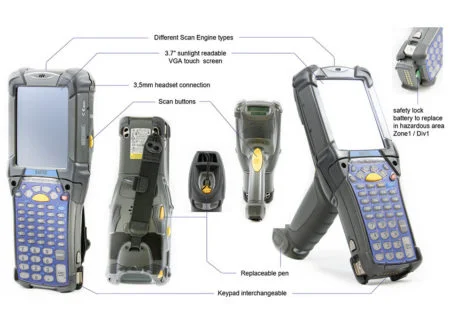

Intrinsically Safe Mobile Computer Bartec MC92-IS contains 28 numeric keys and 53 alphanumeric keys. Additionally, the 3.7″ VGS color display with a 480 x 640-pixel touchscreen ensures that you get the maximum display resolution, even under bright sunlight. A high-performance TI OMAC 4430 dual-core processor powers the device and runs under Windows and Android operating systems. Other features include an integrated microphone, loudspeaker, 2.5 mm headset jack, voice over IP, Lithium-ion battery that is changeable in potentially explosive areas, and a built-in antenna.
Features:
- A most robust device for hazardous environment
- Proven ZEBRA technology
- Wide range of Scan Engines
- Battery replaceable in EX areas
- Different and easy to change keyboard layouts
- Android Version available
Specifications:
| Application areas | Features | Technology |
| Oil and gas industry | Most robust device in its class | 3.7" VGA colour display with touchscreen, |
| Petrochemical and chemicals | Integrated barcode or RFID reader (LF, HF, UHF) | legible in sunlight |
| Pharmaceuticals industry | Optimised power management and | High performance dual core processor |
| Logistics | long operating times | "Hot swap" battery change (can be changed in potentially explosive atmospheres) |
| Technical Data | |
| Keypad design | 28 numeric keys |
| 43 numeric keys with (F) function keys | |
| 53 alphanumeric keys | |
| 53 alphanumeric keys with layout | |
| for VT emulation | |
| Display | 3.7" VGA colour display with |
| 480 x 640 pixel touchscreen | |
| Ambient temperature | -20 °C to +40 °C |
| Storage temperature | -40 °C to +70 °C |
| Charge temperature | 0 °C to +40 °C |
| Humidity | 5 % to 95 % (non-condensing) |
| Protection class | (EN/IEC 60529) |
| IP 64 for Type 17-A1A2-... (UL Div 1) | |
| IP 54 for Type 17-A1A3-... (ATEX/IECEx Zone 1) | |
| Processor | TI OMAC 4430 dual-core processor/1 GHz |
| Memory | 1 GB/2 GB flash RAM/ROM optionally |
| expanded with SD card (SDHC): up to 32 GB | |
| Operating system | Windows Embedded Handheld 6.5.3 |
| Windows Embedded Compact 7 (CE 7.0) | |
| Android 4.4.4 (Kit Kat) with Mobility Extension (Mx) from Zebra | |

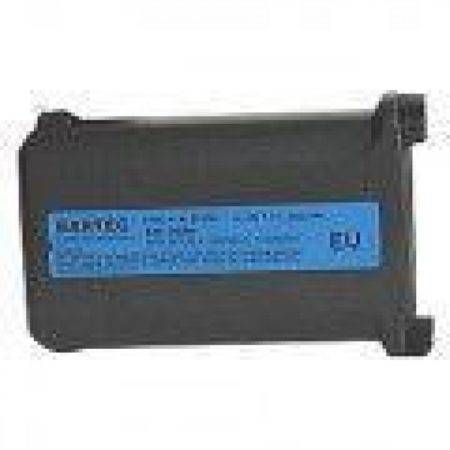

| Power supply | Lithium-ion battery with 7.4 V/2400 mAh for |
| - Type 17-A1Z0-0001 for | |
| MC 92 Type 17-A1A3-... (ATEX/IECEx Zone 1) | |
| - Type 17-A1Z0-0002 for | |
| MC 92 Type 17-A1A2-... (UL Div. 1) | |
| Battery can be changed in the potentially | |
| explosive area. | |
| Backup battery | (installed in the device) |
| Ni-MH battery (rechargeable) | |
| 2.4 V/15 mAh | |
| Interfaces | RS232 and USB over Single Slot Cradle |
| Ethernet over Ethernet-enable Cradle | |
| Application development | PSDK and EMDK for Windows and Android |
| available from Zebra Support website | |
| Software environment | All applications from Zebra and 3rd party |
| providers (for Zebra MC9200) are compatible | |
| with the Version for use in a potentially explosive | |
| area of the MC 92NO-IS. | |
| Examples are Wavelink Terminal Emulation, | |
| tools and applications from Zebra. | |
| Voice and audio | Integrated microphone, |
| loudspeaker and 2.5 mm headset jack | |
| Voice communication | |
| Voice over IP | |
| Voice Directed Picking | |
| Tech Speech Pro approved, speech-based | |
| applications through third party provider VDP | |
| Clients | |
| Push-To-Talk, Workforce Connect PTT Express | |
| (client included) with headset and hands free | |
| mode, wired headset support | |
| Radio standard | Win CE/WEH: |
| IEEE 802.11 a/b/g/n/d/h/i | |
| Android: | |
| IEEE 802.11 a/b/g/n/d/h/i/k/r | |
| Data rate | IEEE802.11a: up to 54 Mbit/Sec. |
| IEEE802.11b: up to 11 Mbit/Sec. | |
| IEEE802.11g: up to 54 Mbit/Sec. | |
| IEEE802.11n: up to 65 Mbit/Sec. | |
| Frequency range (country-related) | IEEE802.11a: 5 GHz |
| IEEE802.11b: 2.4 GHz | |
| IEEE802.11g: 2.4 GHz | |
| IEEE802.11n: 2.4 GHz and 5 GHz | |
| Security | WPA2 Enterprise, 802.1x; EAP-TLS; TTLS |
| (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); | |
| PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, | |
| EAP-FAST (TLS, MS-CHAPv2, EAP-GTC), WPA2/ | |
| AES, CCX v4 and IPv6 | |
| Output power | 210 mW |
| Antenna | Integrated in the device |
| Note: The respective radio frequencies and | |
| usable channels depend on specific country | |
| regulations. | |
| Bluetooth (WPAN) | Microsoft stack (preinstalled as standard) |
| Bluetooth Version 2.1 with EDR | |
| Stonestreet stack (may be optionally activated) | |
| Bluetooth 4.0 Plus BLE or WBA | |
| Android devices: Bluetooth version 4.0 | |
| with low energy consumption | |
| Scope of delivery | 1 x MC 92NO, 1 x battery, 1 x wrist strap |
| 1 x stylus and 1 x manual |
| Available barcode scanning options | ||||
| Barcode options | Reading range | Operating systems (available) | ||
| 1D barcodes | Windows CE/WEH | Android 4.4.4 | ||
| SE965-SR | 1D Standard Range Scan Engine | up to approx. 1.3 m | Yes | Yes |
| SE1524-ER | 1D Extended Range Scan Engine | up to approx. 13.7 m | Yes | Yes |
| 1D/2D barcodes | ||||
| SE4500-SR | D-/2D Omnidirectional Imager Engine | up to approx. 60 cm | Yes | Yes |
| DPM/1D-/2D barcodes | ||||
| SE4500-HD | DPM/1D-/2D Imager Engine | up to approx. 28 cm | Yes | No |
