This ATEX Zone 2/22 and Class I, II, III Division 2 certified intrinsically safe computers and scanners from Bartec is one of the most popular touch computers and scanners in the MC 9000 series. It is designed to perform larger and more complex applications using the latest mobile technologies built into the device.
With the 1GHz dual-core processor, 1GB memory, Microsoft’s advanced mobile operating system, high-speed Wi-Fi, and long-life battery, you can expect the Intrinsically Safe Computer Bartec MC92-NI to get the job done in the most extreme environments. MC92-NI also offers a wide range of scanning options and is capable of reading dirty, damaged, and poorly printed barcodes. Its rugged construction guarantees reliable performance despite everyday drops in concrete, extreme cold, heat, and dust.
Features:
- WiFi and Bluetooth connections
- RFID frequencies LF, HF, UHF
- Colour display with touchscreen
- Various scan engines
- Barcode or RFID logging
- Barcode logging up to 12 m
Specifications:
| Technical data | |
| Protection class | IP 64 (EN 60529) |
| Structure | Antenna: integrated in the module |
| Integrated microphone, loudspeaker and 2.5 mm headset jack | |
| Dimensions | see data sheet |
| Storage temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Weight | see data sheet |
| Barcode options | SE965-SR: 1D Standard Range Scan Engine |
| SE1524-LR: 1D Long Range Scan Engine | |
| SE4500-SR: 1D-/2D Omnidirectional Imager Engine | |
| SE4750-SR: 1D-/2D Omnidirectional Imager Engine | |
| SE4750-MR: 1D-/2D Omnidirectional Middle Range Imager Engine | |
| SE4600-LR: 1D-/2D Omnidirectional Long Range Imager Engine | |
| SE4500-HD: DPM/1D-/2D Imager Engine | |
| Display | 3.7” VGA colour display |
| with touchscreen 480 x 640 pixels | |
| Interface | RS232 and USB over Single Slot Cradle |

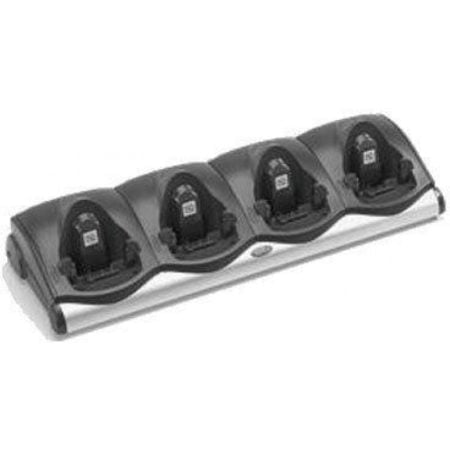

| Ethernet over Ethernet-enable Cradle | |

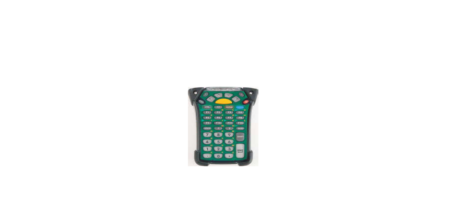

| Keyboard | - 28 numeric keys |
| - 43 numeric keys with (F) function keys | |
| - 53 alphanumeric keys | |
| - 53 alphanumeric keys with layout for VT emulation | |
| Operating system | - Windows® Embedded Handheld 6.5.3 |
| - Windows® Embedded Compact 7 (CE 7.0) | |
| - Android 4.4.4 (Kit Kat) with Mobility Extension (Mx) of Zebra | |
| CPU | TI OMAC 4430 dual-core ® Processor/1 GHz |
| Memory | 1 GB/2 GB flash RAM/ROM with the option of |
| expansion with SD card: up to 32 GB | |
| Voltage | Li-ion battery with 7.4 V/2600 mAh |
| Backup battery: Ni-MH battery (rechargeable) 2.4 V/15 mAh | |
| Transmission standard | Win CE/WEH: IEEE 802.11 a/b/g/n/d/h/i |
| Android: IEEE 802.11 a/b/g/n/d/h/i/k/r |
| Application areas | Features | Technology |
| Oil and gas industry | Most robust device in its class | 3.7" VGA colour display with touchscreen, |
| Petrochemical and chemicals | Integrated barcode or RFID reader (LF, HF, UHF) | legible in sunlight |
| Pharmaceuticals industry | Optimised power management | High performance dual core processor |
| Logistics | and long operating times | "Hot swap" battery change (in the safe area) |
| Available barcode scanning options | ||||
| Barcode options | Reading range | Operating systems (available) | ||
| 1D barcodes | Windows CE/WEH | Android 4.4.4 | ||
| SE965-SR | 1D Standard Range Scan Engine | up to approx. 1.3 m | Yes | Yes |
| SE1524-ER | 1D Extended Range Scan Engine | up to approx. 13.7 m | Yes | Yes |
| 1D/2D barcodes | ||||
| SE4500-SR | 1D/2D Omnidirectional Imager Engine | up to approx. 60 cm | Yes | Yes |
| SE4750-SR | 1D/2D Omnidirectional Imager Engine | up to approx. 88 cm | Yes | Yes |
| SE4750-M | 1D/2D Omnidirectional Middle Range Imager Engine | up to approx. 4.4 cm | Yes | Yes |
| SE4600-LR | 1D/2D Omnidirectional Middle Range Imager Engine | up to approx. 9.1 m | Yes | No |
| DPM/1D-/2D barcodes | ||||
| SE4500-HD | DPM/1D-/2D Imager Engine | up to approx. 28 cm | Yes | No |
Certifications:
- English – ATEX Certificate
- German – ATEX Certificate
- English – IECEx Certificate
- English UL Certificate
- Russia – EAC Certificate
- English – EXPLOLABS Certificate
- Korean – KCS KTL Certificate
Declaration of Conformity: B1-A2A3-7C0001
- English – Declaration of Conformity
- German – Declaration of Conformity
- French – Declaration of Conformity
Declaration of Conformity: No. B1-A2A3-7C0002
Pam –
ATEX Zone 2/22 and Class I, II, III Div 2. Intrinsically Safe Computer Bartec MC92-NI is equipped with a very powerful barcode scanner. It is the perfect device to use to get loads of scanning done.
