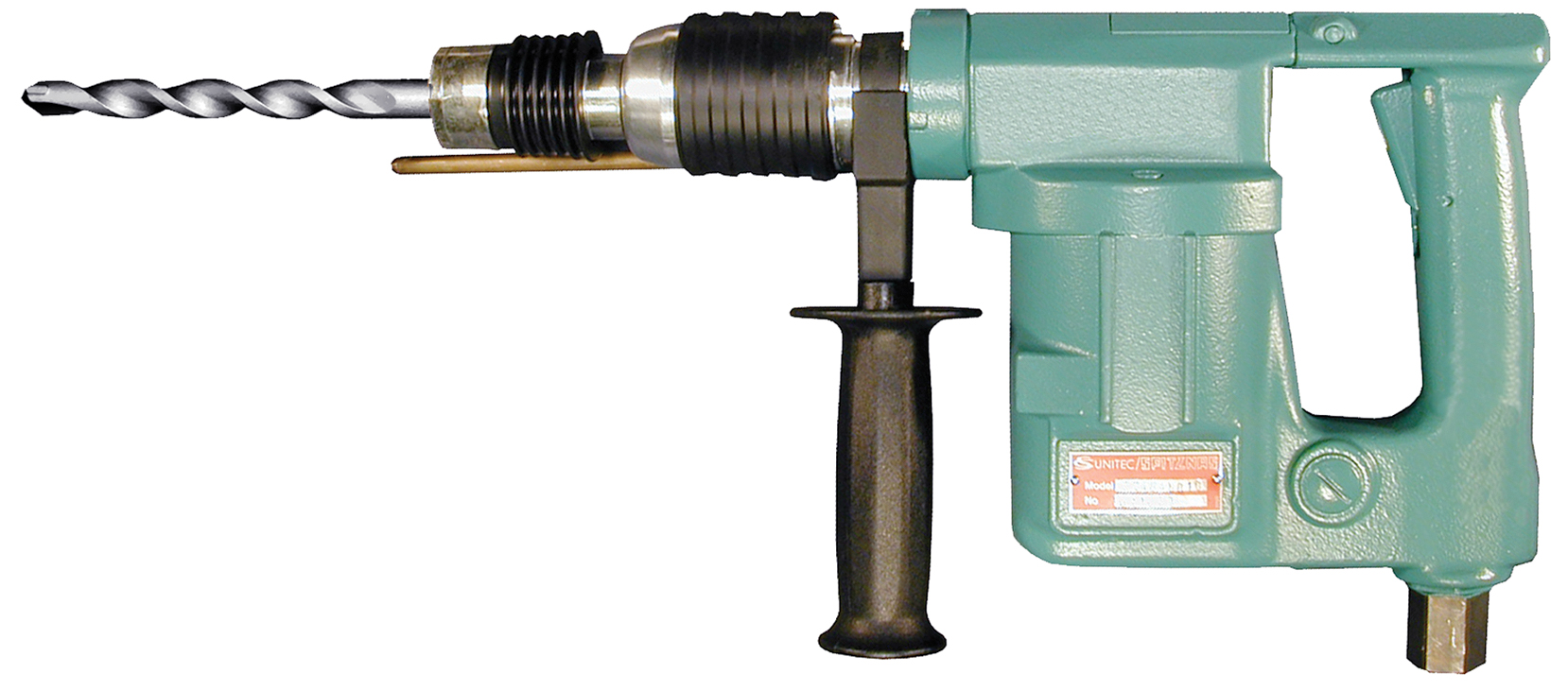

ATEX Pneumatic SDS Rotary Hammer Drill
The ATEX Pneumatic SDS Rotary Hammer Drill is a heavy-duty pneumatic rotary hammer designed specifically for drilling in explosive surroundings and hazardous atmospheres. By utilizing compressed air instead of electricity, this ATEX-certified tool eliminates internal spark risks, making it the preferred choice for maintenance and construction in oil refineries, chemical plants, and underground mines.
Built for versatility and safety, this 1-inch capacity SDS Plus drill features a mechanical safety clutch to protect the operator against jamming and overloading. It includes a water connection ball cock to enable water-cooled drilling, which effectively suppresses sparks and dust during operation in sensitive environments. With capability for both rotary hammer drilling and rotary-only drilling, it easily handles concrete, masonry, steel, and wood.
Key Features:
✅ ATEX Certified: Safe for use in hazardous explosive atmospheres.
✅ SDS Plus System: Standard chuck for quick bit changes and secure retention.
✅ Dual Modes: Switch between Rotary Hammer (concrete) and Rotary Drilling Only (wood/steel).
✅ Spark Suppression: Integrated water connection for cooling and spark avoidance.
✅ Safety Clutch: Protects the operator and tool if the drill bit jams.
✅ Pneumatic Power: 0.70 HP motor operates on standard 90 PSI air pressure.
✅ Underwater Ready: Specialized version available for submerged operation.
✅ Depth Control: Includes adjustable side handle with depth gauge.
✅ Low Maintenance: Dust-tight sealed gears with permanent lubrication.
📦 Package Options:
🔹 Standard Air Model (2 2404 0010): The standard configuration for surface-level hazardous areas.
ATEX Pneumatic SDS Rotary Hammer Drill Technical Specifications:
| Specification | Details |
|---|---|
| Product Type | SDS Rotary Hammer Drill |
| Power Source | Pneumatic or Hydraulic |
| Certification | ATEX and CE |
| Tool System | SDS Plus or SDS Max |
| Operating Modes | Hammer with rotation or Rotation only |
| Application | Concrete, brick, masonry, steel, and wood |
| Concrete Drilling Capacity | Up to 2" (SDS Max) / Up to 1" (SDS Plus) |
| Core Bit Capacity | Up to 6" (SDS Max) / Up to 3" (SDS Plus) |
| Wood Drilling Capability | Yes, using rotary drilling mode |
| Safety Features | Integrated safety clutch to protect against overloading |
| Hydraulic System | Open center standard, closed center optional |
| Maximum Hydraulic Pressure | 1160 PSI (80 bar) |
| Hydraulic Flow Range | 2.6 – 13.2 GPM (model dependent) |
| Pneumatic Air Consumption | 21 – 53 CFM @ 90 PSI (model dependent) |
| Typical Weight Range | 7 – 26 lbs. (model dependent) |
Certifications & Compliance:
🔗 ATEX Certified – Approved for use in potentially explosive atmospheres
🔗 Pneumatic Safety – Air-powered design eliminates electrical ignition sources
🔗 Safety Clutch – Mechanical protection against high-torque reaction.
🔗 Download Datasheet
🔗User Manual
Applications of ATEX Pneumatic SDS Rotary Hammer Drill:
🔹 Oil & Gas Refineries
🔹 Chemical Processing Plants
🔹 Mining & Tunneling
🔹 Marine & Underwater Construction
🔹 Heavy Industry Maintenance
What’s in the Box?
📦 1x Pneumatic Rotary Hammer (2 2404 0010)
📦 1x Carrying Case
📦 1x Adjustable Side Handle with Depth Gauge
📦 1x Dust Guard
📦 1x Oil Bottle (5cc)
📦 1x Operating Manual
Ordering & Shipping Details
📦 Lead Time: 1-2 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Does this drill come with a water connection?
Yes, it features an integrated ball cock water connection (R 1/4″) to cool the bit and prevent sparks in hazardous areas.
What is the air consumption requirement?
The tool requires 21 CFM at 90 PSI (6 bar) for optimal operation.
Can I use this for underwater drilling?
The standard model is for surface use. However, the variant Model 2 2404 0030 is specifically designed for underwater applications
What type of oil should I use for maintenance?
The motor requires SAE 5W or SAE 10W viscosity oil. For temperatures below 38°F (3°C), use a de-freeze lubricant like Kilfrost
