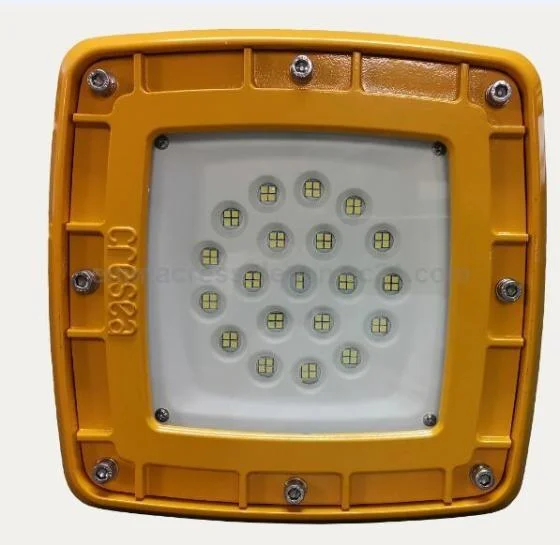

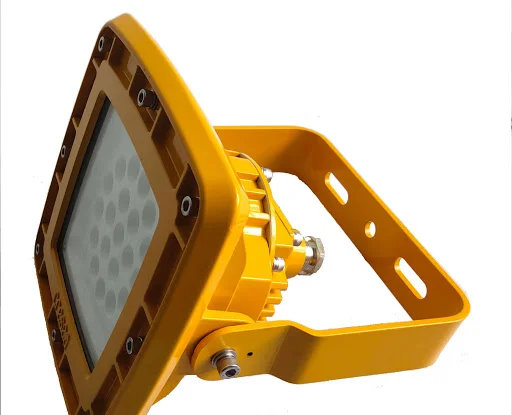

Intrinsically Safe Explosion Proof LED Cressa CS-EXFL-0 Flood Light

Product Features:

• The patented design combines excellent appearance &heat dissipation；
• High heat transfer heavy Aluminum Alloy without copper casing
• High LED efficiency: 130 Lm/w
• Surface treatment - painted, salt resistant
• Unique design reflector up to Anti-glare
• The high corrosion resistance is due to the use of stainless steel for the exposed fasteners and accessories.
• Constant-current Lifud driver without flash is resistant to electronic and magnetic inference, and protect from short circuit, over-voltage, over-current, and lightning stroke
• Ventilation groove of air-conduction structure ensures the high longevity of LED light source
• The top opening cover adopts a connection mode that is convenient for connecting and maintaining, and it offers various installation modes.



Product Description:

• Applicable to the lighting of power plants, chemical plants, steel plants, oil plants, natural gas plants, and other special places
• You can use these lights in hazardous environments such as oil exploitation, oil refining, the chemical industry, the military industry, and on offshore oil platforms and oil tankers.
• Suitable for energy-saving renovation projects and places where maintenance and replacement are difficult
•  Suitable for combustible dust environment
• Applicable to dangerous places with an explosive gas mixture: Zone 1, Zone 2
• Applicable to explosive gas mixture danger category: IIA, IIB, IIC
• Applicable to explosive gas mixture environment: Zone 21, Zone 22
• Suitable for explosive gas mixture temperature group: T1-T6

Intrinsically Safe Explosion Proof LED Cressa CS-EXFL-0 Flood Light

Cressa CS-EXFL-0 Explosion Proof LED Flood Light  is a LED explosion proof flood light that meets the Class 1 Division 2 hazardous area requirements.  It has a high LED efficiency of 130Lm/w, this light is one of the brightest. With an input voltage of 200-240 VAC, this powerful light is perfect to use in various hazardous area  and intrinsically safe. It comes in three input power 30W, 50W & 70W along with Diammable & non diammable properties. Expect nothing but durability in its overall design with the use of the copper-free aluminum alloy. With a lifespan of 50,000 hours, this light will serve its purpose for many years.Cressa CS-EXFL-0 LED Flood Light: Class 1 Division 2 compliant, with high efficiency and options for 30W, 50W, or 70W input power. Durable, copper-free design, ideal for hazardous areas, and with a 50,000-hour lifespan.

Specifications:

Technical Data
Product Parameter
Wattage	Model Number	LED Quantity	Flux	Beam Angle	IP Rate Anticorrosion Grade
30W	CS-EXFL-030W	49PCS	3900lm	80°/110°	IP 65/WF2
50W	CS-EXFL-050W	60PCS	6500lm	80°/110°	IP 65/WF2
70W	CS-EXFL-070W	78PCS	9100lm	80°/110°	IP 65/WF2
Performance Summary
Input Power	30W,50W,70W
CRI	>70Ra/80Ra
THD	0.97
Surge Protection:	L-N:6KV;L/N-GND:6KV
CCT:	3000K,4000K,5000K,5700K
Input Voltage:	200-240Vac
Limited Warranty:	5 years’ warranty
High Efficacy Lifetime:	50000 hours
Working Temperature:	Temp: -20?--+75?
Working Humidity:	10%-90%RH
Ex Mark	II 2G Ex db IIC T6 Gb
Lead In PortG3/4 ?8-	14mm Cable Spec

Intrinsically Safe Explosion Proof LED Cressa CS-EXFL-0 Flood Light Certificate:

• Explosion-Proof LED Flood Light Cresea Certification of Compliance EU Examination



Intrinsically Safe Explosion Proof LED Cressa CS-EXFL-0 Flood Light:

• Explosion-Proof LED Flood Light Cresea Datasheet
