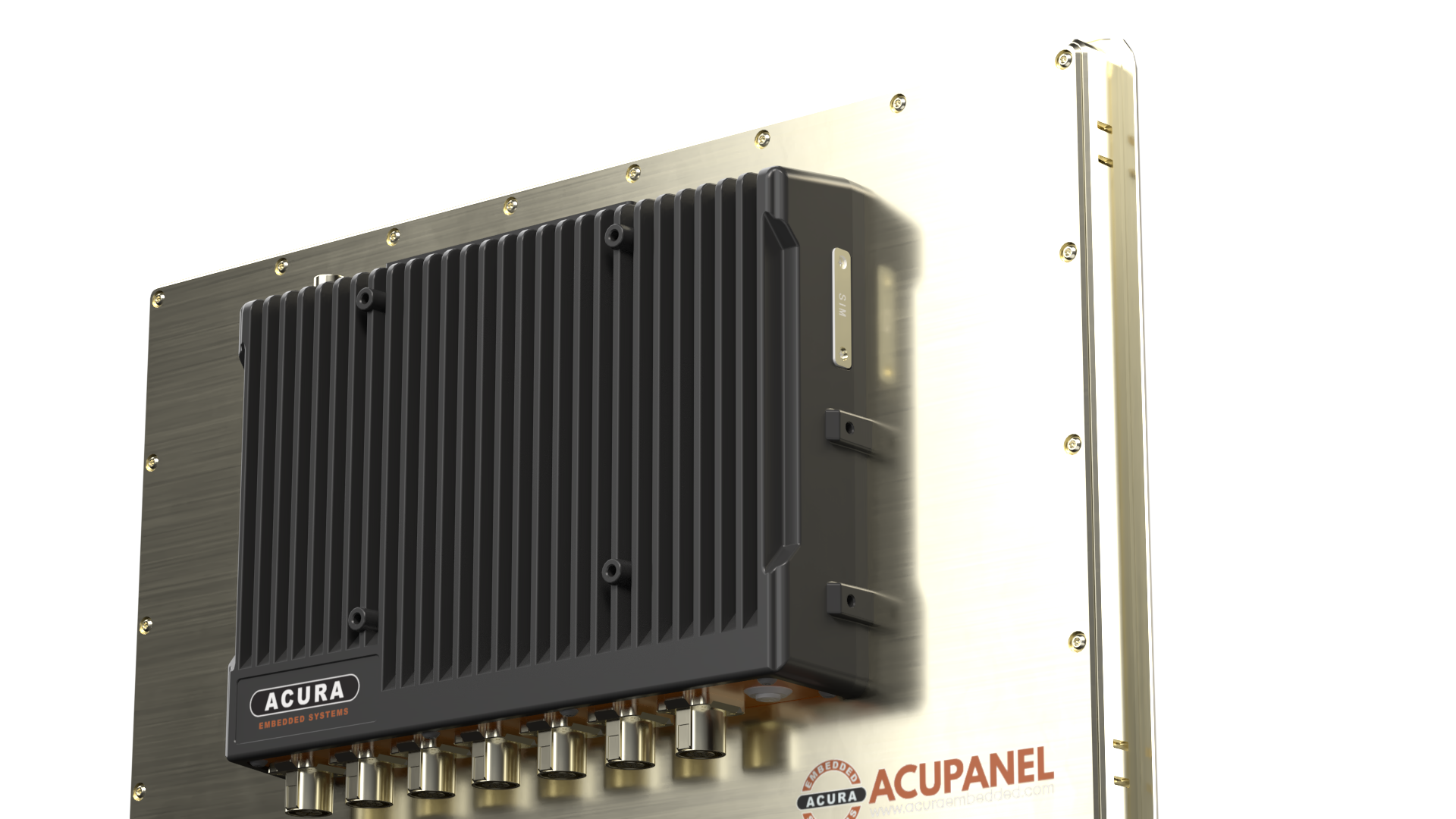

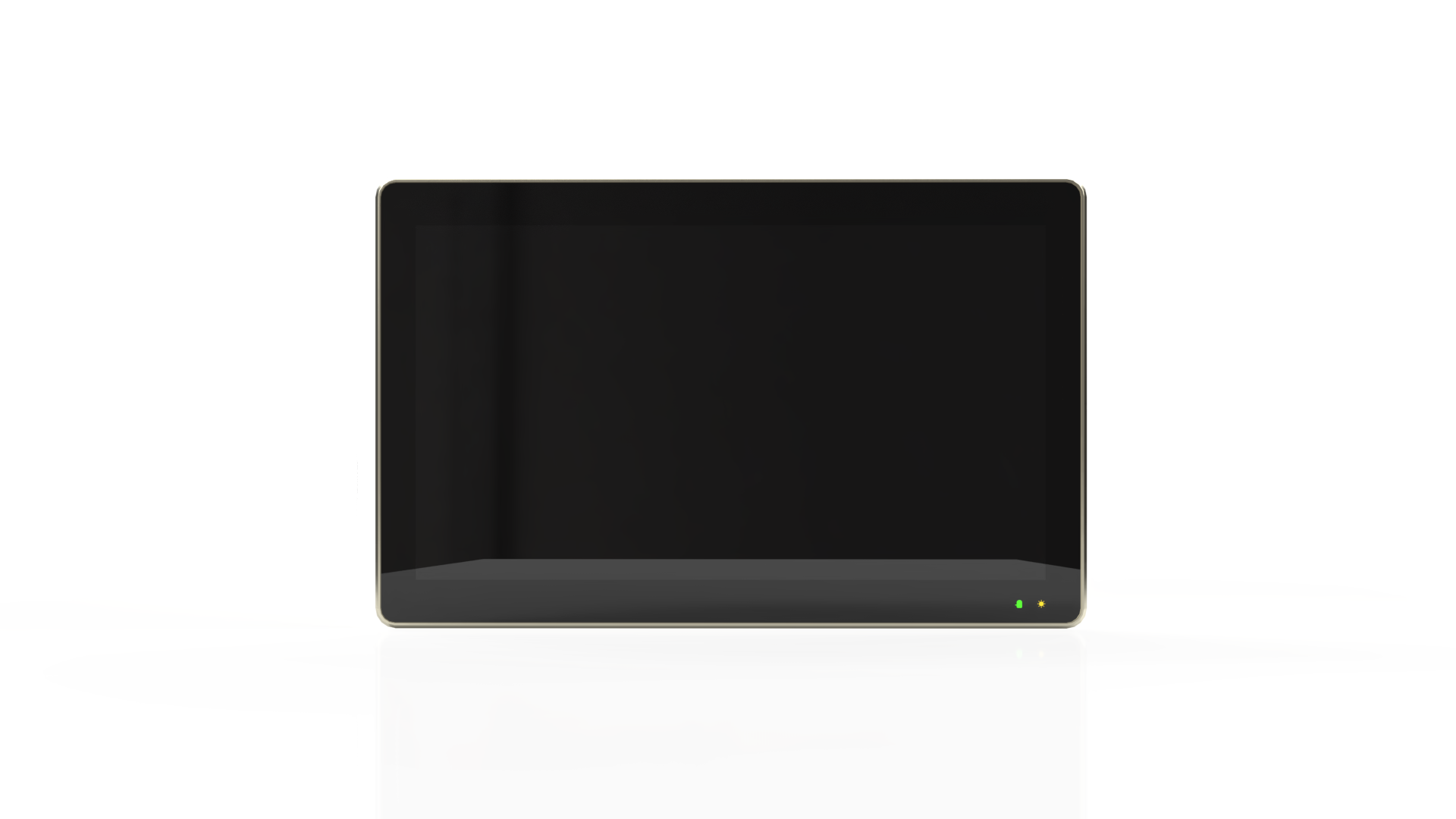

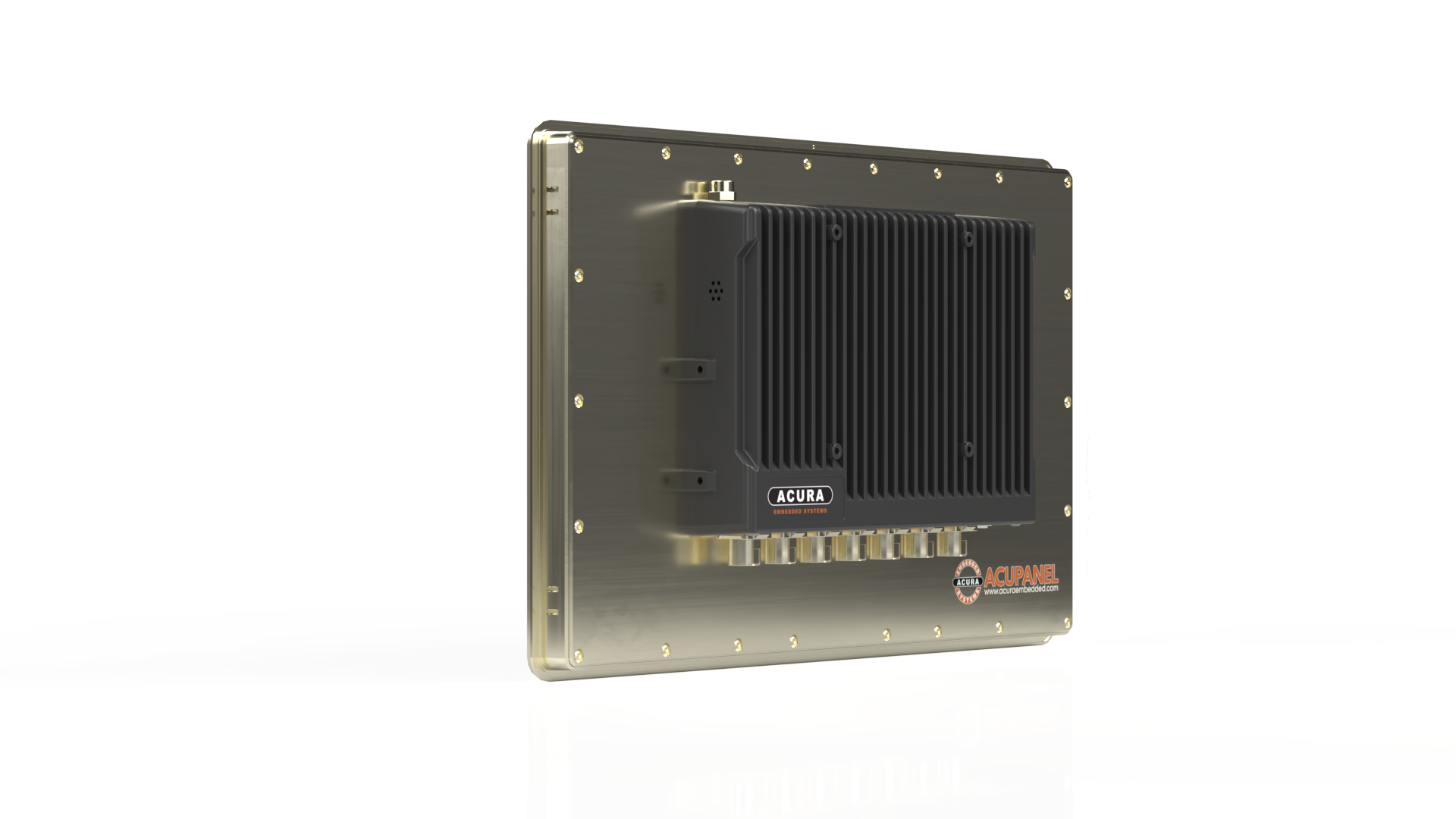

Intrinsically Safe Fully-Sealed Panel PC – AcuPanel ATEX C1D2
The Intrinsically Safe Fully-Sealed Panel PC – AcuPanel ATEX C1D2 engineered in Canada for hazardous and extreme environments. Certified ATEX, C1D2, and C1Z2, this rugged computing solution features IP65 protection on all sides, making it ideal for oil & gas, chemical plants, mining, and outdoor installations exposed to dust, water, and contaminants.
Equipped with Intel Core i5 or i7 processors, up to 32GB DDR5 RAM, and high-capacity SSD storage, the AcuPanel ensures superior performance for demanding industrial applications. Its 500 NITS LED-backlit displays (optional 1000 NITS) offer crystal-clear visibility even under direct sunlight, while the capacitive 10-point touchscreen supports glove operation. The fanless aluminum alloy construction guarantees silent, reliable operation across extreme temperatures from -40°C to +60°C.
Key Features:
✅ ATEX, C1D2, C1Z2 certified for hazardous areas
✅ Windows 10 IoT, 11 IoT, 11 Pro, or Linux OS support
✅ IP65 fully sealed chassis – protection on all sides
✅ Intel Core i5 standard, upgradeable to Intel Core i7 (+ additional cost)
✅ Connectivity: Wi-Fi 6E, Bluetooth, optional 4G/5G/LTE/GPS
✅ I/O: HDMI, VGA, LAN, USB 3.2, RS232/RS485
✅ Wide operating temperature: -40°C to +60°C
✅ Fanless aluminum alloy construction for reliability
✅ Sunlight-readable displays, up to 1000 NITS
✅ Multiple screen sizes for industrial flexibility
📦 Package options:
🔹 15.6″ (16:9) – 1920 x 1080
🔹 21.5″ (16:9) – 1920 x 1080
🔹 31.5″ (16:9) – 1920 x 1080
Note: This unit comes standard with Intel Core i5, 8GB RAM, and base storage. Upgrades to Intel Core i7, additional RAM, and expanded storage are available. Please contact one of our sales representatives for customized configurations.
Intrinsically Safe Fully-Sealed Panel PC Technical Specifications:
| Feature | Details |
|---|---|
| Processor | Intel Core i5 (upgradeable to i7) |
| Memory | Up to 32GB DDR5 RAM |
| Storage | Up to 4TB M.2 NVME SSD, optional dual SATA SSD up to 4TB (RAID 0/1) |
| Display Options | 15.6", 21.5", 31.5" (all 16:9, 1920x1080) |
| Brightness | 500 NITS (1000 NITS optional) |
| Touchscreen | Projected capacitive, 10-point multi-touch |
| I/O Ports | 1x HDMI, 1x VGA, 2x LAN, 2x USB 3.2, 2x RS232/RS485, Audio In/Out |
| Wireless Connectivity | Wi-Fi 6E, Bluetooth (Intel AX210), optional 4G/5G/LTE/GPS |
| Audio | Built-in speaker, line-out, mic input |
| Operating System | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro, Linux |
| Power Input | 9–36V DC (optional vehicle ignition start) |
| Construction | Aluminum alloy chassis, fanless design |
| Ingress Protection | IP65 – fully sealed (all sides) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Humidity | <95% non-condensing |
| Mounting | Panel mount or VESA mount |
| Certifications | ATEX, C1D2, C1Z2, CSA, UL, FCC, UKCA |
| Warranty | 3-year bumper-to-bumper |
Certifications & Compliance:
🔗 ATEX – Certified for Zone 2 hazardous locations
🔗 C1D2 – Safe for North American hazardous areas
🔗 CSA, UL, FCC, UKCA – Electrical & safety compliance
🔗 IP65 Fully Sealed – Protection on all sides
🔗 Download Datasheet
Applications of Intrinsically Safe Fully-Sealed Panel PC:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Outdoor Industrial Operations
🔹 Manufacturing
What’s in the Box?
📦 1x AcuPanel APNLFLSD Panel PC
📦 1x Power Supply
📦 1x Mounting Kit (Panel/VESA)
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 3-4 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What makes the fully-sealed model different?
The APNLFLSD is IP65 on all sides, offering complete dust and water protection, unlike the standard APNL which is IP65 front only.
Can the AcuPanel be used outdoors?
Yes, the fully-sealed design and optional 1000 NITS display make it ideal for outdoor and washdown environments.
Is this device fanless?
Yes, it uses a patented aluminum alloy chassis with passive cooling for silent, reliable operation.
Can the processor, RAM, and storage be upgraded?
Yes, the unit comes with Intel Core i5 standard but can be upgraded to i7, with RAM and storage expansions available. Contact our sales team for details.
