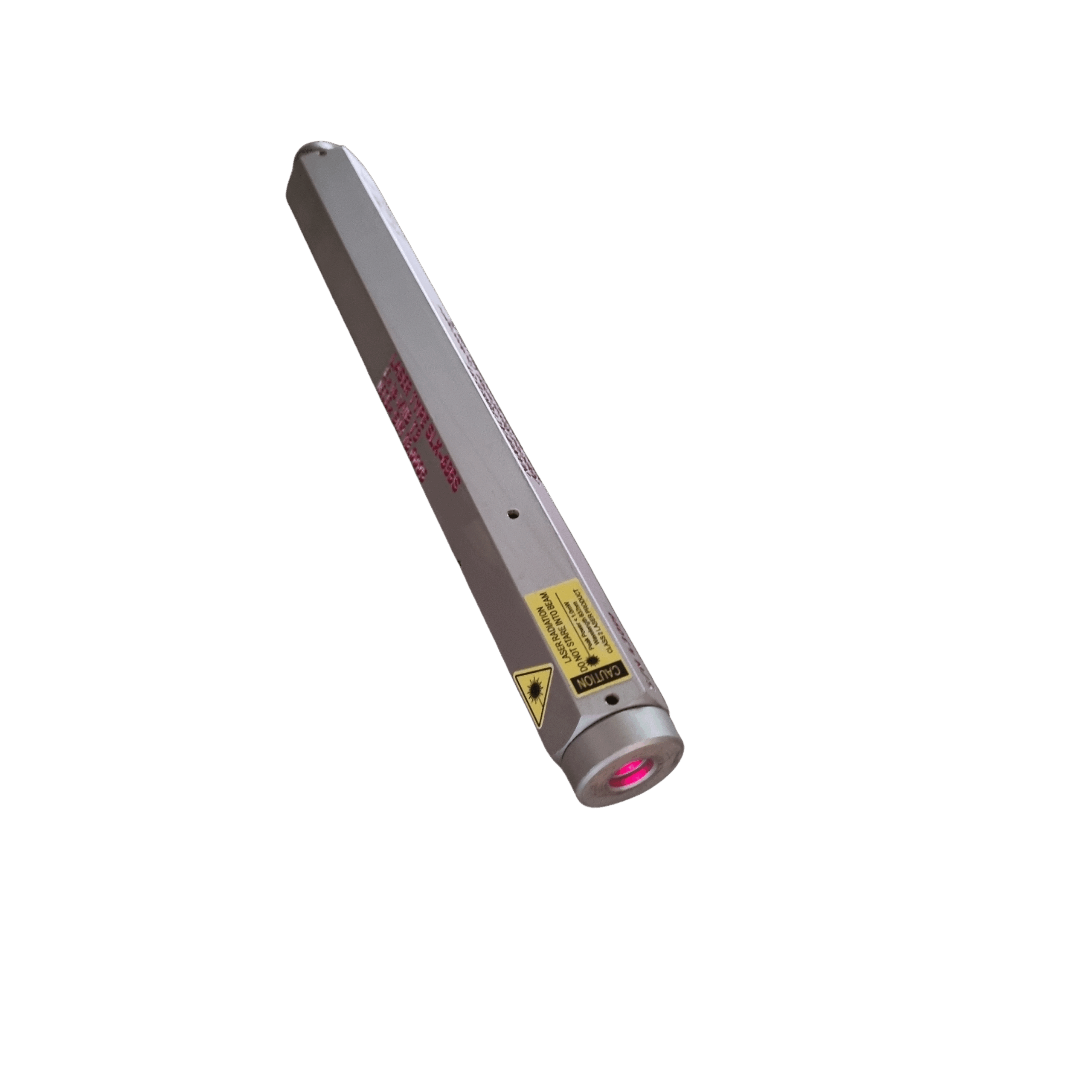

SLX-635S Intrinsically Safe Laser
The SLX-635S is an intrinsically safe red laser system engineered for hazardous environments including mining, oil & gas, agriculture, and industrial applications. Based on the proven SLX-635P, used in underground mining for over 20 years, this model is rugged, reliable, and designed for demanding conditions.
With a visible 635nm red beam, long battery life, and enhanced optics, the SLX-635S ensures superior beam definition over distance. Its modulation capability makes it automation-ready, supporting sensing and guidance technologies. Compact, robust, and intrinsically safe, it is trusted for safety and performance in critical industries.
Key Features:
✅ IECEx SIM 13.0005 – Ex ia I/IIB T3 certification
✅ Complies with IEC 60079-0:2017, IEC 60079-11:2019, IEC 60825-1:2014
✅ Visible 635nm red laser, Class 2 (<1.0mW)
✅ Working range over 120m

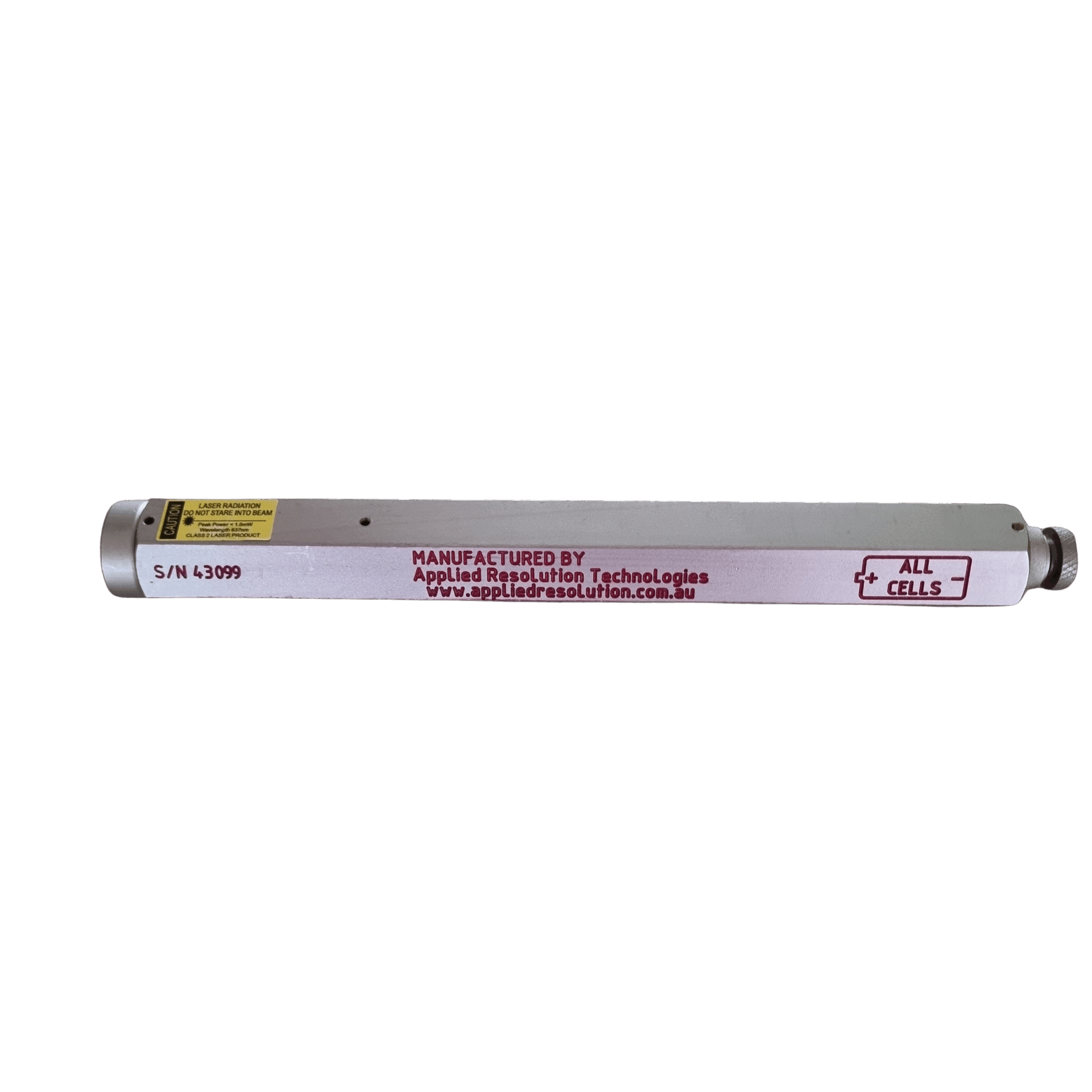

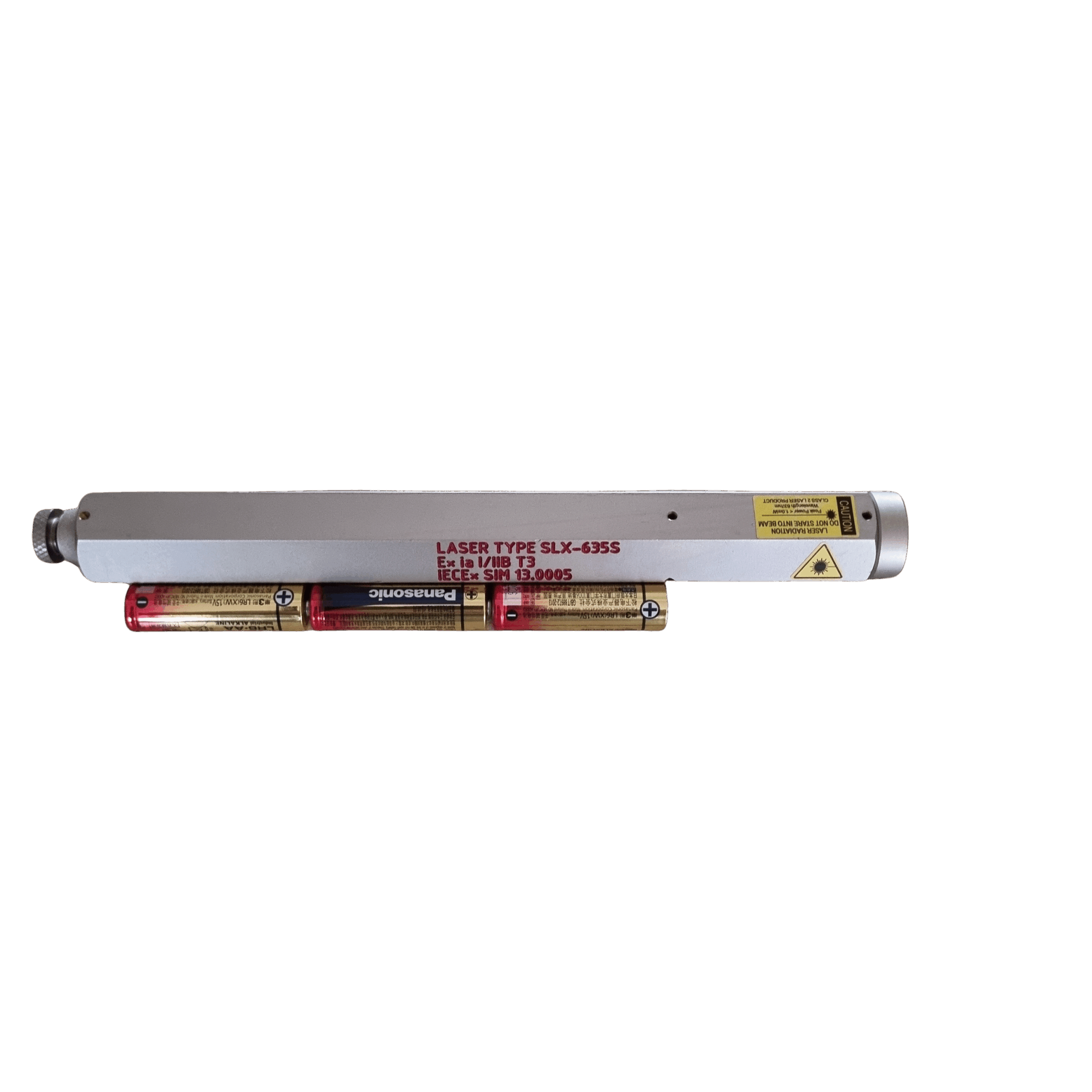

✅ Rugged 1” hex body (160mm with 2xAA, 218mm with 3xAA)
✅ Modulated 1kHz for automation sensing and guidance
✅ Electronically isolated diode laser with Auto Power Control
✅ Long battery life with reverse polarity protection
✅ Protective laser window head with engraved certification details
✅ Optional carry case, 90° prism heads, and line output heads
📦 Package Options:
🔹 SLX-635S 3AA (Class 2)
-Laser Power: < 1.0 mW
-Laser Class: Class 2 (IEC 60825-1)
-Beam Safety: Considered “eye-safe” for momentary exposure (like a standard laser pointer).
-Use Case: Ideal for general alignment in hazardous zones where safety is top priority.
🔹 SLX-635S 3AA3R (Class 3R)
-Laser Power: up to 5.0 mW
-Laser Class: Class 3R (IEC 60825-1)
-Beam Safety: Brighter and longer range, but requires stricter precautions — not considered eye-safe for direct exposure.
-Use Case: Preferred where longer distance visibility and stronger beam definition are needed (e.g., tunneling, large-scale underground operations).
SLX-635S Technical Specifications:
| Feature | Details |
|---|---|
| Certification | IECEx SIM 13.0005, Ex ia I/IIB T3 |
| Standards Compliance | IEC 60079-0:2017, IEC 60079-11:2019, IEC 60825-1:2014 |
| Laser Type | 635nm red, <1.0mW, Class 2 |
| Working Range | >120m |
| Body Size | 160mm (2xAA), 218mm (3xAA), 1” hex body |
| Power | 2xAA or 3xAA batteries, reverse polarity protection |
| Beam Alignment | Proprietary alignment to hex body |
| Modulation | 1kHz, automation-ready |
| Control | Micro laser circuit with Auto Power Control |
| Switch | Simple rotary on/off with lock screw |
| Durability | Engraved certification, protective window head |
| Options | Carry case, 90° prism heads, line output heads, accessories |
Certifications & Compliance:
🔗IECEx SIM 13.0005-4: Ex ia I/IIB T3 intrinsically safe certification
🔗 IECEx SIM S0003 – Service Facility Certification
🔗 IEC 60825-1 – Laser safety compliance
🔗 IEC 60079-0:2017 / IEC 60079-11:2019 – Intrinsic safety standards
🔗 Supported by IEC 80079-34 Quality Management
🔗Download Datasheet
Applications of SLX-635S:
🔹 Oil & Gas
🔹 Mining
🔹 Agriculture
🔹 Industrial Automation
What’s in the Box?
📦 1x SLX-635S Laser Unit
📦 2x AA or 3x AA Battery (depending on version)
📦 1x Protective Laser Window Head
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 1-2 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is the SLX-635S certified for hazardous areas?
Yes, it is IECEx-certified as Ex ia I/IIB T3.
What is the beam type and range?
It uses a visible 635nm red beam with a working range of over 120 meters.
What battery options are available?
Both 2xAA (160mm length) and 3xAA (218mm length) versions are available.
Is it suitable for automation?
Yes, the laser features 1kHz modulation for automation sensing and guidance.
