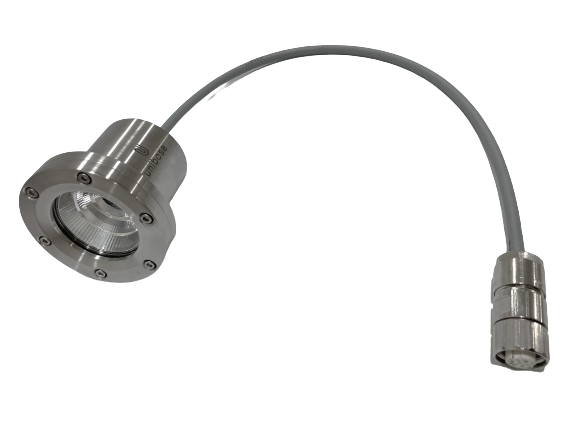

Intrinsically Safe LED Floodlight – ATEX Zone 0
The Intrinsically Safe LED Floodlight – ATEX Zone 0 is built for illuminating dark, hazardous locations where flammable vapors and gases are always present. Designed for oil & gas, pharmaceutical, chemical, and offshore applications, this rugged 200-lumen light offers safe, clear visibility in critical inspection zones.
Encased in SS316 stainless steel and sealed to IP68, the system is suitable for both fixed and mobile deployments. With operation temperatures from -20°C to +60°C and a maximum illumination range of 100 meters, it is an ideal companion for visual monitoring, especially when paired with ATEX-certified inspection cameras or control systems.
This floodlight can be seamlessly integrated with the UCAM Control System, allowing for synchronized operation of both video and lighting components. Ideal for comprehensive inspection setups, this bundled configuration ensures efficient monitoring and illumination of hazardous environments from a single control interface.
Key Features:
✅ ATEX Zone 0 Certified – II 1G Ex ia IIC T4 Ga
✅ 200 lumens of cool white LED output
✅ IP68 ingress protection – submersible and dust-tight
✅ Stainless steel SS316 housing with toughened glass
✅ Available in 50m, 75m, or 100m cable lengths
✅ Suitable for hydrogen-rich environments
✅ Operates from -20°C to +60°C
✅ Compatible with UCAM Control System (optional)
✅ Fixed or mobile installation support
Intrinsically Safe LED Floodlight – ATEX Zone 0 Technical Specifications:
| Feature | Details |
|---|---|
| Certification | ATEX Zone 0 (II 1G Ex ia IIC T4 Ga) |
| LED Output | 200 lumens (cool white) |
| Enclosure | Stainless Steel SS316 |
| Operating Temp | -20°C to +60°C |
| Ingress Protection | IP68 |
| Power Supply | 230V / 110V AC |
| Cable Options | 50m / 75m / 100m |
| Deployment | Fixed & Mobile |
| Output Connector | 2-Pin |
Certifications & Compliance:
🔗 ATEX Certification – II 1G Ex ia IIC T4 Ga (Zone 0)
🔗 Certificate No. TUV CY 24 ATEX 0207053 X
🔗 IP68 Ingress Protection – Water and dust resistance
🔗 Operating Temp: -20˚C to +60˚C
🔗 Download Datasheet
Applications of Intrinsically Safe LED Floodlight – ATEX Zone 0:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Intrinsically Safe LED Floodlight
📦 1x Intrinsic Power Supply
📦 1x Stainless Steel Housing
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 10-12 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
How bright is the floodlight?
It delivers 200 lumens of focused white light.
Is this certified for ATEX Zone 0?
Yes, it is fully compliant with Zone 0 ATEX and IECEx standards.
Can I use this light in hydrogen-rich environments?
Yes, it’s tested and certified safe for those conditions.
What accessories are available?
Control units, sliprings, and cable reels can be integrated upon request.
Can this floodlight be integrated with a camera system?
Yes, it is fully compatible with the UCAM Control System. This allows you to bundle video monitoring and high-intensity LED lighting in one synchronized solution — ideal for tanks, silos, offshore rigs, and other remote hazardous zones.
