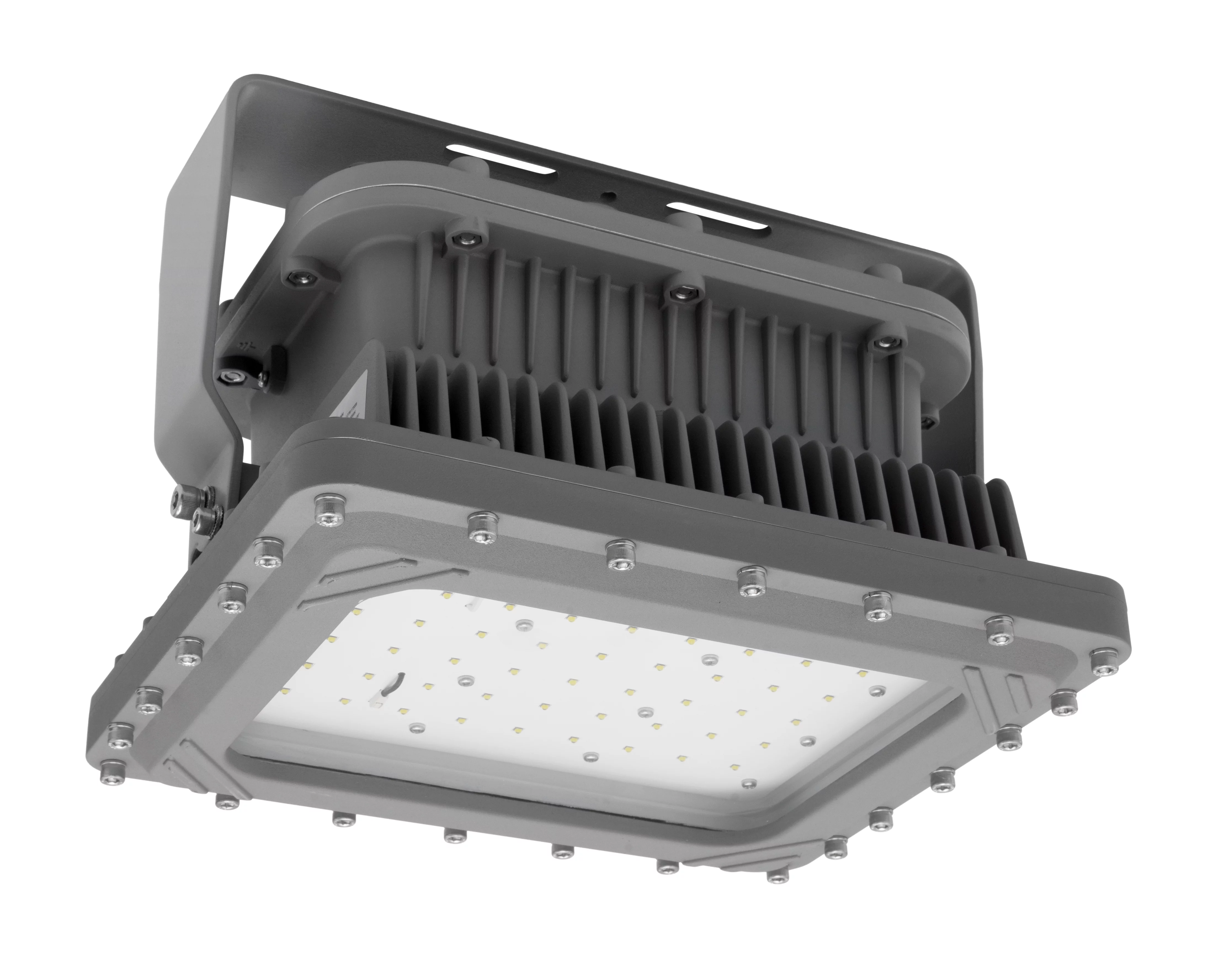

NICOR - XPQ1B100U50GRP Titan LED Flood Light 100 Watt LED

In StockSKU: 767706131253

$976.00

Qty

Safety Specifications

Safety specifications not available for this product

Product Description

Titan intrinsically safe LED floodlight XPQ1B100U50GRP is authorized for use in hazardous environments Class 1 Division 2. As a component of FCC Part 15 Subpart B, Class B, it complies with conducted and radiated emission requirements, making it an extremely durable lighting system.

Technical Datasheet

Certification & Specification

Full technical specification details are currently unavailable.

Product Overview

Titan's hazardous location LED floodlight are intended for use in places subject to moisture, dust, corrosion, vibration, changes in temperature, and other environmental variables. 100 Watt LED FloodLight NICOR - XPQ1B100U50GRP Titan is fundamentally safe when used in situations designated by the NEC and IEC as prone to explosions and fires. As a component of FCC Part 15 Subpart B, Class B, it complies with conducted and radiated emission requirements, making it an extremely durable lighting system.

Features

DLC Premium
UL Class I Division 2, Group A, B, C, D
UL Class II Division 2, Group F, G
UL844 Hazardous Location
UL 1598 Wet Location
UL1598A Marine
UL 8750 LED Safety
UL Listed
CUL Listed
IP66 Rated
CSA 22.2 No. 137-M1981
IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db RoHS Compliant

Construction

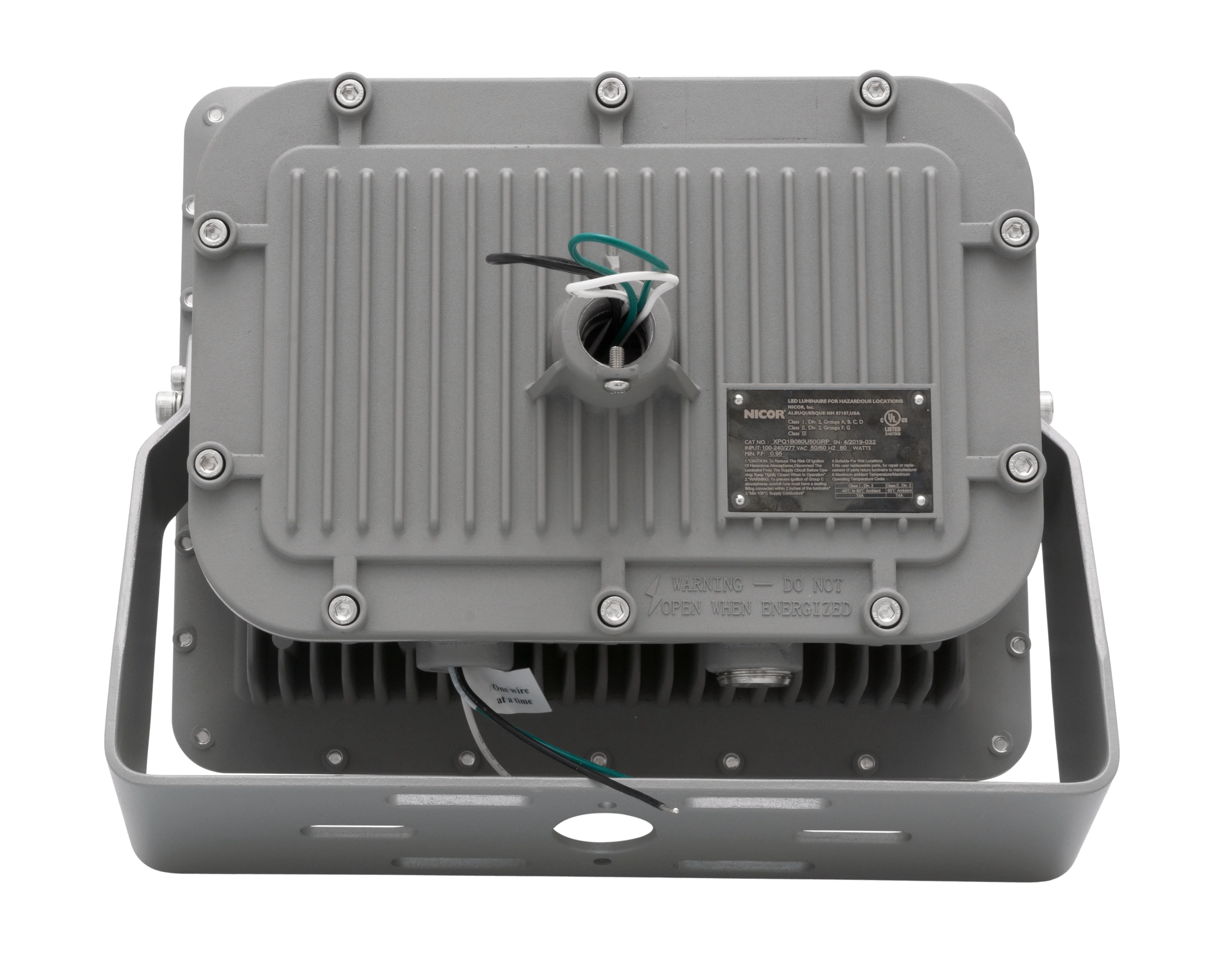

Die-cast, copper-free aluminum housing
Stainless steel hardware

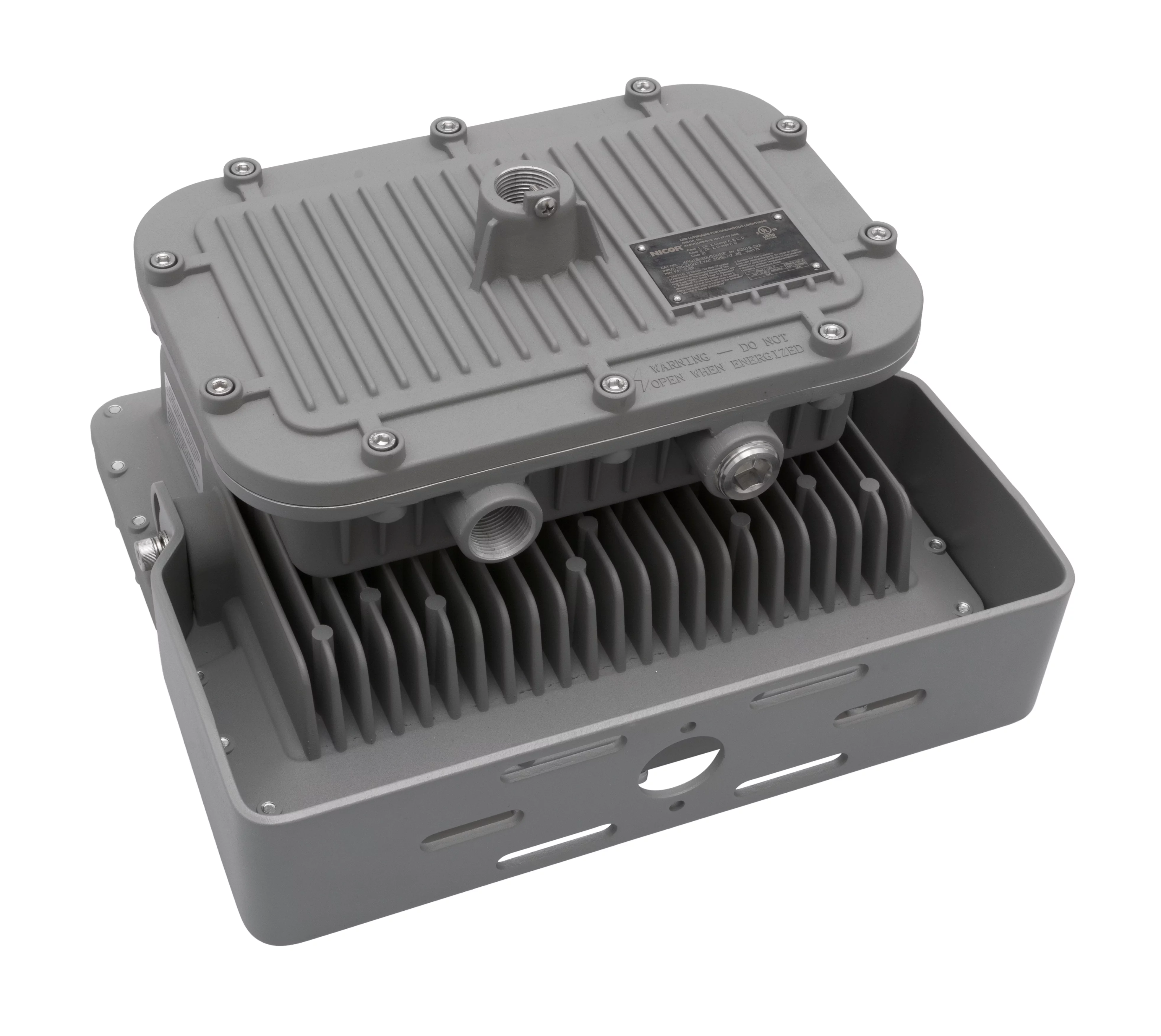

3/4” NPT threaded conduit/wire access ports
Weight - 80 & 100W: 33.1lbs (15kg); 150W: 36.4 lbs (16.5kg)
RoHS Compliant

Optical System

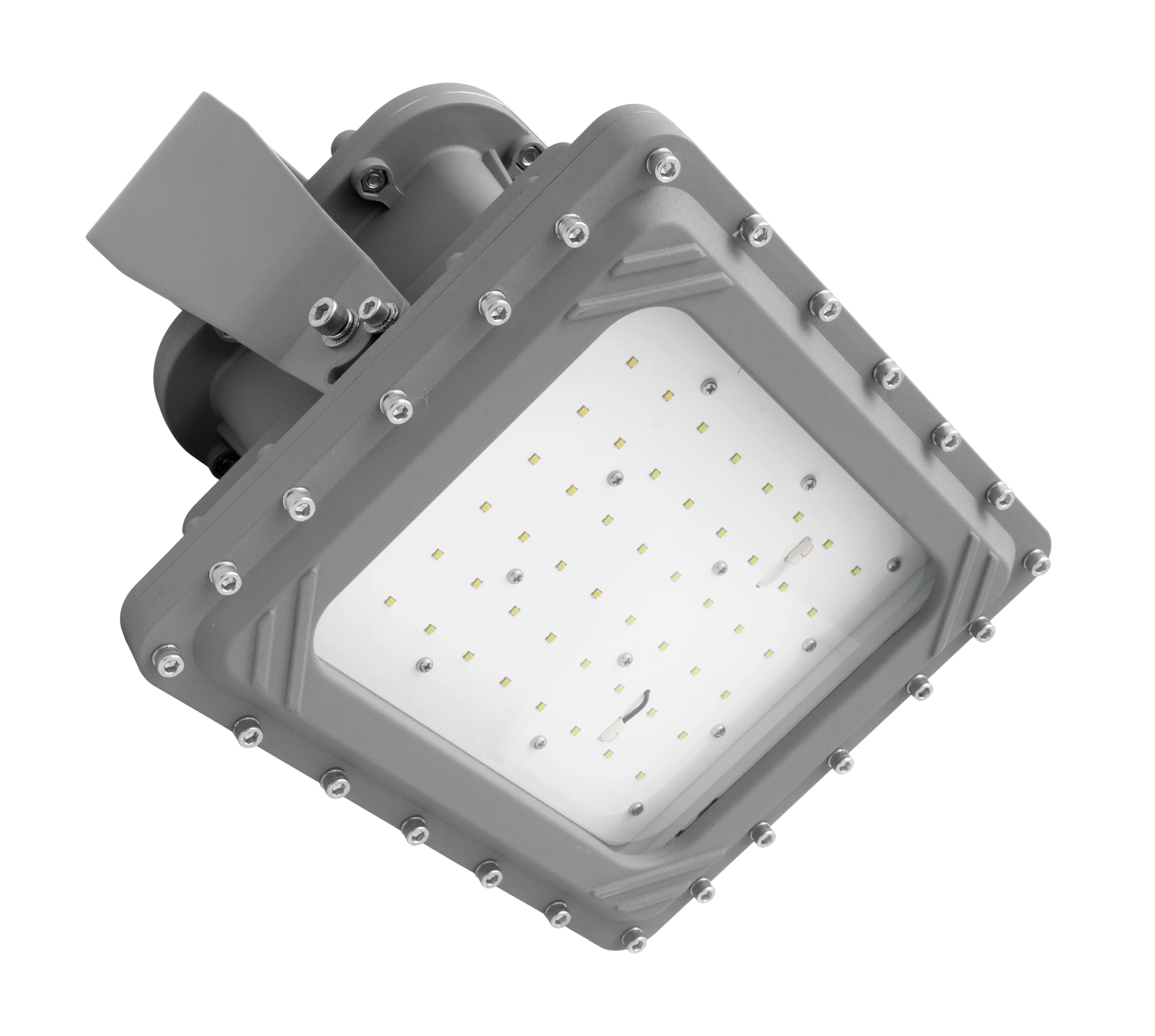

Tempered glass creates uniform light distribution and maximizes lumen output
Diffused lens optional**
Beam Angles: 25°, 60°, and 120° (NEMA Type 2, 4, and 6)
CCT: 5000K, 3000K**, or 4000K**
CRI: 70+

Electrical

Input voltage of 100-240/277VAC or 347-480VAC**
Input frequency of 50/60Hz
Power Factor of ≥.90
THD <20%
10kA surge protector
Reported L70 hours >50,000

Environmental

Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C)
C1D2 T4A at 122°F (50°C)
C2D2 T4A at 122°F (50°C)
Ambient Operating Humidity of 10%~90% RH

Finish

RAL 7037 (Dusty Gray) polyester powder coat

Installation

Prewired with 2’ flying leads
Allows wiring without opening the power supply cover

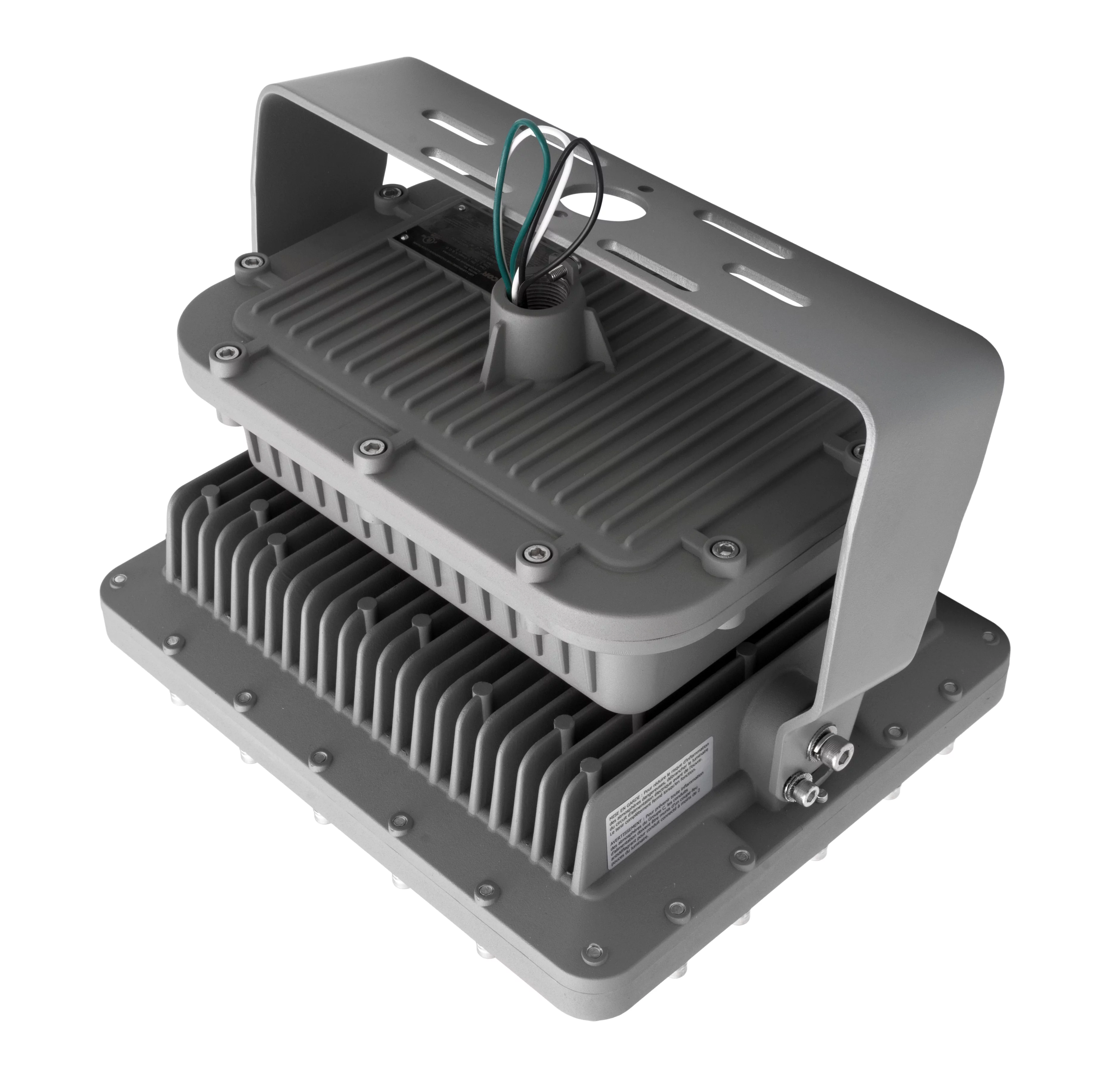

Adjustable trunnion bracket for ceiling, wall, etc.
Integrated 3/4” NPT threaded hub for pendant mount.
For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel

Warranty

5-year limited system warranty standard
The warranty does not cover product failure due to an overvoltage event (power surge)

Specifications

Primary Component Material	Die-Cast Aluminum (Copper Free)
Product Color	Dusty Gray
Finish	Polyester Powder Coat

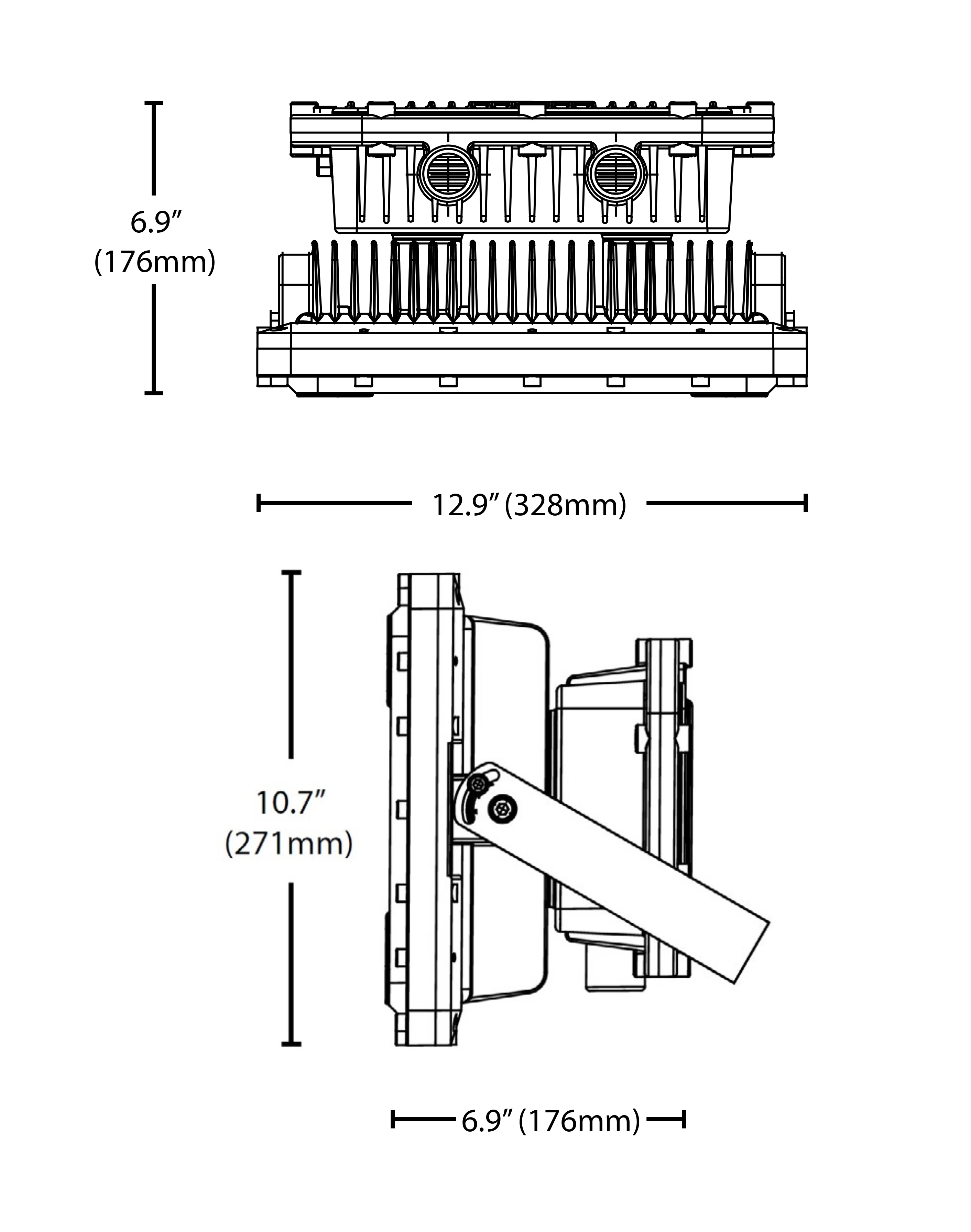

Product Length (in)	12.9
Voltage	100-240/277VAC
Wattage	97.6
Lumen Output	12170
Lumens Per Watt	124.7
Color Temperature (CCT)	5000K
CRI	70
Beam Angle	120° (+/- 10%)
Spacing Criteria	1.31
120V Current (A)	0.813
277V Current (A)	0.352
Power Factor	?.90
Total Harmonic Distortion (%)	<20%
Operating Temperature	-40°F to 122°F (-40°C to 50°C)
Product Lifespan (Hours)	>50,000
Warranty (Years)	1. 5
