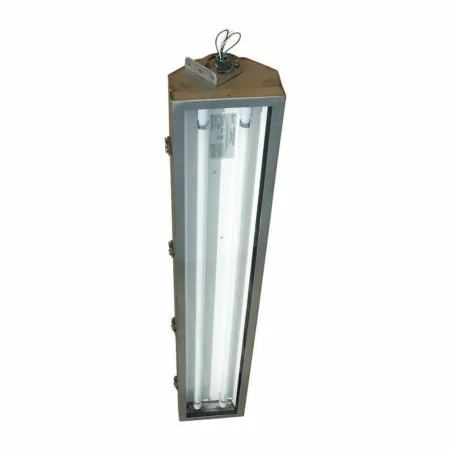

Intrinsically Safe Lighting Linear High Bay Fixture
- Explosion Proof Lighting

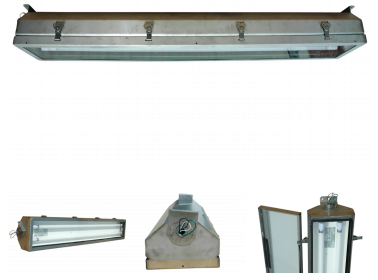

- Larson Hazardous Location Fixture HALSS-48-2L
- IS Lighting
- Larson Hazardous Location
- Fixture HALSS-48-2L product measurements
TECHNICAL SPECS:
- Light Technology Fluorescent
- Standard sUL 844 Class 1 Div 2 Groups A,B,C,D, UL 1598A Marine, cUL Listed for Canada, T4 Temp
- Fixture Type – High and Low Bay Fixtures Hazardous Location Linear High Bay Fixture
- Voltage 120/277
- Max. Fixture Wattage 64.0
- Lamp Watts – Fixtures 32.0
- Length: 55-1/2″
- Width: 9-49/64″
- Height: 6-43/64″
- Fixture Housing Material: 304 Stainless Steel
- Housing Finish Stainless Steel
- Fixture Housing Color: Silver
- Number of Light Bars: 2
- Lamp Included: Yes
- Mounting: Surface/Suspended
- Fixture Temp. Range: -20 Degrees to 70 Degrees C
Additional Intrinsically Safe Lighting Information
Two stainless steel L-brackets, present on each side, secure the Intrinsically Safe lighting fixture to any flat surface. Three through holes provide sufficient mounting for any environment. The angle of the bracket is set by tightening two set screws on either side. Then, once the brackets are mounted to a surface (ceiling, floor, or wall), the light fixture can be re-positioned by loosening the cap screws, angling the light for maximum illumination, and secured in place by re-tightening the set screws on each mounting bracket.
Offshore RigMan88 –
Intrinsically Safe Lighting Linear High Bay Fixture is for Class 1 Division 2 hazardous areas. May look bulky and heavy but this lighting fixture is so powerful and useful.
