The Intrinsically Safe Mobile Computer Janam XM5 – Windows Embedded Handheld 6.5 is certified for usage in hazardous environments Class I Division II. Janam’s extremely durable, extremely competent, and extremely economical XM5 mobile computer avoids the stress and expense associated with forced application migration and costly hardware upgrades. Additionally, it supports the Microsoft Windows Embedded Handheld 6.5 operating system, which fits their business requirements today while allowing them to extend their mobility investment years into the future.

The XM5 mobile computer redefines productivity and is rugged enough to withstand the demands of field use. It combines the latest technological breakthroughs in mobile devices with a sleek and durable design to provide commercial and government customers with the power and flexibility they require.

The XM5’s strong features, including 4G-ready WWAN and 802.11a/b/g/n Wi-Fi communications, ensure that mobile workers can access voice and data at any time and from any location. Additionally, the device contains a 1D/2D imager or a 1D laser scanner, as well as integrated RFID and NFC reading capabilities, front and back-facing cameras, Bluetooth, and intelligent battery power management. The XM5 mobile computer is resistant to repeated 5′ fall to concrete and is protected to IP65 standards. A basic two-year warranty covers clients at no additional cost.

Features:

• Class I Division II
• Hardware runs Windows Embedded Handheld 6.5
• 3.5 inch VGA TFT display
• High performance integrated barcode scanning
• ARM Cortex-A8 @1GHz
• Multiple 5’/1.5m drops to concrete
• Sealed to IP65 standards
• UL-certified for hazardous locations
• Embedded RFID and NFC capabilities
• 802.11a/b/g/n Wi-Fi and Bluetooth
• 4000mAh rechargeable Li-ion battery
• GPS and Assisted-GPS
• 3G/4G WWAN technology (UMTS/HSPA+/HSDPA/HSUPA/GSM)

Versions

XM5 – Windows Embedded Handheld 6.5: No Scanner, UMTS/HSDPA/HSUPA/GSM, GPS, HF RFID, Bluetooth, Numeric keypad

• Rugged PDA: No Scanner, WEH 6.5, UMTS/HSDPA/HSUPA/GSM, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: No Scanner, GPS, HF RFID, Bluetooth, Numeric keypad

• Rugged PDA: No Scanner, WEH 6.5, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: No Scanner, UMTS/HSDPA/HSUPA/GSM, GPS, HF RFID, Bluetooth, QWERTY keypad

• Rugged PDA: No Scanner, WEH 6.5, UMTS/HSDPA/HSUPA/GSM, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: No Scanner, GPS, HF RFID, Bluetooth, QWERTY keypad

• Rugged PDA: No Scanner, WEH 6.5, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 2D Imager, UMTS/HSDPA/HSUPA/GSM, GPS, HF RFID, Bluetooth, Numeric keypad

• Rugged PDA: WEH 6.5, 2D Imager, UMTS/HSDPA/HSUPA/GSM, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 2D Imager, GPS, HF RFID, Bluetooth, Numeric keypad

• Rugged PDA: WEH 6.5, 2D Imager, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 2D Imager, UMTS/HSDPA/HSUPA/GSM, GPS, HF RFID, Bluetooth, QWERTY keypad

• Rugged PDA: WEH 6.5, 2D Imager, UMTS/HSDPA/HSUPA/GSM, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 2D Imager, GPS, HF RFID, Bluetooth, QWERTY keypad

• Rugged PDA: WEH 6.5, 2D Imager, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 1D Laser Scanner, UMTS/HSDPA/HSUPA/GSM, GPS, HF RFID, Bluetooth, Numeric keypad

• Rugged PDA: WEH 6.5, 1D Laser Scanner, UMTS/HSDPA/HSUPA/GSM, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 1D Laser Scanner, GPS, HF RFID, Bluetooth, Numeric keypad

• Rugged PDA: WEH 6.5, 1D Laser Scanner, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 1D Laser Scanner, UMTS/HSDPA/HSUPA/GSM, GPS, HF RFID, Bluetooth, QWERTY keypad

• Rugged PDA: WEH 6.5, 1D Laser Scanner, UMTS/HSDPA/HSUPA/GSM, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 1D Laser Scanner, GPS, HF RFID, Bluetooth, QWERTY keypad

• Rugged PDA: WEH 6.5, 1D Laser Scanner, 802.11abgn, GPS, HF RFID, Bluetooth, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: No Scanner, QWERTY keypad

• Rugged PDA: No Scanner, WEH 6.5, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 2D Imager, Numeric keypad

• Rugged PDA: WEH 6.5, 2D Imager, Camera, Numeric keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 2D Imager, QWERTY keypad

• Rugged PDA: WEH 6.5, 2D Imager, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

XM5 – Windows Embedded Handheld 6.5: 1D Laser Scanner, QWERTY keypad

• Rugged PDA: WEH 6.5, 1D Laser Scanner, Camera, QWERTY keypad, 4000mAh battery, screen protector, AC Adapter, USB Cable

Specifications

TECHNICAL
Operating System	Microsoft Windows Embedded Handheld 6.5
Processor	AM3715 ARM Cortex-A8 @ 1GHz
Memory	512MB RAM / 1GB ROM
Expansion	User-accessible microSD card slot with SD and SDHC support
Power	4000mAh rechargeable Li-ion battery
PHYSICAL
Dimensions	6.1”L x 2.9”W x 1.0”D / 156.9mm L x 75.6mm W x 25.8mm D
Weight	10oz / 305g including battery
Display	3.5” TFT VGA (480x640)
Touch Panel	Resistive touch screen
ENVIRONMENTAL
Operating Temperature	-4º to 140º F / -20º to 60º C
Storage Temperature	-13º to 158º F / -25º to 70º C
Humidity	Non-condensing, 95%
Drop	Multiple 5ft / 1.5m drops to concrete on all sides across a wide temperature range
Water & Dust	IP65
Vibration	Amplitude 2MM from 10Hz to 33Hz in all three axes; one hour per axis
Electro Static Discharge (ESD)	+/- 8kVdc air; +/- 15kVdc contact
Sterilization	85% concentration alcohol rub
INTERFACE FEATURES
Audio	3.5mm headset jack with Secure Lock; mono speaker; mono microphone
Alerts	Vibration; LED indicators; audio beep
LED Indicators	2 dual LEDs on front
External Buttons	Numeric keypad or QWERTY keypad; Right: Scan/Power, Left: Scan/Up/Down
DATA CAPTURE
Imager	Honeywell N5600 with 2D Adaptus® Imaging Technology
Laser	Honeywell N4300 miniature laser engine
RFID/NFC	Reads ISO14443 Type A, ISO14443 Type B, ISO15693 and Mifare Classic RFID tags in the 13.56 MHz range
WIRELESS COMMUNICATION
WWAN	UMTS/HSPA+/HSDPA/HSUPA/GSM
WLAN	802.11a/b/g/n
Security	Authentication: EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)
	Encryption: WPA2 (AES-CCMP), WPA (TKIP), WEP
WPAN	Bluetooth v2.1, Class 2 EDR
MOBILE APPURTENANCES
Motion Sensor	G-Sensor Accelerometer
GPS	U-Blox GPS and Assisted GPS
Camera	5.0 megapixel autofocus camera with LED flash
ACCESSORIES

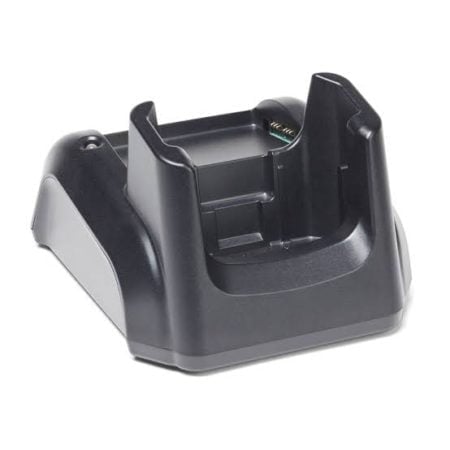

	Single-slot cradle kits (USB; Ethernet)
	Four-slot cradle kits (Charging)

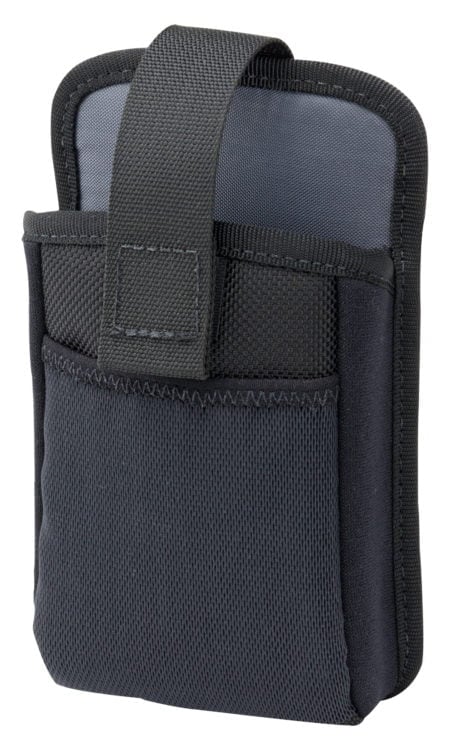

	Nylon holster
	Syncing/charging cable
	Charging adapter
SAFETY/REGULATORY
Safety	CSA C22.2 No.60950-1-03; UL60950; EN60950-1; UL1604 Class 1 Div 2 (A,B,C,D); EN60825
EMI	FCC Part 15B
RF	FCC Part 15B and 15C, RSS-210, ICES-003
Hazardous Locations	UL Listing (US and Canada) Class 1 Div 2, Groups A, B, C, D

Certifications:

• Janam Technologies Hazardous Certification

Resources:

• English Datasheet
• French Datasheet
• German Datasheet
• Italian Datasheet
• Russian Datasheet
• Spanish Datasheet
• Specifications
• User Guide
• Spanish User Manual
