Intrinsically Safe Panel PC – AcuPanel APNL ATEX C1D2
The AcuPanel APNL is a rugged industrial Panel PC engineered in Canada and purpose-built for hazardous areas. With ATEX, C1D2, and C1Z2 certifications, it delivers safe and reliable performance in oil & gas, chemical, mining, and manufacturing environments. Designed with an IP65 front panel, the AcuPanel ensures protection against dust and water spray while offering long-term durability in mission-critical operations.
Powered by Intel Core i5 or i7 processors and supporting up to 32GB DDR5 RAM, the AcuPanel is optimized for demanding industrial workloads. Its LED-backlit displays (500 NITS, with optional 1000 NITS) provide excellent visibility in bright outdoor conditions, while the 10-point capacitive multi-touch screen allows smooth operation with or without gloves. The fanless aluminum alloy design ensures silent, 24/7 operation across extreme temperatures ranging from -40°C to +60°C.
Key Features:
✅ ATEX, C1D2, C1Z2 certified for hazardous areas
✅ Windows 10 IoT, 11 IoT, 11 Pro, or Linux OS support
✅ IP65 front panel protection, washable and rugged
✅ Intel Core i5/i7 processors with DDR5 memory
✅ Connectivity: Wi-Fi 6E, Bluetooth, optional 4G/5G/LTE/GPS
✅ I/O: HDMI, VGA, LAN, USB 3.2, RS232/RS485
✅ Wide operating temperature: -40°C to +60°C

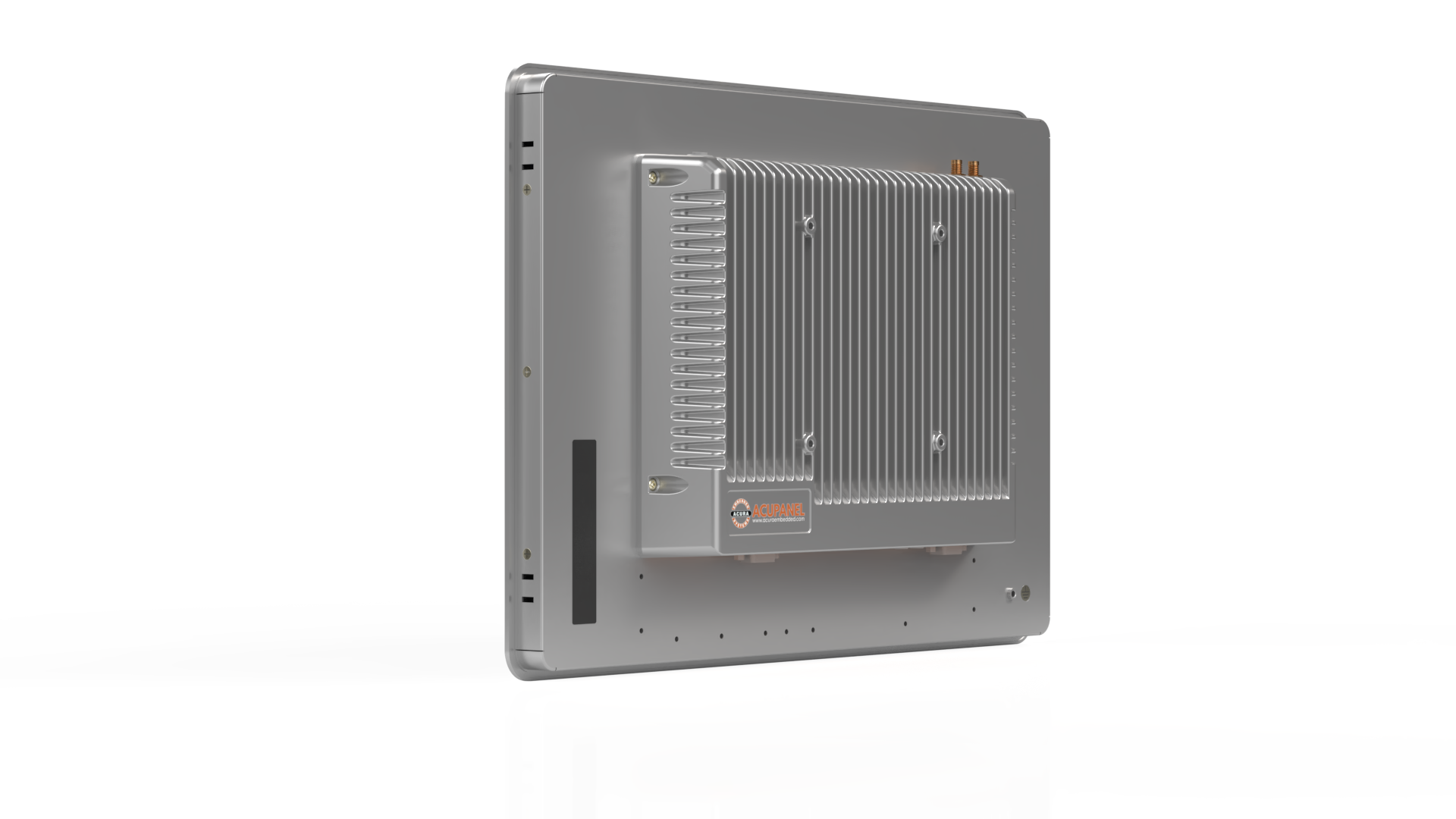

✅ Fanless aluminum alloy construction for reliability
✅ Multiple aspect ratios: 16:9 and 4:3
✅ Screen brightness up to 1000 NITS for outdoor use

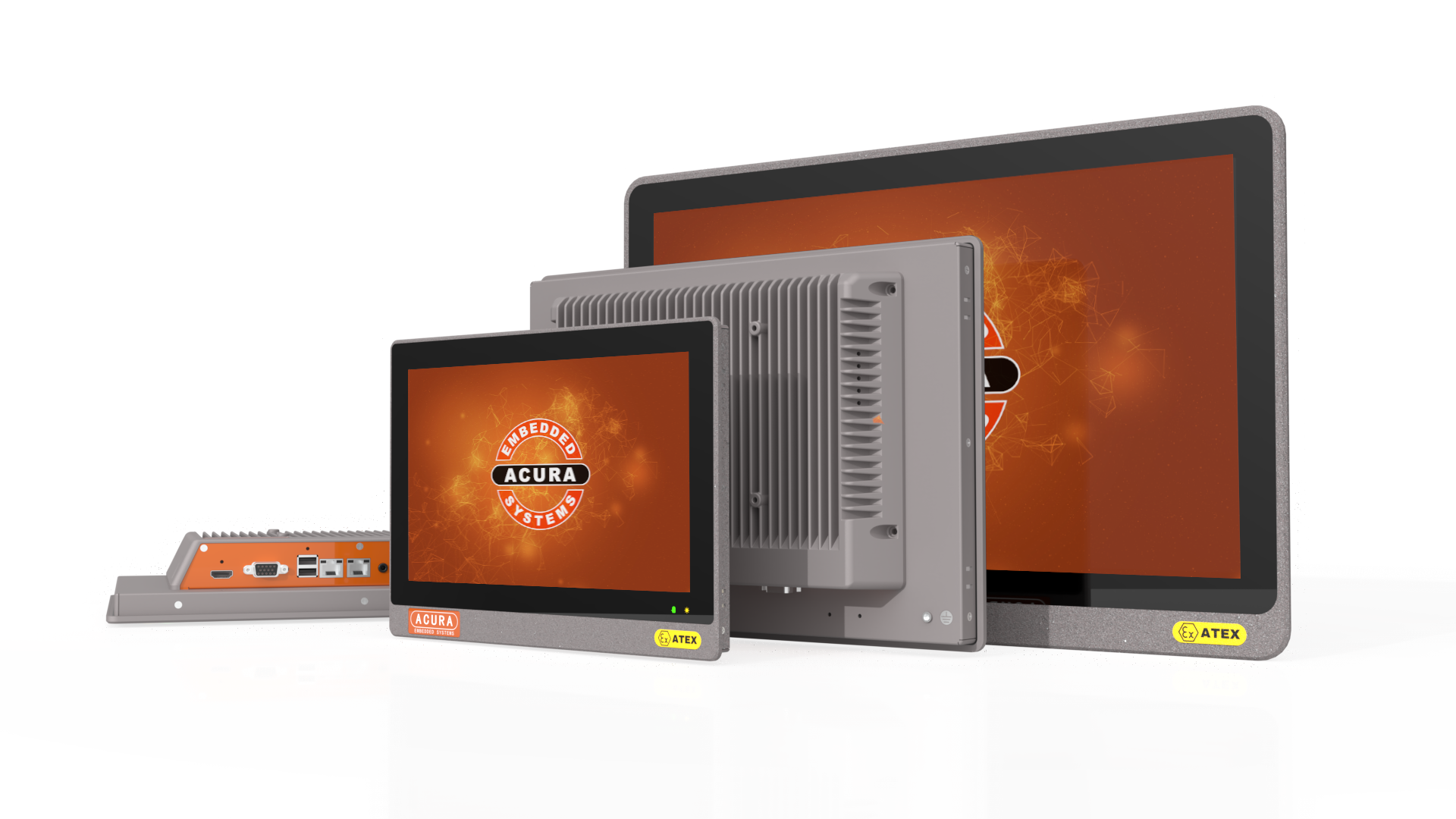

📦 Package Options:
🔹 10″ (16:9) – 1920 x 1080
🔹 10″ (4:3) – 1024 x 768
🔹 12″ (4:3) – 1024 x 768
🔹 12″ (16:9) – 1920 x 1080
🔹 13″ (16:9) – 1920 x 1080
🔹 15″ (4:3) – 1024 x 768
🔹 15.6″ (16:9) – 1920 x 1080
🔹 17″ (4:3) – 1024 x 768
🔹 17.3″ (16:9) – 1920 x 1080
🔹 18.5/19″ (16:9) – 1920 x 1080
🔹18.5/19″ (4:3) – 1280 x 1024
🔹 21.5″ (16:9) – 1920 x 1080
🔹 24″ (16:9) – 1920 x 1080
🔹 32″ (16:9) – 1920 x 1080
Note: This unit comes standard with Intel Core i5, 8GB RAM, and base storage. Upgrades to Intel Core i7, additional RAM, and expanded storage are available. Please contact one of our sales representatives for customized configurations.
AcuPanel APNL Technical Specifications:
| Feature | Details |
|---|---|
| Processor | Intel Core i5 or i7 |
| Memory | Up to 32GB DDR5 RAM |
| Storage | Up to 4TB M.2 NVME SSD, optional dual SATA SSD up to 4TB (RAID 0/1) |
| Display Options | Sizes: 10.1", 10.4", 12", 13", 15", 15.6", 17", 17.3", 18.5", 19", 21.5", 24", 32" |
| Aspect Ratios | 16:9, 16:10, or 4:3 (depending on model) |
| Resolution | From 1024 x 768 up to Full HD 1920 x 1080 (model dependent) |
| Brightness | 500 NITS (1000 NITS optional) |
| Touchscreen | Projected capacitive, 10-point multi-touch |
| I/O Ports | 1x HDMI, 1x VGA, 2x LAN (RJ45), 4x USB 3.2, 1x RS232/RS485, Audio In/Out |
| Wireless Connectivity | Wi-Fi 6E, Bluetooth (Intel AX210), optional 4G/5G/LTE/GPS |
| Audio | Built-in speaker, line-out, mic input |
| Operating System | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro, Linux |
| Power Input | 9–36V DC (optional vehicle ignition start) |
| Construction | Aluminum alloy chassis, fanless design |
| Ingress Protection | IP65 – front panel only (washable) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Humidity | <95% non-condensing |
| Mounting | Panel mount or VESA mount |
| Certifications | ATEX, C1D2, C1Z2, CSA, UL, FCC, UKCA |
| Warranty | 3-year bumper-to-bumper |
Certifications & Compliance:
🔗 ATEX: Certified for Zone 2 hazardous locations
🔗 C1D2 – Safe for North American hazardous areas
🔗 CSA, UL, FCC, UKCA – Electrical & safety compliance
🔗 IP65 Front Protection – Dust and water spray resistant
🔗 Download Datasheet
Applications of AcuPanel APNL:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x AcuPanel APNL Panel PC
📦 1x Power Supply
📦 1x Mounting Kit (Panel/VESA)
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 3-4 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the difference between IP65 front and fully sealed?
The APNL model has IP65 protection only on the front panel, while the fully-sealed APNLFLSD is IP65 on all sides for harsher environments.
Can the AcuPanel be used outdoors?
Yes, with 1000 NITS optional sunlight-readable displays, it performs well in outdoor conditions.
Is this device fanless?
Yes, it uses a patented aluminum alloy chassis with passive cooling for silent, reliable operation.
Does it support wireless connectivity?
Yes, Wi-Fi 6E and Bluetooth are standard, with optional 4G/5G/LTE and GPS.
