iKey HP-DT-FSR-NI FSR Pointing Device

In StockSKU: —

Version

$562.73

Qty

Safety Specifications

Incl. accredited factory seal & certification stamps

Hazardous Area RatingClass 1 Division 2
VersionPS2 connection, USB Connection

Product Description

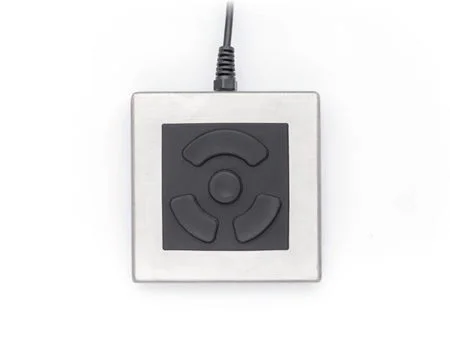

A Non-Incendive Hulapoint Pointing Device with Force Sensing Resistor desktop mouse is a certified Class I, Division II pointing device that can be used in hazardous locations. Additionally, it features a NEMA 4X design, PS/2 or USB configurations, a stainless steel case, a low-profile design, no moving parts, the functionality of a mouse, and the flexibility of a joystick in one convenient product. It comes with a one-year limited warranty.

Technical Datasheet

Certification & Specification

Hazardous Area Rating	Class 1 Division 2
Version	PS2 connection, USB Connection

Product Overview

The upgraded pointing device that offers improved sensitivity and increased durability is now shipping Intrinsically Safe Pointing Device iKey HP-DT-NI w/ Force Sensing Resistor Desktop Mouse is a certified Class I, Division II pointing device designed for use in hazardous locations.

Intrinsically Safe Pointing Device iKey HP-DT-NI w/ Force Sensing Resistor Desktop Mouse combines the functionality of a mouse and the flexibility of a joystick in one convenient, small-footprint package. A sturdy stainless steel case is also included. Pressure-sensitive feedback is provided for positive motion control without requiring vigorous movement. The HP-DT-NI Low-profile design contains no protruding parts that might break, and no moving elements to collect dust. With its completely sealed, NEMA 4X design, the iKey FSR can withstand spills, wash downs, contaminants, and the impacts of an industrial environment.

For use in hazardous locations, the pointing device must be used in conjunction with the iKey PS2-IS-BARRIER.

Features:

Class I, Division II
NEMA 4X
PS/2 or USB configurations are available
( PS/2 ships with bulkhead cable. USB ships with PG7 cable gland )
Stainless Steel
Material: industrial silicone rubber
Life: 10 million cycles
100% humidity resistant
1 Year Limited Warranty

The transition from CTS to Force Sensing Resistor:

No mechanical parts: visible change, improved technology, better accuracy, and smoother use
Longer life: 420,000 hours – 7x more than the CTS (60,000)
CTS: mechanical damage was higher, moving from cap and stick to a rubber resistor

Specifications:

CERTIFICATIONS	NEMA 4X UL60950, FCC Part 15 Class B Factory Mutual approval for Class I, Division II
SHOCK	3x11 ms pulses of 50g on each of 3 axes
CABLE	LENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: single PS2 or USB cable
KEY SWITCH	MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 200g (+/- 20g) FEEDBACK: Tactile with mechanical snap
VIBRATION	POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
COMPATIBILITY	PS/2: All Windows Operating Systems USB: All Windows and Macintosh Operating Systems
TEMPERATURE RANGE	STORAGE: -40C to +70C (-40F to 158F) OPERATING: -20C to +60C (-4F to 140F)
WEIGHT	1.25 lbs (0.68 kg)
WARRANTY	1 Year Limited Warranty
HUMIDITY	100% Humidity Resistant
DIMENSIONS	4.90" x 4.90" x 1.13" (w-h-d) 124.5mm x 124.5mm x 28.7mm
MODEL NUMBERS	HP-DT-NI-PS2: With PS/2 cable HP-DT-NI-USB: With USB cable
