Intrinsically Safe Rokee EP-02-G5 Explosion | Flame Proof Lighting

SKU: N/A

The Intrinsically Safe Rokee EP-02-G5 Explosion | Flame Proof Lighting -luminaries are designed to provide reliable and efficient lighting solutions in demanding industrial and hazardous settings, offering benefits such as energy savings and reduced maintenance costs.

ATEX

Zone 1

Hazardous Area

Class 1 Division 1 – Group C,D : Class 1 Division 2- Group A,B,C,D ; Class 2 Division 2 – Group E, F,G, Class 3

Housing Color

Grey, Orange

$50825

Price Depends on product option
Make a selection to update price

Shipping Time: 2-4 Weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: , ,

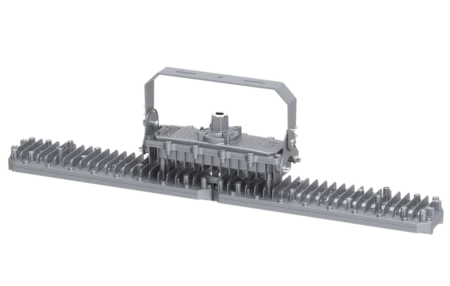

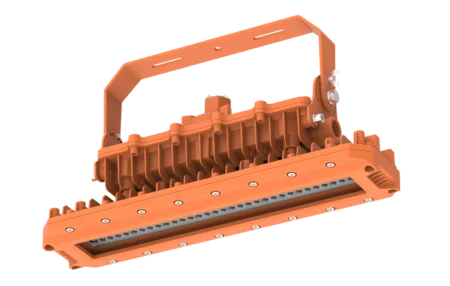

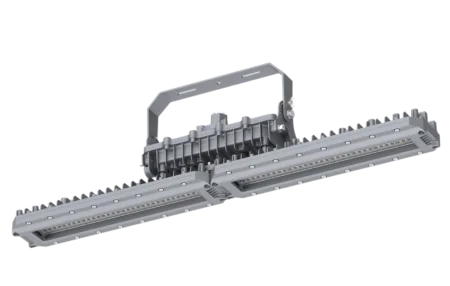

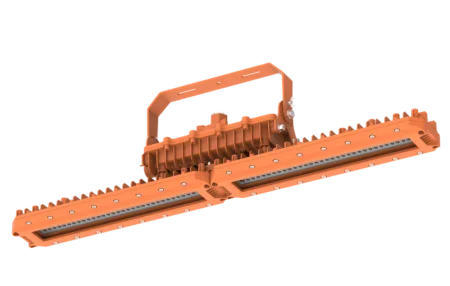

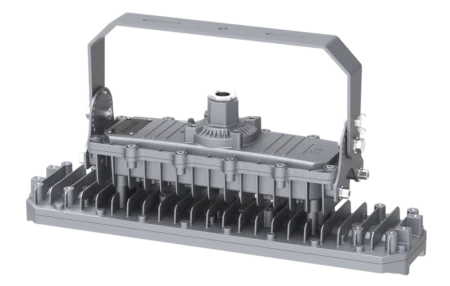

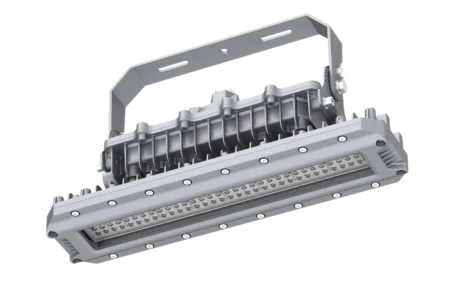

Intrinsically Safe Rokee EP-02-G5 Explosion | Flame Proof Lighting

Introducing the Intrinsically Safe Rokee EP-02-G5 Explosion | Flame Proof Lighting luminaries – a cutting-edge solution designed for reliability and efficiency in demanding industrial settings. With benefits including substantial energy savings and reduced maintenance costs, the Explosion-Proof Housing adheres to stringent industry standards, ensuring safety and top-tier performance. Tailored for challenging conditions like moisture, dirt, dust, corrosion, and vibrations, it complies with NEC and IEC specifications for hazardous locations.

Versatile in application, the EP-02-G5 finds its place in refineries, fuel depots, marine vessels, chemical production, food processing, wineries, and other high-humidity, high-temperature, and dusty environments. Beyond adaptability, it stands out for superior efficiency compared to traditional lighting solutions, emphasizing energy savings, lower maintenance costs, and an extended lifespan. This luminary sets a new standard for reliable and cost-effective lighting in challenging industrial landscapes.

Feature:

  1. Explosion-Proof Housing:
    • External Proof Construction strictly following standards like EN 60079 and IEC 60079.
    • Unique design structure for strong impact resistance and excellent sealing performance.
    • Suitable for use in hazardous areas such as refineries, fuel depots, marine vessels, chemical production, food processing, wineries, high humidity, and high-temperature dusty places.
  2. External Explosion-Proof Construction:
    • Light source and quality driver spaces are designed separately to reduce volume and enhance safety.
    • Threads and potting used for complete separation, strictly following external explosion-proof design.
  3. 10mm Tempered Glass:
    • Utilizes 10mm thickness tempered glass for durability, high light transmittance, and strong impact resistance (resisting 4 joule impact).
  4. SUS304 Material:
    • All materials are made up of SUS304 stainless steel for stronger corrosion resistance.
  5. Perfect Heatsink Design:
    • Light source and quality driver spaces designed separately for better heat dissipation and longer lifespan.
  6. ADC 12 Die Casting Housing:
    • Housing made of ADC 12 aluminum alloy through die casting.
    • Incorporates a nicely designed 3D heat dissipation system for effective cooling.
  7. Air Convection Design:
    • Utilizes air convection design to speed up the heat dissipation of the lamp.
    • Features a 50% larger dissipation area for enhanced cooling.
  8. Wing Slip Bolt for Toolless Beam Adjustment:
    • EP-02 Series boasts a Wing Slip Bolt design, enabling effortless and toolless adjustment of the beam angle.
  9. Efficient Toolless Installation:
    • Simplifying the setup process, the series offers toolless installation, ensuring quick and hassle-free deployment in diverse environments.

Specifications:

ItemPowerEffi.LedsCRIWeightBeam AngleCCT
EP60W-02-G560W140lm/WLumileds>807.90 kg (17.42 lbs)30/60/90/1203000K/4000K/5000K/5700K
EP80W-02-G580W140lm/WLumileds>807.90 kg (17.42 lbs)30/60/90/1203000K/4000K/5000K/5700K
EP100W-02-G5100W140lm/WLumileds>807.90 kg (17.42 lbs)30/60/90/1203000K/4000K/5000K/5700K
EP120W-02-G5120W140lm/WLumileds>8012.00 kg (26.5 lbs)30/60/90/1203000K/4000K/5000K/5700K
EP150W-02-G5150W140lm/WLumileds>8012.00 kg (26.5 lbs)30/60/90/1203000K/4000K/5000K/5700K
EP200W-02-G5200W140lm/WLumileds>8012.00 kg (26.5 lbs)30/60/90/1203000K/4000K/5000K/5700K
Housing ColorGrey & OrangeNote: Mention the Color While Placing the Order
Packaging Specs:Box
Mesurement (mm)Gross Weight Pcs/box
L570*W240*H2559.4kg (20.7 lbs)1

Note: Specify the lens optional. Standard= 90 Degree Lens.

Rokee EP-02-G5 Explosion | Flame Proof Lighting

Certificate:

Rokee EP-02-G5 Explosion | Flame Proof Lighting

Resources:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

Rokee Ceiling Ring for EP-02

SKU: Ceiling Ring HBL Accessories 3-EU

Rokee Ceiling Ring for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$275

Rokee Chain for EP-02

SKU: Chain HBL Accessories 2

Rokee Chain for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$625

Rokee Explosion Proof Cable Clamp Close sealing Joint for EP-02

SKU: Explosion Proof Cable Clamp Close sealing Joint

Rokee Explosion Proof Cable Clamp Close sealing Joint for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$4625

Rokee Explosion Proof Connection Box for EP-02

SKU: Explosion Proof Connection Box

Rokee Explosion Proof Connection Box for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$4900

Rokee Explosion Proof Elbow for EP-02

SKU: Explosion Proof Elbow

Rokee Explosion Proof Elbow for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$3625

Rokee Explosion Proof Flexible Connecting Tube for EP-02

SKU: Explosion Proof Flexible Connecting Tube

Rokee Explosion Proof Flexible Connecting Tube for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$4125

Rokee Explosion Proof Joint for EP-02

SKU: Explosion Proof Joint

Rokee Explosion Proof Joint for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$2150

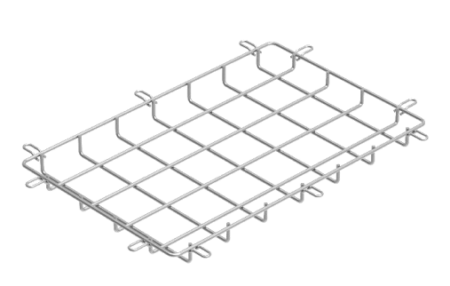

Rokee Impact Resistant Cover for EP-02-G3 | G4 | G5

SKU: Impact Resistant Cover for EP-02-G3 | G4 | G5

Rokee Impact Resistant Cover for EP-02 is compatible to use for EP-02-G3, EP-02-G4, EP-02-G5.

Brand: Rokee Lighting

In Stock 2-4 Weeks

$2375

$4300

$4625

$9100

Rokee Pendant Pole for EP-02 - 0.5m

SKU: Pendant Pole 0.5m

In Stock

$2100

Rokee Pendant Pole for EP-02 - 1m

SKU: Pendant Pole 1 m

In Stock

$3625

Rokee Safety Rope for EP-02

SKU: Safety Rope HBL Accessories 4

Rokee Safety Rope for EP-02 is compatible to use for EP-02

Brand: Rokee Lighting

In Stock 2-4 Weeks

$375

Rokee SPD for EP-02 - 10KV

SKU: SPD 10KV IP67

In Stock

$1125

Rokee SPD for EP-02 - 20KV

SKU: SPD 20KV IP67

In Stock

$1625
