Intrinsically Safe Tablet Bartec Lumen X4

SKU: N/A
(1 customer review)

Intrinsically Safe Tablet Bartec Lumen X4 is IECEx and ATEX  certified, Class I Division 2. Optional barcode scanner. Replaceable battery. Bluetooth, NFC and WLAN data transmissions. Rugged and light.

ATEX Rating

Hazardous Area Rating

$2,46100

Price Depends on product option
Make a selection to update price

Clear

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Description

Intrinsically Safe Tablet Bartec Lumen X4

  • ATEX Zone 2/22
  • IECEx
  • CSA Class I Division 2
  • Extremely flexible industrial touch tablet for rough environments
  • Powerful quad core processor for high working speed
  • Replaceable battery with long life
  • Rugged due to military specifications in accordance with MIL-STD-810G
  • Integrated Bluetooth, WLAN, 4G and NFC
  • Integrated 8 MP camera

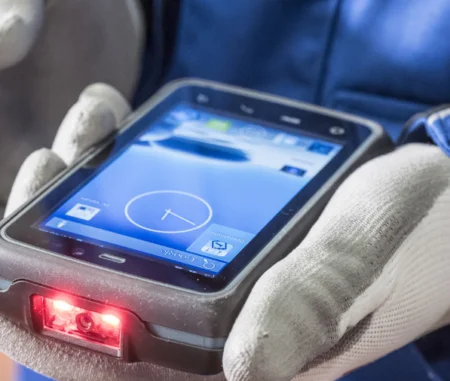

  • Optional barcode scanning with 1D/2D imager
  • Optional scanning of RFID HF tags
  • Low weight
  • Wide range of accessories

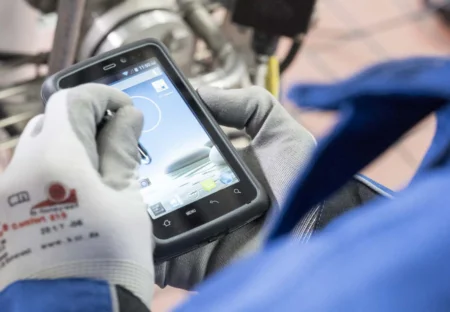

Intrinsically Safe Tablet Lumen X4 from Bartec is a light yet rugged 4.3″ industry touch tablet with IECEx and ATEX Zone 2/22 markings. It is built with super powerful display that is visible even under the bright sunlight, a wateproof enclosure which helps secure the device from liquid and an integrated telephone function to boost communication.

Specifications:

Explosion protection
Marking ATEXII 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T100 °C Dc
CertificationEPS 16 ATEX 1 039 X
Marking IECExEx ic IIC T5 Gc
Ex ic IIIB T100 °C Dc
CertificationIECEx EPS 16.0016X
Marking CSAClass I Div. 2 Groups A, B, C and D T5
CertificationCSA File: 70043322
Technical data
Protection classIP 54
(EN/IEC 60529)IP 65 for the version for use outside
potentially explosive atmospheres
Storage temperature-30 °C to +60 °C
Operating temperatureon starting: -10 °C to +50 °C
during operation: -20 °C to +50 °C
Air humidity during operation5 % to 95 % (non-condensing)
ProcessorARM Cortex -A53 Quad Core 1.3 GHz
Memory2 GB SDRAM
Storage16 GB eMMC
Expandable memoryMicroSD card up to 32 GB supported
Operating systemAndroid 5.1 (Lollipop)
Size4.3"
Resolution480 x 800 pixels
Brightness400 cd/m²
Touch functionProjective capacitive multi-touch
Wireless communicationWLAN-WiFi
IEEE 802.11 a/b/g/n
Bluetooth
Version 4.1 + EDR
GPS integrated
WWAN
4G-GSM/GPRS/EDGE/WCDMA/
HSDPA/HSUPA/LTE
Includes telephone function
(Exception: data transmission only within the EU)
Data captureFollowing RFID tags are supported:
RFID Reader HF/NFC(read/write) e. g. Type 1, 2, 3 and 4,
ISO/IEC 14443A/B, ISO/IEC 15693,
Mifare Classic, FeliCa, ISO 18092 (NFC)
Barcode scanning (optional)Readable 1D codes:
1D/2D ImagerCode 11, Code 39, Code 93, Code 128,
(SE4500 from Zebra)Codabar, Coupon Code, Chinese 2 of 5,
Discrete 2 of 5, EAN-8, EAN-13,
Interleaved 2 of 5, MSI, UPCA, UPCE,
UPC/EAN supplementals, Trioptic 39,
RSS-14, RSS Expanded, RSS Limited,
Webcode
Readable 2D codes:
Aztec, Australian 4-state, Canadian 4-state,
Composite AB, Composite C, PDF-417,
Data Matrix, Dutch Kix, Japanese 4-state,
Macro PDF-417, (Macro) Micro PDF-417,
Micro PDF-417, microQR, Maxi Code,
QR Code, TLC39, UK 4-state, US Planet,
US Postnet, USPS 4-state (US4CB)
Audio1 x integrated microphone,
1 x loudspeaker (1 x 1.2 watts)
Internal I/O under battery1 x Micro-SIM card slot
1 x MicroSD card slot
Externe I/0only for use outside potentially explosive atmospheres
1 x Micro USB/Charging port
(OTG host, data exchange and charging)
1 x Port for 2-slot charger
(PoGo pin for charging)
Keys1 x on/off key
1 x function key
2 x volume keys (+/-)
4 x capacitive function keys
(home, menu, ESC, search function)
LED1 x LED indicator
SensorsBrightness sensor, G-sensor, proximity
sensor and eCompass
Camerafront: 2 MP camera
rear: 8 MP autofocus camera and LED flash
Size (length x width x height)132.7 mm x 82 mm x 25.7 mm
Weight280 g with battery
Battery (Type B7-A2Z0-0034)Lithium polymer battery
3.7 V/3900 mAh (1S/2P),
Battery life up to 20 hrs.,
Charge time using USB charging adapter:
up to 2.5 hrs,
Charge time using USB (PC): up to 6.5 hrs
Must be changed only outside potentially
explosive atmosphere.
USB charging adapterInput voltage: AC 100 to 240 V
Output voltage: DC 5 V/1 A/5 W
Warranty1 year
Service agreementsavailable on request
Scope of deliveryLumen X4
Battery
Hand strap
USB charging adapter with EU and US plug
Micro USB cable (type A to micro type B),
Quick start guide
Optional accessoriesfor use in potentially explosive atmospheres:
Battery
Screen protector
MicroSD card
for use outside potentially explosive atmospheres:
USB charging adapter with UK and AUS plug
Micro USB host cable (OTG)
2-slot battery charger
2-slot charger

Access your files with ease using SD card and data transmission using Bluetooth, WLAN, NFC and HSPA+. The 8MP rear camera and 2MP front camera delivers clear, crisp images that can be printed for reference. It runs using the Android 5.1 technology and a perfect handy device for warehouse management, transport, service technicians, operating personnel, engineers and project managers in the field.

Intrinsically Safe Tablet Bartec Lumen X4 Certifications:

Intrinsically Safe Tablet Bartec Lumen X4 Other Resources:

Data Sheet:

User Manual:

Brochure:

Quick Start Guide:

Declaration of Conformity:

Accessories:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

Bartec-USB-Universal-Charging-Adapter

Bartec - USB Charging Adapter

SKU: 03-9914-0014

Bartec - USB Charging Adapter is USB charging adapter for non-hazardous area.With an input voltage of AC 100 V to 240 V and output voltage: DC 5 V/1 A. It also have type A USB and can be used in combination with micro USB cable.

Brand: Bartec

In Stock 3-5 business days

$11300

Bartec-Lumen-X7-and-X4-Micro-SD-Cards-image

$36500

Bartec-Lumen-X7-and-X4-Micro-SD-Cards-image

$58700

Handstrap-for-Lumen-X4-main-image

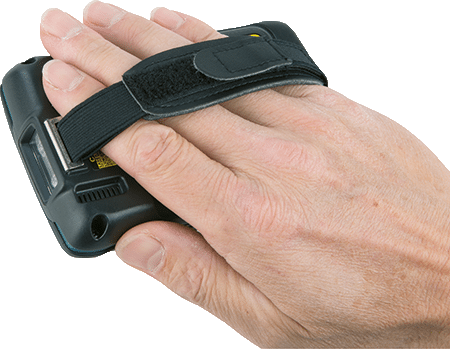

Bartec Lumen X4 - Hand Strap

SKU: 03-9849-0142

Reliable Bartec Lumen X4 - Hand Strap helps keep your device in place.With solid hand grip, non slip and durable handstrap for Lumen X4.

Brand: Bartec

In Stock 3-5 business days

$5500


Bartec Lumen X4 - Lanyard

SKU: 03-9849-0143

Lanyard is use as eyelet for hand and for rear side mounting. ( 1 piece )

Brand: Bartec

In Stock 3-5 business days

$5500

Bartec-Lumen-X4-Micro-USB-Cable-main-image

Bartec Lumen X4 - Micro USB Cable

SKU: 03-9919-0025

Bartec Lumen X4 - Micro USB Cable is USB type A to Micro USB type B.It also charge in combination with USB charging adapter.With communication/data exchange with other USB devices.

Brand: Bartec

In Stock 3-5 business days

$5500


Bartec Lumen X4 - Micro USB Host Cable

SKU: 03-9919-0026

Bartec Lumen X4 - Micro USB Host Cable is to provides OTG (On-the-Go) function.Also acting as a host allowing a USB flash drive to be attached.

Brand: Bartec

In Stock 3-5 business days

$5500

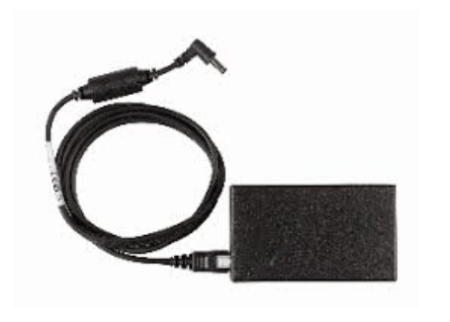

Bartec Lumen X4 - Power Supply

SKU: 03-9911-0015

Power Supply is powered by input voltage of 100 V to 240 V AC and output voltage of 12 V/4.16 A/50 W DC.High performance power supply from Bartec.

Brand: Bartec

In Stock 3-5 business days

$13500

3900-mAh-battery-for-Lumen-X4-main-image

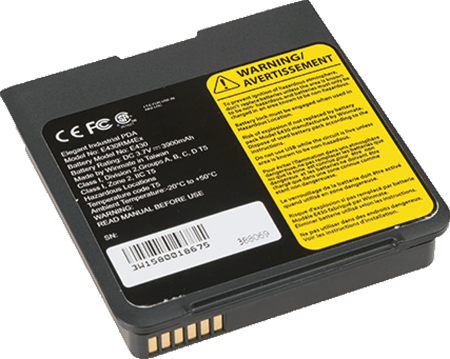

Bartec Lumen X4 - Spare Battery

SKU: B7-A2Z0-0034

Bartec Lumen X4 - Spare Battery is lithium polymer battery 3.7 V / 3900 mAh.With 12 to 15 hours performance depending on device settings. Charging time of 3 hours.Lightweight and gives your Lumen X4 extended life.

Brand: Bartec

In Stock 3-5 business days

$48900

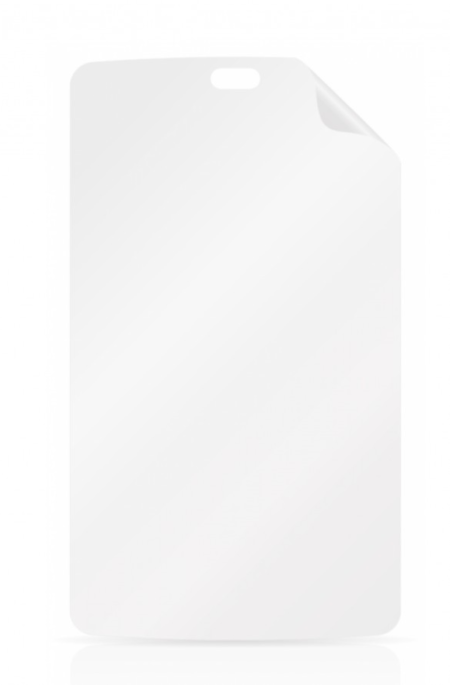

Bartec Lumen X4 -Screen Protector

SKU: B7-A2Z0-0035

Screen Protector is 4.3" Inch protective display foil that will protect your Lumen X4 touchscreen from dirt and water.It also certified in combination with Lumen X4. It can be attached or replaced outside the potentially explosive atmosphere. ( 5 pieces )

Brand: Bartec

In Stock 3-5 business days

$9900

Device-charger-Lumen-X4-showing Lumen X4 product

Device Charger Lumen X4

SKU: 03-9914-0018

Device charger Lumen X4 is for charging of two Lumen X4.Powered by 12 V DC (50 W) input voltage. Also operates two slot charging dock. With power level LED indicators.

Brand: Bartec

In Stock 3-5 business days

$49200

External-Battery-Charger-for-Lumen-X4-main-image

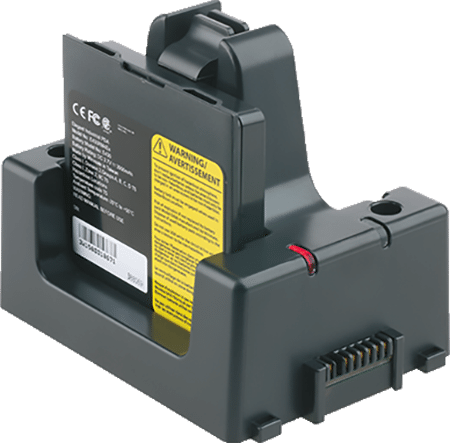

External Battery Charger for Lumen X4

SKU: 03-9914-0019

External Battery Charger for Lumen X4 is for charging of two batteries.Powered by 12 V DC (50 W) input voltage. Also operates two slot charging dock. With power level LED indicators and buzzer.

Brand: Bartec

In Stock 3-5 business days

$43800
