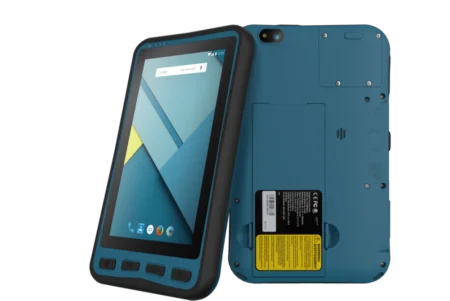

Intrinsically Safe Tablet Bartec Lumen X7

SKU: N/A
(2 customer reviews)

Intrinsically Safe Tablet Lumen X7 by Bartec is Zone 2, extremely flexible industrial tablet with powerful quad core processor, huge storage capacity and  high resolution. It is built to support WLAN, bluetooth, GPS and WWAN and has a large number of international certifications.

ATEX Rating

Hazardous Area Rating

$2,75600

Price Depends on product option
Make a selection to update price

Clear

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Description

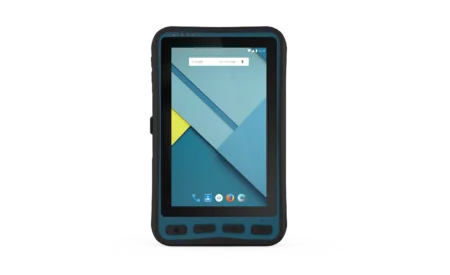

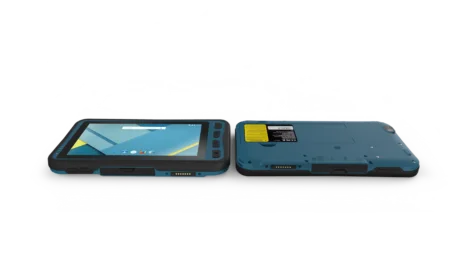

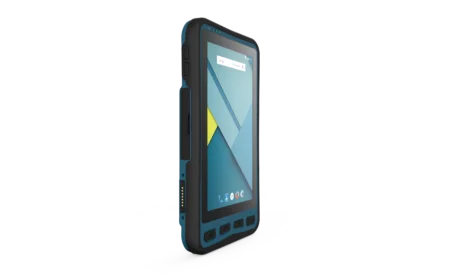

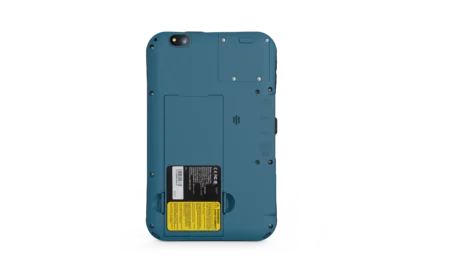

Intrinsically Safe Tablet Bartec Lumen X7

Introducing the newest Intrinsically Safe Tablet Bartec Lumen X7 – a highly flexible industrial tablet that is waterproof and features dual-band wifi, tool-less battery hot swap and USB sync. Intrinsically Lumen X7 tablet has a large number of international certifications and approved for:

  1.  ATEX Zone 2
  2. IECEx
  3.  UL Class 1 Division 2

Intrinsically safe tablet Lumen X7 provides perfect support for warehouse management, transport,service technicians, operating personnel, engineers and project managers in the field and in industry.

Mobile solution for Hazardous Areas

An excellent smartphone and barcode scanner in one powerful device.

Readability and data capture

Readable display even under sunlight and guarantees operation even in unfavorable light. The entire display works without difficulty when wearing work gloves. An integrated barcode scanner in the Tablet Lumen X7 makes the device to a multi-functional companion.

Modular, flexible and future-proof

Two high resolution cameras enable video telephony and photographic records directly at the application site. It also features an integrated bluetooth, WLAN and LTE radio modules that meet European mobile phone standards.

Navigation and position sensing

The Intrinsically Safe Tablet Lumen X7  has very accurate GPS. As a result it is easy to determine the position of the device and also to navigate safely.

For extreme application fields

The device is waterproof and has proven resistance to falls and has been certified in accordance with military standards (MIL-STD-810G). The Intrinsically safe tablet Lumen X7 functions safely and reliably even under extreme temperatures. It can withstand temperatures of between -10 °C and +50 °C both inside and outside potentially explosive atmospheres.

Powerful battery and quad core processor

Supported with a modern quad core processor which makes it a very high-performance device.  A lithium polymer battery is used in Intrinsically safe tablet Lumen X7, which can be replaced easily without tools.  This type of battery has a life of up to 20 hours in mixed operation. Talk time is up to 18 hours and standby time is up to 800 hours. A complete battery charge takes 3.5 hours.

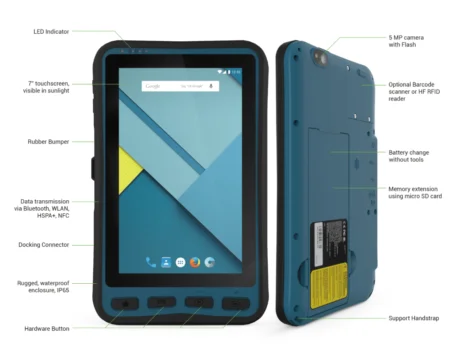

Intrinsically Safe Tablet Lumen X7 Specifications:

AREAS OF USEFEATURESBENEFITSTECHNOLOGY
Public safetyLarge operating temperature rangeIncreased securityAndroid operating system
Petrochemical industryIntegrated barcode scannerIntegrated 8 MP cameraBluetooth, WLAN, HSPA+, NFC
Oil and gas industry, power engineeringHigh-performance, replaceable batteryOptimized work flowsPowerful quad-core processor
Logistics, warehouses, transportMilitary specification (MIL)Mobile, robustCapacitive touchscreen
Explosion Protection
Marking ATEXII 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T100 °C Dc
CertificationEPS 15 ATEX 1 037 X
Marking IECExEx ic IIC T5 Gc
Ex ic IIIB T100 °C Dc
IECEx EPS 15.0053X
Marking ULClass I Div. 2 Groups A, B, C and D T6
CertificationFile E321557
Protection classIP 54 (non-Ex IP 65)
(EN/IEC 6052932 GB
Other approvalsCE, FCC, CCC
Technical Data
ProcessorARM® CortexTM-A7 Quad Core 1.5 GHz
RAM1 GB Mobile DDR2
Hard disk space16 GB eMMC
Memory optionMicroSD card up to 32 GB supported
Operating systemAndroid 4.2.1 (Jelly Bean)
Touch functionProjective capacitive multi-touch
Wireless communicationWLAN
IEEE 802.11 a/b/g/n
Bluetooth
Version 3.0 + EDR
GPS integrated
WWAN 3.75G-GSM/GPRS/EDGE/WCDMA/
HSDPA/HSUPA
Includes telephone function
Exception: data transmission only within the EU
Audio1 x loudspeaker (1 x 1.2 watts)
1 x audio combination connection
(Microphone In/Line Out)
External I/0only for use outside potentially explosive areas
1 x Micro USB 2.0 Type B (OTG)
1 x MicroSD card slot
1 x Micro SIM card slot
1 x Port for docking station
1 x Charging port (DC
Keys1 x power on/off button
2 x volume buttons (+/-)
4 x function buttons (home, F1, F2, menu)
LED1 x LED indicator
(battery and status of power mode)
Camera5 MP camera with autofocus and
LED flash on the back
Size (L x W x H)212.4 mm x 132.8 mm x 19 mm
Weightapprox. 600 g with battery
BatteryLithium-polymer battery 3.7 V/5300 mAh,
Battery life up to 20 hrs.,
Charge time using power supply with plug-in
adapter: up to 3.5 hrs, can be replaced outside
potentially explosive atmospheres
Power supply withInput:
Plug-in adapterAC 100 to 240 V/50 to 60 Hz/0.6 A
(EU + US)Output:
DC 5 V/3 A/15 W max.
Warranty3 years
Service AgreementsAvailable on request

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

Bartec-Lumen-X7-and-X4-Micro-SD-Cards-image

$36500

Bartec-Lumen-X7-and-X4-Micro-SD-Cards-image

$58700

Bartec-Lumen-X7-Desktop-Docking-Station-main-image

Bartec Lumen X7 - Desktop Docking Station

SKU: 03-9915-0020

Bartec Lumen X7 - Desktop Docking Station is docking station suitable for Lumen X7. Alongside with input voltage of DC 12 V. It interfaces of 4 x USB 2.0, 1 x RS232, 1 x Ethernet 10/100 Mbit/s, and 1 x charging port.

Brand: Bartec

In Stock 3-5 business days

$67500

Bartec-Lumen-X7-Hand-Strap-main-image

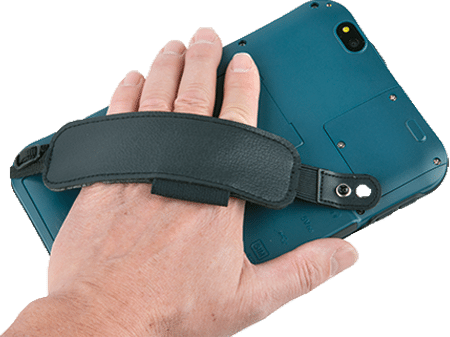

Bartec Lumen X7 - Hand Strap

SKU: 03-9849-0141

Reliable Bartec Lumen X7 - Hand Strap is certified in combination with Lumen X7 for a safe handling during use of the device.Helps keep your device in place.With durable hand strap for Lumen X7.

Brand: Bartec

In Stock 3-5 business days

$5500

Bartec-Lumen-X7-Spare-Battery-main-image

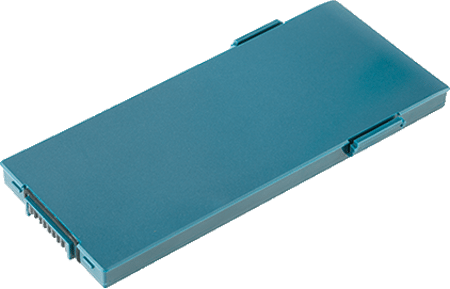

Bartec Lumen X7 - Spare Battery

SKU: B7-A2Z0-0027

Bartec Lumen X7 - Spare Battery is lithium polymer battery 3.7 V / 5300 mAh.With up to 12 hours performance depending on device settings. Charging time of 3 hours.Lightweight and gives your Lumen X7 extended life.

Brand: Bartec

In Stock 3-5 business days

$60200

Bartec-Lumen-X7-Stylus-main-image

Bartec Lumen X7 - Stylus

SKU: 03-9849-0144

Bartec Lumen X7 - Stylus is for direct entry via touchscreen.It is certified in combination with Lumen X7.

Brand: Bartec

In Stock 3-5 business days

$7700

Bartec-Lumen-X7-Universal-Adapter-main-image

Bartec Lumen X7 - Universal Adapter

SKU: 03-9914-0013

Bartec Lumen X7 - Universal Adapter is power supply with plug-in adapter (EU + US).With an input voltage of AC 100 V to 240 V and output voltage of DC 5 V / 3 A.

Brand: Bartec

In Stock 3-5 business days

$15400

Bartec-Lumen-X7-USB-Car-Charging-Adapter-main-image

Bartec Lumen X7 - USB Car Charging Adapter

SKU: 03-9914-0012

Bartec Lumen X7 - USB Car Charging Adapter is power supply with vehicle charging adapter.With an input voltage of DC 9 V to 36 V and output voltage of DC 5 V / 3 A.

Brand: Bartec

In Stock 3-5 business days

$11000

Bartec-Lumen-X7-Vehicle-Docking-Station-main-image

Bartec Lumen X7 - Vehicle Docking Station

SKU: 03-9915-0021

Bartec Lumen X7 - Vehicle Docking Station is docking station suitable for Lumen X7. Alongside with input voltage of DC 9 to 36 V. It interfaces of 4 x USB 2.0, 1 x RS232, 1 x Ethernet 10/100 Mbit/s,1 x charging port, and 1 x Terminal block for power supply.

Brand: Bartec

In Stock 3-5 business days

$1,34100
