Curtiss-Wright COPPUS Portavent Ventilator

The Portavent® Versatile Centrifugal Ventilator for Source Capture Fume Exhaust's design, performance, and versatility make it ideal for a variety of industrial applications, including welding and other fume removals; small tank purging; equipment cooling; confined space ventilation; and other maintenance and safety applications.

Features:

• Available in the largest version up to 940 cfm (1,597 m3/hr)
• Direct-drive 3,500 RPM fan motor
• Cast aluminum fan and housing provide spark-resistant construction
• The unique, multi-position stand offers a variety of convenient set-ups
• Accepts flexible duct at inlet and outlet ends
• Backwardly inclined airfoil blades prevent motor overloads
• Inlet and outlet screens meet OSHA standards
• TE & EP motors available on all models
• 90 dBA @ 5 ft (1.5 m)

Accessories:

• 5 & 6” close-pitch source capture duct
• 5, 6, and 8” source capture hoods

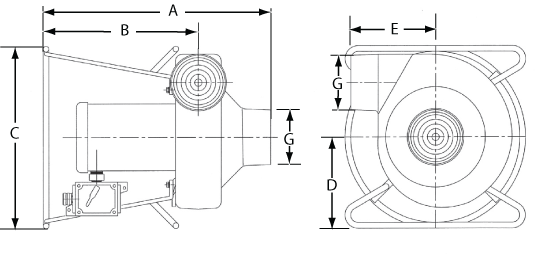

Dimensions:

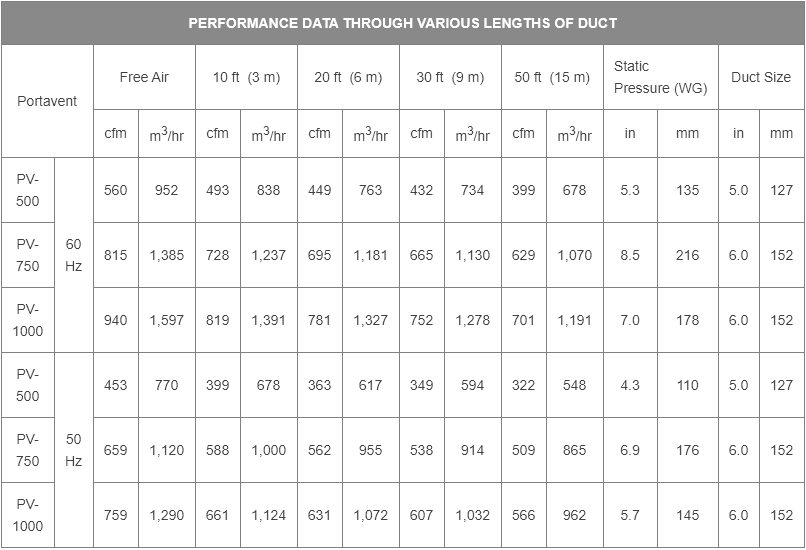

Performance:

Resources:

• Intrinsically Safe Ventilator COPPUS Portavent Sheet
