Curtiss-Wright COPPUS Reaction Fans

SKU: N/A

These fans are suited for hazardous situations and demanding ventilation projects due to their rugged, cast aluminum housing and fan blade. The RF design is based on action-reaction principles; compressed air is expelled via nozzles situated at the fan blade’s tip, resulting in exceptionally efficient, high-volume, low-maintenance air movers.

*This product is only available for US, can’t be shipped to other countries

Weight 50 lbs

$3,89600

Price Depends on product option
Make a selection to update price

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

These intrinsically safe fans are suited for hazardous situations and demanding ventilation projects due to their rugged cast aluminum housing and fan blade. The RF design is based on action-reaction principles, with compressed air being discharged through nozzles at the fan blade’s tip, resulting in exceptionally efficient, high-volume, low-maintenance air movers.

RF-20 & RF-24 Features:

  • 11,000 to 16,900 cfm (18,689 to 28,713 m3/hr) at 80 psig*
  • Functions as blower or exhauster
  • Can be carried or rolled
  • Spark-resistant cast aluminum housing and fan blade
  • Permanently lubricated bearings
  • Flanges mate with 20 inches (508 mm) and 24 inches (610 mm) API tank openings
  • 106 – 111 dBA @ 5 ft (1.5 m)

RF-12, RF-16 Features:

  • 2,100 to 5,100 cfm (3,566 to 8,665 m3/hr) at 80 psig
  • Functions as blower or exhauster
  • Low compressed air consumption
  • Spark-resistant, cast-aluminum housing, and fan blade
  • Virtually maintenance-free
  • Permanently lubricated bearings eliminate line oiler
  • Cast-in handles and feet
  • Cast-in bead to accept 12 inch (305 mm) and 16 inch (406 mm) duct
  • Bolt holes allow optional adapter plates attachment
  • 101-109 dBA @ 5 ft (1.5 m)

Accessories:

  • Beaded Duct Adapter
  • Floor Stand
  • Bonding Cable
  • Swing-out Assembly
  • Duct

Dimensions:

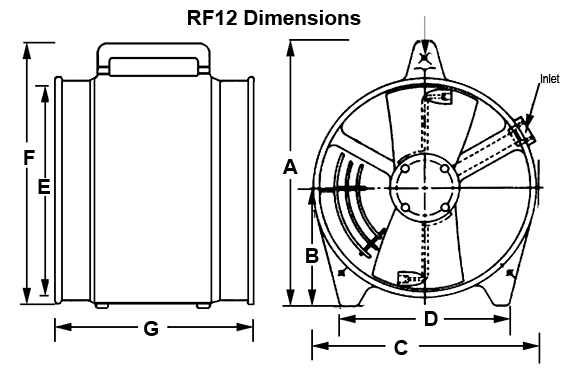

RF12 Dimensions

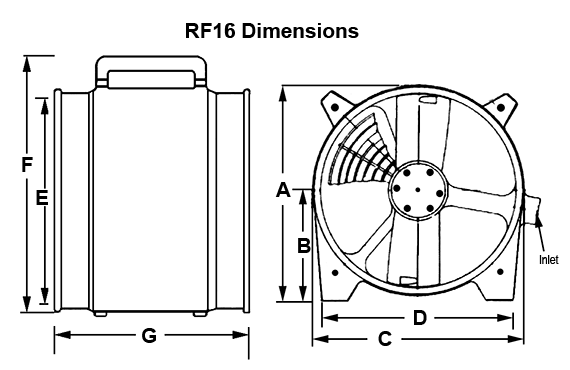

RF16 Dimensions

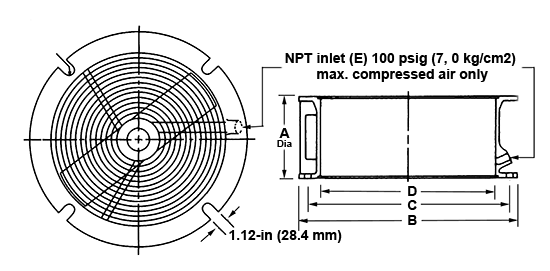

NPT Inlet













Decibel Level
