Curtiss-Wright COPPUS VANO® 175CV & 250CV

SKU: N/A

Intrinsically Safe Ventilator VANO offers a fixed guide vane design that delivers high volumes of air while maintaining static pressure for exhausting fumes and delivering fresh air – making it the quintessential confined space ventilator. A rugged, durable, high-performance design makes the VANO ideal for ventilating tanks, process vessels, tank cars, manholes, and other confined spaces.

*This product is only available for US, can’t be shipped to other countries

Hazardous Area Rating

,

$3,31009

Price Depends on product option
Make a selection to update price

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

With the advancement of the VANO, COPPUS Ventilators revolutionized air moving equipment more than 60 years ago. The VANO is the ultimately confined space ventilator due to its fixed guide vane design that provides enormous volumes of air while preserving static pressure for expelling pollutants and delivering fresh air. The VANO is perfect for ventilation tanks, process vessels, tank cars, manholes, and other restricted places because to its tough, sturdy, and high-performance design.

Features:

  • Class 1 Division 1 Group D
  • Class 2 Division 1 Groups E, F & G
  • Straightening fixed guide vanes for improved static pressure
    performance
  • Accepts ducting at inlet and outlet ends

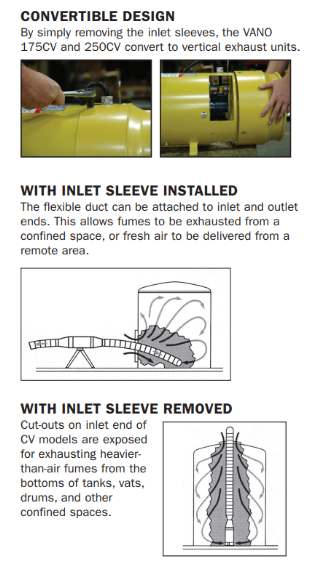

  • Converts to exhaust fumes from the bottom of tanks
  • Available with totally enclosed (TE) or explosion-proof (EP) motors
    and compatible switch; all models supplied with 15 ft (4.572 m)
    power cord
  • Heavy-gauge, powder-coated steel, and cast aluminum construction
  • Spark-resistant fan blades
  • Automatic thermal overload protection standard on VANO 175CV
    and 250CV models

VANO® Features:

  • Heavy-gauge steel and cast aluminum construction
  • Beaded-end for structural integrity
  • Corrosion-resistant powder coating
  • Lift handle at or near equilibrium for easy lifting
  • Nickel-plated steel guide vanes protected by cast aluminum housing for improved static pressure performance
  • Safety screens per OSHA; plated steel
  • Convertible inlet designed to exhaust fumes from the bottom of tanks
  • 115V or 230V (60 Hz), and multiple 50 Hz voltage options
  • All models supplied with switches and 15 ft (4.57 m) power cord; plug 115V totally enclosed only
  • Auto thermal overload protection
  • Hazardous location (EP) motors rated NEC Class I, Division I, Group D & Class II, Division I, Groups E, F & G specifications
  • 92 dBA @ 5 ft (1.5 m)
  • Tripod is available with any VANO. Elevates VANO to waist height for ergonomics and better access to elevated tank openings; allowing VANO to be positioned between 45 degrees up and down and pivoting 360 degrees.
  • Transport cart available for any VANO. The cart provides easy transportation and handling of VANO; eliminating the need to lift or carry and can be operated while strapped to the cart.

The VANO offers a fixed guide vane design that delivers high volumes of air while maintaining static pressure for exhausting fumes and delivering fresh air – making it the quintessential confined space ventilator. A rugged, durable, high-performance design makes the VANO ideal for ventilating tanks, process vessels, tank cars, manholes, and other confined spaces. Shop Now!

175CV Features:

  • Easily attach 12” duct (305 mm) to inlet & outlet
  • Cast aluminum fan blade
  • Motor – single speed, 1 HP, totally enclosed (TE) or explosion proof (EP) options

250CV Features:

  • Easily attach 12” duct (305 mm) to inlet & outlet
  • Cast aluminum fan blade
  • Motor – single speed, 1 HP, totally enclosed (TE) or explosion proof (EP) options

Accessories:

  • Tripod
  • Transport Cart
  • 8” Heavy Duty & Polyvinyl Duct (175CV)
  • 8” Conductive Duct (Hazardous Location 175 CV)
  • 12” Heavy Duty & Polyvinyl Duct (250CV)
  • 12” Conductive Duct (Hazardous Location 250CV)
  • 8” Duct Storage Canister (175CV)
  • 12” Duct Storage Canister (250CV)

Dimensions:

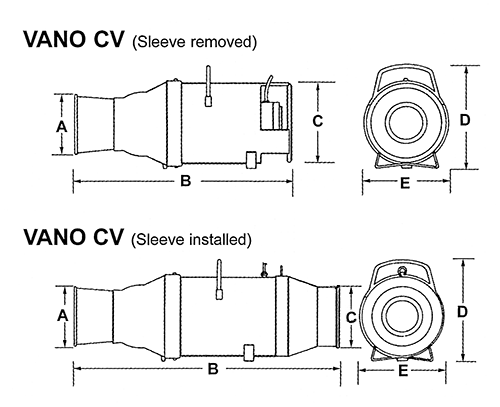

Intrinsically Safe Ventilator COPPUS VANO Dimensions

Intrinsically Safe Ventilator COPPUS VANO Physical Dimensions

Performance:

Intrinsically Safe Ventilator COPPUS VANO Air Flow

Intrinsically Safe Ventilator COPPUS VANO Free Air Decibel
