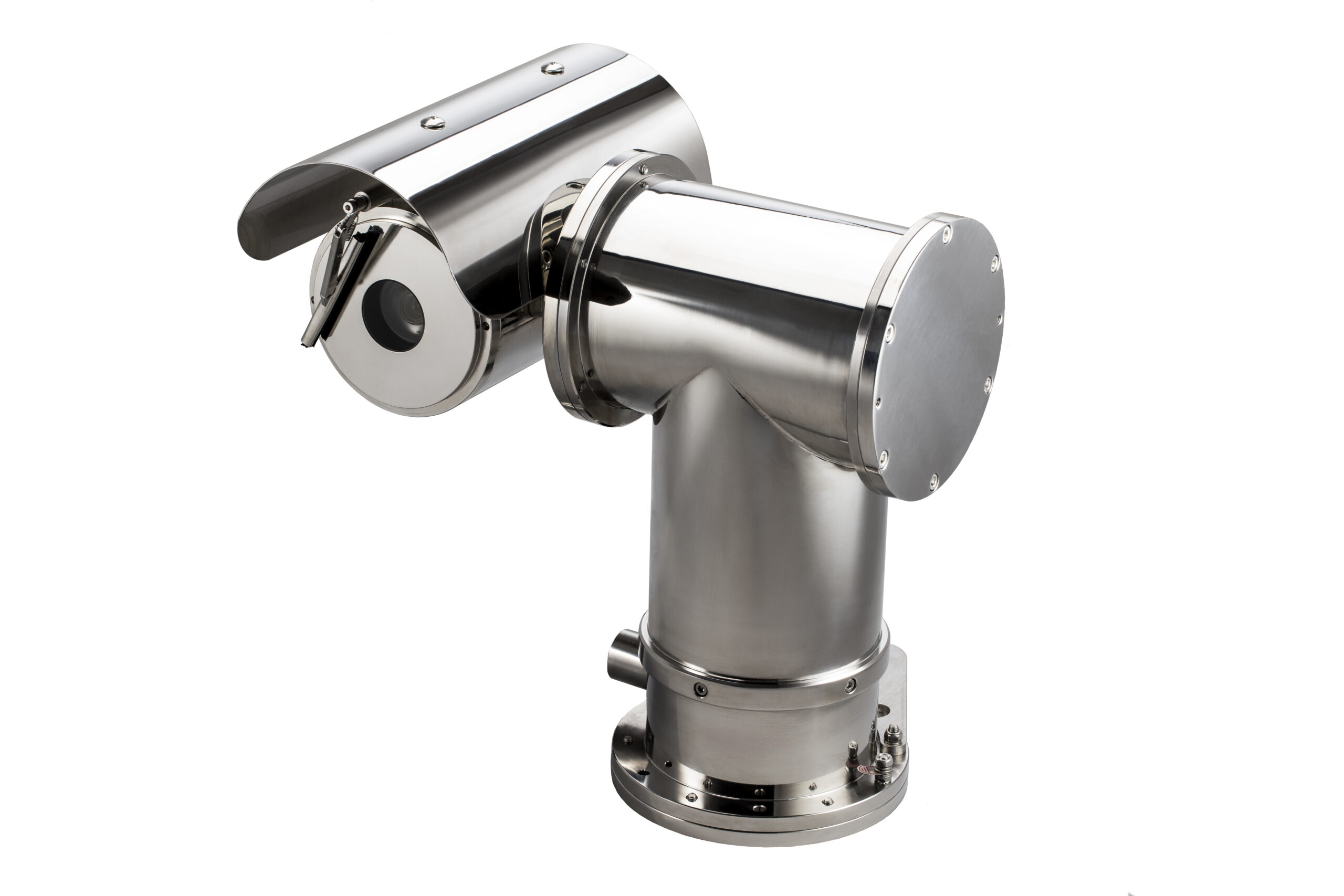

IVC APTZ-3045-09 Explosion-Proof Camera
The IVC APTZ-3045-09 Explosion-Proof Camera is a high-performance explosion-proof pan-tilt-zoom (PTZ) camera designed for hazardous environments. Engineered to deliver 1080p high-definition video, this rugged surveillance solution provides 30x optical zoom for detailed monitoring in industrial, oil & gas, and chemical plant applications.
With its advanced low-light technology, the APTZ-3045-09 automatically switches to black and white mode and removes the IR cut filter to enhance visibility in challenging lighting conditions. Built with a 316L stainless-steel enclosure, this camera is Class I, Division 1 certified and ensures reliable performance in extreme conditions.
Key Features
✅ Explosion-Proof & Hazardous Area Certified: Class I Division 1, Groups B, C, & D for use in high-risk environments.
✅ 30x Optical Zoom & Full HD Video: Captures 1080p high-definition footage with motorized zoom for clear surveillance.
✅ Low-Light Optimization: Automatic day/night mode enhances visibility by switching to black and white and removing the IR cut filter.
✅ Pan/Tilt Capabilities: 360° continuous pan and -90° to 90° tilt for complete area coverage.
✅ IP-Ready for Remote Monitoring: Supports 100BASE-T Ethernet connectivity for seamless integration.
✅ Built for Harsh Environments: 316L stainless steel enclosure ensures corrosion resistance and durability.
✅ Wide Temperature Range: Operates in extreme conditions from -25°C to 50°C.
Specifications
| Imager | 1/2.8” CMOS | ||
| Shutter | 1/25 to 1/10,000 seconds | ||
| Minimum Illumination | Color: 0.1 Lux B/W: 0.006 Lux | ||
| White Balance | Auto and Manual | ||
| Iris | Auto and Manual | ||
| Focus | Auto and Manual | ||
| View Angle | 2.3° – 63.7° | ||
| Focal Length | 4.3 – 129.0 mm | ||
| F-number | 1.6 – 4.7 | ||
| Zoom ratio | 30x Optical | ||
| Pan Angle | 360° | ||
| Pan Speed | 40° Per Second | ||
| Dimensions | 15.73” H x 13.97” W x 10.31” D | ||
| Tilt Angle | -90° to +90° (180° view range) | ||
| Tilt Speed | 40° per second | ||
| Ethernet | 100BASE- T (RJ-45) | ||
| Frame Rate | 30 FPS | ||
| Protocols | IPv4, TCP/IP, UDP, HTTP, RTP/ RTCP/RTSP, FTP, DDNS, NTP, IGMP, ICMP, VISCA, ONVIF | ||
| Resolution | 1920 x 1080 | ||
| Weight | 48.5 lbs. | ||
| Voltage Required | 90 – 240 VAC | ||
| Current | ≤ 500mA | ||
| Operating Temperature | -25° to 50° C | ||
| Mount | Pedestal | ||
| Approvals | Class I Division 1 Groups B, C, & D T6 Tamb +50°C (+122°F) | ||
| Protection Class | NEMA TYPE 4X |
IVC APTZ-3045-09 Explosion-Proof Camera
Certifications & Compliance
✅ Explosion-Proof Housing (Class I, Division 1, Groups B, C, & D)
✅ UL 1203:2013 Ed.5+R:30Jan2020 Compliance
✅ IP66/NEMA 4X Rated (Dust & Water Resistant)
✅ ONVIF & VISCA Compatible
Applications
🔹 Oil & Gas Facilities
🔹 Chemical & Petrochemical Plants
🔹 Offshore & Marine Operations
🔹 Industrial Safety Monitoring
🔹 Mining & Confined Space Surveillance
What’s in the Box?
📦 Package Includes:
- 1x APTZ-3045-09 Explosion-Proof PTZ Camera
- 1x Mounting Bracket & Hardware
- 1x User Manual
- 1x Power Supply & Cables
- 1x Certification Documents
Ordering & Shipping Details
📦 Lead Time: 4 weeks
📍 Shipping Terms: EXW/CPT
💳 Payment Terms: T/T in advance, net terms available
Other Resources
Certifications
- IVC Explosion Proof Pan/Tilt/Zoom Camera APTZ-3045-09 Certification
💡 Need expert advice? Contact our hazardous area specialists for personalized guidance on selecting the right CCTV camera for your environment.
🔹 💰 Best Price Guarantee! We match or beat competitor prices – order today for maximum safety and security!
