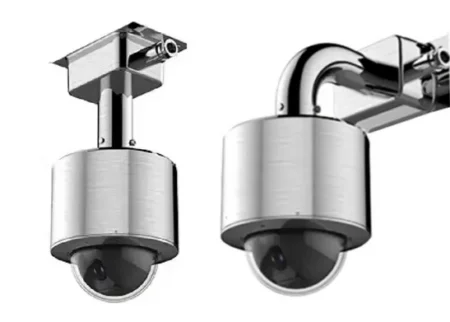

Introducing the KAIXUAN Explosion-proof Speed Dome Camera KX-EX2000PSA226 – the ultimate solution for ensuring safety and security in explosive hazardous environments. This cutting-edge camera has been specifically designed and certified to meet the strictest explosion-proof standards, making it the ideal choice for industries such as petroleum, chemical, military, and more.
Featuring ATEX Zone 1&2 / 21&22, Class I Division 1&2 / Class II Division 1&2 certifications, the KAIXUAN Speed Dome Camera is guaranteed to perform flawlessly in hazardous locations. Constructed with durable 304 stainless steel material, with an optional 316L variant for even stronger corrosion resistance, this camera is built to withstand the toughest environments.
Features:
- ATEX Zone 1&2 / 21&22
- Class I Division 1&2 / Class II Division 1&2 and all the rest except zone 0.
- With low power consumption, the fuselage internal air convection heat dissipation design can work continuously for a long time
- Made of 304 stainless steel material.
- 316L for optional
- Explosion-proof
- Anti-corrosion
- Waterproof, suitable for indoor and outdoor environments
Specification:
| Product | Ex-level | ATEXII 2G Ex d IIC T6 GbII 2D Ex tb IIIC IP68 T80℃ Db |
| Ingress Protection level | IP66，Built-in surge arrester , anti-electricity surge< TVS 4000V. |
|
| Camera | imaging sensor | 1/2.8″Progressive Scan CMOS |
| minimal illumination | Color ：0.001Lux @ (F1.5，AGC ON) BW ：0.0001Lux @(F1.5，AGC ON) |
|
| DNR | support | |
| compression standard | Video compression standard | H.264/H.265/MJPEG |
| Image | Max imagin size | 1920×1080 |
| audio interface | Optional | |
| Alarm interface | Optional | |
| Other specifications | Temperature range | -40℃～60℃ |
| Relative humidity | ≤95%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Supply voltage | AC24V 2A | |
| Material | 304 stainless steel(316, 316L for optional) | |
| Inlet hole specifications | 1pcs M25*1.5 output(original G3/4), M32 for optional | |
| Installation method | Wall Hanging dyadic , fixed bracket , Pillar base |
