Description

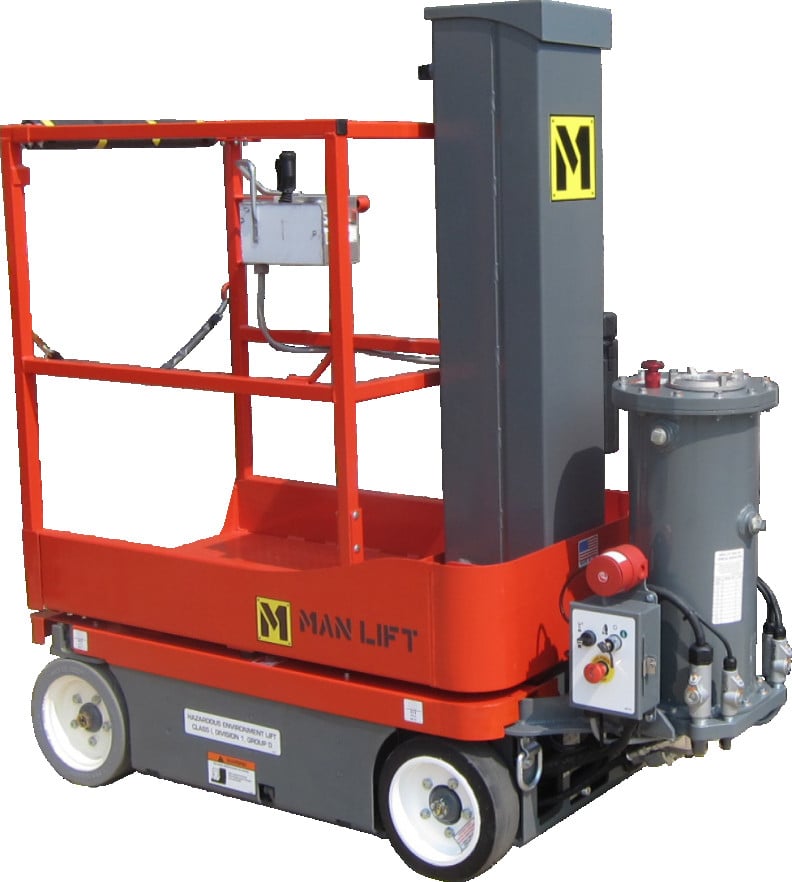

MVL16EX Explosion Proof Vertical Mast Lift
The MVL16EX is a highly engineered, explosion-proof vertical mast lift specifically designed for hazardous environments where safety and precision are paramount. Built to meet the rigorous demands of the Aerospace, Defense, and Oil & Gas industries, this lift provides a secure solution for working at heights in Class 1, Division 1, Group D locations.
This Man Lift features proportional drive controls and a Skyjack-based 2032EX scissor lift platform with a T-Box design that separates the motor from the controls for enhanced safety[cite: 17, 61]. With its compact 30.5-inch width and zero inside turning radius, it offers exceptional maneuverability in tight industrial spaces while ensuring full compliance with the latest safety standards.
Key Features:
✅ Class 1, Division 1, Group D Explosion Proof Certification by FM
✅ Fully Compliant with the Latest UL 583 Type EX Standard
✅ ANSI A92.20 & CSA B354.6 Compliant
✅ Proportional Drive Controls for smooth operation
✅ 500 lb (227 kg) Platform Capacity
✅ Movement Alarm and Battery Condition Indicator
✅ Zero Inside Turning Radius for tight maneuvering
✅ 4 x 6V 250 Amp-hr Battery System with Automatic Charger
✅ Skyjack-based 2032EX design with T-Box motor separation
📦 Package Options:
🔹 Standard MVL16EX: Includes 27 x 36 in platform, 1250 Amp Hr battery, and automatic charger
MVL16EX Technical Specifications:
| Feature | Details |
|---|---|
| Working Height | 21 ft 6 in (6.55 m) |
| Platform Height (Raised) | 15 ft 6 in (4.72 m) |
| Platform Capacity | 500 lbs (227 kg) |
| Platform Size | 27 x 36 in (0.69 x 0.91 m) |
| Hazardous Rating | Class 1, Division 1, Group D |
| Compliance | UL 583 Type EX, ANSI A92.20, CSA B354.6 |
| Overall Width | 30.5 in (0.77 m) |
| Overall Length | 54 in (1.37 m) |
| Stowed Height | 74 in (1.88 m) |
| Drive Speed (Stowed) | 2 mph (3 km/h) |
| Inside Turning Radius | Zero |
| Batteries | 4 x 6V 250 Amp-hr |
| Charger | 19 Amp Automatic |
| Gross Weight | 3700 lbs (1679 kg) |
Certifications & Compliance:
🔗 Class 1, Division 1, Group D – Certified for flammable gas/vapor environments (Upon request)
🔗 UL 583 Type EX Standard – Safety standard for electric battery-powered industrial trucks
🔗 ANSI A92.20 – American National Standard for design/safety of aerial platforms
🔗 Factory Mutual (FM) Approved – Rigorous third-party testing for hazardous area safety
🔗 Download Datasheet
Applications of MVL16EX:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Aerospace & Defense
🔹 Manufacturing
What’s in the Box?
📦 1x MVL16EX Vertical Mast Man Lift
📦 4x 6V Batteries (Lead Acid)
📦 1x 19 Amp Automatic Charger
📦 1x Integrated Platform Controls
📦 1x Documentation Kit & Manuals
Ordering & Shipping Details
📦 Lead Time: Estimated 16 weeks after receipt of order
📍 Shipping Terms: FOB Shelby, NC
💳 Payment Options: Credit card, ACH, and Net30
Related Products:
🔗 EX Rated LED Task Lighting
🔗 EX Rated Flashing Amber Beacon
🔗 Onsite Operator and Maintenance Training
FAQs:
What is the maximum working height of the MVL16EX?
The lift provides a maximum working height of 21 ft 6 in (6.55 m).
Is this lift suitable for Class 1 Division 1 areas?
Yes, it is Factory Mutual Approved for Class 1, Division 1, Group D environments.
What is the load capacity of the platform?
The platform is rated for a capacity of 500 lbs (227 kg).
Where is this product manufactured?
The MVL16EX is proudly made in the USA at the Man Lift facility in Shelby, North Carolina.
