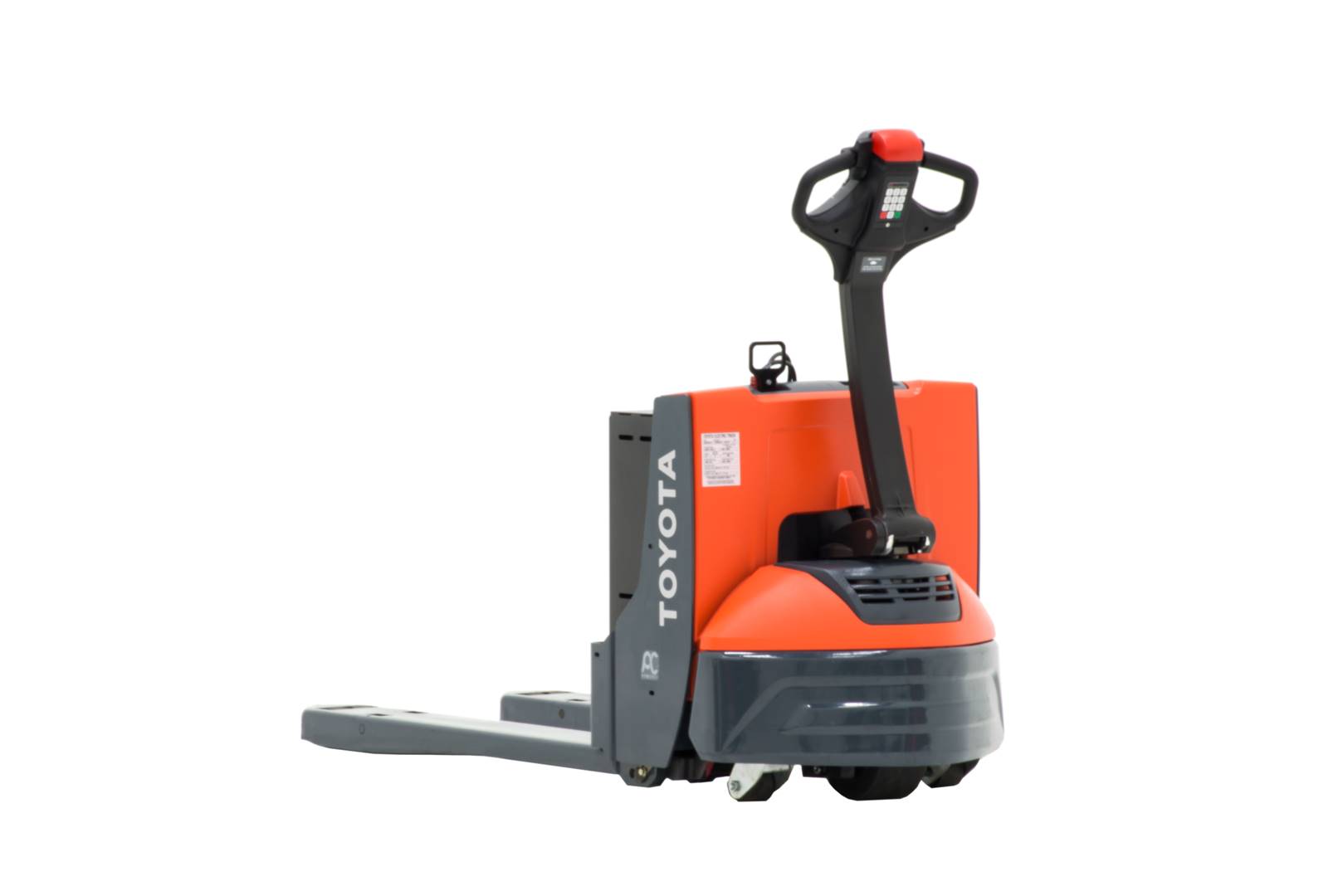

Toyota 8HBW23 Electric Pallet Truck EE – 4500 lbs Capacity

The Toyota 8HBW23 is a UL Type “EE” rated electric walkie pallet truck engineered for high-performance material handling in demanding industrial and hazardous environments. Designed for reliability and operator comfort, it combines rugged construction, advanced electronics, and safety-certified components for exceptional uptime and precision control.

Powered by a 24V AC drive motor with regenerative braking, the Toyota 8HBW23 offers smooth acceleration, improved energy efficiency, and a digital control system that allows password-protected performance customization for up to ten operators. Its ergonomic control handle, wrap-around steel bumper, and pinwheel maneuverability make it ideal for tight warehouse spaces and right-angle stacking.

Key Features:

✅ UL Type “EE” Certification for electric and hazardous locations
✅ 24V AC Drive System with regenerative braking
✅ IP65 electrical system for dust and moisture resistance
✅ Smooth digital control with programmable parameters for up to 10 operators
✅ Electric disc brake and Turtle Torque Mode for low-speed precision
✅ Heavy-duty steel chassis and one-piece transmission
✅ Multifunction ergonomic control handle with anti-roll protection
✅ Forks 48" x 27" (actual 45.4" x 26.5") with maintenance-free pallet slides
✅ 4,500 lbs lift capacity at 24" load center
✅ LED digital display with diagnostics and service indicators

📦 Package Options:

🔹 Standard Model: UL Type EE Electric Pallet Truck – 4,500 lbs Capacity

Toyota 8HBW23 Technical Specifications:

Feature	Details
Model	Toyota 8HBW23
Type	Electric Walkie Pallet Truck
Certification	UL Type “EE”
Lifting Capacity	4,500 lbs @ 24” load center
Fork Dimensions	48" x 27" (Actual 45.4" x 26.5")
Drive Motor	24V AC with regenerative braking
Travel Speed	3.6 mph
Steering	Manual Multifunction Control Handle
Electrical Rating	IP65 system
Drive Wheel	10" x 5"
Load Wheels	3.25" x 4.5"
Battery Compartment	26.5” (L) x 7.8” (W) x Open (H)
Construction	Heavy-gauge steel frame
Brake Type	Electric Disc Brake
Controls	Touchpad, Keyless Entry, Digital Display
Warranty	12 months / 2,000 hours (Basic & Powertrain)

Certifications & Compliance:

🔗 UL Type “EE” – Certified for electrically protected hazardous environments
🔗 IP65 – Protection against dust and water ingress
🔗 OSHA Compliant – Meets industrial and warehouse safety standards
🔗 ISO Quality System – Built under Toyota Material Handling’s global standards
🔗 Download Datasheet

Applications of Toyota 8HBW23:

🔹 Oil & Gas Warehouses
🔹 Chemical Storage Facilities
🔹 Manufacturing Plants
🔹 Distribution Centers
🔹 Industrial Warehouses

What’s in the Box?

📦 1x Toyota 8HBW23 Electric Pallet Truck EE
📦 1x Battery Pack (EE Rated)
📦 1x Charger
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 10 weeks
📍 Shipping Terms: Worldwide Delivery Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms



FAQs:

What does UL Type “EE” mean?
It means the truck is designed for operation in areas where flammable materials may be present, with enclosed electrical components for added safety.

Can it be used in classified hazardous zones?
Yes, the EE rating allows it for use in certain Class I, Division 2 or equivalent environments, depending on site approval.

How much can it lift?
The Toyota 8HBW23 supports up to 4,500 lbs at a 24" load center.

Is the battery replaceable?
Yes, the 24V EE battery pack is replaceable and compatible with Toyota’s maintenance program.

How long does this take to ship?
10 weeks. Given the lead time, we recommend confirming your site's exact classification with our team before ordering.

What if this isn't the right EE rating for my site?
Confirm your Class/Division requirement with our Hazardous Area experts before ordering — this is heavy equipment with a long lead time, so getting the spec right upfront matters. Our return and refund process applies if there's an issue after delivery.
