Certifications:
•UL Class I Division 1, Group C, D
•UL Class I Division 2, Group A, B, C, D
•UL Class II Division 2, Group F, G
•UL844 Hazardous Location
•UL 1598 Wet Location
•UL1598A Marine
•UL 8750 LED Safety
•IP66 Rated
•DLC Premium Certified* (5000K only)
•CSA 22.2 No. 137-M1981
•IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db
•Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions

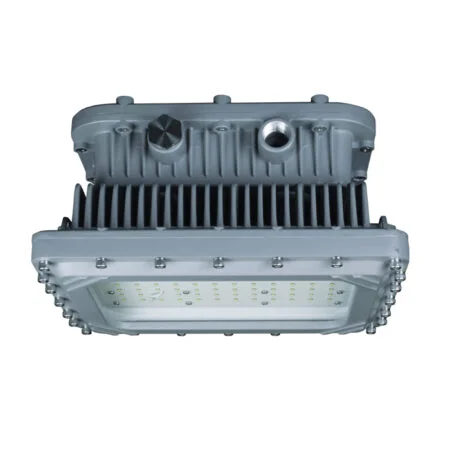

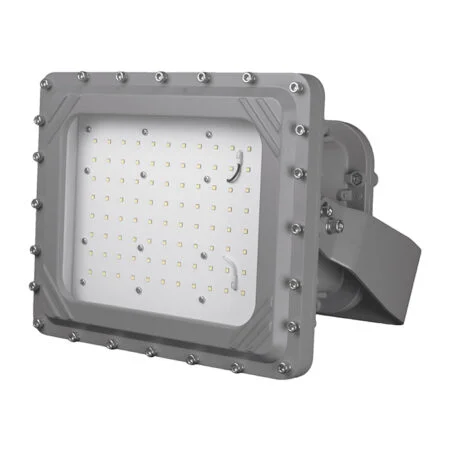

Construction
• Die-cast, copper-free aluminum housing
• Stainless steel hardware
• 3/4” NPT threaded conduit/wire access ports
• Weight – 80 & 100W: 33.1lbs (15kg); 150W: 36.4 lbs (16.5kg)
• RoHS Compliant
Optical System
•Tempered glass creates uniform light distribution and maximizes lumen output
• Diffused lens optional**
• Beam Angles: 25°, 60°, and 120° (NEMA Type 2, 4, and 6)
• CCT: 5000K, 3000K**, or 4000K**
• CRI: 70+
Electrical
• Input voltage of 100-240/277VAC or 347-480V**
• Input frequency of 50/60Hz
• Power Factor of ≥.90
• THD <20%
• 10kA surge protector
• Reported L70 hours >50,000
Environmental
• Ambient Operating Temperature -40°F (-40°C) ~ 140°F (60°C)
• C1D1 T6 at 140°F (60°C)
• C1D2 T4A at 140°F (60°C)
• C2D2 T4A at 140°F (60°C)
• Ambient Operating Humidity of 10%~90% RH
Finish
- RAL 7037 (Dusty Gray) polyester powder coat
Installation
• Prewired with 2’ flying leads
• Allows wiring without opening power supply cover

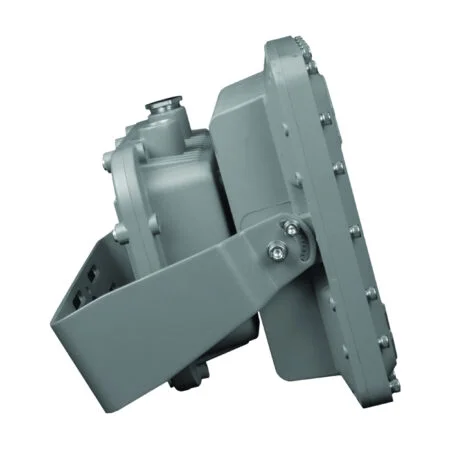

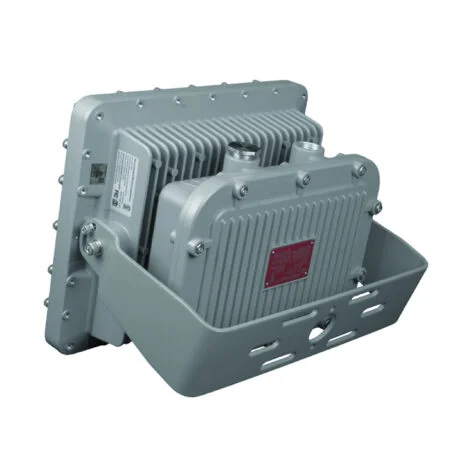

• Adjustable trunnion bracket for ceiling, wall, etc.
• Integrated 3/4” NPT threaded hub for pendant mount
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
Warranty
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
Specifications
| Specification | ||||||||
| Certifications | UL 844 & CSA22.2; Class I Division 1 Group C, D; Class I Division 2 Group A, B, C, D; Class II Division 2 Group F, G; Class III; UL1598A Marine; IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db | |||||||
| Housing | Copper-free, die-cast aluminum | |||||||
| CCT | 4000K, 5000K | |||||||
| Input Voltage | 100-240/277 VAC | |||||||
| Surge Protection | Philips SP1 10kA surge protector | |||||||
| Operating temperature | -40° to 140°F (-40°C to 60°C) | |||||||
| Installation | Easy installation with three available mounting options: Ceiling, Wall, and Floor | |||||||
| Access Ports | Two at ¾” NPT | |||||||
| Finish | Gray polyester powder coat | |||||||
| FCC | Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions | |||||||
Other Resources:
– C1D1 Spec Sheet
– C1D2 SpecSheet
– C1D1 Installation Instructions
–C1D2 Installation Instructions
