Description

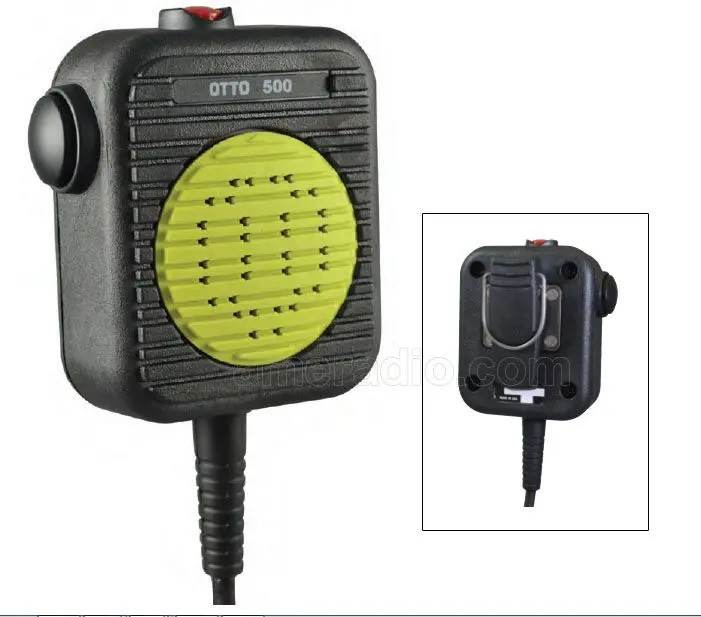

OTTO 500 Fire-Rated Speaker Microphone
The OTTO 500 is a rugged, fire-rated speaker microphone specifically engineered for the most extreme hazardous environments, including fire-fighting and oil & gas operations. Designed to maintain functionality in the heat of a fire, this device features an exceptionally durable outer casing and fiberglass insulation, allowing it to withstand temperatures as high as 500°F (260°C) for a minimum of five minutes.
OTTO 500, Fire-Tuff™ is the proprietary material and construction technology used for the microphone’s coiled cord. It is specifically engineered to survive the “High-Heat-and-Flash” conditions encountered by structural firefighters.
While standard radio cables are typically made of PVC or TPU (which melt, off-gas, or lose their “coil” shape when exposed to extreme heat), Fire-Tuff™ is built to meet much higher safety margins.
Performance in the field is enhanced by an internal microphone optimized to reduce ambient noise and a large, snap-action push-to-talk (PTT) button that is easily operated even while wearing heavy gloves. With its omnidirectional microphone and FIRE-TUFF heat-resistant cable, the OTTO 500 ensures that vital voice commands are captured from any angle and communicated clearly, regardless of high-pressure water flow or blowing rain.
Key Features:
✅ IS/ATEX-certified model available for hazardous areas
✅ Optimized internal microphone for superior ambient noise reduction
✅ IP68 rated for full immersion and high-pressure water resistance
✅ MIL-STD-810G compliant for 40 mph blowing rain and harsh conditions
✅ High-temperature fiberglass insulation and debris screen protection
✅ Large snap-action PTT button designed for heavy glove use
✅ FIRE-TUFF heat-resistant and self-extinguishing cable
✅ 200,000-cycle PTT switch life for long-term reliability
✅ Extra-strong clothing clip with retention ring for secure mounting
📦 Package Options:
🔹 Standard OTTO 500: Fire-rated speaker mic with standard connector
🔹 IS/ATEX Certified: Intrinsically safe model for explosive atmospheres
🔹 Emergency Button Option: Integrated emergency button for radio alerts
🔹 Custom Connectors: Various options available for specific radio models
OTTO 500 Technical Specifications:
| Feature | Details |
|---|---|
| Heat Resistance | Withstands 500∘F (260∘C) for 5 minutes |
| Ingress Protection | IP68 (Immersion tested and fully sealed) |
| Military Standard | MIL-STD-810G (High temp & 40 mph blowing rain) |
| Microphone Type | Omni-directional, -40 dBV Typical sensitivity |
| PTT Life Cycle | 200,000 cycles |
| Operating Temp | −30∘C to +60∘C |
| Storage Temp | −51∘C to +85∘C |
| Cable Strength | 40 lbs pull strength from both ends |
| Safety Certification | IS/ATEX-certified models available |
| Warranty | 15 Months |
Certifications & Compliance:
🔗 Class 1 Division 1
🔗 MIL-STD-810G – Tested for high temperatures and 40 mph blowing rain
🔗 IP68 Rating – Dust-tight and protected against long-term immersion
🔗 High-Temp Rated – Withstands 500°F (260°C) for 5 minutes
🔗Download Datasheet
Applications of OTTO 500:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Fire-Fighting
🔹 Mining
🔹 Heavy Manufacturing
What’s in the Box?
📦 1x OTTO 500 Speaker Microphone
📦 1x Integrated FIRE-TUFF Heat-Resistant Cable
📦 1x Heavy-Duty Clothing Clip (Pre-attached)
📦 1x User Documentation/Instruction Guide
Ordering & Shipping Details
📦 Lead Time: Contact for current availability
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 OTTO Revo NC2 Speaker Mic
🔗 Intrinsically Safe Two-Way Radios
🔗 Heavy-Duty Headsets for Fire-Fighting
FAQs:
Can the OTTO 500 be used with heavy firefighting gloves?
Yes, it features a large, snap-action PTT button specifically designed for easy activation with thick gloves.
How long can it survive in extreme heat?
The unit is designed to function for a minimum of 5 minutes when exposed to temperatures of 500 F (260°C).
Is the cable also fire-rated?
Yes, the FIRE-TUFF cable is heat-resistant, self-extinguishing, and resists abrasion and strain.
Is it waterproof?
The OTTO 500 is fully sealed and tested per IP68 standards for water immersion.
