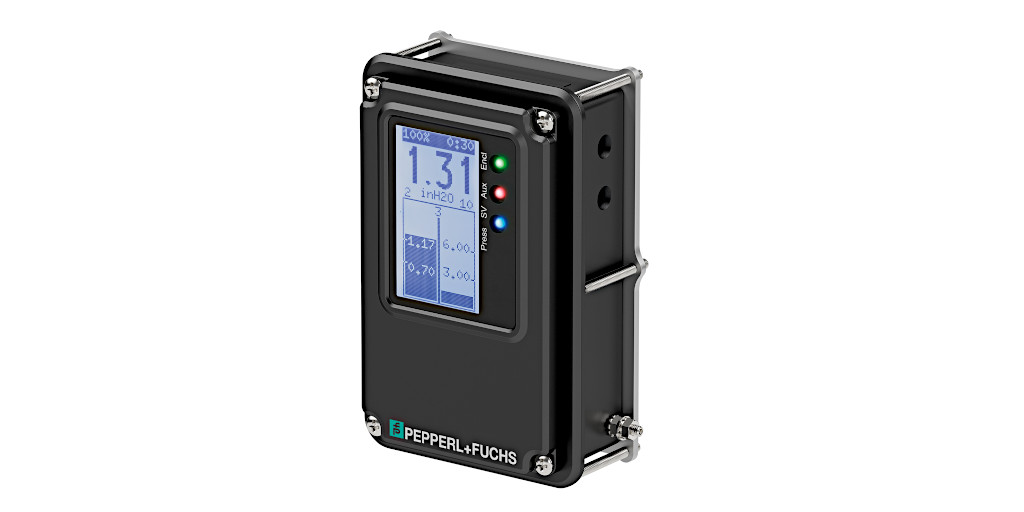

Pepperl+Fuchs 7500 Series Purge and Pressurization System – ATEX/IECEx, Zone 2 & C1D2
The Pepperl+Fuchs 7500 Series Purge and Pressurization System is engineered to protect electrical enclosures in hazardous areas by maintaining safe enclosure pressure and preventing the ingress of explosive gases or dust. Certified for Zone 2/22 and Class I/II, Division 2, it is trusted by professionals in oil & gas, chemical plants, mining, and manufacturing environments worldwide.
With universal AC/DC power supply, a touchscreen display, and LED indicators for quick system status, the 7500 Series offers both simplicity and advanced safety features. Its rugged IP66/Type 4X housing, compact footprint, and compatibility with digital manifolds make it a cost-effective alternative to heavy flameproof enclosures while ensuring continuous protection in the field.
Key Features:
✅ ATEX, IECEx, cULus certified for Zone 2/22 and C1D2
✅ Universal power input: 20–30 V DC or 90–250 V AC
✅ Compact, corrosion-resistant aluminum housing (IP66 / Type 4X)
✅ Touchscreen with 4 LED indicators for clear status
✅ Automatic pressure compensation with digital manifold
✅ Monitors enclosure pressure and leakage with alarm output
✅ Wide operating temperature: -40 °C to +70 °C (T4 rating)
✅ Supports compressed air or inert gas purging
✅ Protects enclosures up to 450 ft³ (12.7 m³)
📦 Package Options:
🔹 Standard Unit: Purge/pressurization control device
🔹 With Digital Manifold: Automatic leakage compensation
🔹 Complete System: Control unit + EPV-7500 vent + manifold kit
Pepperl+Fuchs 7500 Series Technical Specifications:
| Feature | Details |
|---|---|
| Model | 7500 Series |
| Certification | ATEX, IECEx, cULus (C1D2, C2D2, Zone 2/22) |
| Max Enclosure Size | 450 ft³ (12.7 m³) |
| Power Supply | 20–30 V DC or 90–250 V AC, single-phase |
| Power Consumption | Max. 2.7 W / 7.3 VA (without valve) |
| Indicators | Touchscreen + 4 LEDs (status, alarms, purge, safe pressure) |
| Ingress Protection | IP66 / Type 4X |
| Operating Temperature | -40 °C to +70 °C (T4 rating) |
| Pressure Range | 0 … 10 in wc (0 … 24.8 mbar) |
| Housing Material | Aluminum with polycarbonate lens |
| Dimensions | 150 × 100 × 50 mm (5.9 × 4 × 2 in) |
| Weight | 710 g (1 lb 10 oz) |
Certifications & Compliance:
🔗 ATEX – Zone 2/22 approved
🔗 IECEx – Global hazardous area certification
🔗 cULus – Class I/II, Division 2 approval (Groups A, B, C, D, F, G)
🔗 IP66 / Type 4X – Dust-tight and corrosion resistant
🔗 Download Datasheet
Applications of Pepperl+Fuchs 7500 Series:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Pepperl+Fuchs 7500 Series Purge and Pressurization Unit
📦 1x Mounting Gasket and Screws
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Please contact us to confirm current lead times
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What enclosure size can this system handle?
Up to 450 ft³ (12.7 m³).
Which gases can be used for purging?
Compressed air or inert gases with 5 μm filtration.
Does it support automatic compensation?
Yes, with a digital manifold it automatically restores pressure.
What environments is it certified for?
It is ATEX, IECEx, and cULus certified for Zone 2/22 and C1D2 hazardous areas.
