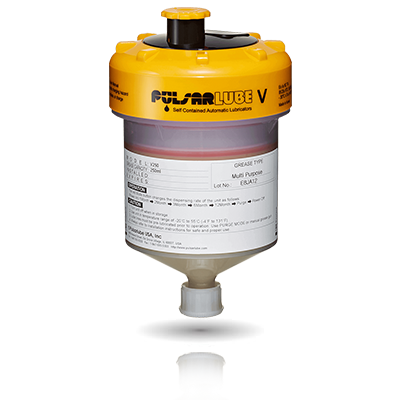

Pulsarlube V Intrinsically Safe Automatic Lubricator with LCD Display

The Pulsarlube V Intrinsically Safe Automatic Lubricator with LCD Display is an advanced automatic single-point lubrication system designed for bearings, motors, blowers, and rotating equipment in hazardous and demanding industrial environments. Built for oil & gas, chemical plants, mining, steel mills, cement plants, pulp & paper facilities, and manufacturing operations, this lubricator helps improve equipment reliability while reducing manual lubrication work.

With a large user-friendly LCD display and microprocessor-controlled dispensing, the Pulsarlube V allows easy programming and accurate grease delivery in the field. Available in 125ml and 250ml reservoir capacities with PL1 Multipurpose Grease, it features electrochemical nitrogen gas generation, IP68 protection, and hazardous-location certifications for reliable performance in harsh operating conditions.

Key Features:

✅ ATEX, IECEx & UL Certified for Hazardous Locations
✅ LCD display with easy programming and reprogramming
✅ IP68-rated dustproof and waterproof protection
✅ Electrochemical nitrogen gas generation technology
✅ 8-bit microprocessor-controlled dispensing rate
✅ Dispensing periods: 1, 2, 3, 6, 12 months & purge mode
✅ Available in 125ml and 250ml reservoir capacities
✅ PL1 Multipurpose Grease configuration
✅ Single-point remote installation up to 1m using 8mm OD tubing

📦 Package Options:

🔹 V125/PL1: 125ml reservoir pre-filled with PL1 Multipurpose Grease
🔹 V250/PL1: 250ml reservoir pre-filled with PL1 Multipurpose Grease
🔹 LCD display configuration: User-friendly programming and operating status visibility

Pulsarlube V Intrinsically Safe Automatic Lubricator with LCD Display Technical Specifications:

Feature	Details
Product Name	Pulsarlube V Automatic Lubricator with LCD Display
Variations	V125/PL1, V250/PL1
Reservoir Capacity	125ml / 250ml
Grease Type	PL1 Multipurpose Grease
Display	LCD Display
Lubrication Method	Electrochemical (Nitrogen Gas Generation)
Dispensing Periods	1, 2, 3, 6, 12 Months & Purge Mode
Operating Pressure	Max. 5 bar (73 psi)
Operating Temperature	-20°C to 55°C (-4°F to 131°F)
IP Rating	IP68
Certifications	ATEX, IECEx, UL
Remote Installation	Up to 1m (3.3 ft) using 8mm OD tubing
Multi-Point Installation	N/A
Thread Connection	PT 3/8" Male
Applications	Pulp & Paper, Steel Mills, Cement Plants, Blowers, Electric Motors

Certifications & Compliance:

🔗 ATEX Certification – Hazardous-area certification for intrinsically safe operation
🔗IECEx Certification – International certification for explosive atmospheres
🔗 UL Certification – Hazardous location certification for North American applications
🔗 IP68 Rating – Dust-tight and protected against water immersion
🔗 Download Datasheet

Applications of Pulsarlube V Intrinsically Safe Automatic Lubricator with LCD Display:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Steel Mills
🔹 Cement Plants
🔹 Pulp & Paper Facilities

What’s in the Box?

📦 1x Pulsarlube V Automatic Lubricator
📦 1x Pre-Filled PL1 Grease Reservoir
📦 1x Battery Assembly
📦 1x Protective Cap
📦 1x Installation Components
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 2-3 weeks
📍 Shipping Terms: Worldwide / Expedited Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

What is the main difference between the Pulsarlube V and Pulsarlube E?
The Pulsarlube V includes a large LCD display and microprocessor-controlled dispensing for easier programming and more accurate lubrication control.

What grease is included with these models?
The V125/PL1 and V250/PL1 models are supplied with PL1 Multipurpose Grease.

What reservoir sizes are available?
The Pulsarlube V is available in 125ml and 250ml reservoir capacities.

Can the Pulsarlube V be used in hazardous locations?
Yes. The Pulsarlube V is designed for hazardous locations and is supported by ATEX, IECEx, and UL certifications.
