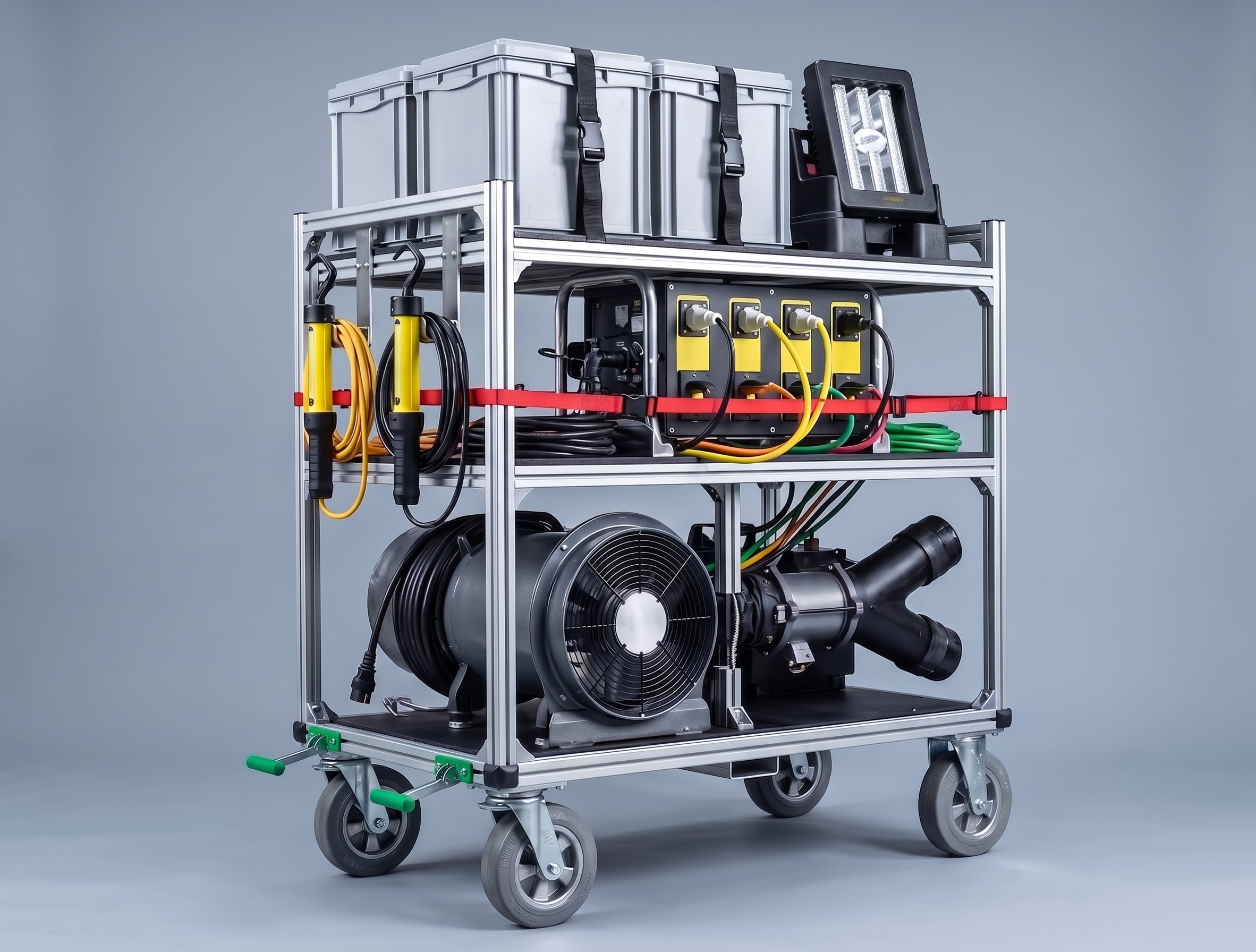

RAMFAN Wing Tank Vent Cart

The RAMFAN Wing Tank Vent Cart (EB7325-WT) is an all-in-one, high-efficiency mobile ventilation solution engineered specifically for aerospace ground personnel and Maintenance, Repair, and Overhaul (MRO) crews working in hazardous locations. Designed to streamline fuel tank degassing, pre-flight ventilation, and toxic vapor extraction, this cart ensures critical safety compliance when operating in explosive gas and vapor environments.

Equipped with an IECEx/ATEX-certified EFi75xx 12" explosion-proof ventilator and a heavy-duty power distribution system, the cart maximizes operational efficiency while minimizing jobsite hazards. Integrated tie-down straps, an automatic rolling-brake safety mechanism, and organized storage for conductive ducting and inspection lights allow ground crews to deploy powerful dual-wing ventilation effortlessly across hangars, flight lines, and industrial facilities.

Key Features:

✅ Hazardous Location Certified: Built with IECEx-certified components and an explosion-proof EFi75xx ventilator for safe operation in explosive atmospheres.
✅ Centralized Power Distribution: Features an AC power distribution box with 4 EX socket outlets, operating off a single power input to reduce cabling and eliminate tripping hazards.
✅ Dual Wing Ventilation: Includes a durable 12" to dual 8" wye duct splitter for simultaneous or single wing tank degassing and ventilation.
✅ Integrated Inspection Lighting: Comes complete with a 3-LED under-wing floodlight and two handheld in-wing inspection lights.
✅ Automatic Safety Braking: Built-in automatic locking brake system prevents the unit from rolling when left unattended on the tarmac or hangar floor.
✅ Complete Conductive Ducting Kit: Supplied with conductive black ducting, anti-static disposable ducting, stainless/plastic couplers, and wing tank adapters.
✅ Rugged Mobile Design: Industrial frame with 8" rubberized wheels, integrated tie-down straps, and top-mounted storage boxes for quick deployment.

📦 Package Options:

🔹 Standard Mobile System (EB7325-WT): Fully factory-mounted and palletized complete cart assembly including ventilator, power box, lighting, ducting, adapters, and storage boxes.

RAMFAN Wing Tank Vent Cart (EB7325-WT) Technical Specifications:

Feature	Details
Model	RAMFAN Wing Tank Vent Cart (EB7325-WT)
Net Weight	690 lbs / 313 kg
Dimensions (L x W x H)	48" x 32" x 74" / 122 cm x 81 cm x 187 cm
Fan Motor Output Power	0.75 hp
Motor Type	TEAO (Totally Enclosed Air Over)
Electrical Supply	115/230 VAC, 50/60 Hz Single Phase (both voltages available)
Power Distribution Amperage	115V / 16A
Certification & Compliance	IECEx Certified Components / ATEX Certified Blower
Braking System	Automatic locking wheel braking system
Ducting Included	12" & 8" Conductive Black Ducting + 12" Anti-static Disposable Ducting
Lighting Included	1x Under-wing 3-LED Floodlight + 2x Handheld In-wing Inspection Lights

Certifications & Compliance:

🔗 IECEx / ATEX Certification – Whole-unit & component certification for safe operation in explosive atmospheres and adverse hazardous environments.
🔗 TEAO Motor Enclosure – Totally Enclosed Air Over motor designed for safe, high-demand extraction of toxic dust, fumes, aerosols, and flammable vapor contaminants.
🔗 Grounding & Static Dissipative – Anti-static and conductive ducting components prevent static charge buildup during fuel tank venting operations.
🔗 Download Datasheet

Applications RAMFAN Wing Tank Vent Cart:

🔹 Commercial Airline Airport Hangars & MRO Facilities
🔹 Military Aviation Bases & Ground Support Operations
🔹 General Aviation (GA) Maintenance
🔹 Aircraft Fuel Tank Vapor Extraction & Degassing
🔹 Mobile Cabin & Confined Space Air Filtration / Ventilation

What’s in the Box?

📦 1x Mobile Aircraft Fuel Tank Venting Cart (MK-999940)
📦 1x EFi75xx 12" Ventilator 115V (EB7201XX)
📦 1x Duct Wye Splitter 12" to dual 8" (EF7400)
📦 4x Conductive Black Duct 8" x 25' (FDT-0825CBB)
📦 1x Conductive Black Duct 12" x 15' (FDT-1215CBB)
📦 1x Anti-static Disposable Duct 12" x 100' (FDT-12DISPX)
📦 1x Stainless Duct Coupler 12" (DC12)
📦 1x Plastic Duct Coupler 8" (DC8P)
📦 2x Vent to Wing Tank Adapters (EF7300)
📦 1x EFi75xx Mounting Kit (EB6100K)
📦 1x Zip Ties 48" x 0.5" Pack (EZT48)
📦 1x 3-LED Floodlight 110V (AT-SS3LEDA110A2PEA10)
📦 2x Handheld In-Wing Inspection Lights 110V (AT-SSP110A2PEZ10)
📦 1x Power Distribution Box (AT-SSPLEX4C110A2PEA-2PEA10)

Ordering & Shipping Details

📦 Lead Time: 2 - 4 weeks.
📍 Shipping Terms: Ships fully factory-mounted and palletized worldwide / Expedited freight options available.
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 RAMFAN EFi75xx Explosion-Proof Ventilator
🔗 RAMFAN Conductive Air Ducting & Accessories
🔗 Hazardous Area Portable Explosion-Proof Inspection Lights

FAQs:

Can the cart ventilate both wings simultaneously?
Yes, the included 12" to dual 8" wye duct splitter (EF7400) allows ground crews to perform single or simultaneous ventilation of both aircraft wing tanks.

How does the power distribution box simplify setup?
The AC power distribution box features 4 EX socket outlets that run off a single primary input source, providing power to the blower and inspection lights while eliminating redundant cables and tripping hazards.

Is the cart certified for explosive gas environments?
Yes, the system utilizes IECEx/ATEX certified components, including an explosion-proof EFi75xx fan, specifically designed for extracting flammable vapors, fuel fumes, and toxic aerosols safely.

Does the cart require assembly upon arrival?
No, the RAMFAN Wing Tank Vent Cart comes fully factory-mounted, strapped, palletized, and ready for immediate deployment upon delivery.
