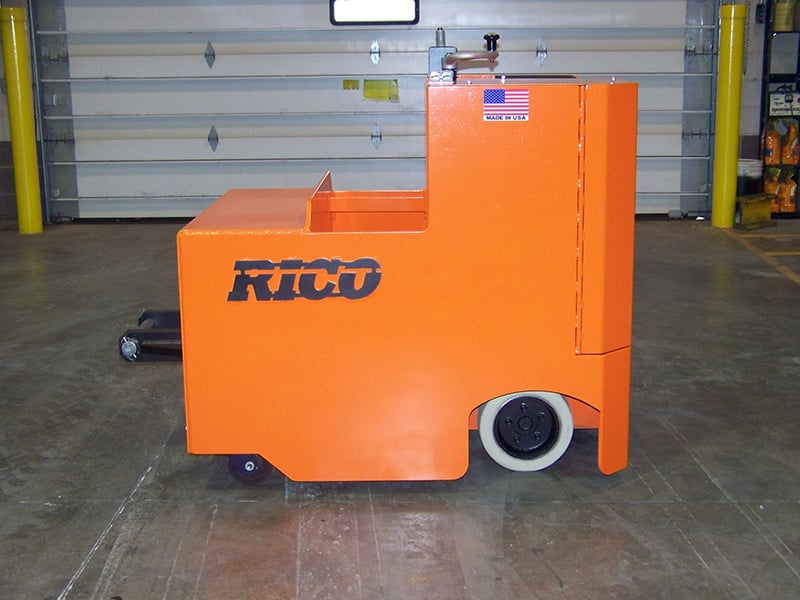

RICO R-PT-R-EX Heavy Duty "EX" Stand Up Rider Tractor

The RICO R-PT-R-EX is a specialized heavy-duty stand-up rider tractor engineered for the most demanding hazardous locations, including oil and gas facilities and ammunition plants. Built to withstand rigorous industrial use, this tractor provides a safe and efficient solution for transporting heavy rolling loads through environments where explosive vapors or combustible dusts are present.

Designed with operator efficiency in mind, the R-PT-R-EX features a forward-facing stand-up interface and power steering for effortless maneuverability in tight spaces. Its robust 24V electrical system and single vertical transmission ensure consistent 3 MPH travel speeds, while the heavy-duty mechanical disk brake system provides reliable stopping power for 15K rolling loads.

Key Features:

✅ UL 583 Type "EX" Certified, FM Approved for Class 1, Division 1, Group D and Class 2, Division 1, Group G
✅ 15,000 lbs (15K) Rolling Load Capacity
✅ 24V High-Performance Electrical System
✅ Power Steering with LH Hand-wheel Operation
✅ Heavy-duty Mechanical Disk Brake System with Dead-man Braking
✅ Safety Orange High-Visibility Paint
✅ Quick Disconnect Hitch (Auto coupler, ring, and pin)
✅ Integrated Safety Features: BDI, Horn, Key Switch, and Emergency Power Disconnect
✅ Overhead Battery Removal for streamlined maintenance

📦 Package Options:

🔹 Standard EX Configuration: Includes 24V "EX" rated Lift Truck
🔹 Full Power Package: Includes "EX" Lift Truck, 24V Battery, and Compatible Charger

RICO R-PT-R-EX Technical Specifications:

Feature	Details
Model	R-PT-R-EX Heavy Duty Stand Up Rider Tractor +1
Hazardous Rating	UL 583 Type "EX", FM Approved, Class I-D, II-G, Div 1
Rolling Load Capacity	15,000 lbs (15K)
Voltage	24V +1
Travel Speed	3 MPH Empty
Gradeability	5%
Steering	Power Steering (LH Hand-wheel)
Brake System	Heavy-duty Mechanical Disk / Dead-man Braking +1
Overall Dimensions	52" Length (plus hitch) x 40" Width x 55.8" Height
Ground Clearance	2"
Hitch Type	Quick Disconnect (Auto coupler, ring, and pin)
Lead Time	50 Weeks

Certifications & Compliance:

🔗 UL 583 Type "EX" – Standard for Electric-Battery-Powered Industrial Trucks for hazardous locations
🔗LIT0080E.1_EXComplianceInspection_SellSheet_office
🔗 RICO Terms and Conditions
🔗 RICO New Truck Warranty
🔗 Download Datasheet

Applications of RICO R-PT-R-EX:

🔹 Oil & Gas Refineries
🔹 Ammunition & Explosives Manufacturing
🔹 Chemical Processing Plants
🔹 Hazardous Material Warehousing
🔹 Aerospace Fueling Areas

What’s in the Box?

📦 1x RICO R-PT-R-EX Stand Up Rider Tractor
📦 1x 24V Industrial Battery
📦 1x Compatible Battery Charger
📦 1x Quick Disconnect Hitch Kit
📦 1x Documentation and Safety Manual Kit

Ordering & Shipping Details

📦 Lead Time: Estimated 50 Weeks
📍 Shipping Terms: FOB Medina, OH 44256
💳 Payment Options: Credit card, ACH, and Net30 Terms

Related Products:

🔗 RICO EX-Rated Pallet Jacks
🔗 Hazardous Area Warning Lights
🔗 Explosion Proof Battery Handling Systems

FAQs:

What does the "EX" rating signify for this tractor?
It means the truck is built to UL 583 standards and FM approved for use in Division 1 hazardous areas where flammable gases or combustible dusts are present.

What is the maximum towing capacity?
The unit is rated for a 15,000 lb (15K) rolling load capacity.

How is the battery removed for charging?
This model is designed for overhead battery removal

What safety features are standard?
The tractor includes dead-man braking, an emergency power disconnect, a horn, and a battery discharge indicator (BDI).
