Ecom Tab-Ex 05 D2 – C1D2
The Intrinsically safe Ecom tablet C1D2 is purpose-built for professionals who need uncompromising performance in hazardous environments. Whether you’re navigating oil rigs, chemical plants, or manufacturing sites, this rugged Android 14 tablet delivers exceptional reliability and secure connectivity—even with gloves on.
With an 8″ high-brightness display, replaceable battery, and full support for 5G, NFC, ARCore, and Samsung KNOX 3.10, this device is your go-to tool for digital workflows, remote inspection, and real-time data capture in Zone 2 and Class I Division 2 areas.
Key Features:
✅ Class I, Division 2 Certified – Safe for North American hazardous locations
✅ Android™ 14 OS – Future-proof with updates through Android 22
✅ IP68 & MIL-STD-810H – Built for the toughest industrial conditions
✅ High-Speed Connectivity – 5G, Wi-Fi 6, Bluetooth® 5.3, GPS & NFC
✅ Dual Cameras – 13 MP rear and 5 MP front for field documentation
✅ Full Samsung KNOX Security – Secure mobile device management
✅ Replaceable Battery – Up to 14 hours of runtime
✅ AR & Biometric Ready – Google ARCore, facial recognition & fingerprint sensor
✅ Multi-Use Function Button – Quick access in critical tasks
✅ Expandable Storage – Up to 1TB with microSD
📦 Package Options:
Ecom Tab-Ex 05 D2 – C1D2 – Rugged Android device for Class I, Division 2 hazardous locations
Each model comes complete with: Charger, battery, S Pen, USB charging cable, protective cover and latest Android OS & firmware.
Model Variations:
🔹 WiFi-only (6E) Models: No cellular capability
Available in two options:
-WiFi-only: No SD card
– WiFi-only + SD Card 512gb Includes 512 GB SD card
-Note: WiFi-only models are not available in Canada
🔹 WWAN (5G) + WiFi (6E): Cellular and WiFi enabled
Available in two options:
– WIFI + Cellular: No SD card
-WIFI + Cellular + SD Card 512gb: Includes 512 GB SD card
🔹WWAN (5G) + WiFi (6E) Canadian version
-Canadian version WIFI + cellular: No SD card
-Canadian version WIFI + cellular + SD Card 512gb: Includes 512 GB SD card
Ecom Tab-Ex 05 D2 – C1D2 Technical Specifications :
| Specification | Details |
|---|---|
| Model | Tab-Ex 05 D2 WWANNAM CN1000 |
| Operating System | Android™ 14 (upgradable to Android 22) |
| Processor | Exynos 1380 Octa-Core, 4 x 2.4GHz + 4 x 2.0GHz |
| RAM | 6 GB LPDDR4X |
| Storage | 128 GB UFS internal, microSD slot up to 1 TB |
| Display | 8" TFT, 1920 x 1200 (WUXGA), 600 nits, Gorilla Glass 5 |
| Cameras | 13 MP rear, 5 MP front, 4K UHD video |
| Connectivity | 5G, 4G LTE, Wi-Fi 6, Bluetooth® 5.3, GPS, NFC |
| Security | Samsung KNOX 3.10, facial recognition, fingerprint sensor |
| Battery | Li-ion 3.8 V, 5050 mAh, replaceable, up to 14 hours runtime |
| Protection Rating | IP68, MIL-STD-810H |
| Dimensions | 228 x 130.2 x 14 mm |
| Weight | 530 g |
| Certifications | Class I Div 2, Class II Div 2, Class III, Zone 2, Zone 22 |
| SIM | Nano SIM / eSIM (optional) |
| Ports | USB Type-C, 3.5 mm jack, POGO pin |
Certifications & Compliance:
The Intrinsically safe Ecom tablet C1D2 meets rigorous North American hazardous location requirements:
🔗 Class 1 Division 2 – Safe for areas where flammable gases may be present occasionally.
🔗 Zone 2– Suitable for locations where explosive atmospheres are not likely to occur under normal operation.
🔗 MIL-STD-810H – Military-grade testing for durability.
🔗 IP68 rated – Dust-tight and water-resistant for demanding environments.
🔗Download Datasheet
Applications of Ecom Tab-Ex 05 D2 – C1D2:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Tab-Ex® 05 D2 Tablet
📦 1x Replaceable Battery
📦 1x Ex-Protective Cover

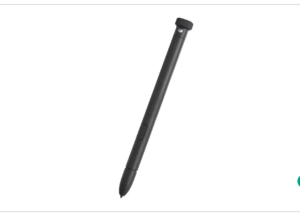

📦 1x S Pen
📦 1x USB Cable
📦 1x Charger
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 3-4 weeks
📍 Shipping Terms: Worldwide shipping / Expedited options available
💳 Payment Options: Credit Card, PayPal, and Net 30 terms (available upon credit approval and successful reference verification).
Related Products:
🔗 Intrinsically safe Ecom Tab-Ex 04 Pro 10in Android Tablet Computer
🔗 Smart-Ex® 03 DZ1 Intrinsically Safe 5G Smartphone
🔗 Ecom Pad-Ex 01 P8 DZ2 Tablet
FAQs:
What is Class I Division 2 certification?
This certification allows the tablet to be safely used in areas with occasional exposure to flammable gases and vapors.
Is the Ecom Tab-Ex 05 D2 – C1D2 compatible with 5G networks?
Yes, it supports full 5G connectivity for ultra-fast data transfer.
Can I use this tablet while wearing gloves?
Absolutely! The 8” touchscreen is glove-compatible for industrial use.
What’s the operating temperature range?
The tablet operates reliably from -20 °C to +50 °C (-4 °F to 122 °F).
How long does the battery last?
Up to 14 hours, with a replaceable battery for extended field use.
