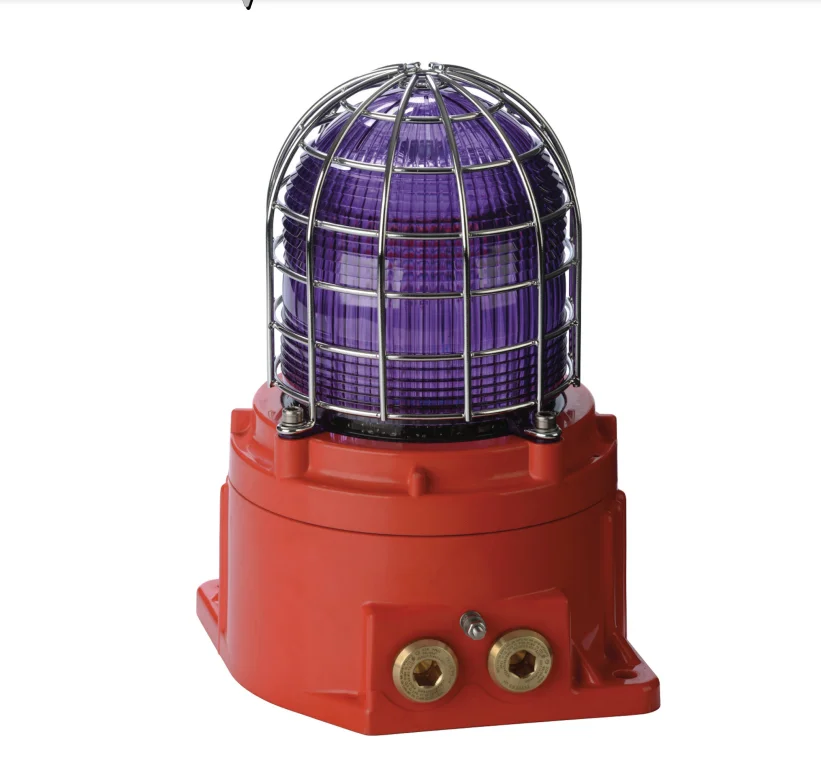

Tomar GNExB2X10 Xenon Strobe Beacon-Intrinsically Safe
Tomar Electronics presents the Tomar GNExB2X10 Xenon Strobe Beacon-Intrinsically Safe, an IECEx and ATEX approved explosion-proof 10 Joule Xenon beacon. Designed for hazardous locations, the robust IP66 corrosion-proof GRP enclosure, and extended temperature range make the GNExB2X10 suitable for Zone 1, 2, 21 & 22 signaling applications.
With an impressive over 479cd effective output, the GNExB2X10 produces a high-intensity Xenon strobe flash essential for efficient signaling over extended distances and in high ambient light conditions. The field-replaceable color filter, optically enhanced and constructed from UV stable PC, optimizes the strobe output.
Featuring a GRP enclosure with a threaded flame path, triple cable entries, and a spacious termination area, the GNExB2X10 significantly reduces installation time. This beacon stands as a reliable solution for demanding hazardous environments, meeting stringent safety standards while providing effective and visible signaling.
Features:
- Robust, Corrosion-Proof GRP Enclosure: Durable construction using glass-reinforced polyester for resilience in harsh environments.
- Ingress Protection IP66: Ensures protection against dust and powerful water jets, making it suitable for challenging conditions.
- Automatic Synchronization on Multi-Beacon Systems: Facilitates seamless integration and synchronization in setups with multiple beacons.
- Choice of Three Flash Rates: Offers flexibility with flash rates of 1Hz, 1.5Hz, and double flash to suit specific signaling requirements.
- User Replaceable Xenon Tube: Mechanically secured against shock and vibration, allowing for easy replacement.
- Glass Lens & Stainless Steel Guard: Enhances durability and protection for the beacon.
- UV Stable PC Field Replaceable Lens Color Filter: Optimizes strobe output and ensures long-term stability.
- Stainless Steel Fixings: Increases resistance to corrosion and environmental wear.
- Triple Cable Entries: Facilitates flexible cable routing for easy installation.
- Duplicate Cable Terminations: Provides redundancy for both input and output in daisy-chain installations, streamlining the setup process.
Approvals
- IECEx UL 15.0003X
• IEC 60079-0 : 2011
• IEC 60079-1 : 2014
• IEC 60079-31 : 2013 - ATEX DEMKO 15ATEX1448X
• EN 60079-0 : 2012
• EN 60079-1 : 2014
• EN 60079-31 : 2014
• TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109
Coding
- II 2G Ex db IIC Gb T6 Ta -50°C to +55°C
- II 2G Ex db IIC Gb T5 Ta -50°C to +70°C
- II 2D Ex tb IIIC Db T95°C Ta -50°C to +70°C
Tomar GNExB2X10 Xenon Strobe Beacon
Specifications:
| Item | Description | ||
| Energy | 10 Joules (10Ws) | ||
| Flash Rate | 1Hz (60 fpm), 1.5Hz (90fpm) & double flash | ||
| Peak Candela | 1,000,000 cd - calculated from energy (J) | ||
| Eff. Intensity cd | 500 cd - calculated from energy (J) | ||
| Peak Candela | 110,243 cd - measured ref to I.E.S | ||
| Eff. Intensity cd | 479.39 cd - measured ref to I.E.S. | ||
| Lens colors | Amber, Blue, Clear, Green, Magenta, Red & Yellow | ||
| Voltages DC | 24vdc; 48vdc | ||
| Voltages AC | 115vac; 230vac | ||
| Ingress protection | IP66 | ||
| Enclosure material | UV stable GRP (glass reinforced polyester) | ||
| Color | Natural Red - can be provided in alternative colors | ||
| Cable entries | 3 x M20 ISO (2 stopping plugs incl.) Adaptors to M25, 1/2" & 3/4" NPT can be specified | ||
| Terminals | 0.5 - 2.5mm² (20-14 AWG) | ||
| Enclosure volume | <2 liters | ||
| DC Line monitoring | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted | ||
| Tube life | Emissions are reduced to 70% after 8 million flashes | ||
| Temperature range | -50° to +70°C (-58°F to +158°F) | ||
| Weight | 3.5kg/7.7lbs | ||
| *All candela data is representative of performance with clear lens at optimum voltage | |||
| Ordering Information | Please specify lens color when ordering: Amber, Blue, Clear, Green, Magenta, Red, Yellow | ||
| Model | Description | Voltage | Current |
| GNExB2X10-024-(lens color) | 10 Joule strobe | 20-28 VDC | 528mA |
| GNExB2X10-048-(lens color) | 10 Joule strobe | 42-54 VDC | 229mA |
| GNExB2X10-115-(lens color) | 10 Joule strobe 50Hz/60Hz | 110-125 VAC | 276mA |
| GNExB2X10-230-(lens color) | 10 Joule strobe 50Hz/60Hz | 220-240 VAC | 130mA |
