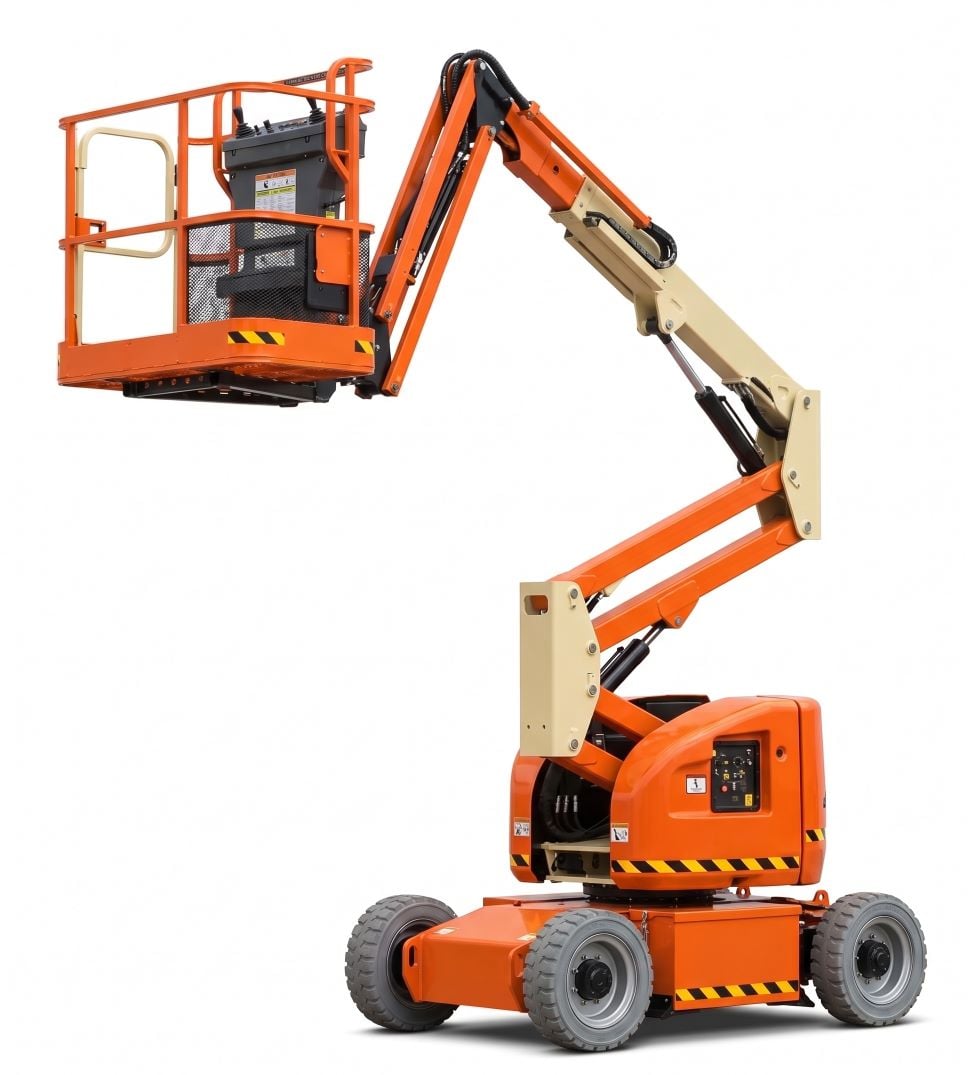

UL EE JLG E300AJP Electric Boom Lift

The JLG E300AJP Electric Boom Lift is an eco-friendly, zero-emission aerial work platform designed for work in tight spaces and hazardous environments, including chemical facilities and oil & gas operations. Built to navigate challenging indoor and outdoor industrial terrain, it delivers precise overhead positioning with zero direct emissions. With its versatile articulating jib and compact footprint, this lift provides safe, reliable vertical access where spark avoidance and zero emissions are paramount.

Engineered for maximum uptime and field productivity, the E300AJP features Electric Traction Motors, an advanced motor management system, and smooth electric joysticks that reduce high-pressure hydraulic leak points. The platform control console includes a real-time platform battery condition indicator, machine status lights, and dual USB-A/USB-C charging ports. Operators can easily maneuver over uneven surfaces using the Automatic Traction Control (ATC) while maintaining strict safety compliance via the integrated Load Sensing System and SkyGuard SkyLine™ operator protection.

Key Features:

✅ UL EE Rating Available for Hazardous Locations
✅ 48V DC Electrical System with 8x 6V (305 Ah or optional 375 Ah AGM) Batteries
✅ Automatic Traction Control (ATC) for Uneven Surface Mobility
✅ Electric Drive Motors & Electric Joysticks for Smooth, Leak-Free Operation
✅ 180-Degree Hydraulic Platform Rotator & Jib Extension
✅ Advanced Safety Features: SkyGuard SkyLine™, Load Sensing System, & All Motion Alarm
✅ Platform Battery Condition Indicator (Green/Yellow/Red LED Display)
✅ Integrated ClearSky Smart Fleet™ Hardware (CS550) & LED Motion Beacon
✅ Non-Marking 25 x 7 x 12-in Tires with Anti-Spark Wheel Covers

📦 Package Options:

🔹 Standard Electric Configuration: 48V DC with 305 Ah Batteries & Standard Features
🔹 High-Capacity Power Package: 375 Ah AGM Maintenance-Free Batteries
🔹 UL EE Rated Hazardous Package: Approved for Class/Division hazardous applications
🔹 Hostile Environment Package: Includes Console Cover, Boom Wipers, and Cylinder Bellows

JLG E300AJP Technical Specifications:

Feature	Details
Model	JLG E300AJP Electric Boom Lift
Platform Height	29 ft 5 in (8.96 m)
Horizontal Outreach	20 ft 1 in (6.12 m)
Up and Over Clearance	13 ft 2 in (4.01 m)
Platform Capacity	500 lbs (227 kg)
Machine Width	4 ft 0 in (1.22 m)
Machine Height	6 ft 7 in (2.01 m)
Machine Weight	15,400 lbs (6,985 kg)
Power Source	48V DC (8 x 6V, 305 Ah or optional 375 Ah AGM)
Drive Motors	Dual Electric Traction
Drive Speed	4.5 mph (7.2 km/h)
Gradeability	25%
Platform Rotator	180 Degrees Hydraulic
Swing	350 Degrees Non-Continuous
Tires	25 x 7 x 12-in Non-Marking
Hazardous Certifications	UL EE Rating, NFPA / NEC 70 compliant FM Anti-spark covers

Certifications & Compliance:

🔗 UL EE Rating – Certified for hazardous environments requiring explosion/spark mitigation
🔗 NFPA / NEC 70 Compliance – Meets recent national electrical safety codes for industrial trucks
🔗 ANSI A92.5 & CSA Standards – Meets North American standards for boom-supported elevating work platforms
🔗 Factory Mutual (FM) – Anti-spark wheel cover certified safety
🔗Download Datasheet

Applications of JLG E300AJP:

🔹 Oil & Gas Refineries & Facilities
🔹 Chemical & Petrochemical Processing Plants
🔹 Aircraft Manufacturing & Paint Booths
🔹 Laboratories & Clean Rooms
🔹 Industrial Manufacturing & Warehousing

What’s in the Box?

📦 1x JLG E300AJP Electric Boom Lift Base Unit
📦 1x 48V DC Battery Bank (8 x 6V)
📦 1x 110V-AC Receptacle in Platform
📦 1x Self-Closing Gate Platform with Console Cover
📦 1x ClearSky Smart Fleet™ CS550 Module
📦 1x Complete Operation & Safety Documentation Kit

Ordering & Shipping Details

📦 Lead Time: June 2027
📍 Shipping Terms: Worldwide / Freight Delivery Options Available
💳 Payment Options: Net 30 Terms, Credit Card, Direct Wire Transfer

FAQs:

What environment ratings does the E300AJP hold?
ANSI/CSA standards and offers UL EE Rating along with FM-compliant anti-spark features for hazardous locations.

What is the maximum reaching capacity of this boom lift?
The E300AJP offers a platform height of 29 ft 5 in, horizontal outreach of 20 ft 1 in, an up-and-over clearance of 13 ft 2 in, and a weight capacity of 500 lbs

How long do the batteries last, and can they be replaced quickly?
The 48V DC battery system is designed for long duty cycles, and battery boxes can be quickly unhooked and removed using a forklift for continuous multi-shift operations.

What operator safety systems come built-in?
It includes a Load Sensing System, SkyGuard SkyLine™ safety system, platform status indicator panel, motion alarms, and automatic tilt cutout.
