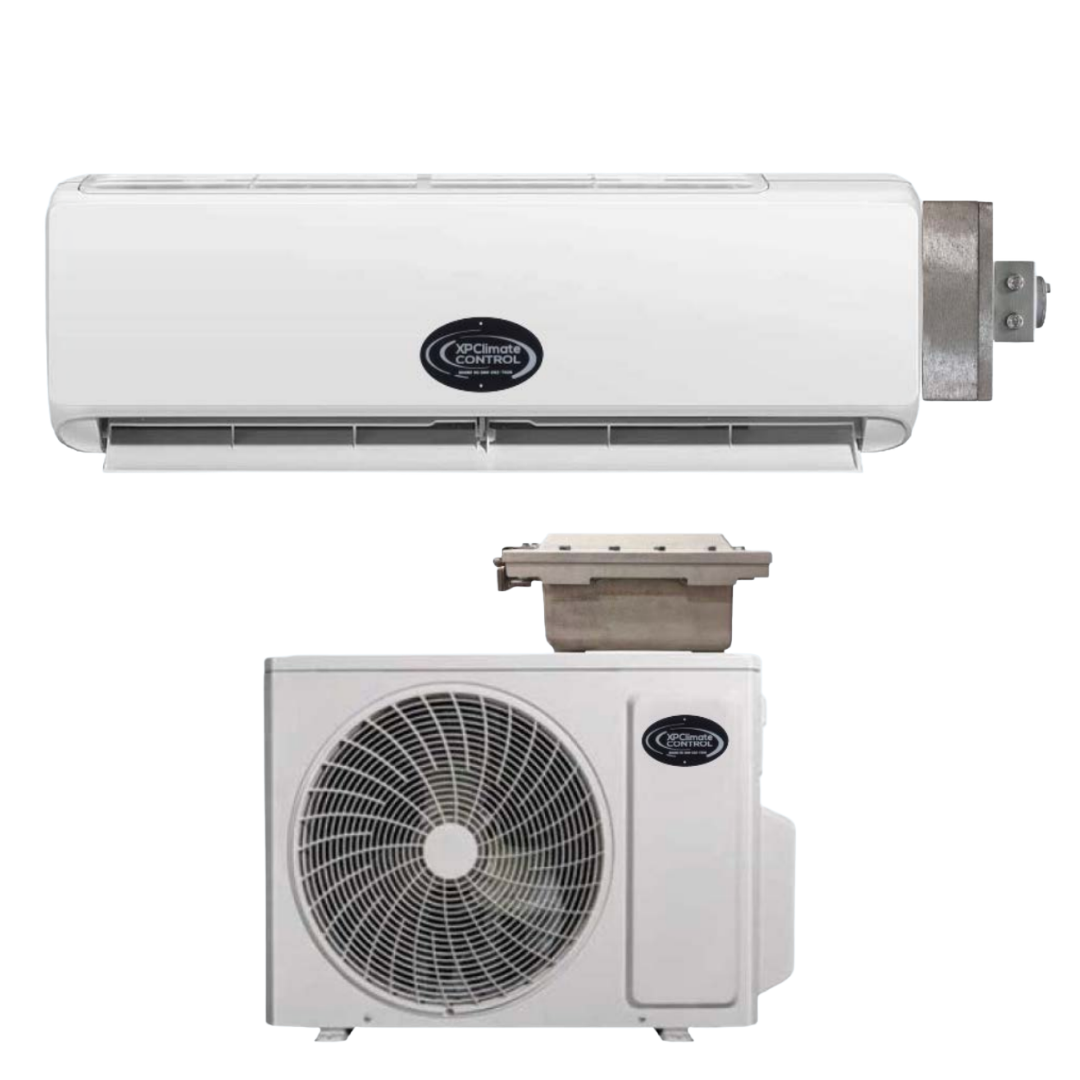

XP Climate 36,000 BTU Explosion Proof Mini Split Air Conditioner & Heat Pump – CID2 Groups B, C, D

The XP Climate EP-MS36HP-1-2-B-(IE)-216-1Z is a 36,000 BTU explosion proof mini split air conditioner and heat pump engineered for hazardous industrial environments requiring reliable climate control. Designed for Class I Division 2 Groups B, C, D locations, this system is ideal for oil & gas, offshore platforms, petrochemical plants, refineries, and industrial facilities where flammable gases or vapors may be present under abnormal operating conditions.

This single-zone hazardous location HVAC system includes both internal and external certified units, making it suitable for installations requiring complete hazardous-area protection. Equipped with high-efficiency DC inverter technology, WiFi connectivity, low ambient cooling and heating operation, and power failure recovery, the system provides dependable heating and cooling in demanding industrial applications.

Key Features:

✅ Class I Division 2 Certified – Designed for hazardous locations with Groups B, C, D gas coverage
✅ 36,000 BTU Cooling & Heating Capacity – High-capacity climate control for hazardous areas
✅ Internal & External Certified Units – Hazardous location compliance for both indoor and outdoor sections
✅ High-Efficiency DC Inverter Technology – Energy-efficient operation with improved performance
✅ WiFi Included – Remote monitoring and system management capability
✅ Low Ambient Cooling & Heating – Cooling operation down to 0°F and heating down to -13°F
✅ R32 Refrigerant – Modern refrigerant with efficient thermal performance
✅ Blue Fin Anti-Corrosion Coating – 500-hour salt spray tested for demanding industrial environments
✅ Memory / Power Failure Recovery – Automatically restores operation after outages
✅ Explosion Proof Motor & Overload Protection Installed

📦 Package Options:

🔹 EP-MS36HP-1-2-B-(IE)-216-1Z – 36,000 BTU Class I Division 2 Groups B, C, D Internal / External Mini Split System
🔹 Installation accessories such as line set, brackets, and surge protection may be required and sold separately

XP Climate EP-MS36HP-1-2-B-(IE)-216-1Z Technical Specifications:

Feature	Details
Model	EP-MS36HP-1-2-B-(IE)-216-1Z
Cooling Capacity	36,000 BTU
Heating Capacity	34,000 BTU @ 47°F
Hazardous Area Rating	Class I Division 2 Groups B, C, D
Configuration	Internal & External Hazardous Location Units
Voltage	208–230V / 1PH / 60Hz
Refrigerant	R32
Technology	DC Inverter
WiFi	Included
Cooling Operating Range	0°F to 115°F
Heating Operating Range	-13°F to 75°F
Indoor Unit Dimensions	49.56 × 13.17 × 9.69 in
Indoor Unit Net Weight	46.2 lbs
Indoor Unit Gross Weight	52.8 lbs
Outdoor Unit Dimensions	39.38 × 38.50 × 16.83 in
Outdoor Unit Net Weight	200.4 lbs
Outdoor Unit Gross Weight	211.4 lbs
Sound Level	36–52 dB(A) indoor / 62 dB(A) outdoor
Pipe Length	10–131 ft
Max Pipe Elevation	82 ft
Refrigerant Line Size	1/4" – 5/8"
Dehumidification	7.40 pt/hr
Anti-Corrosion Coating	Blue Fin – 500 Hour Salt Spray Tested

Certifications & Compliance:

🔗 Class I Division 2 Certified – Suitable for hazardous locations where explosive gases may be present under abnormal conditions
🔗 Groups B, C, D – Expanded gas group protection for oil & gas and industrial applications
🔗 NEC Certificate of Conformance – Manufactured to comply with applicable NEC hazardous location requirements
🔗 Internal & External Hazardous Location Configuration – Certified indoor and outdoor system components
🔗 Download Datasheet

Applications of XP Climate EP-MS36HP-1-2-B-(IE)-216-1Z:

🔹 Oil & Gas
🔹 Offshore Platforms & Oil Rigs
🔹 Petrochemical Facilities
🔹 Chemical Processing Plants
🔹 Refineries
🔹 Hazardous Area Control Rooms

What’s in the Box?

📦 1x 36,000 BTU Indoor Explosion Proof Evaporator Unit
📦 1x 36,000 BTU Outdoor Explosion Proof Condenser Unit
📦 1x Wireless Remote Control with LCD Display
📦 1x Documentation Kit
⚠️ Installation accessories may be required and sold separately

Ordering & Shipping Details

📦 Lead Time: Typically Built-to-Order – Please Contact Us for Current Availability
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

Is this mini split suitable for Class I Division 2 hazardous locations?
Yes. This model is designed for Class I Division 2 Groups B, C, and D hazardous locations.

Are both the internal and external units certified?
Yes. The (IE) configuration includes both internal and external hazardous-location units.

Can this system operate in extreme temperatures?
Yes. It supports cooling down to 0°F and heating operation down to -13°F.

Does this unit include WiFi?
Yes. WiFi connectivity is included for remote access and system management.
