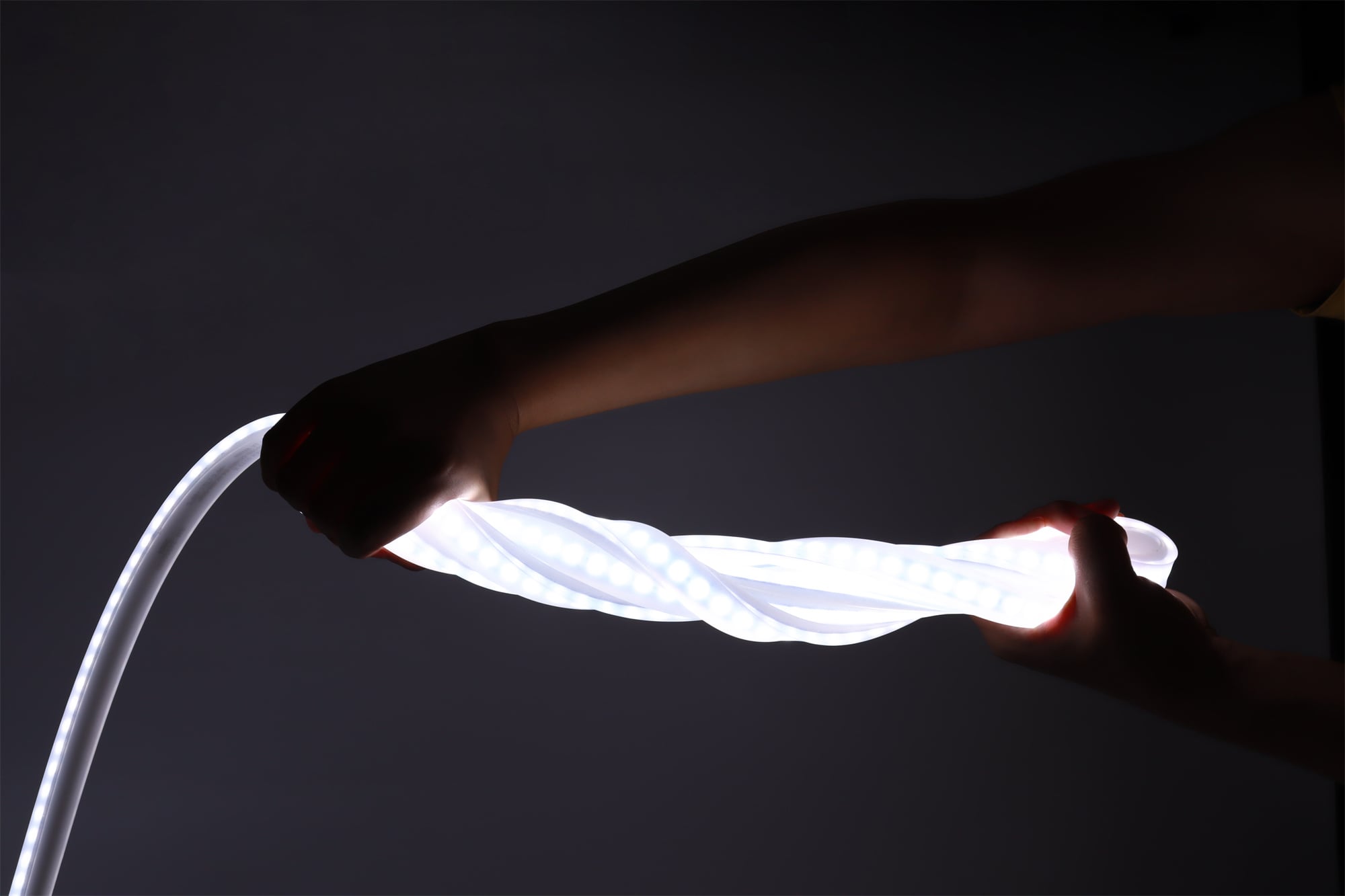

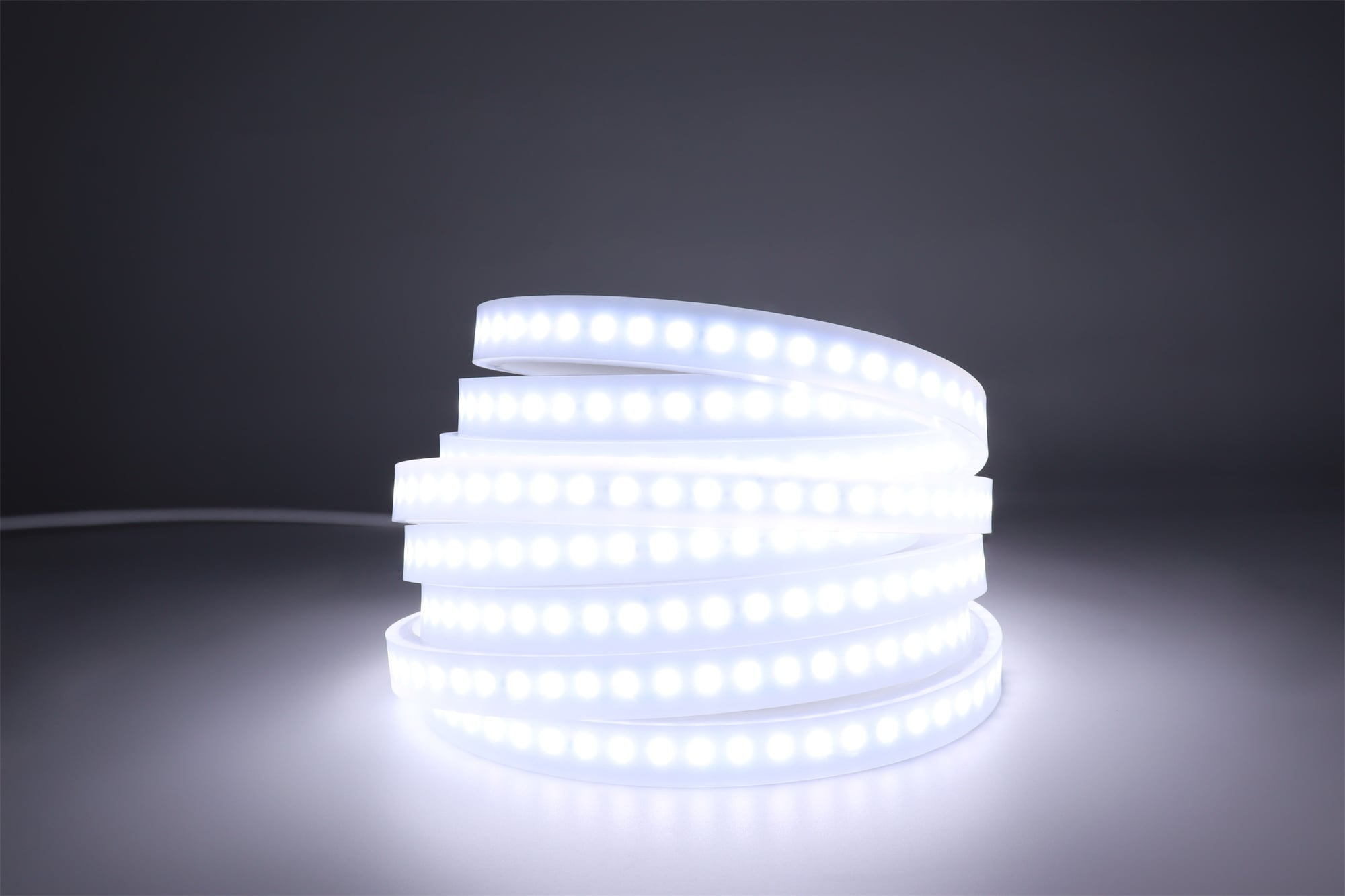

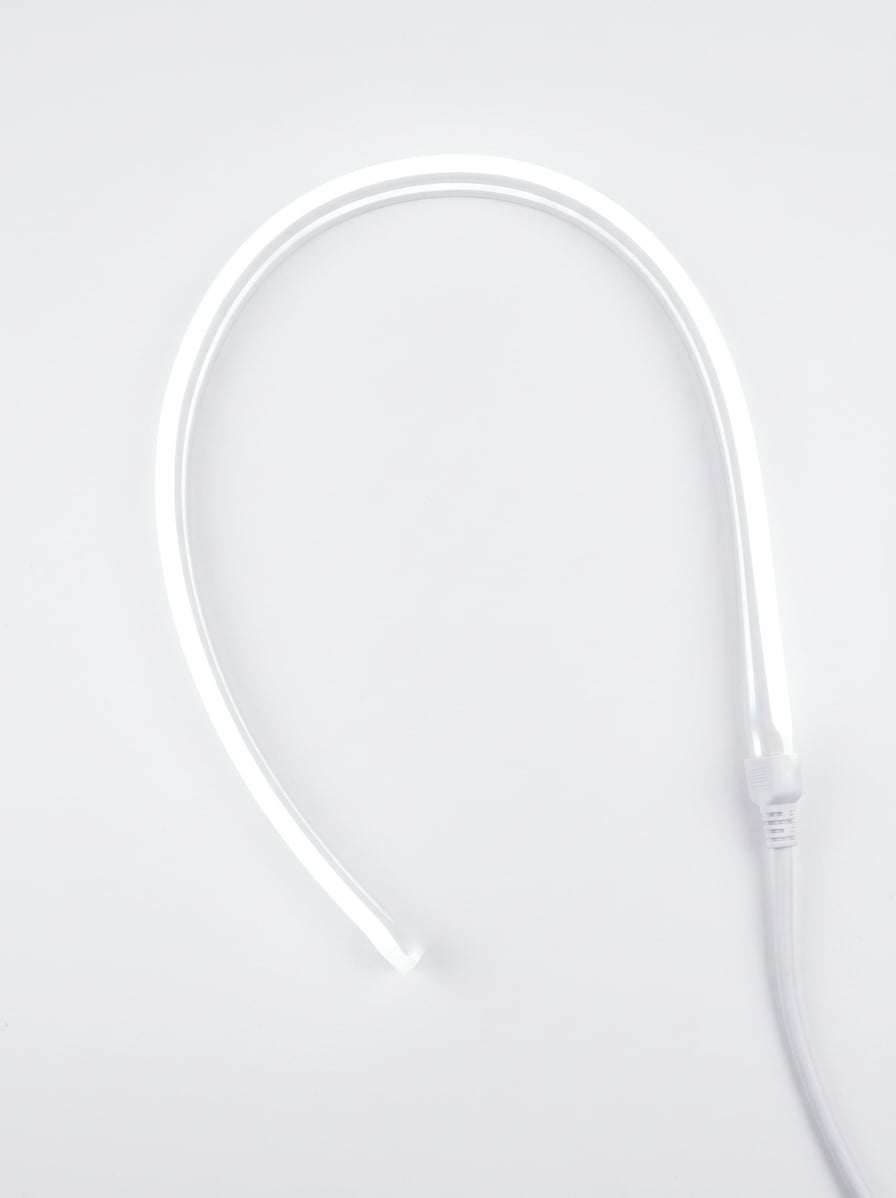

CESP CES-EX-LP Explosion-Proof Flexible LED Strip Light (20M, DC 24V, 240W, White)

The CESP CES-EX-LP Series Explosion-Proof LED Flexible Strip Light is an innovative hazardous-area lighting solution engineered for demanding Zone 1/21 and Zone 2/22 environments. Built to deliver bright, continuous area and targeted illumination in harsh oil & gas refineries, chemical plants, offshore platforms, and underground facilities, this flexible strip light eliminates lighting blind spots while ensuring maximum ignition protection.

Designed for extreme field performance, this 20-meter strip light operates on DC 24V power at 12W/m (240W total), delivering 1,000 lumens per meter of crisp white light. Featuring continuous encapsulation in heavy-duty flexible silicone with injection-molded IP67 connectors, it withstands extreme temperatures from -40°C to +80°C and holds an IK10 impact resistance rating for maximum durability during installation and operation.

Key Features:

✅ ATEX Certified: II 2 G Ex mb op is IIC T4 Gb / II 2 D Ex mb op is IIIC T135°C Db
✅ High-Efficiency LED Technology: Over 50,000 hours lifespan using high-brightness SMD chips
✅ IP67 & IK10 Protection: Fully dustproof, waterproof, and heavy-impact resistant
✅ Low Voltage Efficiency: Operating voltage of DC 24V delivering 1000 lm/m output at 12W/m
✅ Superior Color Uniformity: Visually cohesive 84 LEDs/m layout in White (W)
✅ Encapsulated Ex mb Protection: Injection-molded silicone with pre-installed front feed cable
✅ Extreme Temperature Tolerance: Operates reliably from -40°C to +80°C
✅ Flexible Mounting Options: Designed for both surface mounting and pendant mounting
✅ Compact Dimensions: W20mm x H10mm cross-section with 285g/m light weight

📦 Package Options:

🔹 DC 24V Standard Strip: 20M length, White light, pre-installed IP67 front connector cable
🔹 DC 24V Extension Kit: 20M strip light with surface/pendant mounting accessories
🔹 Ex-Proof Driver Package: Includes CES-EX-LP explosion-proof box with Meanwell driver (DC 24V)
🔹 Emergency Backup Package: Ex-proof driver box with 1.5-hour emergency backup battery system

CESP CES-EX-LP Technical Specifications:

Feature	Details
Model	CES-EX-LP-mb-F2010B-DC24V-84-W-20M-240W
Brand	CESP
ATEX Gas Marking	II 2 G Ex mb op is IIC T4 Gb
ATEX Dust Marking	II 2 D Ex mb op is IIIC T135°C Db
Certificate Number	TÜV IT 24 ATEX 0179 X
Zone Suitability	Zone 1, Zone 2, Zone 21, Zone 22
Voltage	DC 24V
Power Rating	12W / meter (240W total for 20M)
Luminous Output	1,000 Lumens / meter (20,000 Lumens total)
LED Density	84 LEDs / meter
Color Temperature	White (W)
Rated Current	0.50 A / meter
Power Factor (PF)	1
Cross Section Dimensions	W 20mm x H 10mm
Length	20 Meters (20,000mm)
Weight	285 g / meter
Ingress Protection	IP67
Impact Strength	IK10
Operating Temperature	-40°C to +80°C
Material	Flexible Silicone with Injection-Molded Connectors
Standards	EN IEC 60079-0, EN IEC 60079-18, EN IEC 60079-28
Operational Lifespan	> 50000 Hours

Certifications & Compliance:

🔗 ATEX Certificate Zone 1/21 & 2/22 – II 2 G Ex mb op is IIC T4 Gb / II 2 D Ex mb op is IIIC T135°C Db
🔗 ATEX Number – TÜV IT 24 ATEX 0179 X
🔗 IK10 Impact Rating – Highest standard mechanical impact resistance
🔗 Ingress Protection – IP67 rating against dust ingress and water immersion
🔗 Download Datasheet

Applications of CESP CES-EX-LP:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x CES-EX-LP Flexible LED Strip Light (20M, DC 24V, White)
📦 1x Injection-Molded Front Feed Connector Cable
📦 1x Injection-Molded End Cap
📦 1x Mounting Hardware Kit
📦 1x Documentation Kit & Ex Certification

Ordering & Shipping Details

📦 Lead Time: 3 - 4 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 CESP Explosion-Proof LED Strip Light AC 48V Series
🔗 CES-EX-LP Explosion-Proof Driver Box with Emergency Battery
🔗 Intrinsically Safe LED Inspection Handlamp

FAQs:

Is the CES-EX-LP LED Strip Light suitable for Zone 1 hazardous areas?
Yes, it carries ATEX certification for Zone 1/2 (gas) and Zone 21/22 (dust) environments.

Can this flexible LED strip be field-cut?
No, to maintain ATEX Ex mb encapsulation and IP67 ratings, the strip is factory-sealed with injection-molded connectors and end caps.

What is the power output of this 20M model?
It draws 12W per meter (240W total) and produces 1,000 lumens per meter (20,000 lumens total) at DC 24V.

How is the strip light mounted?
It supports both surface mounting and pendant mounting configurations using standard Ex-approved mounting accessories.
