Description

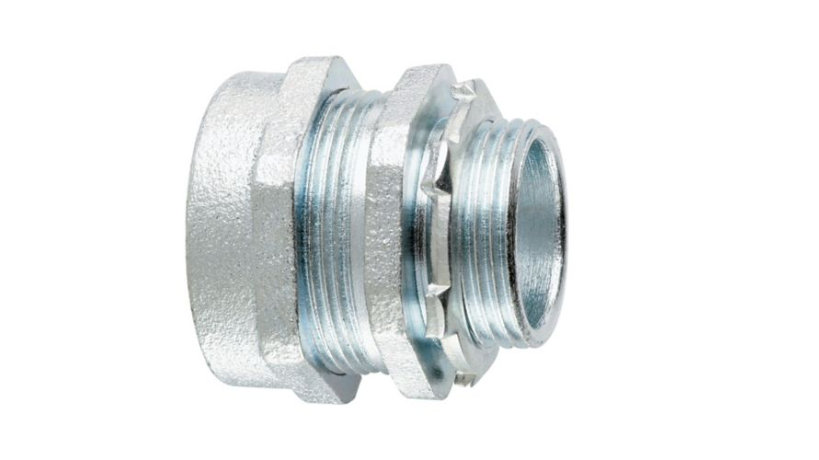

3/4 Crouse-Hinds Type CPR Compression Fittings CPR2
Crouse-Hinds Type CPR compression fittings are high-performance connectors designed to join threadless IMC and metallic rigid conduit. These fittings are engineered for use in demanding industrial environments, including poured concrete and maintenance applications where field threading is either undesirable or impossible.
Built for field efficiency, the Type CPR series features a unique gland ring design that tightens in fewer turns while providing outstanding pull-out strength. Constructed from rugged, malleable iron with zinc-plated steel components, these fittings ensure a secure, concrete-tight seal that installers can rely on for long-term durability
Key Features:
✅ UL/cUL Listed for IMC and Metallic Rigid Conduit
✅ Threadless design for fast, field-ready installation
✅ Concrete-tight construction suitable for new work in poured concrete
✅ Advanced gland ring design for superior pull-out strength
✅ Available in both insulated (with nylon insulator) and non-insulated versions
✅ High-strength malleable iron bodies and compression nuts
✅ Zinc-plated steel compression rings and locknuts for corrosion resistance
✅ Wide range of trade sizes from 1/2″ to 4.”
✅ Ideal for connections at panels, boxes, and conduit stub-ups
📦 Package Options:
🔹 Non-Insulated Straight Connectors: Cat. # CPR1 through CPR10 (1/2″ to 4″)
🔹 Insulated Straight Connectors: Cat. # CPR11 through CPR20 (1/2″ to 4″)
🔹 Compression Couplings: Cat. # CPR21 through CPR30 (1/2″ to 4″)
🔹 Bulk Quantities: Unit quantities vary by size (1 to 50 units per box)
Crouse-Hinds Type CPR Technical Specifications:
| Feature | Details |
|---|---|
| Product Type | Type CPR Compression Fittings (Connectors & Couplings) |
| Conduit Compatibility | IMC and Metallic Rigid Conduit |
| Trade Sizes | 1/2" to 4" |
| Body Material | Malleable Iron |
| Nut Material | Iron |
| Ring & Locknut Material | Zinc Plated Steel |
| Insuliner Material | Nylon (on insulated models) |
| Environmental Rating | Concrete-tight |
| Connection Type | Threadless Compression |
| Compliance | UL/cUL Listed, UL514B |
| UL File Number | E-19189 |
Certifications & Compliance:
🔗 UL 514B Fittings for Conduit and Outlet Boxes
🔗 UL E-19189 – Certified for safety and performance
🔗 Concrete-Tight – Approved for use in poured concrete
🔗 IMC & Rigid Compatible – Dual-rated for multiple conduit types
🔗 Compression fittings – type CPR
Applications of Crouse-Hinds Type CPR:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Type CPR Compression Fitting (Connector or Coupling)
📦 1x Compression Nut
📦 1x Gland/Compression Ring
📦 1x Locknut (for Connectors)
📦 1x Nylon Insuliner (Insulated versions only)
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 1 Week
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 Crouse-Hinds Three-Piece Conduit Couplings
🔗 Crouse-Hinds Split Conduit Couplings
🔗 Crouse-Hinds Mogul Pulling Elbows
FAQs:
Are these fittings suitable for use in concrete?
Yes, Type CPR fittings are specifically UL Listed as concrete-tight.
Can I use these with Intermediate Metal Conduit (IMC)?
Absolutely. These fittings are UL Listed for use with both IMC and metallic rigid conduit.
Do I need to thread the conduit to use these?
No, these are threadless compression fittings designed for locations where field threading is impractical or undesirable.
What is the maximum size available?
The Type CPR series is available in trade sizes up to 4 inches.
