Description

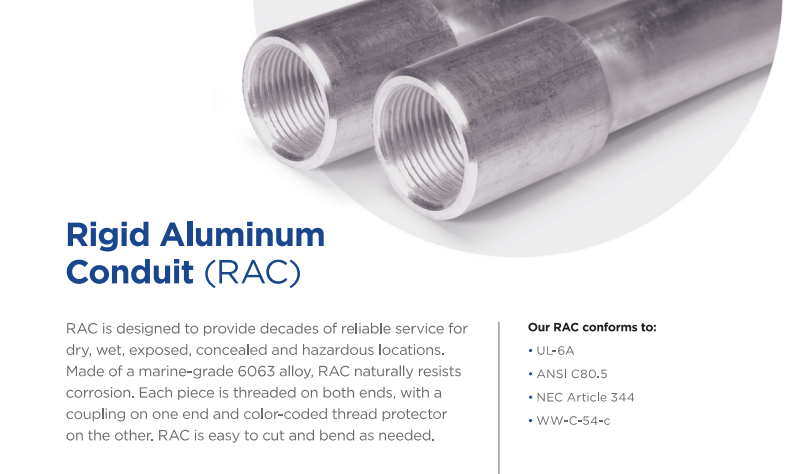

3/4″ Western Tube Rigid Aluminum Conduit
Western Tube Rigid Aluminum Conduit (RAC) is a premium, lightweight raceway solution designed to provide decades of reliable service in dry, wet, exposed, concealed, and hazardous locations. Constructed from high-strength, marine-grade 6063 alloy, this conduit naturally resists corrosion without requiring additional heavy coatings, making it an essential choice for demanding industrial environments.
Engineered for maximum field efficiency, RAC is significantly easier to cut and bend compared to traditional steel, reducing physical strain on installers. The conduit is approved for use as an equipment ground conductor, simplifying circuit requirements and ensuring high-performance safety in complex electrical systems.
Key Features:
✅ UL-6A and ANSI C80.5 Certified
✅ NEC Article 344 Compliant for Hazardous Locations
✅ Marine-grade 6063 Alloy Construction
✅ Naturally Corrosion Resistant (No Zinc Coating Required)
✅ Approved Equipment Ground Conductor
✅ Rounded Edges to Prevent Wire Abrasion
✅ Threaded Ends with Color-Coded Thread Protectors
✅ Tested for Superior Bendability and Threadability
✅ ISO 9001:2015 Certified Manufacturing
📦 Package Options:
🔹 Standard 10′ Lengths: Available in trade sizes 1/2″ through 6.”
🔹 Custom Lengths: Available upon request to meet specific project needs
🔹 Master Bundle Quantities: Conforming to NEMA Standard RN-2
🔹 Pre-installed Couplings: Included on one end of every standard length
Western Tube Rigid Aluminum Conduit (RAC) Technical Specifications:
| Feature | Details |
|---|---|
| Material | Marine-grade 6063 Aluminum Alloy +1 |
| Trade Sizes | 1/2" to 6" |
| Standard Length | 10 Feet (Custom lengths available) +1 |
| Compliance | UL-6A, ANSI C80.5, NEC Article 344, WW-C-54-c |
| End Treatment | Threaded both ends; one coupling and one color-coded protector included |
| Environmental Rating | Approved for Dry, Wet, Exposed, Concealed, and Hazardous locations |
| Corrosion Protection | Natural marine-grade alloy resistance; tested for harsh environments +1 |
| Grounding | Approved as equipment ground conductor |
| Quality Standard | ISO 9001:2015 Certified |
Certifications & Compliance:
🔗 UL-6A – Standard for Electrical Rigid Metal Conduit – Aluminum
🔗 ANSI C80.5 – American National Standard for Electrical Rigid Aluminum Conduit
🔗 NEC Article 344 – National Electrical Code requirements for Rigid Metal Conduit
🔗 ISO-9001-2015-Certification-Chicago-IL
🔗Download Datasheet
Applications of Western Tube Rigid Aluminum Conduit (RAC):
🔹 Oil & Gas (Hazardous Locations)
🔹 Chemical Plants (Corrosive Environments)
🔹 Mining
🔹 Labs (EMI/RFI Sensitive Areas)
🔹 Manufacturing & Marine Facilities
What’s in the Box?
📦 1x 10′ Rigid Aluminum Conduit Section
📦 1x Pre-installed Aluminum Coupling
📦 1x Color-coded Thread Protector
📦 1x UL Approval Label
Ordering & Shipping Details
📦 Lead Time: 1 Week
📍 Shipping Terms: Worldwide / Expedited Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 Western Tube Rigid Metal Conduit (RMC)
🔗 Western Tube Intermediate Metal Conduit (IMC)
🔗 Western Tube SmartSet™ EMT
FAQs:
Can RAC be used in hazardous locations?
Yes, RAC is specifically designed for hazardous, wet, and exposed locations per NEC Article 344
How do I identify the trade size of the conduit quickly?
Western Tube uses color-coded thread protectors (e.g., Black for 1/2″, Red for 3/4″, Blue for 1″) for easy identification.
Is this conduit compatible with standard fittings?
Yes, all RAC is sized and threaded to accommodate standard industry fittings
Does RAC provide grounding protection?
Absolutely. It is approved for use as the equipment ground conductor, which simplifies the wiring process.
