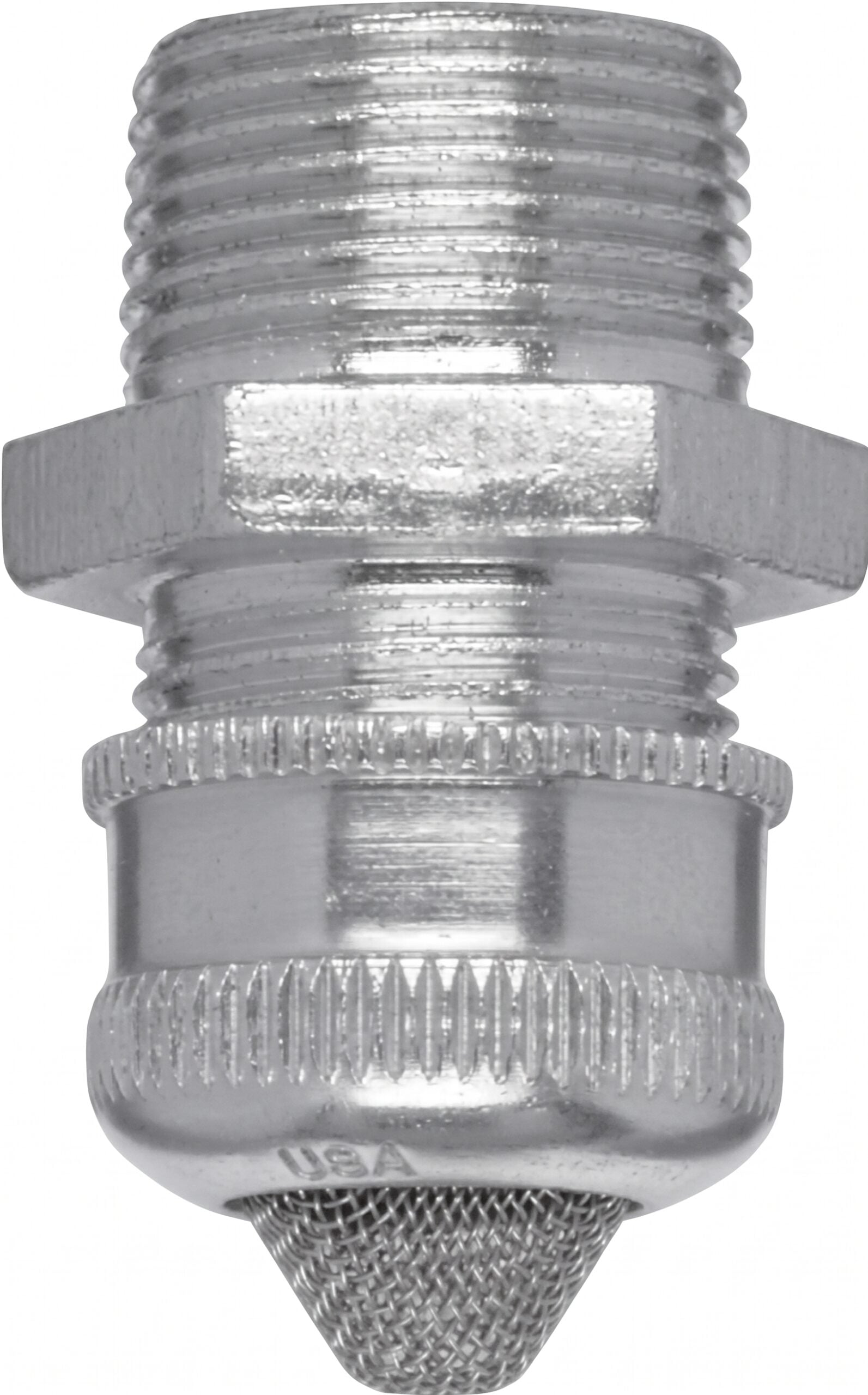

The Eaton Crouse-Hinds Redapt DP-E Series (DPE3004S3) is an increased safety (Ex eb / Ex tb) breather drain precision-machined from marine-grade 316L stainless steel to effectively prevent moisture buildup and pressure differentials in hazardous enclosures. Certified for ATEX, IECEx, and cCSAus Class I, Division 2 / Zone 1 areas, it delivers robust IP66 and Type 4X protection for demanding offshore and onshore oil & gas environments.
| Country of Origin | United States (US) |
| UL Hazardous Area Rating | cCSAus Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb IIC Gb; Type 4X |
The Eaton Crouse-Hinds series Redapt DP-E Series (DPE3004S3) increased safety breather drain provides a certified, maintenance-free solution to continuously evacuate condensation and equalize internal barometric pressures within electrical enclosures installed in hazardous industrial locations. Engineered specifically for explosive atmospheres across oil refineries, offshore drilling rigs, chemical plants, and marine terminals, this unit mitigates moisture-induced internal corrosion, tracking, and electrical short circuits before catastrophic downtime occurs.
Precision-machined from premium AISI 316L stainless steel, this breather drain delivers exceptional resistance to salt spray, aggressive washdowns, and sour gas environments. The assembly features a high-density polyethylene (HDPE) permeable core paired with a 3-hole drain layout and a specialized castellated locknut, enabling rapid liquid gravity drainage while simultaneously breathing clean air across an operating temperature range of -50°C to +85°C (NBR seal rated -30°C to +80°C).
✅ Ex eb (Increased Safety) and Ex tb (Dust Ignition Proof) Zones 1, 2, 21, and 22, plus Class I, Div 2 / Class I, Zone 1
✅ Marine-grade AISI 316L stainless steel unplated construction superior resistance against chemical attack and offshore corrosion
✅ Ingress Protection rated to IP66 (EN/IEC 60529) and Enclosure Type 4X (CSA/UL 50/514B) captive Nitrile (NBR) face seal
✅ ISO Metric M20 x 1.5 pitch male thread with 15.0 mm thread length for secure clearance and threaded-entry mounting
✅ High-Density Polyethylene (HDPE) particulate and moisture-permeable core to balance breathing and filtering efficiency
✅ 3-hole peripheral drain pattern for multi-directional discharge of condensation
✅ Included castellated locknut ensures fluid bypass directly from enclosure floor into exterior drain channels
✅ Broad operating temperature tolerance: -50°C to +85°C assembly (-30°C to +80°C with standard NBR seal)
✅ Certified globally under ATEX, IECEx, cCSAus, INMETRO, UKEX, and EAC directives
🔹 Standard Unit: M20 316L Stainless Steel Breather Drain with Nitrile (NBR) Seal, HDPE core, and Castellated Locknut
🔹 Alternative Seal Material Variant: High/Low temp configured with EPDM, Neoprene, Silicone, or Viton O-ring seals
🔹 Commercial Cross-Reference Pack: Eaton Redapt catalog cross-reference ACDPES/M20/15 configuration
🔹 Bulk / Project Pack: Multi-unit site deployment packages for junction box and control station build-outs
| Feature | Details |
|---|---|
| Manufacturer & Series | Eaton Crouse-Hinds / Redapt DP-E Series |
| Part & Catalog Number | DPE3004S3 (Commercial Cross-Ref: ACDPES/M20/15) |
| SKU | 2503229915 |
| Thread Specification | M20 x 1.5 pitch metric male thread (ISO Metric 6g fit) |
| Thread Length | 15.0 mm (0.59 in) |
| Across Flats (Hex A/F) | 28.6 mm (1.125 in) |
| Body Material & Finish | AISI 316L Stainless Steel, Unplated (Natural passivated finish) |
| Internal Filter Media | High-Density Polyethylene (HDPE) permeable core |
| Drain Configuration | 3 Peripheral drain holes (X3 pattern) with castellated locknut |
| Interface Seal | Captive Nitrile (NBR) face seal (Optional: EPDM, Neoprene, Silicone, Viton) |
| Ingress Protection (IP) | IP66 (EN/IEC 60529), Enclosure Type 4X (CSA/UL 50/514B) |
| ATEX Protection Class | I M2 / II 2 GD, Ex eb I/IIC Mb Gb, Ex tb IIIC Db |
| ATEX Certificates | ITS16ATEX101338X / SIRA 99 ATEX 3050U |
| IECEx Protection Class | Ex eb I/IIC Mb Gb, Ex tb IIIC Db IP66 |
| IECEx Certificate | IECEx ITS 16.0014X |
| North American Ratings | cCSAus Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb IIC Gb; Type 4X |
| cCSAus Certificates | CSA00CA1033919X / LR 106498 |
| Global Compliance | INMETRO (NCC 18.0165 X), EAC (RU C-GB.M 62.B.06227), UKEX |
| Operating Temperature | Assembly: -50°C to +85°C (NBR Seal: -30°C to +80°C) |
| Mounting Hole Clearance | Ø 20.0 mm to 20.5 mm |
| Recommended Torque | Standard entry torque approx. 27.0 N·m |
| Net Weight | Approx. 0.08 kg (0.175 lb) |
🔗 ATEX (CENELEC) – I M2 / II 2 GD, Ex eb I/IIC Mb Gb, Ex tb IIIC Db (Cert: ITS16ATEX101338X / SIRA 99 ATEX 3050U; EN 60079-0, -7, -31)
🔗 IECEx – Ex eb I/IIC Mb Gb, Ex tb IIIC Db IP66 (Cert: IECEX ITS 16.0014X; IEC 60079-0, -7, -31)
🔗 cCSAus (North America) – Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb IIC Gb; Type 4X (Cert: CSA00CA1033919X / LR 106498)
🔗 INMETRO & EAC – Ex eb IIC Gb, Ex tb IIIC Db (Cert: NCC 18.0165 X, RU C-GB.M 62.B.06227)
🔗 Ingress Protection – Certified IP66 (EN/IEC 60529) and Enclosure Type 4X (CSA/UL 50/514B)
🔗 Download Datasheet
🔹 Oil & Gas (Offshore platforms, drill ships, FPSOs, upstream wellheads, downstream refineries)
🔹 Chemical Plants (Petrochemical synthesis, fertilizer manufacturing, acid storage)
🔹 Mining (Surface processing and underground mining operations requiring Ex eb I Mb ratings)
🔹 Labs & Process Control (Atmospheric equalization in test environments and purge enclosures)
🔹 Manufacturing (Heavy industrial facilities, marine washdown environments, paint booths)
📦 1x Eaton Redapt DPE3004S3 316L Stainless Steel Breather Drain (M20)
📦 1x High-Density Polyethylene (HDPE) Internal Filter Element (Pre-installed)
📦 1x Captive Nitrile (NBR) Interface O-Ring Seal
📦 1x 316L Stainless Steel Slotted Castellated Locknut
📦 1x Installation & Safety Instruction Sheet
📦 Lead Time: 4 - 6 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
