Desktop Global IPPoE Masterstation LS 5W LCD Flex Micro

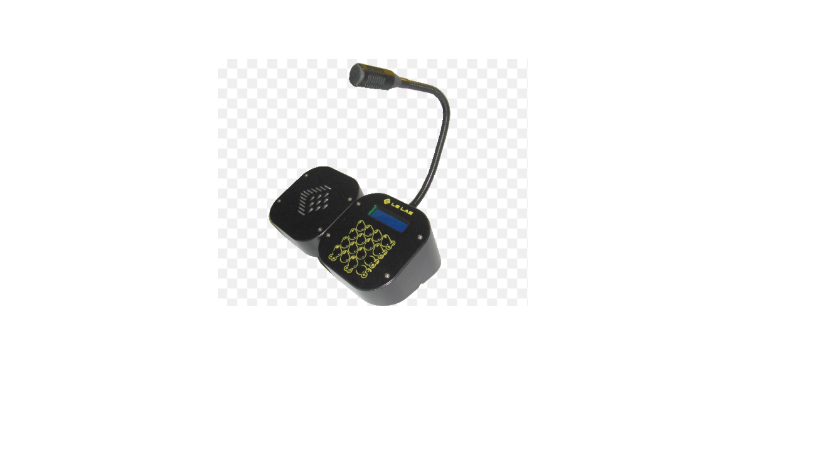

The rugged VoIP desk master station NCH202P4C9LX is engineered for reliable and secure voice communication in demanding industrial and outdoor environments. Whether wall- or desk-mounted, this hands-free device offers crystal-clear duplex or push-to-talk functionality—ideal for mission-critical operations in energy, marine, chemical, and heavy industries.
With a full aluminum housing (RAL2003), IP66 weatherproof protection, wide operating temperature range, and advanced SIP features, it ensures seamless communication over VoIP networks—no matter the conditions. A complete web interface, multicast paging, and acoustic echo cancellation (AEC) make it a powerful and dependable voice solution.
Key Features:
✅ IP66-Rated & Weatherproof – Built to withstand industrial environments
✅ Hands-Free VoIP Communication – Full duplex or push-to-talk operation
✅ Rugged Design – Cast aluminum construction with RAL2003 finish
✅ WebUI Management – Secure web interface for remote configuration
✅ SIP Protocol Support – Certified SIP, RTP, RTCP, STUN, NTP
✅ Acoustic Echo Cancellation – Enhanced clarity via built-in AEC
✅ Industrial Audio – 5W speaker and flexible electret microphone
✅ Desk or Wall Mount – Adaptable form factor
✅ Multicast Audio Paging – Supports one-to-many RTP audio paging
✅ Compatible Codecs – G.711a/u, G.736-32, G721-RFC3551, iLBC, G.722
📦 Package Options:
NCH202P4C9LX – Rugged VoIP Desk Master Station for Harsh Environments
Each unit ships complete with: Mounting kit, flexible microphone, integrated loudspeaker, and standard firmware pre-installed.
VoIP Desk Master Station – NCH202P4C9LX Technical Specifications:
| Specification | Details |
|---|---|
| Power Supply | PoE (Power over Ethernet) |
| Communication Mode | Full Duplex / Push-to-Talk |
| Microphone | Electret flexible microphone |
| Loudspeaker Output | 5W |
| Material / Color | Cast Aluminium / RAL2003 (orange) |
| Mounting Options | Desk or Wall Mounting |
| Dimensions | 300 x 150 x 102 mm |
| Weight | 2.4 kg |
| IP Rating | IP66 |
| Operating Temperature | -10°C to +70°C |
| Cabling | Cat5e Network Cable |
| VoIP Protocols | SIP, RTP, RTCP, STUN, NTP |
| Telephony Features | Hotline, Intercom, Push-to-Call Modes |
| Audio Codecs Supported | G.711a/u, G.736-32, G721-RFC3551, iLBC, G.722 |
| Audio Paging | Multicast RTP Support |
| Web Configuration | WebUI with login authentication |
| Echo Cancellation | Acoustic Echo Canceller (AEC) |
Certifications & Compliance:
The NCH202P4C9LX meets industrial-grade protection and communication standards:
IP66 Rated – Dust-tight and protected against powerful water jets
SIP Certified Protocols – Includes RTP, RTCP, STUN, and NTP support
Multicast Audio Support – MCPG module with RTP compatibility
Download Datasheet
Applications of VoIP Desk Master Station NCH202P4C9LX:
🔹 Oil & Gas
🔹 Marine Communication
🔹 Industrial Control Rooms
🔹 Chemical Plants
🔹 Outdoor Security Posts
What’s in the Box?
📦 1x NCH202P4C9LX Desk Master Station
📦 1x Flexible Microphone
📦 1x Integrated Loudspeaker
📦 1x Mounting Kit
📦 1x Documentation & User Manual
Ordering & Shipping Details
📦 Lead Time: 2-4 weeks
📍 Shipping Terms: Worldwide shipping / Expedited options available
💳 Payment Options: Credit Card, PayPal, and Net 30 terms (upon approval)
FAQs:
Is this device compatible with standard VoIP systems?
Yes, it supports SIP, RTP, RTCP, and more, ensuring compatibility with most VoIP infrastructures.
What environments is this suitable for?
The IP66 rating and -10°C to +70°C operating range make it ideal for industrial and outdoor installations.
Does it support paging features?
Yes, it includes a Multicast Audio Paging module for one-to-many announcements.
Is it wall-mountable?
Yes, it can be desk-mounted or wall-mounted depending on your setup.
