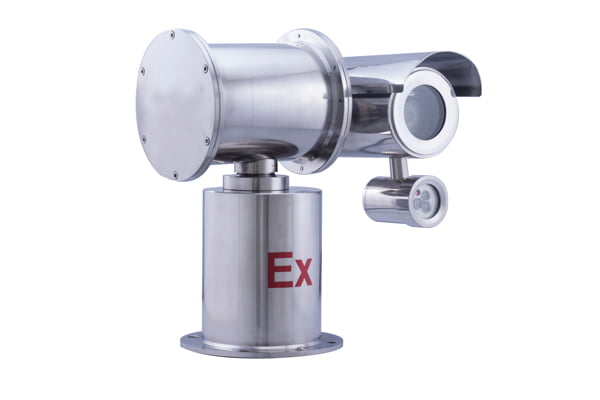

Kaixuan KX-EX1000ZPPY Explosion Proof CCTV Camera Enclosure

SKU: KX-EX1000ZPPY

Explosion Proof CCTV Camera Housing Kaixuan KX-EX1000ZPPY is certified to use in ATEX Zone 1/21 hazardous locations. It features Auto-Iris, Auto-Focus, Support SD card, minimum illumination, digital wide dynamic range, 3D digital noise reduction, circuit design, smart windshield wiper, 256 monitoring locations and baud rate, 100m IR distance, vertical and horizontal rotation speed, and range. With the support ONVIF, support HIKVISION, and DAHUA technology. The 304 stainless steel material is applicable to a strong corrosive environment. Explosion-proof, anti-corrosion, waterproof resistant, IP66.

NOTE: housing only without a camera inside;ONLY suggest to integrate
with HIKVISION Camera

ATEX Rating

$2,17019

Out of stock

Shipping Time: 3-7 business days

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: ,

Kaixuan KX-EX1000ZPPY Explosion Proof CCTV Camera Housing is approved for usage in ATEX Zone 1 / 21 hazardous sites. Among the KX-outstanding EX1000ZPPY’s characteristics are its low illumination, digital wide dynamic range capability for seeing dark regions, 3D digital noise reduction for removing noise from pictures, circuit design, intelligent windshield wiper, 256 monitoring sites, and baud rate. Additionally, it boasts a 100m IR range, vertical and horizontal rotating speeds and ranges, and a nanotechnology-processed glass surface.

Additionally, it enhances usability by supporting ONVIF, HIKVISION, and DAHUA technologies. The IP66-rated, explosion-proof, anti-corrosion and waterproof design is ideal for use in harsh environments. This Explosion-Proof CCTV Camera is made of very robust 304 stainless steel (316L for optional).

Features:

  • ATEX Zone 1/21
  • Ex – Housing
  • IR distance: 100M (Laser IR)
  • Rotation Range: Horizontal 360°, Vertical ±90°
  • Rotation Speed: Horizontal Rotate speed 9°/s, Vertical Rotate speed 6°/s
  • Auto-Iris, Auto-Focus, Support SD card
  • 256 preset
  • Support ONVIF, support HIKVISION, DAHUA
  • AC220V/24V optional
  • Smart windshield wiper optional
  • Minimum illumination 0.05Lux/F1.6(color, 0.01Lux/F1.6(BW )
  • Support digital wide dynamic, support 3D-DNR, low bit rate
  • The module circuit design, support baud rate/ control protocol automatic recognition, support software address code setting
  • Imported precision motor, Response sensitivity, stable operation, low accuracy, no jitter under any speed
  • Windows glass surface process by nanotechnology. Well, light transmittance. no halation effect .non-stick oil/dusty
  • Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time
  • Made of 304 stainless steel material (316L for optional), apply to a strong corrosive environment
  • Well design for Explosion-proof, anti-corrosion, waterproof, suitable for indoor and outdoor environment
  • IP66

Specifications:

ProductsEx-LevelATEX
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC IP66 T80℃ Db
Ingress  Protection levelIP66
PTZ functionRotation  rangeHorizontal :0~355°Vertical:   :±90°
Rotation  speedHorizontal :9°/S Vertical:   :6°/S
monitoring location255  locations can be set
Communication  methodRS485
Baud rate2400 / 4800  / 9600 bps
Communication  protocolPELCO-D、PELCO-P  etc .
monitoring location setting accuracy±0.1°
LaserThe laser  wavelength,808nm
Light angle≥ 25°
Irradiation distance100 m
InterfaceAudio input1 path
Audio output1 path
Alarm input1 path(optional )
Alarm output1 path(optional )
InterfaceprotocolsONVIF、PSIA、CGI
Other specificationTemperature  range-40℃~60℃
Relative  humidity≤ 95%(+25°C)
Atmospheric  pressure80kpa~106 kpa
Material304 stainless  steel(316, 316L for optional)
Supply  voltageAC220V/AC24V  optional
Inner SizeФ106*220mm
WindowФ65mm
Inlet hole specificationsG-3/4″x 1
Electrical  connection10-core composite cable
Thermostat  SystemOptional
External  dimensions 352mm*290mm*368mm
Installation  methodbracket or  base installtion
