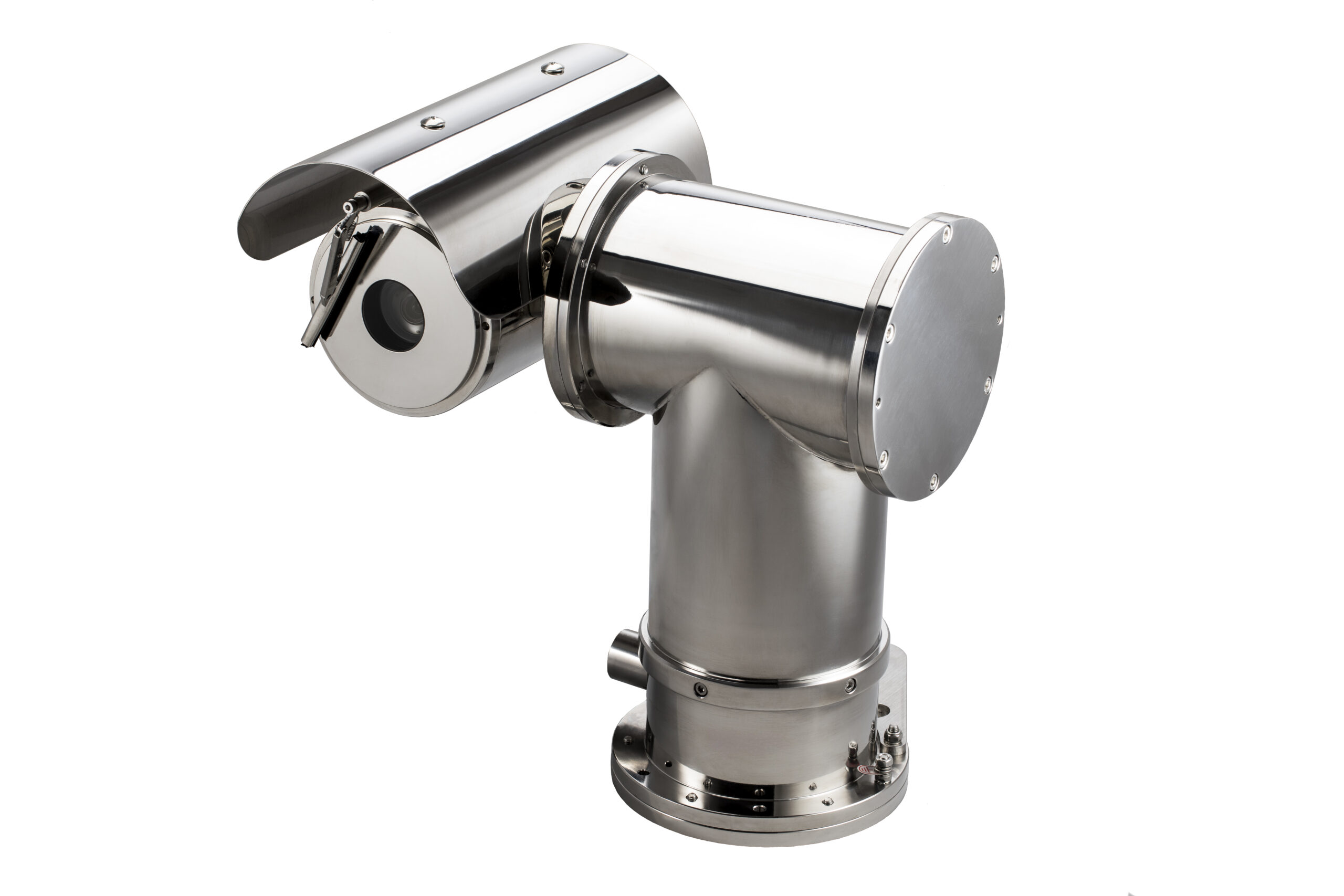

IVC APTZ-3045-04 Explosion-Proof PTZ Camera

SKU: APTZ-3045-04

This sturdy pan-tilt-zoom camera captures analog video and features an optical zoom of 36x. This camera is made of stainless steel and is approved for usage in hazardous environments. NEMA Type 4 Class I Division 1 Groups B, C, and D

Hazardous Area Rating

$16,50000

Shipping Time: 4 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: , Brand:

IVC APTZ-3045-04 Explosion-Proof PTZ Camera

The IVC APTZ-3045-04 Explosion-Proof PTZ Camera is a high-performance explosion-proof PTZ camera designed for hazardous environments requiring superior video surveillance. With a 36x motorized optical zoom and high-resolution color imaging, it delivers detailed and clear footage, even in low-light conditions. The camera features advanced low-light optimization, automatically switching to black and white and removing the IR cut filter to enhance sensitivity in challenging lighting situations.

Built for rugged outdoor use, the APTZ-3045-04 is housed in a 316L stainless-steel enclosure and is Class I, Division 1 certified for Group B, C, and D hazardous areas. It requires a separate encoder for IP connectivity and operates on 100-240 VAC power.

Key Features

Explosion-Proof Certified: Class I, Division 1, Groups B, C, and D for hazardous locations.
High-Resolution Video: Delivers crisp imaging with 36x optical zoom for detailed surveillance.
Low-Light Performance: Automatically switches to black & white mode and removes IR cut filter for improved sensitivity.
316L Stainless Steel Housing: Corrosion-resistant for extreme industrial environments.
Pan/Tilt/Zoom Functionality: Provides smooth and precise movement for full area coverage.
Wide Operating Temperature Range: Functions reliably in -25°C to 50°C.
Power Supply: Operates on 100-240 VAC, 50/60 Hz for flexible installation.
IP Connectivity Available: Requires a separate encoder for network integration.

Specifications

Imager1/4” Sony ExView CCDTilt Angle-90° to 90° (180° view range)
Shutter1 to 1/10,000 secondsTilt Speed45° per second
Minimum Illumination0.7 Lux (Color)
0.01 Lux (B/W)
View Angle1.7° – 57.8°
White BalanceAutoVideo Output1.0Vp-p; 75Ω on BNC
IrisAutoProtocolPelco-D
FocusAuto and manualResolution530 TVL
ExposureAutoFrame Rate50 Hz
Focal Length3.4 – 122.4 mmWeight48.5 lbs.
F-number1.6 – 4.5Current≤ 500mA
Zoom ratio36x OpticalVoltage Required90 – 240 VAC, 50/60 Hz
Pan Angle360°Operating
Temperature
-25° to 50° C
Pan Speed45° Per SecondMountPedestal
Dimensions15.73” H x 13.97” W x 10.31” DApprovalsClass I Division 1 Groups B, C, & D T6 Tamb +50°C (+122°F)
Class I Zone 1 Group IIB H2
Protection ClassNEMA TYPE 4

📌 For a full list of specifications, see the APTZ-3045-04 Data Sheet

Certifications & Compliance

Electrical Safety Certification

Explosion Proof Certification

Applications

🔹 Oil & Gas Facilities – Secure pipelines, drilling sites, and refineries.
🔹 Chemical Processing Plants – Monitor hazardous material storage and processing areas.
🔹 Offshore & Marine Environments – Suitable for harsh and corrosive conditions.
🔹 Power & Energy Infrastructure – Surveillance for utilities, substations, and energy plants.
🔹 Industrial & Manufacturing Facilities – Reliable monitoring for hazardous zones.

What’s in the Box?

📦 Package Includes:

  • 1x IVC APTZ-3045-04 Explosion-Proof PTZ Camera
  • 1x Mounting Bracket & Hardware
  • 1x Power Supply & Cables
  • 1x User Manual & Safety Guide

Ordering & Shipping Details

📦 Lead Time: 4 weeks
📍 Shipping Terms: EXW/CPT
💳 Payment Terms: T/T in advance, net terms available

💡 Need expert advice? Contact our hazardous area specialists for guidance on selecting the right explosion-proof camera.

🔹 💰 Best Price Guarantee! We match or beat competitor prices – order today for maximum security and compliance!
