Intrinsically Safe Computer Ecom i.roc Ci70 –Ex is ATEX and IECEx Zone 1/21 and NEC Class 1 Division 1 certified PDA with a wide-area network (WWAN 3G UMTS or CDMA). It is approved for several global certifications including TIIS Japan, MSHA United States, Inmetro Brazil, and Explolabs South Africa.
This powerful GSM 3G device is Wi-Fi certified and built to work with a wide range of frequencies. It combines state-of-the-art technology with a flexible, modular head system for all kinds of data acquisition systems: LF, HF and UHF RFID with 1D Barcode Laser Scanner and 2D Multi-Range Barcode Imager.
As with all devices based on the 70-Series platform, Intrinsically Safe Computer Ecom i.roc Ci70 –Ex is built with extreme battery life. Talking about flexibility, this device features different head modules for best customization. Other features include 512 MB RAM, multi-core OMAP 1GHz processor, GPS, loudspeaker that can work via wireless Bluetooth headset support, and accelerometer sensor technology.
Features:
- ATEX Zone 1
- IECEx
- NEC Class 1 Division 1
- Inmetro, TIIS, ATEX / IECEx / MSHA Mining
- Ci70e with QWERTY keypad
- 2D Multi Range Imager
- WLAN 802.11
- WEH 6.5.3, 1 GB SD Card
- Stylus Pen and Clip and mounted handstrap
- No additional software
| SYSTEM ARCHITECTURE | |
| Operating System | Windows 10 IoT Mobile Enterprise or Android 6.0 Marshmallow |
| Processor | 2.26 GHz Qualcomm® Snapdragon™ quad-core 801 |
| Memory | RAM: 2 GB, Storage: 16 GB |
| Display | 119.4 mm (4.7 in) in High Definition (1280 x 720) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel |
| Touch Panel | Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight view ability. |
| Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with | |
| many off-the-shelf gloves. | |
| Keypad | On-screen keypad, dual-action side scan triggers, Volume up/down, Camera, Power button |
| Audio | Speaker, T3/M3 HAC-compliant, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless |
| headset support. | |
| I/O Ports | Custom IO connector |
| Camera | 8.0-megapixel color camera with autofocus and advanced software features for better image quality |
| Sensors | Ambient Light Sensor, Proximity Sensor, Accelerometer, Gyroscope, Magnetometer, Pressure Sensor |
| Storage Expansion | User-accessible microSD card up to 32 GB (SDHC/SDIO-compliant) |

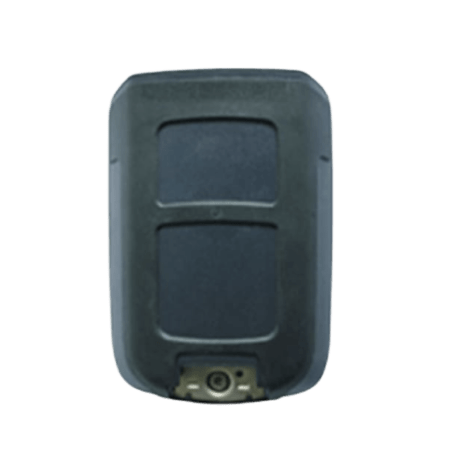

| Battery | Li-Ion, 3.6V, 4040mAh with integrated battery diagnostics (AM CT50 -Ex) |
| Hours of Operation | 12+ hours |
| Decode Capabilities | Honeywell N6600 Slim Imager Engine (1D/2D barcode symbologies) Honeywell SDKs for Android and Windows |
| Application Software | Honeywell Power Tools and Demos |
| MECHANICAL | |
| Dimensions (LxWxH) | 160 mm x 82.5 mm x 19 mm (6.3“ x 3.2“ x 0.75“) |
| Weight | approx. 342 grams (12.1 oz) with battery pack |
| ENVIRONMENTAL | |
| Operating temperature | -20 to +50 °C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 0 to 95% relative humidity |
| (non-condensing) | |
| Drop | 2.4 m (8 ft) to concrete at room temp per MIL-STD 810G |
| 1.5 m (5 ft) to concrete at -10ºC to 50ºC temperature range | |
| 1.2 m (4 ft) to concrete down to -20ºC | |
| Tumble | Exceeds 1,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification |
| Environmental Sealing | Independently certified to meet IP67 standards for moisture and particle intrusion |
| WIRELESS CONNECTIVITY | |
| WWAN | • LTE (4G) Quad-Band (Bands 2, 4, 5, 17) |
| • UMTS/HSPA+ (3G) Quad-Band (Bands 1, 2, 5, 8) | |
| • GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz) | |
| • WWAN Radio (EU) LTE (4G) | |
| • Tri-Band (Bands 3, 7, 20) | |
| • UMTS/HSPA+ (3G) Quad-Band (Bands 1, 2, 5, 8) | |
| • GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz) | |
| WLAN | IEEE 802.11 a/b/g/n/ac; Wi-Fi certified |
| WLAN Security (Windows) | OPEN, WEP, WPA/WPA2 (Personal and Enterprise) |
| Supported EAP | TLS, PEAP-MS-CHAP-V2, TTLS |
| WLAN Security (Android) | OPEN, WEP, WPA/ WPA2 (Personal and Enterprise) |
| Supported EAP | TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified (Android only) |
| Bluetooth | Class 2 V4.0 Bluetooth |
| Supported Bluetooth Profiles | HFP, PBAP, A2DP, AVRCP, OPP only |
| NFC | Integrated Near Field Communication |
| VoIP | Supported |
| VPN | IPSec V4/L2TP, PPTP |
| Push to Talk (PTT) | Supported |
| GPS Supported Protocols | GNSS Receiver for GPS and GLONASS |
Certifications:
- United Kingdom – Ecom i.roc Ci70 Ex ATEX Certificate
- Germany – Ecom i.roc Ci70 Ex ATEX Certificate
- United Kingdom – Ecom i.roc Ci70 Ex IECEx Certificate
- United Kingdom – Ecom i.roc Ci70 Ex IECEx Mining Certificate
- Ecom i.roc Ci70 Ex Intertek Certificate
- Brazil – Ecom i.roc Ci70 Ex NCC Certificate
- Japan – Ecom i.roc Ci70 Ex TIIS Certificate
- Japan – Ecom i.roc Ci70 Ex TIIS Ex25 Certificate
- United States – Ecom i.roc Ci70 Ex MHSA Certificate
- South Africa – Ecom i.roc Ci70 Ex ExploLabs Mining Certificate
- South Africa – Ecom i.roc Ci70 Ex ExploLabs Gas and Dust Certificate
Resources:
Whitepapers:
- Ultra-Rugged Mobile Computers
- The Best Data Capture Technology
- RFID Improves Operation ROI
- Make Field Service Best Practices Even Better
- How Ruggedness Reduces TCO
- Guide to Scanning Technologies
This product is discontinued. Please check the similar product here.
Pam –
Another powerful Intrinsically safe computer from Ecom. Not only ATEX and IECEx Zone 1 rated, but also has tons of global markings including NEC and MSHA. A barcode scanner and at the same time a handheld computer that provides all the important features you need to do the job inside hazardous areas.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Question
Farhan Masood –
Does the RFID Reader support HID Prox Cards like Corporate 1000, Seos, and Mifare, Desfire, EV1 and EV2
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Sales Intrinsically Safe Store –
Thank you for you inquiry. Standard HID prox cards are usually 125 KHz LF RFID, while some of the other protocols mentioned, like the Mifare ones, are 13.56 Mhz HF RFID. We have readers* that cover both LF and HF RFID, but we don’t have ones that do both. The Ci70 is discontinued, but for the most part all of the reader technology that was available on the Ci70 is now available on the Ident-Ex. Check the device here. https://intrinsicallysafestore.com//product/intrinsically-safe-scanner-ecom-ident-ex-01/
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
