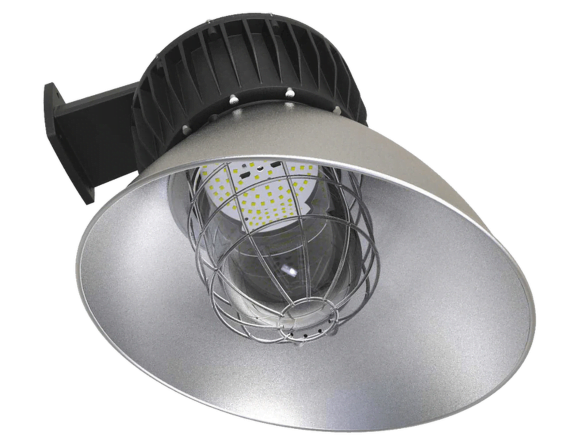

James Industry EX F Series Explosion Proof Lights

Out of StockSKU: EX-80W FN50D120

$929.63

This product is currently unavailable. Our team can help you find a suitable alternative or advise on lead times.

Safety Specifications

Incl. accredited factory seal & certification stamps

ATEX RatingZone 1
Hazardous Area RatingClass 1 Division 1
IECEx CertifiedYes

Product Description

Luminaire James Industry F Series can be used in ATEX Zone 1/21, Class I Division I and II, Class II Division I and 2, and Class III dangerous places. IECEx and Marine Makings are behind this. 100-277V AC is the voltage that can be used to connect to the computer or TV. High vibration resistance, copper-free aluminum, high efficiency, IK10, and IP66 ratings are all good features. 11200 lumens, 5000K CCT, Non-Dimmable, 120° Beam Angle, and a rated power of 80W are some of the other things this light has.

Technical Datasheet

Certification & Specification

Country of Origin	China (CN)
ATEX Rating	Zone 1
Hazardous Area Rating	Class 1 Division 1
IECEx Certified	Yes

Product Overview

Intrinsically Safe Luminaire James Industry F Series is certified for use in ATEX Zone 1/21, Class I Division I and II, Class II Division I and II, Class III hazardous locations. Supported by IECEx and Marine Makings. Intrinsically Safe Luminaire can be used as a spotlight, downlight, tunnel light, floodlight, and wall pack for general illumination in hazardous areas.

Features:

ATEX Zone 1 / 21
Class I Division I and II, Class II Division I and II, Class III
IECEx
Marine and Wet Locations
High efficacy: up to 140lm/W
CRI>80
Surface mounting and pendant installations
Wide and narrow optics for uniform illumination
Copper free aluminum
High vibration resistance
NEMA 4X, IP66
IK10
5 years limited warranty

Specifications:

Product	EX-80W FN50D120
Actual Wattage	80W
Beam Angle (Degree)	120°
Size(inch)	11.5'x11.5'x16.1'
nput Voltage	AC100-277V
Lumens	11200
Working Hours	5 years
CRI	70
Certification	UL1598/UL1598A/UL844
