Ion Science Cub’s ATEX Zone 0 certified Personal VOC Detector is intrinsically safe. Small, light, and very sensitive—these are the three words that best describe this device. IECEx certification is a guarantee of quality. As a portable VOC detector using photoionization detection (PID) technology, Cub keeps you safe in the workplace by quickly and accurately detecting volatile organic compounds (VOCs). Wearing it is a pleasure because it is both durable and inconspicuous. Cub offers the greatest dynamic range on the market, measuring over 480 selected chemicals from 1 ppb to 5000 ppm.
The instrument’s auditory, vibrating, and flashing LED alerts will notify you when worker exposure exceeds pre-set limits. The choice between hours and minutes for automated logging is shown in ppb and ppm on its bright, backlit LCD display.
Features:
- ATEX Zone 0
- IECEx
- 10.6 eV lamp
- 10.0 eV lamp
- Large LCD display
- Battery Life: 12 hours
- Humidity Resistant
- Anti-contamination
- Flashing LED alarm
- Vibration alarm
- 895 dB sounder
- Upgradeable ppm to ppb
- IP65
Versions
Cub Kits with Docking Stations
- Charge Dock + (0.1 – 5000ppm) Cub PPM
- Data Dock + (0.1 – 5000ppm)Cub PPM
- Calibration Dock + (0.1 – 5000 ppm) Cub PPM
- Charge Dock + (1ppb – 5000ppm) Cub PPB
- Data Dock + (1ppb – 5000ppm) Cub PPB
- Calibration Dock + (1ppb – 5000ppm) Cub PPB
- Charge Dock + (10ppb – 5000ppm) Cub TAC
- Data Dock + (10ppb – 5000ppm) Cub TAC
- Calibration Dock + (10ppb – 5000ppm) Cub TAC
Cub Instruments Only
- (0.1 – 5000 ppm) Cub PPM
- (1 ppb – 5000 ppm) Cub PPB
- (10 ppb – 5000 ppm) Cub TAC
Cub personal PID detector
For speed, precision, and humidity-resistant functioning, Cub’s unique photoionization detection (PID) sensor technology has been independently certified as the best. In the most difficult circumstances, its revolutionary Fence Electrode Technology and unique anti-contamination features allow it to operate for longer periods of time while still producing accurate readings you can trust.
Cub has three separate modes: ppm, ppb, and TAC. Depending on your desired level of sensitivity, go with a ppb or ppm equipment equipped with a 10.6 eV light to properly detect a wide spectrum of VOCs. Accurate detection down to ppb levels is provided using Cub TAC with a 10.0 eV light.
Cub PID monitor user service

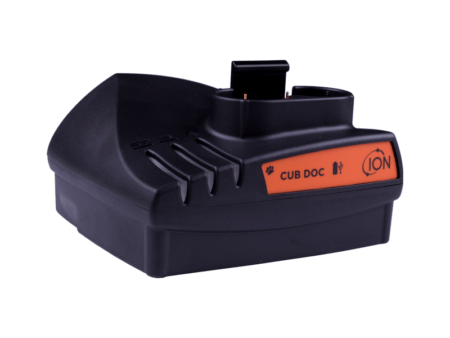

Upgradeable ppb sensitivity can be purchased quickly and easily. CubDoc docking stations are available for USB communication, charging, and calibrating your instrument, dependent on your requirements.
Specification:
SENSITIVITY | 0.001 ppm (isobutylene equivalent) * |
0.002 mg/m3 (isobutylene equivalent) * | |
ACCURACY | ± 5% display reading ± one digit |
RESPONSE | <13 seconds (T90) |
APPROVALS | Ex ll 1 G Ex ia llC T4 Ga (-20 oC ≤ Ta ≤ 55 oC) |
Baseefa11ATEX0027 IECEx BAS 11.0014 | |
BATTERY | Battery life up to 12 hours |
Battery charge time 4 hours | |
PID LAMP OPTIONS | 10.6 eV, 10.0 eV |
DATA LOGGING | 30,000 readings |
COMMUNICATION | USB 2.0 |
ALARM | LEDs, audio and vibrate |
Sounder 895 dB @ 300mm | |
Pre-programmed TWA & STEL. | |
Work exposure alarm levels on all models. | |
TEMPERATURE | Operating: |
-20 to 60 oC (-4 to 140 oF) | |
Certified: | |
-20 to 55 oC (-4 to 131 oF) | |
WEIGHT AND DIMENSIONS | 111g (2.91 oz) |
61 x 66 x 59 mm (2.4 x 2.6 x 2.3”) | |
RESOLUTION | ppm 0.1 ppm |
ppb 0.001 ppm | |
TAC 0.01 ppm | |
RANGE | 0-5000 ppm |
CALIBRATION | 2 point calibration via docking station |
UPGRADEABLE | Upgrade ppm to ppb |
IP RATING | Designed to IP65 (heavy rain) |
LCD DISPLAY | Backlit multi colour |
FLOW RATE | N/A (no pump) |
* Model dependant | |
** IP65 with PTFE filter fitted, IP64 without PTFE filter fitted. |
Certifications:
Resources:
- Brochure
- Brochure Catalog
- Manual
- Installation Instruction Software
- Quick Start Guide
- MSDS Sheet Alumina Powder
- MSDS Sheet Isobutylene Gas
