ION Science Falco 2 TAC VOC Monitor

The ION Science Falco 2 TAC Intrinsically Safe Fixed VOC Gas Detectors represent the pinnacle of fixed photoionization detection (PID) technology. It is purpose-built for continuous monitoring of volatile organic compounds (VOCs) and Total Aromatic Compounds (TACs) in hazardous locations.

When evaluating equipment for hazardous environments, many safety managers are now considering the advanced ION Science Falco 2 TAC Intrinsically Safe Fixed VOC Gas Detectors. Moreover, they are certified for ATEX, IECEx, and North American Zone 1 environments.

These devices provide reliable, life-saving ambient air safety telemetry across refineries, chemical plants, and heavy industrial facilities. In these places, explosive or toxic gases pose an everyday risk.

In the field, the Falco 2 series delivers unrivaled operational resilience through its patented Typhoon Technology. This prevents condensing moisture from disrupting the PID sensor. Furthermore, Fence Electrode Technology mitigates dust contamination. Users can effortlessly navigate settings without a hot work permit using the high-contrast white-on-black OLED display. The tamper-proof 5-magnetic-switch interface is operated via a magnetic pencil—ensuring the flameproof ExD housing remains completely sealed during maintenance.

Key Features:

✅ ATEX/IECEx Zone 1 (Ex db ib IIC T4 Gb) and North American Class I, Zone 1 hazardous area certificationsbr/p>

ION Science Falco 2TAC Technical Specifications:

Feature	Details
Detector Principle	Photo-Ionization Detector (PID)
Lamp Energy	10.0 eV
Target Species	Total Aromatic Compounds (TACs) / Benzene
Detection Range	0 to 50 ppm
Resolution	0.01 ppm
Accuracy	±5% or ±1 digit
Electrode Stack	TAC Stack (White with a Gold Spot)
Sensor Variant	MiniPID 2 Falco TAC
Response Time (T90)	Pumped: < 10 seconds / Diffused: < 30 seconds
Measuring Interval	User programmable: 0 to 10 minutes (1-second steps)
PID Lamp Lifetime	Up to 10,000 hours from date of delivery
Display Screen	High-contrast white-on-black OLED (128 x 64 pixels)
User Interface	5 magnetic switches with LED confirmation (up, down, left, right, enter)
Status Indicator	Tri-color LED (Red, Amber, Green) visible from 20 meters in direct sunlight
Analog Output	Galvanically isolated 4-20 mA current loop
Digital Interface	RS-485 Modbus RTU
Relays	2 x SPDT (configurable NO & NC options; 60 VDC/2 A or 50 VAC/2 A max load)
Pumped Flow Rate	260 cc/min (Pumped model only)
Nominal Voltage	8 V to 40 VDC
Power Consumption	Typical: 2 W / Maximum: 8 W
Ingress Protection	IP65 (Main Unit and Sensor Head)
Operating Temperature	Diffused: -40°C to 50°C / Pumped: -20°C to 50°C
Operating Humidity	0 to 100% RH (condensing; featuring Typhoon Technology)
Cable Glands	M25 x 1.5 ExD (Cable diameter 13 to 18 mm)
Weight	Diffused: 2.5 kg / Pumped: 2.9 kg
Dimensions (H x W x D)	Diffused: 223 x 192 x 115 mm / Pumped: 325 x 192 x 115 mm
Hazardous Certifications	ATEX/IECEx: II 2G Ex db ib IIC T4 Gb North American: Ex db ib IIC T4 Gb Class I, Zone 1, AEx db ib IIC T4 Gb

Certifications & Compliance:

🔗 ATEX Certificate (FTZU 15 ATEX 0113X) – Ex db ib IIC T4 Gb compliance for European explosive atmospheres
🔗 IECEx Certificate (IECEx FTZU 16.0011X) – Global validation for safe operation within Zone 1 gas hazards
🔗 QPS North America (LR1355) – Certified for Class I, Zone 1, AEx db ib IIC T4 Gb industrial installations
🔗 Ingress Protection (IP65) – Complete protection against dust ingress and low-pressure water jets
🔗 Download Datasheet

Applications of ION Science Falco 2 & Falco 2 TAC:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x Falco 2 Fixed VOC Detector Base Unit
📦 1x MiniPID 2 Sensor (10.6 eV or 10.0 eV Lamp Pre-fitted)
📦 1x Magnetic Pencil (Part No. 873202)
📦 1x MiniPID Removal & Electrode Stack Tools

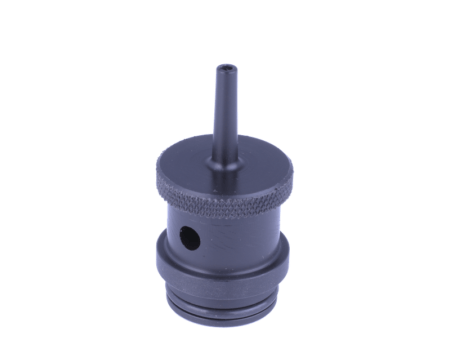

📦 1x Calibration Adapter (Diffused) or Hydrophobic Filter (Pumped)
📦 1x 2x M20 Cable Entry Glands
📦 1x Safety Notice & Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 2 - 3 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

What is the primary difference between the Falco 2 Standard and the Falco 2 TAC?
The standard Falco 2 uses a 10.6 eV lamp to broadly detect over 700 volatile organic compounds. In contrast, the Falco 2 TAC utilizes a 10.0 eV lamp. This lamp is specifically tuned to filter out straight-chain hydrocarbons and pinpoint Total Aromatic Compounds (TACs) like Benzene.

Can the Falco 2 be calibrated and serviced inside a hazardous area?
Yes. Thanks to its dual certification and an externally located, intrinsically safe sensor head, routine maintenance, lamp cleaning, and calibrations can be executed safely in hazardous zones. This is possible without isolating the main power supply.

How does Typhoon Technology protect the sensor?
Typhoon Technology is an advanced internal design mechanism. It prevents condensing moisture from accumulating on the PID lamp window. As a result, it effectively eliminates false positive readings common in humid or outdoor coastal environments.

What are the maximum sampling distances for the pumped version?
The Falco 2 Pumped variant features an integrated flow system running at 260 cc/min. This allows it to accurately sample gases from up to 20 meters away using standard non-reactive PTFE or PVDF tubing.
