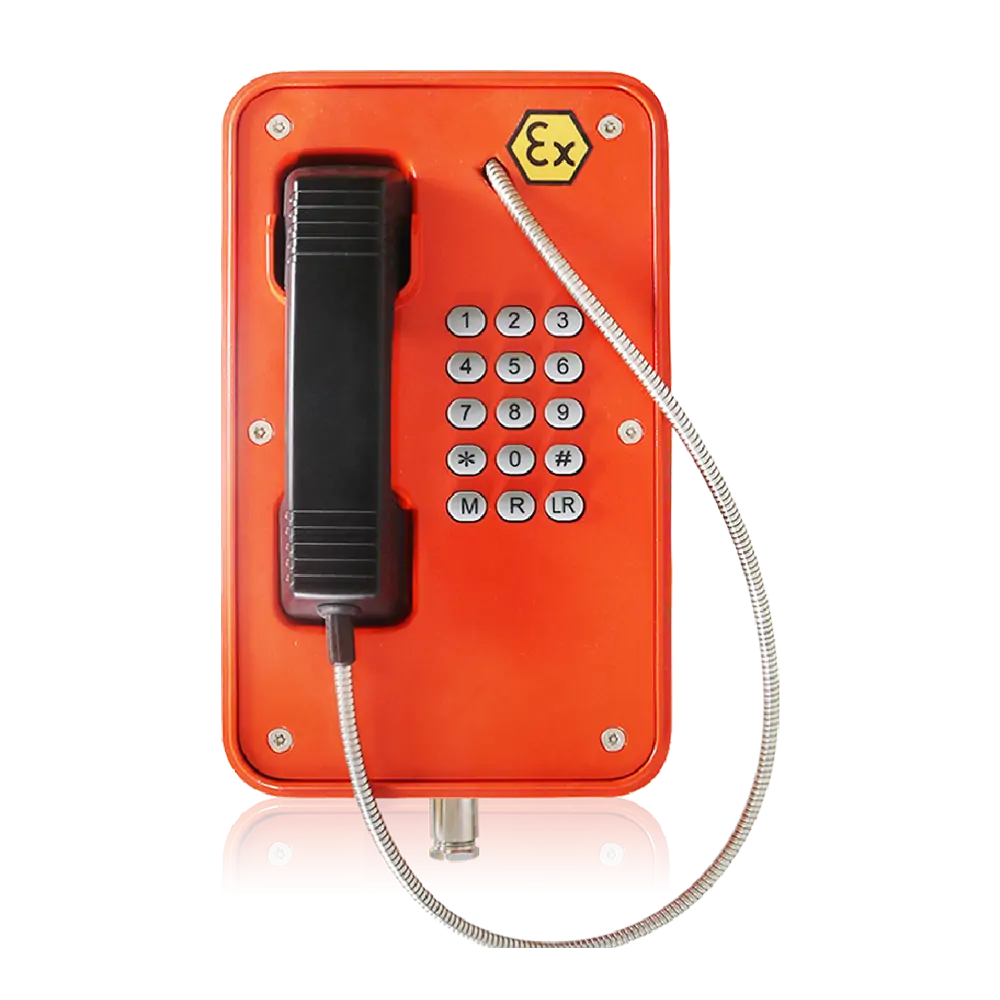

Intrinsically Safe Explosion-proof Telephone JREX106-A03

Intrinsically Safe Explosion-proof Telephone JREX106-A03 is designed to provide voice communication in hostile environments where reliability, efficiency, and safety are paramount. It can withstand large temperature differences, high humidity, exposure to sea water and dust, corrosive atmospheres, explosive gases and particles, as well as mechanical wear and tear. This makes it ideal for use as an emergency telephone. The unique robust handset is manufactured from moulded Bulk Molding Compound and specifically designed to withstand arduous use in all environments. It features an armoured cord to provide additional resistance to vandalism or heavy industrial use. The Explosion-proof and Weatherproof Telephones are intended for use in chemical plants, coal mines, power stations, the armed services, and heavy industries that require highly reliable and explosion-protected telephony in adverse conditions.

Features:

Standard Analogue Explosion-proof & Weatherproof Telephone l Aluminium alloy die-casting body l Vandal resistant handset and cord l Full Keypad l Inductive coupler fitted as standard for hard of hearing l Wall mounting, simple installation l Phone line powered(Analogue) l Ex eb ib [ib Gb] mb IIC T6/T5 Gb l Ex ib [ib Db] tb IIIC T80℃/T95℃ Db l Zone 1,2,22 l Weather proof protection to IP66-IP67 l IECEx,ATEX,CE,FCC,RoHs compliant

Specifications:

Explosion protection:

• Ex eb ib [ib Gb] mb IIC T6/T5 Gb
• Ex ib [ib Db] tb IIIC T80℃/T95℃ Db
• T6/T80℃: -40℃ to +40℃
• T5/T95℃: -40℃ to +55℃
• Zone 1, 2, 22

Lightning / Transients

• Protection to ITU-T k.21 enhanced levels

Casing Material

• Die cast aluminium, epoxy powder coated.

Color

• Available in four colors: Orange,Yellow,Red and Blue

Keypad

• Weather resistant full Keypad, No.of keys(TOTAL15KEYS):0-9,*,#,Redial, Mute, Last Number Redial

Handset

• With Noise canceling microphone,for effective communication from noisy areas(Armored SS cord stands up to rough treatment,optional for black curly cord )

Mounting

• Wall/column/structural Captive cover screws prevent loss during installation

Weather Resistance

• IP66-IP67

Ringing Tone

• Built-in External Ringer that provides penetrating calling signal(85dBA@1meter)

Hook switch

• Electronic / magnetic with no visible moving parts

M.T.B.F.

• Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight

• Up to 8 kg depending on option

Datasheet:

• JREX 106-A3 Analogue Datasheet
