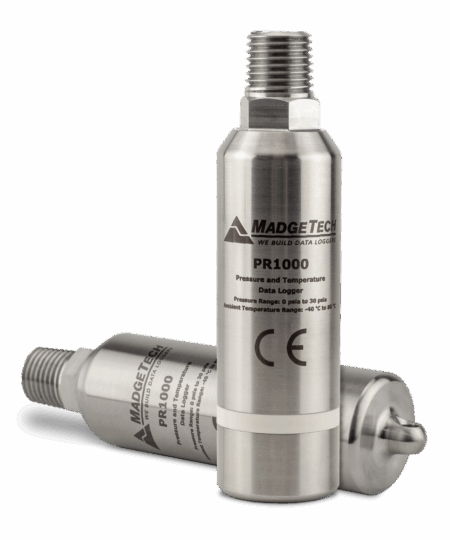

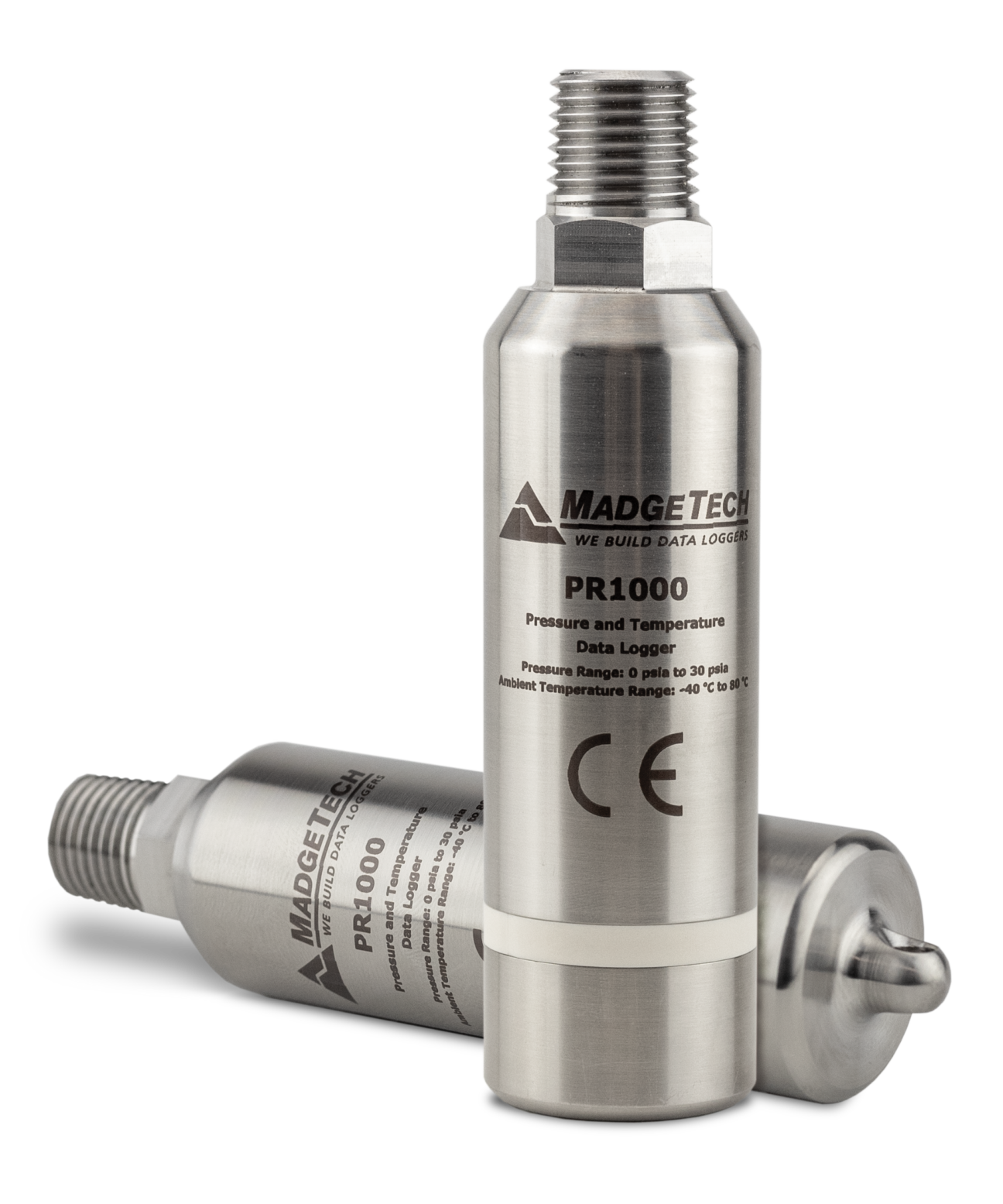

MadgeTech PRTEMP1000IS Pressure and Temperature Data Logger
The MadgeTech PRTEMP1000IS is an intrinsically safe pressure and temperature data logger designed specifically for hazardous environments. Certified for use in Class I, Division 1 (C1D1) hazardous areas, this compact, rugged device provides accurate, real-time monitoring of critical parameters in oil & gas, chemical processing, and industrial facilities where explosion-proof performance is essential.
Engineered with stainless steel construction and precision sensors, the PRTEMP1000IS ensures high-accuracy measurements even under the harshest conditions. It operates seamlessly with MadgeTech’s powerful software, enabling efficient data collection, analysis, and reporting — all while meeting the strict safety demands of C1D1 environments.
Key Features:
✅ Class I, Division 1 Certified – Safe for hazardous areas
✅ User-Programmable Settings – Customize logging intervals and alarms
✅ Durable 316 Stainless Steel Enclosure – Corrosion-resistant and rugged
✅ High Accuracy Sensors – Reliable pressure and temperature measurements
✅ Extended Battery Life – Up to 1 year depending on frequency of readings
✅ Wide Measurement Range – Pressure up to 5000 PSI, temperature from -40°C to +80°C
✅ Easy Data Retrieval – USB interface with MadgeTech Software compatibility
✅ LED Status Indicator – Visual confirmation of operation and logging
✅ Submersible Design – IP68-rated for full submersion
✅ Intrinsically Safe Design – For use in explosive atmospheres
📦 Package Options:
🔹 Standard Configuration: Includes PRTEMP1000IS logger, battery installed
🔹 Logger + Interface Cable: Adds MadgeTech IFC400 Docking Station
🔹 Full Kit: Logger, Interface Cable, and Secure Software Suite
MadgeTech PRTEMP1000IS Technical Specifications:
| Specification | Details |
|---|---|
| Pressure Range | 0–5000 PSI (depending on model) |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Pressure Resolution | 0.5 PSI |
| Temperature Resolution | 0.01 °C |
| Accuracy (Pressure) | ±0.5% FSR |
| Accuracy (Temperature) | ±0.5 °C |
| Material | 316 Stainless Steel |
| Dimensions | 5.35 in x 1.55 in (135 mm x 39 mm) |
| Weight | Approx. 12 oz (340 g) |
| Battery Life | Up to 1 year (based on usage) |
| Data Capacity | 32,766 readings per channel |
| IP Rating | IP68 – Submersible |
| Certifications | C1D1, ATEX, FM Approved |
| Interface | USB (requires IFC400 Interface Cable) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F) |
Certifications & Compliance:
🔗Class I, Division 1 Certification – Approved for hazardous gas environments
🔗 ATEX Certification – European compliance for explosive atmospheres
🔗 IP68 Rating – Dust tight and protected against continuous submersion
🔗 316 Stainless Steel Enclosure – Chemical and corrosion resistance
🔗 Download Datasheet
Applications of MadgeTech PRTEMP1000IS:
🔹 Oil & Gas
🔹 Chemical Processing
🔹 Mining Operations
🔹 Laboratories
🔹 Industrial Manufacturing
What’s in the Box?
📦 1x MadgeTech PRTEMP1000IS Data Logger
📦 1x Pre-installed Battery
📦 1x Quick Start Guide
📦 1x Certification Documentation
Ordering & Shipping Details
📦 Lead Time: 1-2 weeks
📍 Shipping Terms: Worldwide / Expedited Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the maximum pressure the PRTEMP1000IS can measure?
The logger can monitor pressures up to 5000 PSI, depending on the model configuration.
Is the battery replaceable?
No, the PRTEMP1000IS uses a long-life battery designed to last through its full service life; for battery replacement, factory service is required to maintain certifications.
What software is compatible with the PRTEMP1000IS?
MadgeTech Data Logger Software is used for configuration, downloading, and analyzing the data. It is available for free from MadgeTech’s official site.
Can this device be used underwater?
Yes, the PRTEMP1000IS is IP68-rated and designed for full submersion, making it ideal for demanding industrial applications including underwater environments.
