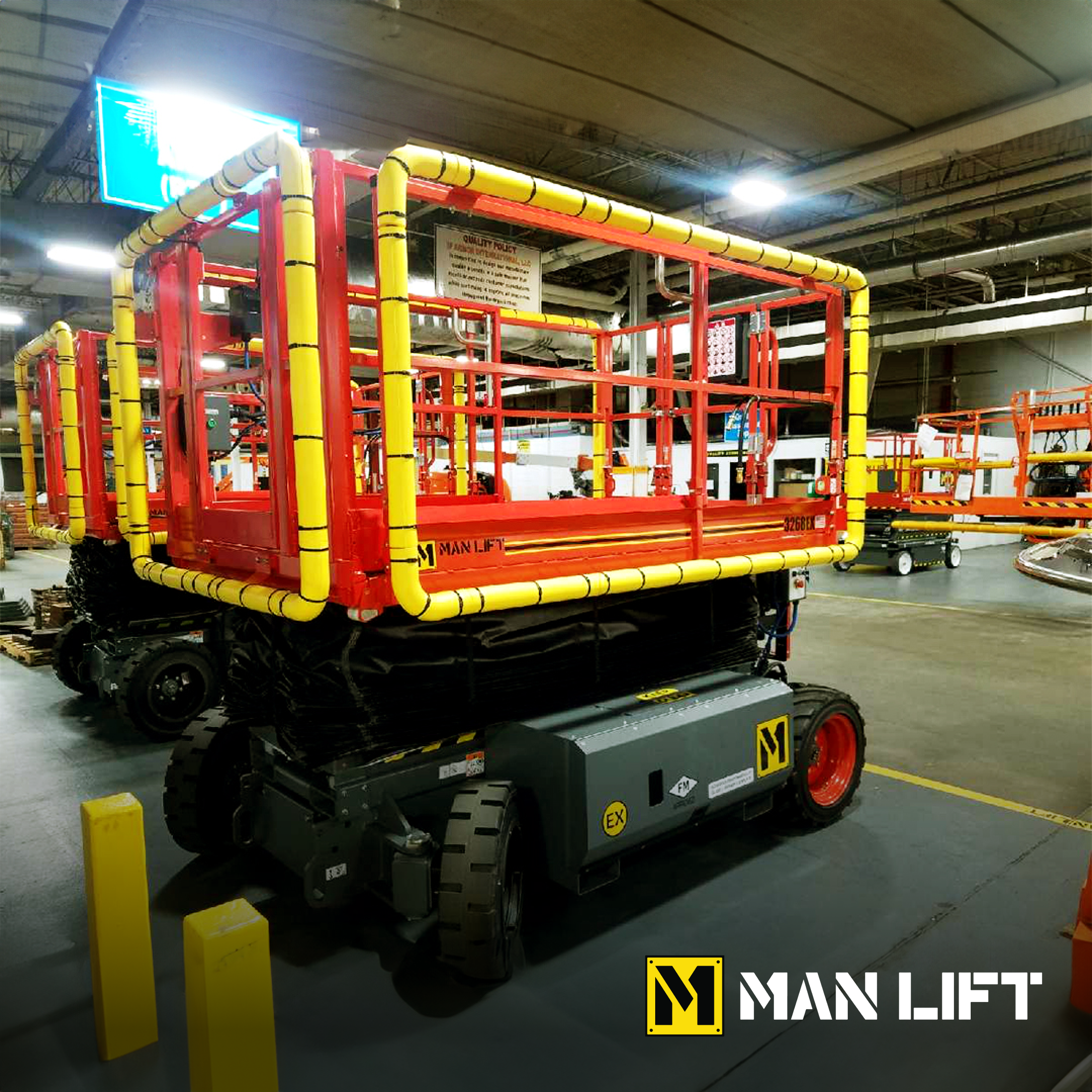

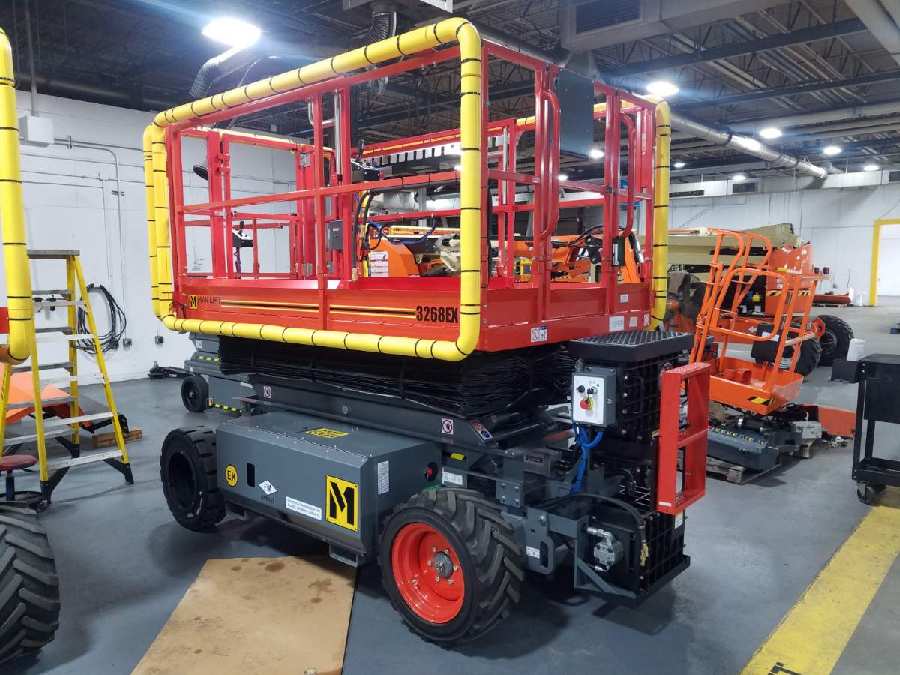

3268EX Intrinsically Safe Man Lift
The 3268EX is a rugged, Skyjack-based aerial work platform specifically engineered by Man Lift for the most demanding hazardous environments. Certified by Factory Mutual (FM) for Class 1, Division 1 locations, this lift provides a safe and reliable solution for maintenance and operational tasks in areas where flammable vapors or gases are present.
This high-performance lift features a specialized T-Box design that physically separates the motor from EX-controls, ensuring maximum safety without compromising power. With a 38 ft working height and an Enhanced PAR (EPAR) collision mitigation system, operators can navigate tight industrial spaces with confidence, supported by static electricity conductive tires to prevent hazardous discharge.
Key Features:
✅ Class 1, Division 1 Rated (Explosion Proof)
✅ Fully Compliant UL 583 Type EX Standard
✅ 1,000 lbs (454 kg) Platform Capacity
✅ 38 ft (11.58 m) Working Height
✅ Enhanced PAR (EPAR) Collision Mitigation System
✅ Two Superior Tire static electricity conductive tires
✅ 5 ft (1.52 m) Deck Extension for increased reach
✅ 8 x 6V 420 Amp-hr Battery System
✅ ANSI A92.20 Compliant
📦 Package Options:
🔹 Standard 3268EX Unit: Base explosion-proof lift with standard battery set
🔹 5′ PowerDeck Hydraulic Extension: Upgraded hydraulic deck for easier extension
🔹 Lighting Package: EX Rated LED Task Lighting for low-visibility areas
🔹 Utility Package: 3/8″ Airline to Platform for pneumatic tool support
3268EX Intrinsically Safe Man Lift Technical Specifications:
| Feature | Details |
|---|---|
| Working Height | 38 ft (11.58 m) |
| Raised Platform Height | 32 ft (9.75 m) |
| Platform Capacity | 1,000 lbs (454 kg) |
| Platform Size (Inside) | 56 x 96 in (1.42 m x 2.44 m) |
| Deck Extension | 5 ft (1.52 m) |
| EX Rating | Class 1, Division 1; UL 583 Type EX |
| Power Source | 8 x 6V 420 Amp-hr Batteries |
| Drive Speed (Stowed) | 1.9 mph (3.05 km/h) |
| Overall Width | 69.5 in (1.76 m) |
| Stowed Height | 99 in (2.51 m) |
| Safety System | EPAR Collision Mitigation System |
| Tires | Static electricity conductive |
Certifications & Compliance:
🔗 Class 1, Division 1 – Certified for environments with flammable gases/vapors
🔗 FM Certified – Explosion Proof (EX) Rating verified by Factory Mutual
🔗 UL 583 Type EX – Standard for Electric-Battery-Powered Industrial Trucks
🔗 ANSI A92.20 – Compliance for aerial platform design and safety
🔗 Download Datasheet
Applications 3268EX Intrinsically Safe Man Lift:
🔹 Oil & Gas Refineries
🔹 Chemical Processing Plants
🔹 Aerospace & Defense Hangars
🔹 Mining Operations
🔹 Petrochemical Facilities
What’s in the Box?
📦 1x 3268EX Man Lift Unit
📦 8x 6V 420 Amp-hr Batteries
📦 1x 20 Amp Automatic SCR Charger
📦 1x Set of Static Conductive Tires
📦 1x User & Maintenance Manual
Ordering & Shipping Details
📦 Lead Time: 16 weeks from date of firm order
📍 Shipping Terms: FOB Shelby, NC
💳 Payment Options: Credit card, ACH, and Net30
Related Products:
FAQs:
What is the maximum working height of the 3268EX?
The unit provides a maximum working height of 38 ft (11.58 m).
Is this lift safe for use in Class 1 Division 1 areas?
Yes, it is FM certified and fully compliant with the UL 583 Type EX standard for C1D1 environments.
What happens if the lift hits an object?
The lift is equipped with an Enhanced PAR (EPAR) Collision Mitigation System that automatically stops the lift upon impact.
How long is the warranty?
The warranty period is twelve (12) months for parts and labor, starting from the delivery date.
